IOobject Class Reference

IOobject defines the attributes of an object for which implicit objectRegistry management is supported, and provides the infrastructure for performing stream I/O. More...

Inheritance diagram for IOobject:

Collaboration diagram for IOobject:

Public Types
enum	objectState { GOOD , BAD }
	Enumeration defining the valid states of an IOobject. More...
enum	readOption { MUST_READ , MUST_READ_IF_MODIFIED , READ_IF_PRESENT , NO_READ }
	Enumeration defining the read options. More...
enum	writeOption { AUTO_WRITE = 0 , NO_WRITE = 1 }
	Enumeration defining the write options. More...
enum	fileCheckTypes { timeStamp , timeStampMaster , inotify , inotifyMaster }
	Enumeration defining the file checking options. More...

Public Member Functions
	TypeName ("IOobject")
	Runtime type information. More...
	IOobject (const word &name, const fileName &instance, const objectRegistry &registry, readOption r=NO_READ, writeOption w=NO_WRITE, bool registerObject=true)
	Construct from name, instance, registry, io options. More...
	IOobject (const word &name, const fileName &instance, const fileName &local, const objectRegistry &registry, readOption r=NO_READ, writeOption w=NO_WRITE, bool registerObject=true)
	Construct from name, instance, local, registry, io options. More...
	IOobject (const fileName &path, const objectRegistry &registry, readOption r=NO_READ, writeOption w=NO_WRITE, bool registerObject=true)
	Construct from path, registry, io options. More...
	IOobject (const IOobject &io, const objectRegistry &registry)
	Construct from copy resetting registry. More...
	IOobject (const IOobject &io, const word &name)
	Construct from copy resetting name. More...
	IOobject (const IOobject &io)=default
	Copy constructor. More...
autoPtr< IOobject >	clone () const
	Clone. More...
autoPtr< IOobject >	clone (const objectRegistry &registry) const
	Clone resetting registry. More...
virtual	~IOobject ()
	Destructor. More...
const Time &	time () const
	Return time. More...
const objectRegistry &	db () const
	Return the local objectRegistry. More...
const word &	name () const
	Return name. More...
const word &	headerClassName () const
	Return name of the class name read from header. More...
word &	headerClassName ()
	Return name of the class name read from header. More...
string &	note ()
	Return non-constant access to the optional note. More...
const string &	note () const
	Return the optional note. More...
virtual void	rename (const word &newName)
	Rename. More...
bool &	registerObject ()
	Register object created from this IOobject with registry if true. More...
bool	registerObject () const
	Register object created from this IOobject with registry if true. More...
readOption	readOpt () const
readOption &	readOpt ()

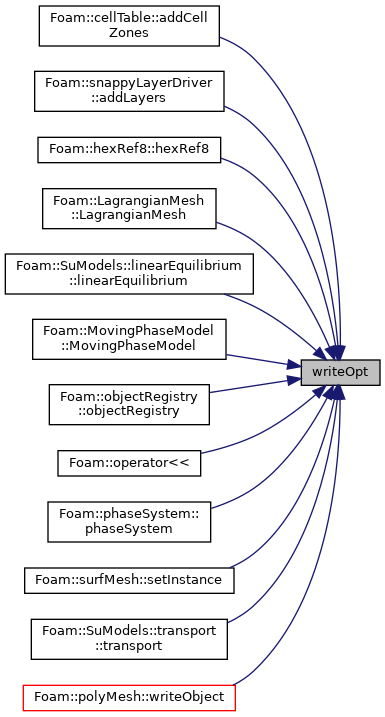

writeOption	writeOpt () const
writeOption &	writeOpt ()
word	group () const
	Return group (extension part of name) More...
word	member () const
	Return member (name without the extension) More...
const fileName &	rootPath () const
const fileName &	caseName (const bool global) const
fileName &	instance () const
	Return the instance directory, constant, system, <time> etc. More...
void	updateInstance () const
	If the instance is a time directory update to the current time. More...
const fileName &	local () const
fileName	path (const bool global) const
	Return complete path including the processor sub-directory. More...
fileName	objectPath (const bool global) const
	Return complete path + object name including the processor. More...
fileName	relativePath () const
	Return the path relative to the case directory. More...
fileName	relativeObjectPath () const
	Return complete relativePath + object name. More...
fileName	filePath (const word &typeName, const bool global) const
	Return complete path + object name if the file exists. More...
bool	readHeader (Istream &)
	Read header. More...
bool	headerOk ()
	Read header of local object without type-checking. More...
template<class Type >
void	warnNoRereading () const
	Helper: warn that type does not support re-reading. More...

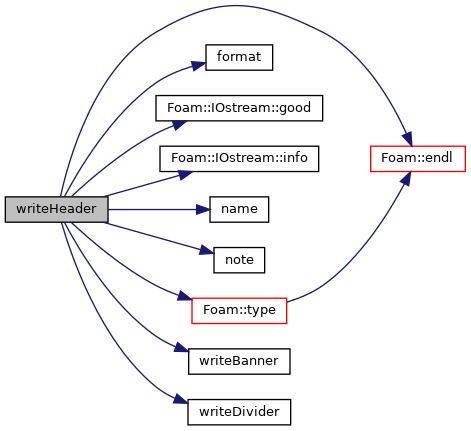

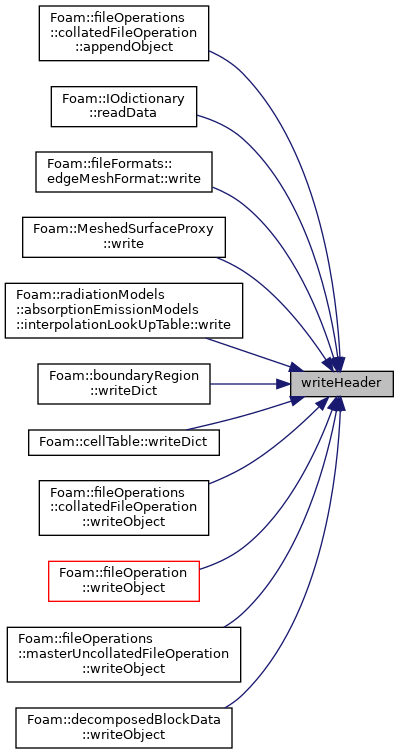

bool	writeHeader (Ostream &) const
	Write header. More...

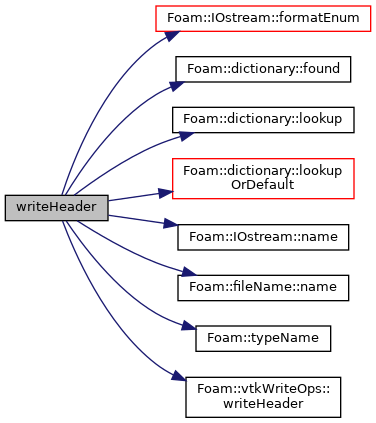

bool	writeHeader (Ostream &, const word &objectType) const
	Write header. Allow override of type. More...
bool	good () const
bool	bad () const
InfoProxy< IOobject >	info () const
	Return info proxy. More...
void	operator= (const IOobject &)
template<class Name >
Foam::word	groupName (Name name, const word &group)

Static Public Member Functions
static bool	fileNameComponents (const fileName &path, fileName &instance, fileName &local, word &name)
	Split path into instance, local, name components. More...
template<class Name >
static word	groupName (Name name, const word &group)
static word	group (const word &name)
	Return group (extension part of name) More...
static word	member (const word &name)
	Return member (name without the extension) More...
template<class Stream >
static Stream &	writeBanner (Stream &os, bool noHint=false)
	Write the standard OpenFOAM file/dictionary banner. More...
template<class Stream >
static Stream &	writeDivider (Stream &os)
	Write the standard file section divider. More...
template<class Stream >
static Stream &	writeEndDivider (Stream &os)
	Write the standard end file divider. More...

Static Public Attributes
static constexpr const char *	foamFile = "FoamFile"
	Keyword for the FoamFile header sub-dictionary. More...
static const NamedEnum< fileCheckTypes, 4 >	fileCheckTypesNames
static fileCheckTypes	fileModificationChecking
	Type of file modification checking. More...

Protected Member Functions
void	setBad (const string &)
	Set the object state to bad. More...
template<class Type >
bool	typeHeaderOk (const bool checkType)
	Read header using typeGlobalFile to find file. More...

Detailed Description

IOobject defines the attributes of an object for which implicit objectRegistry management is supported, and provides the infrastructure for performing stream I/O.

An IOobject is constructed with an object name, a class name, an instance path, a reference to a objectRegistry, and parameters determining its storage status.

Read options

Define what is done on object construction and explicit reads:

• MUST_READ

  Object must be read from Istream on construction.
  Error if Istream does not exist or can't be read. Does not check timestamp or re-read.

• MUST_READ_IF_MODIFIED

  Object must be read from Istream on construction.
  Error if Istream does not exist or can't be read. If object is registered its timestamp will be checked every timestep and possibly re-read.

• READ_IF_PRESENT

  Read object from Istream if Istream exists, otherwise don't.
  Error only if Istream exists but can't be read. Does not check timestamp or re-read.

• NO_READ

  Don't read

  Write options

  Define what is done on object destruction and explicit writes:

• AUTO_WRITE

  Object is written automatically when requested to by the objectRegistry.

• NO_WRITE

  No automatic write on destruction but can be written explicitly

Definition at line 98 of file IOobject.H.

Member Enumeration Documentation

objectState

enum objectState

Enumeration defining the valid states of an IOobject.

Enumerator
GOOD
BAD

Definition at line 109 of file IOobject.H.

readOption

enum readOption

Enumeration defining the read options.

Enumerator
MUST_READ
MUST_READ_IF_MODIFIED
READ_IF_PRESENT
NO_READ

Definition at line 116 of file IOobject.H.

writeOption

enum writeOption

Enumeration defining the write options.

Enumerator
AUTO_WRITE
NO_WRITE

Definition at line 125 of file IOobject.H.

fileCheckTypes

enum fileCheckTypes

Enumeration defining the file checking options.

Enumerator
timeStamp
timeStampMaster
inotify
inotifyMaster

Definition at line 132 of file IOobject.H.

Constructor & Destructor Documentation

IOobject() [1/6]

IOobject	(	const word &	name,
		const fileName &	instance,
		const objectRegistry &	registry,
		readOption	r = NO_READ,
		writeOption	w = NO_WRITE,
		bool	registerObject = true
	)

Construct from name, instance, registry, io options.

Definition at line 166 of file IOobject.C.

References Foam::endl(), and InfoInFunction.

Referenced by IOobject::clone().

Here is the call graph for this function:

Here is the caller graph for this function:

IOobject() [2/6]

IOobject	(	const word &	name,
		const fileName &	instance,
		const fileName &	local,
		const objectRegistry &	registry,
		readOption	r = NO_READ,
		writeOption	w = NO_WRITE,
		bool	registerObject = true
	)

Construct from name, instance, local, registry, io options.

Definition at line 197 of file IOobject.C.

References Foam::endl(), and InfoInFunction.

Here is the call graph for this function:

IOobject() [3/6]

IOobject	(	const fileName &	path,
		const objectRegistry &	registry,
		readOption	r = NO_READ,
		writeOption	w = NO_WRITE,
		bool	registerObject = true
	)

Construct from path, registry, io options.

Uses fileNameComponents() to split path into components.

Definition at line 229 of file IOobject.C.

IOobject() [4/6]

IOobject	(	const IOobject &	io,
		const objectRegistry &	registry
	)

Construct from copy resetting registry.

Definition at line 266 of file IOobject.C.

IOobject() [5/6]

IOobject	(	const IOobject &	io,
		const word &	name
	)

Construct from copy resetting name.

Definition at line 285 of file IOobject.C.

IOobject() [6/6]

IOobject ( const IOobject &  io )

default

Copy constructor.

~IOobject()

~IOobject ( )

virtual

Destructor.

Definition at line 306 of file IOobject.C.

Member Function Documentation

setBad()

void setBad ( const string &  s )

protected

Set the object state to bad.

Definition at line 416 of file IOobject.C.

References Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, InfoInFunction, messageStream::level, and s().

Here is the call graph for this function:

typeHeaderOk()

bool typeHeaderOk ( const bool  checkType )

protected

Read header using typeGlobalFile to find file.

and optionally check the headerClassName against Type

Definition at line 35 of file IOobjectTemplates.C.

References Foam::endl(), Foam::fileHandler(), IOobject::fileModificationChecking, IOobject::filePath(), IOobject::inotifyMaster, UPstream::master(), Pstream::scatter(), IOobject::timeStampMaster, and WarningInFunction.

Here is the call graph for this function:

TypeName()

TypeName

(

"IOobject"

)

Runtime type information.

fileNameComponents()

bool fileNameComponents ( const fileName &  path, fileName &  instance, fileName &  local, word &  name  )

static

Split path into instance, local, name components.

input IOobject(instance, local, name) ----- ------ "foo" ("", "", "foo") "foo/bar" ("foo", "", "bar") "/XXX/bar" ("/XXX", "", "bar") "foo/bar/" ERROR - no name "foo/xxx/bar" ("foo", "xxx", "bar") "foo/xxx/yyy/bar" ("foo", "xxx/yyy", "bar")

Definition at line 63 of file IOobject.C.

References Foam::endl(), Foam::first(), IOobject::instance(), fileName::isAbsolute(), Foam::isDir(), IOobject::local(), IOobject::name(), IOobject::path(), and WarningInFunction.

Here is the call graph for this function:

groupName() [1/2]

static word groupName ( Name  name, const word &  group  )

inlinestatic

Referenced by Foam::addField(), VoFTurbulenceDamping::addSup(), interfaceTurbulenceDamping::addSup(), phaseTurbulenceStabilisation::addSup(), buoyancyEnergy::addSupFields(), heatTransfer::addSupFields(), solidEquilibriumEnergySource::addSupFields(), phaseChange::addToDriftRate(), wallBoiling::addToNucleationRate(), reactionDriven::addToNucleationRate(), forces::alpha(), StationaryPhaseModel< BasePhaseModel >::alphaPhi(), StationaryPhaseModel< BasePhaseModel >::alphaRhoPhi(), basicCombustionMixture::basicCombustionMixture(), compressibleTwoPhaseVoFMixture::compressibleTwoPhaseVoFMixture(), compressibleVoFphase::compressibleVoFphase(), fixedTemperatureConstraint::constrain(), limitTemperature::constrain(), fixedTemperatureConstraint::constrainedFields(), limitTemperature::constrainedFields(), StationaryPhaseModel< BasePhaseModel >::continuityError(), dispersedTurbulentDispersionModel::continuousTurbulence(), DarcyForchheimer::correct(), powerLaw::correct(), solidification::correct(), phaseSystem::correctContinuityError(), InterfaceCompositionPhaseChangePhaseSystem< BasePhaseSystem >::correctInterfaceThermo(), ThermalPhaseChangePhaseSystem< BasePhaseSystem >::correctInterfaceThermo(), phaseStabilisedSnGrad< Type >::correction(), basicSpecieMixture::correctMassFractions(), Burns::D(), Gosman::D(), constant::d(), fixedInterfacialArea::d(), interfaceCompositionModel::D(), cavitation::d2mdtdpf(), kineticTheoryModel::devTau(), phasePressureModel::devTau(), forces::devTau(), MovingPhaseModel< BasePhaseModel >::divU(), cavitation::dmdtf(), phaseSystem::dmdtf(), MovingPhaseModel< BasePhaseModel >::DUDt(), StationaryPhaseModel< BasePhaseModel >::DUDt(), MovingPhaseModel< BasePhaseModel >::DUDtf(), StationaryPhaseModel< BasePhaseModel >::DUDtf(), adjustTimeStepToCombustion::execute(), Qdot::execute(), shearStress::execute(), totalEnthalpy::execute(), wallHeatFlux::execute(), wallShearStress::execute(), yPlus::execute(), adjustTimeStepToChemistry::execute(), massFractions::execute(), moleFractions::execute(), fieldAverageItem::fieldAverageItem(), phaseSystem::fillFields(), physicalProperties::findModelDict(), phaseSystem::foundInterfacialModel(), objectRegistry::foundType(), momentumTransportModel::groupName(), incompressibleInterPhaseTransportModel::incompressibleInterPhaseTransportModel(), InterfaceCompositionPhaseChangePhaseSystem< BasePhaseSystem >::InterfaceCompositionPhaseChangePhaseSystem(), interfaceTurbulenceDamping::interfaceTurbulenceDamping(), phaseSystem::interfacialDict(), MaxwellStefan< BasicThermophysicalTransportModel >::j(), unityLewisFourier< BasicThermophysicalTransportModel >::j(), unityLewisEddyDiffusivity< TurbulenceThermophysicalTransportModel >::j(), MovingPhaseModel< BasePhaseModel >::K(), StationaryPhaseModel< BasePhaseModel >::K(), StationaryPhaseModel< BasePhaseModel >::k(), phaseSystem::lookupInterfacialModel(), objectRegistry::lookupType(), MomentumTransferPhaseSystem< BasePhaseSystem >::momentumTransfer(), MomentumTransferPhaseSystem< BasePhaseSystem >::momentumTransferf(), momentumTransportModel::momentumTransportModel(), MovingPhaseModel< BasePhaseModel >::MovingPhaseModel(), forces::mu(), basicSpecieMixture::normalise(), JohnsonJackson::nu(), JohnsonJacksonSchaeffer::nu(), Schaeffer::nu(), Gidaspow::nu(), HrenyaSinclair::nu(), noneViscosity::nu(), Syamlal::nu(), strainRateFunction::nu(), phaseChange::phaseChange(), phaseForces::phaseForces(), basicThermo::phasePropertyName(), PhaseTransferPhaseSystem< BasePhaseSystem >::PhaseTransferPhaseSystem(), phaseTurbulenceStabilisation::phaseTurbulenceStabilisation(), StationaryPhaseModel< BasePhaseModel >::phi(), physicalProperties::physicalProperties(), populationBalanceModel::populationBalanceModel(), kineticTheoryModel::pPrime(), phasePressureModel::pPrime(), StationaryPhaseModel< BasePhaseModel >::pPrime(), kineticTheoryModel::pPrimef(), phasePressureModel::pPrimef(), wallBoiling::precompute(), phaseSurfaceArrheniusReactionRate::preEvaluate(), turbulenceFields::processField(), Fickian< BasicThermophysicalTransportModel >::q(), Fourier< BasicThermophysicalTransportModel >::q(), MaxwellStefan< BasicThermophysicalTransportModel >::q(), unityLewisFourier< BasicThermophysicalTransportModel >::q(), eddyDiffusivity< TurbulenceThermophysicalTransportModel >::q(), nonUnityLewisEddyDiffusivity< TurbulenceThermophysicalTransportModel >::q(), unityLewisEddyDiffusivity< TurbulenceThermophysicalTransportModel >::q(), InertPhaseModel< BasePhaseModel >::Qdot(), Qdot::Qdot(), wallBoiling::R(), phaseChange::R(), turbulenceFields::read(), yPlus::read(), forces::read(), phaseScalarTransport::read(), fixedInterfacialArea::read(), momentumTransportModel::readModelDict(), blendingMethod::readParameters(), scalarTransport::scalarTransport(), SecondaryPropertyModel< shapeModel >::SecondaryPropertyModel(), shearStress::shearStress(), kineticTheoryModel::sigma(), phasePressureModel::sigma(), liquidProperties::sigma(), phaseSystem::solve(), InterfaceCompositionPhaseChangePhaseSystem< BasePhaseSystem >::specieTransfer(), MPLIC::surfaceAlpha(), ThermalPhaseChangePhaseSystem< BasePhaseSystem >::ThermalPhaseChangePhaseSystem(), ThermoPhaseModel< BasePhaseModel, ThermoModel >::ThermoPhaseModel(), totalEnthalpy::totalEnthalpy(), StationaryPhaseModel< BasePhaseModel >::U(), JohnsonJacksonParticleSlipFvPatchVectorField::updateCoeffs(), JohnsonJacksonParticleThetaFvPatchScalarField::updateCoeffs(), maxwellSlipUFvPatchVectorField::updateCoeffs(), thermalBaffle1DFvPatchScalarField< solidType >::updateCoeffs(), VoFTurbulenceDamping::VoFTurbulenceDamping(), wallHeatFlux::wallHeatFlux(), wallShearStress::wallShearStress(), phaseMap::write(), wallBoilingProperties::write(), turbulenceFields::write(), wallHeatFlux::write(), wallShearStress::write(), yPlus::write(), and Henry::YfPrime().

group() [1/2]

Foam::word group ( const word &  name )

static

Return group (extension part of name)

Definition at line 134 of file IOobject.C.

References Foam::name(), and word::null.

Referenced by Foam::correctContactAngle(), phaseStabilisedSnGrad< Type >::correction(), momentumTransportModel::groupName(), incompressibleInterPhaseTransportModel::incompressibleInterPhaseTransportModel(), twoPhases::index(), momentumTransportModel::momentumTransportModel(), laminarModel< BasicMomentumTransportModel >::New(), LESModel< BasicMomentumTransportModel >::New(), RASModel< BasicMomentumTransportModel >::New(), momentumTransportModel::New(), JohnsonJackson::nu(), JohnsonJacksonSchaeffer::nu(), Schaeffer::nu(), Gidaspow::nu(), HrenyaSinclair::nu(), noneViscosity::nu(), Syamlal::nu(), strainRateFunction::nu(), scalarTransport::scalarTransport(), MPLIC::surfaceAlpha(), and Foam::surfaceToVolVelocity().

Here is the call graph for this function:

Here is the caller graph for this function:

member() [1/2]

Foam::word member ( const word &  name )

static

Return member (name without the extension)

Definition at line 149 of file IOobject.C.

References Foam::name().

Referenced by PhaseTransferPhaseSystem< BasePhaseSystem >::addDmdtYfs(), ThermalPhaseChangePhaseSystem< BasePhaseSystem >::correctInterfaceThermo(), basicSpecieMixture::index(), EDC::R(), laminar::R(), and Foam::surfaceToVolVelocity().

Here is the call graph for this function:

Here is the caller graph for this function:

clone() [1/2]

autoPtr<IOobject> clone ( ) const

inline

Clone.

Definition at line 283 of file IOobject.H.

References IOobject::IOobject().

Referenced by attachPolyTopoChanger::attach(), polyTopoChange::makeMesh(), coordinateSystem::New(), searchableSurface::iNew::operator()(), polyBoundaryMesh::polyBoundaryMesh(), searchableSurfaces::searchableSurfaces(), fvMeshSubset::setCellSubset(), and fvMeshSubset::setLargeCellSubset().

Here is the call graph for this function:

Here is the caller graph for this function:

clone() [2/2]

autoPtr<IOobject> clone ( const objectRegistry &  registry ) const

inline

Clone resetting registry.

Definition at line 289 of file IOobject.H.

References IOobject::IOobject().

Here is the call graph for this function:

time()

const Foam::Time & time

(

)

const

Return time.

Definition at line 318 of file IOobject.C.

References objectRegistry::time().

Referenced by chemistryModel< ThermoType >::chemistryModel(), zeroDimensionalMassSourceBase::correct(), dynamicMeshPointInterpolator::curPointField(), masterUncollatedFileOperation::exists(), masterUncollatedFileOperation::filePath(), masterUncollatedFileOperation::filePathInfo(), fileOperation::findInstance(), masterUncollatedFileOperation::findInstance(), functions::functions(), fvMeshSubset::interpolate(), Foam::fvm::laplacian(), odeChemistryModel::logFile(), Foam::MapGeometricFields(), Foam::MeshToMeshMapVolFields(), laminarFlameSpeed::New(), collatedFileOperation::objectPath(), populationBalanceModel::populationBalanceModel(), PrinceBlanch::PrinceBlanch(), fileOperation::processorsCasePath(), KochFriedlander::R(), noSintering::R(), dummy::R(), masterUncollatedFileOperation::read(), constSolidThermo::readProperty(), masterUncollatedFileOperation::relativeObjectPath(), subCycleField< GeometricField >::time(), collatedFileOperation::writeObject(), and masterUncollatedFileOperation::writeObject().

Here is the call graph for this function:

Here is the caller graph for this function:

db()

const Foam::objectRegistry & db

(

)

const

Return the local objectRegistry.

Definition at line 312 of file IOobject.C.

Referenced by refinementHistory::add(), refinementHistory::apply(), SprayParcel< ParcelType >::calcAtomisation(), PDRkEpsilon::correct(), transport::correct(), phaseStabilisedSnGrad< Type >::correction(), basicSubGrid::Db(), instabilityG::Db(), basic::Dcu(), IATEsource::Eo(), masterUncollatedFileOperation::filePathInfo(), basicSubGrid::G(), basic::Gk(), hexRef8Data::hexRef8Data(), InjectionModel< CloudType >::inject(), InjectionModel< CloudType >::InjectionModel(), PhiScheme< Type, PhiLimiter >::limiter(), IATEsource::Mo(), waveSuperposition::New(), laminarFlameSpeed::New(), momentumTransportModel::New(), fileOperation::processorsPath(), ReactingCloud< CloudType >::ReactingCloud(), Foam::readFields(), Foam::readUniformFields(), refinementHistory::refinementHistory(), masterUncollatedFileOperation::relativeObjectPath(), searchableSurfaceCollection::searchableSurfaceCollection(), searchableSurfaceWithGaps::searchableSurfaceWithGaps(), motionSmootherAlgo::setDisplacement(), surfMesh::surfMesh(), hexRef8Data::sync(), ThermoCloud< CloudType >::ThermoCloud(), waveSuperposition::transformation(), MPPICParcel< ParcelType >::trackingData::updateAverages(), IATEsource::Ur(), waveSuperposition::waveSuperposition(), and IOobject::writeHeader().

Here is the caller graph for this function:

name()

const word& name ( ) const

inline

Return name.

Definition at line 310 of file IOobject.H.

Referenced by multivariateSurfaceInterpolationScheme< Type >::fieldTable::add(), IOobjectList::add(), PhaseTransferPhaseSystem< BasePhaseSystem >::addDmdtYfs(), PhaseTransferPhaseSystem< BasePhaseSystem >::addDmidtYf(), snappyLayerDriver::addLayers(), polyTopoChange::addMesh(), meshObjects::addPatch(), faceZoneSet::addSet(), solidEquilibriumEnergySource::addSup(), clouds::addSup(), clouds::addSupFields(), compressibleVoF::alphaSuSp(), anisotropic::anisotropic(), ParcelCloudBase< ParticleType >::ap(), collatedFileOperation::appendObject(), setsToFaceZone::applyToSet(), Foam::atan2(), attachPolyTopoChanger::attach(), Foam::fvc::average(), writeFile::baseFileDir(), blended< Type >::blendingFactor(), cellCoBlended< Type >::blendingFactor(), CoBlended< Type >::blendingFactor(), localBlended< Type >::blendingFactor(), Foam::bound(), buoyancy::buoyancy(), faceLimitedGrad< Type >::calcGrad(), cellZoneSet::cellZoneSet(), meshRefinement::checkCoupledFaceZones(), polyBoundaryMesh::checkDefinition(), Cloud< ParticleType >::checkFieldFieldIOobject(), Cloud< ParticleType >::checkFieldIOobject(), objectRegistry::checkIn(), Foam::checkMethod(), objectRegistry::checkOut(), polyBoundaryMesh::checkParallelSync(), faceZone::checkParallelSync(), meshRefinement::checkZoneFaces(), meshObjects::clear(), meshObjects::clearUpto(), CollidingCloud< CloudType >::clone(), MomentumCloud< CloudType >::clone(), MPPICCloud< CloudType >::clone(), ReactingCloud< CloudType >::clone(), ReactingMultiphaseCloud< CloudType >::clone(), SprayCloud< CloudType >::clone(), ThermoCloud< CloudType >::clone(), CloudFunctionObject< CloudType >::CloudFunctionObject(), Foam::cmptAv(), fvConstraints::constrain(), Maxwell< BasicMomentumTransportModel >::correct(), Foam::correctContactAngle(), ThermalPhaseChangePhaseSystem< BasePhaseSystem >::correctInterfaceThermo(), correctedSnGrad< Type >::correction(), faceCorrectedSnGrad< Type >::correction(), linearUpwindV< Type >::correction(), cubic< Type >::correction(), deferred< Type >::correction(), localBlended< Type >::correction(), linearUpwind< Type >::correction(), Foam::fv::CorrectPhi(), Foam::fvc::curl(), fvModels::d2dt2(), fvModel::d2dt2(), Foam::fvc::d2dt2(), Foam::fvm::d2dt2(), Foam::fvc::ddt(), Foam::fvm::ddt(), decomposedBlockData::decomposedBlockData(), faceZoneSet::deleteSet(), displacementLaplacianFvMotionSolver::displacementLaplacianFvMotionSolver(), meshObjects::distribute(), cellsToCells::distributeMesh(), Foam::fvc::div(), Foam::fvm::div(), Foam::fvm::divc(), compressibleVoF::divergent(), StationaryPhaseModel< BasePhaseModel >::divq(), Foam::fvc::domainIntegrate(), XiFluid::EaSolve(), XiFluid::EauSolve(), ParcelCloudBase< ParticleType >::Ep(), phaseScalarTransport::execute(), removeRegisteredObject::execute(), massFractions::execute(), masterUncollatedFileOperation::exists(), fileOperation::exists(), triSurfaceMesh::extractCloseness(), triSurfaceMesh::extractPointCloseness(), faceZoneSet::faceZoneSet(), IOobject::fileNameComponents(), masterUncollatedFileOperation::filePathInfo(), VoFFilmTransfer::filmVoFTransferRate(), surfaceFieldValue::filterField(), refinementSurfaces::findInside(), fileOperation::findInstance(), masterUncollatedFileOperation::findInstance(), coupleGroupIdentifier::findOtherPatchID(), Foam::fvc::flux(), correctedSnGrad< Type >::fullGradCorrection(), faceCorrectedSnGrad< Type >::fullGradCorrection(), EulerD2dt2Scheme< Type >::fvcD2dt2(), steadyStateD2dt2Scheme< Type >::fvcD2dt2(), backwardDdtScheme< Type >::fvcDdt(), CoEulerDdtScheme< Type >::fvcDdt(), CrankNicolsonDdtScheme< Type >::fvcDdt(), EulerDdtScheme< Type >::fvcDdt(), localEulerDdtScheme< Type >::fvcDdt(), SLTSDdtScheme< Type >::fvcDdt(), steadyStateDdtScheme< Type >::fvcDdt(), backwardDdtScheme< Type >::fvcDdtPhiCorr(), CoEulerDdtScheme< Type >::fvcDdtPhiCorr(), CrankNicolsonDdtScheme< Type >::fvcDdtPhiCorr(), EulerDdtScheme< Type >::fvcDdtPhiCorr(), localEulerDdtScheme< Type >::fvcDdtPhiCorr(), SLTSDdtScheme< Type >::fvcDdtPhiCorr(), steadyStateDdtScheme< Type >::fvcDdtPhiCorr(), backwardDdtScheme< Type >::fvcDdtUfCorr(), CoEulerDdtScheme< Type >::fvcDdtUfCorr(), CrankNicolsonDdtScheme< Type >::fvcDdtUfCorr(), EulerDdtScheme< Type >::fvcDdtUfCorr(), localEulerDdtScheme< Type >::fvcDdtUfCorr(), SLTSDdtScheme< Type >::fvcDdtUfCorr(), steadyStateDdtScheme< Type >::fvcDdtUfCorr(), gaussConvectionScheme< Type >::fvcDiv(), gaussDivScheme< Type >::fvcDiv(), gaussLaplacianScheme< Type, GType >::fvcLaplacian(), fvConstraints::fvConstraints(), CrankNicolsonDdtScheme< Type >::fvmDdt(), gaussConvectionScheme< Type >::fvmDiv(), gaussLaplacianScheme< Type, GType >::fvmLaplacian(), fvModels::fvModels(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), Foam::fvc::grad(), IOobject::groupName(), polyBoundaryMesh::groupPatchIDs(), AnisothermalPhaseModel< BasePhaseModel >::heEqn(), hexRef8Data::hexRef8Data(), ParcelCloudBase< ParticleType >::hsCoeff(), ParcelCloudBase< ParticleType >::hsTrans(), incompressibleDenseParticleFluid::incompressibleDenseParticleFluid(), incompressibleFluid::incompressibleFluid(), surfaceInterpolationScheme< scalar >::interpolate(), singleCellFvMesh::interpolate(), surfaceInterpolationScheme< Type >::interpolate(), localBlended< Type >::interpolate(), localMax< Type >::interpolate(), localMin< Type >::interpolate(), fvMeshSubset::interpolate(), volPointInterpolation::interpolate(), IOdistributionMap::IOdistributionMap(), isothermalFilm::isothermalFilm(), isothermalFluid::isothermalFluid(), unityLewisFourier< BasicThermophysicalTransportModel >::j(), unityLewisEddyDiffusivity< TurbulenceThermophysicalTransportModel >::j(), Foam::fvc::laplacian(), Foam::fvm::laplacian(), LimitedScheme< Type, Limiter, LimitFunc >::limiter(), Foam::mag(), Foam::magSqr(), Foam::MapGeometricFields(), meshObjects::mapMesh(), mappedFvPatchField< scalar >::mappedValues(), fvMeshAdder::MapPointFields(), fvMeshAdder::MapSurfaceFields(), fvMeshAdder::MapVolFields(), Maxwell< BasicMomentumTransportModel >::Maxwell(), Foam::fvc::meshPhi(), Foam::MeshToMeshMapVolFields(), meshObjects::movePoints(), multiphaseEuler::multiphaseEuler(), mappedFvPatchField< Type >::nbrPatchField(), daughterSizeDistributionModel::New(), fvsPatchField< Type >::New(), fvPatchField< Type >::New(), pointPatchField< Type >::New(), interpolation< Type >::New(), binaryBreakupModel::New(), breakupModel::New(), coalescenceModel::New(), driftModel::New(), nucleationModel::New(), regIOobject::objectPath(), populationBalanceModel::iNew::operator()(), Foam::operator<<(), geometricSurfacePatch::operator==(), nonConformalPolyPatch::origPatchID(), mappedExtrudedPatchBase::patchFaceAreas(), mappedExtrudedPatchBase::patchLocalPoints(), PatchPostProcessing< CloudType >::PatchPostProcessing(), phaseSystem::phaseSystem(), pointConstraints::pointConstraints(), pointMesh::pointMesh(), pointZoneSet::pointZoneSet(), polyMesh::polyMesh(), populationBalanceModel::populationBalanceModel(), Foam::pow(), ReactingCloud< CloudType >::ReactingCloud(), wallHeatTransferCoeff::read(), masterUncollatedFileOperation::read(), decomposedBlockData::readBlocks(), Foam::readFields(), masterUncollatedFileOperation::readHeader(), uncollatedFileOperation::readHeader(), domainDecomposition::readReconstruct(), masterUncollatedFileOperation::readStream(), uncollatedFileOperation::readStream(), Foam::readUniformFields(), Foam::fvc::reconstruct(), Foam::fvc::reconstructMag(), refinementRegions::refinementRegions(), refiner::refiner(), IOobject::relativeObjectPath(), masterUncollatedFileOperation::relativeObjectPath(), IOobjectList::remove(), meshObjects::reorderPatches(), objectRegistry::resetCacheTemporaryObject(), searchableSurfaceCollection::searchableSurfaceCollection(), SecondaryPropertyModel< shapeModel >::SecondaryPropertyModel(), Foam::setRefCell(), shockFluid::shockFluid(), ParcelCloudBase< ParticleType >::sigmap(), skewCorrected< Type >::skewCorrection(), snGradScheme< Type >::snGrad(), Foam::fvc::snGrad(), solidDisplacement::solidDisplacement(), phaseSystem::solve(), fvModels::source(), fvModel::source(), Foam::sqr(), fvMeshToFvMesh::srcToTgt(), ParcelCloudBase< ParticleType >::Srho(), Foam::stabilise(), subCycleField< GeometricField >::subCycleField(), faceZoneSet::subset(), Foam::fvc::surfaceIntegrate(), Foam::fvc::surfaceSum(), surfMesh::surfMesh(), ThermoCloud< CloudType >::ThermoCloud(), shockFluid::thermophysicalPredictor(), dictionary::topDict(), dictionary::topDictKeyword(), polyMesh::topoChange(), meshObjects::topoChange(), Foam::transform(), cellsToCells::trimLocalTgt(), triSurfaceMesh::triSurfaceMesh(), twoPhaseSolver::twoPhaseSolver(), ParcelCloudBase< ParticleType >::UCoeff(), cellsToCellsStabilisation::update(), cellsToCells::update(), MPPICParcel< ParcelType >::trackingData::updateAverages(), mappedInternalValueFvPatchField< Type >::updateCoeffs(), waveSurfacePressureFvPatchScalarField::updateCoeffs(), coupledTemperatureFvPatchScalarField::updateCoeffs(), ParcelCloudBase< ParticleType >::UTrans(), basicThermo::validate(), VoFSolver::VoFSolver(), localBlended< Type >::weights(), histogram::write(), regionSizeDistribution::write(), writeCellCentres::write(), writeCellVolumes::write(), XiReactionRate::write(), FacePostProcessing< CloudType >::write(), PatchPostProcessing< CloudType >::write(), MeshedSurfaceProxy< Face >::write(), boundaryRegion::writeDict(), cellTable::writeDict(), molecule::writeFields(), IOobject::writeHeader(), collatedFileOperation::writeObject(), writeObjectsBase::writeObject(), regionFunctionObject::writeObject(), regIOobject::writeObject(), cellZoneSet::writeObject(), faceZoneSet::writeObject(), pointZoneSet::writeObject(), domainDecomposition::writeProcs(), and MulticomponentPhaseModel< BasePhaseModel >::YiEqn().

headerClassName() [1/2]

const word& headerClassName ( ) const

inline

Return name of the class name read from header.

Definition at line 316 of file IOobject.H.

Referenced by fieldToCell::applyToSet(), patchFluxToFace::applyToSet(), masterUncollatedFileOperation::filePathInfo(), readFields::loadField(), polyMesh::polyMesh(), masterUncollatedFileOperation::read(), uncollatedFileOperation::read(), decomposedBlockData::readBlocks(), masterUncollatedFileOperation::readHeader(), uncollatedFileOperation::readHeader(), fieldAverage::readMeanFieldType(), fieldAverage::readPrime2MeanFieldType(), masterUncollatedFileOperation::readStream(), uncollatedFileOperation::readStream(), masterUncollatedFileOperation::relativeObjectPath(), decomposedBlockData::writeData(), and Foam::writeMeshObject().

Here is the caller graph for this function:

headerClassName() [2/2]

word& headerClassName ( )

inline

Return name of the class name read from header.

Definition at line 322 of file IOobject.H.

note() [1/2]

string& note ( )

inline

Return non-constant access to the optional note.

Definition at line 328 of file IOobject.H.

Referenced by masterUncollatedFileOperation::read(), uncollatedFileOperation::read(), decomposedBlockData::readBlocks(), masterUncollatedFileOperation::readHeader(), edgeMeshFormat::write(), decomposedBlockData::writeData(), boundaryRegion::writeDict(), cellTable::writeDict(), and IOobject::writeHeader().

Here is the caller graph for this function:

note() [2/2]

const string& note ( ) const

inline

Return the optional note.

Definition at line 334 of file IOobject.H.

rename()

virtual void rename ( const word &  newName )

inlinevirtual

Rename.

Reimplemented in regIOobject, and objectRegistry.

Definition at line 340 of file IOobject.H.

Referenced by hexRef8Data::hexRef8Data(), decomposedBlockData::readBlocks(), regIOobject::rename(), and hexRef8Data::sync().

Here is the caller graph for this function:

registerObject() [1/2]

bool& registerObject ( )

inline

Register object created from this IOobject with registry if true.

Definition at line 346 of file IOobject.H.

Referenced by physicalProperties::findModelDict(), dragModel::New(), heatTransferModel::New(), virtualMassModel::New(), momentumTransportModel::readModelDict(), regIOobject::regIOobject(), and Foam::unregister().

Here is the caller graph for this function:

registerObject() [2/2]

bool registerObject ( ) const

inline

Register object created from this IOobject with registry if true.

Definition at line 352 of file IOobject.H.

readOpt() [1/2]

readOption readOpt ( ) const

inline

Definition at line 360 of file IOobject.H.

Referenced by CompactIOListBase< Container, IOContainer, CompactIOContainer, Type >::CompactIOListBase(), decomposedBlockData::decomposedBlockData(), distributedTriSurfaceMesh::distributedTriSurfaceMesh(), extendedFeatureEdgeMesh::extendedFeatureEdgeMesh(), featureEdgeMesh::featureEdgeMesh(), fileOperation::findInstance(), masterUncollatedFileOperation::findInstance(), hexRef8::hexRef8(), IOdistributionMap::IOdistributionMap(), IOListBase< Container, IOContainer, Type >::IOListBase(), IOPtrList< Type >::IOPtrList(), polyTopoChange::makeMesh(), Foam::MapConsistentVolFields(), Foam::operator<<(), polyBoundaryMesh::polyBoundaryMesh(), radiativeIntensityRay::radiativeIntensityRay(), regIOobject::readHeaderOk(), refinementHistory::refinementHistory(), surfacePatchIOList::surfacePatchIOList(), surfZoneIOList::surfZoneIOList(), hexRef8Data::sync(), thermophysicalTransportModel::thermophysicalTransportModel(), Time::Time(), and UniformDimensionedField< Type >::UniformDimensionedField().

Here is the caller graph for this function:

readOpt() [2/2]

readOption& readOpt ( )

inline

Definition at line 365 of file IOobject.H.

writeOpt() [1/2]

writeOption writeOpt ( ) const

inline

Definition at line 370 of file IOobject.H.

Referenced by cellTable::addCellZones(), snappyLayerDriver::addLayers(), MovingPhaseModel< BasePhaseModel >::MovingPhaseModel(), objectRegistry::objectRegistry(), Foam::operator<<(), phaseSystem::phaseSystem(), and surfMesh::setInstance().

Here is the caller graph for this function:

writeOpt() [2/2]

writeOption& writeOpt ( )

inline

Definition at line 375 of file IOobject.H.

group() [2/2]

Foam::word group

(

)

const

Return group (extension part of name)

Definition at line 324 of file IOobject.C.

References Foam::constant::atomic::group.

Referenced by massSourceBase::addsSupToField(), fieldAverageItem::fieldAverageItem(), physicalProperties::findModelDict(), IOobject::groupName(), odeChemistryModel::logFile(), viscosityModel::New(), physicalProperties::physicalProperties(), and momentumTransportModel::readModelDict().

Here is the caller graph for this function:

member() [2/2]

Foam::word member

(

)

const

Return member (name without the extension)

Definition at line 330 of file IOobject.C.

Referenced by fieldAverageItem::fieldAverageItem().

Here is the caller graph for this function:

rootPath()

const Foam::fileName & rootPath

(

)

const

Definition at line 336 of file IOobject.C.

Referenced by masterUncollatedFileOperation::filePathInfo(), fileOperation::processorsCasePath(), and masterUncollatedFileOperation::relativeObjectPath().

Here is the caller graph for this function:

caseName()

const Foam::fileName & caseName

(

const bool

global

)

const

Definition at line 342 of file IOobject.C.

References fileName::caseName().

Referenced by regIOobject::caseName(), masterUncollatedFileOperation::filePathInfo(), and masterUncollatedFileOperation::relativeObjectPath().

Here is the call graph for this function:

Here is the caller graph for this function:

instance()

Foam::fileName & instance

(

)

const

Return the instance directory, constant, system, <time> etc.

Allows modification of the instance

Definition at line 355 of file IOobject.C.

Referenced by snappyLayerDriver::addLayers(), directions::directions(), masterUncollatedFileOperation::exists(), IOobject::fileNameComponents(), masterUncollatedFileOperation::filePathInfo(), Time::findInstance(), fileOperation::findInstance(), masterUncollatedFileOperation::findInstance(), Foam::fvc::laplacian(), Foam::fvm::laplacian(), Foam::MapGeometricFields(), meshRefinement::mergeEdgesUndo(), meshRefinement::mergePatchFacesUndo(), Foam::MeshToMeshMapVolFields(), collatedFileOperation::objectPath(), polyMesh::polyMesh(), Foam::readFields(), Foam::readUniformFields(), masterUncollatedFileOperation::relativeObjectPath(), surfMesh::setInstance(), surfMesh::surfMesh(), domainDecomposition::writeComplete(), IOobject::writeHeader(), collatedFileOperation::writeObject(), and distributedTriSurfaceMesh::writeObject().

Here is the caller graph for this function:

updateInstance()

void updateInstance

(

)

const

If the instance is a time directory update to the current time.

Definition at line 361 of file IOobject.C.

References Foam::name(), Foam::readScalar(), and Foam::system().

Referenced by regIOobject::writeObject().

Here is the call graph for this function:

Here is the caller graph for this function:

local()

const fileName& local ( ) const

inline

Definition at line 400 of file IOobject.H.

Referenced by masterUncollatedFileOperation::dirPath(), IOobject::fileNameComponents(), masterUncollatedFileOperation::filePath(), masterUncollatedFileOperation::filePathInfo(), fileOperation::findInstance(), masterUncollatedFileOperation::findInstance(), Foam::operator<<(), fileOperation::processorsPath(), Foam::readFields(), Foam::readUniformFields(), masterUncollatedFileOperation::relativeObjectPath(), surfMesh::surfMesh(), and IOobject::writeHeader().

Here is the caller graph for this function:

path()

Foam::fileName path

(

const bool

global

)

const

Return complete path including the processor sub-directory.

for a parallel run if global is set false

Definition at line 380 of file IOobject.C.

Referenced by massFractions::execute(), IOobject::fileNameComponents(), Foam::operator<<(), regIOobject::path(), masterUncollatedFileOperation::relativeObjectPath(), and surfMesh::surfMesh().

Here is the caller graph for this function:

objectPath()

fileName objectPath ( const bool  global ) const

inline

Return complete path + object name including the processor.

sub-directory for a parallel run if global is set false

Definition at line 411 of file IOobject.H.

Referenced by fvMeshStitcher::connect(), masterUncollatedFileOperation::dirPath(), uncollatedFileOperation::dirPath(), masterUncollatedFileOperation::exists(), fileOperation::exists(), masterUncollatedFileOperation::filePath(), uncollatedFileOperation::filePath(), masterUncollatedFileOperation::filePathInfo(), masterUncollatedFileOperation::findInstance(), fileOperation::objectPath(), collatedFileOperation::processorsDir(), and polyMesh::writeObject().

Here is the caller graph for this function:

relativePath()

Foam::fileName relativePath

(

)

const

Return the path relative to the case directory.

Definition at line 393 of file IOobject.C.

Referenced by domainDecomposition::readDecompose(), domainDecomposition::readReconstruct(), and IOobject::relativeObjectPath().

Here is the caller graph for this function:

relativeObjectPath()

fileName relativeObjectPath ( ) const

inline

Return complete relativePath + object name.

Definition at line 420 of file IOobject.H.

References IOobject::name(), and IOobject::relativePath().

Here is the call graph for this function:

filePath()

Foam::fileName filePath	(	const word &	typeName,
		const bool	global
	)		const

Return complete path + object name if the file exists.

in the case directory otherwise null.

If global and parallel searches up into the global case directory.

Definition at line 406 of file IOobject.C.

Referenced by fieldToCell::applyToSet(), patchFluxToFace::applyToSet(), regIOobject::filePath(), and IOobject::typeHeaderOk().

Here is the caller graph for this function:

readHeader()

bool readHeader

(

Istream &

is

)

Read header.

Definition at line 37 of file IOobjectReadHeader.C.

References IOstream::currentVersion, Foam::endl(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, IOstream::format(), IOstream::good(), Foam::Info, InfoInFunction, IOWarningInFunction, token::isWord(), IOstream::lineNumber(), dictionary::lookup(), dictionary::lookupOrDefault(), IOstream::name(), Foam::name(), Foam::nl, dictionary::readIfPresent(), SeriousIOErrorInFunction, IOstream::version(), token::wordToken(), and Foam::vtkWriteOps::writeHeader().

Referenced by decomposedBlockData::read(), edgeMeshFormat::read(), extendedEdgeMeshFormat::read(), masterUncollatedFileOperation::read(), decomposedBlockData::readBlock(), decomposedBlockData::readBlocks(), masterUncollatedFileOperation::readHeader(), uncollatedFileOperation::readHeader(), decomposedBlockData::readMasterHeader(), masterUncollatedFileOperation::readStream(), uncollatedFileOperation::readStream(), and decomposedBlockData::writeData().

Here is the call graph for this function:

Here is the caller graph for this function:

headerOk()

bool headerOk

(

)

Read header of local object without type-checking.

Mainly used to create IOobjectLists

Definition at line 31 of file IOobjectReadHeader.C.

Referenced by patchFluxToFace::applyToSet(), fileOperation::exists(), IOobjectList::IOobjectList(), readFields::loadField(), domainDecomposition::readDecompose(), fieldAverage::readMeanFieldType(), fieldAverage::readPrime2MeanFieldType(), and domainDecomposition::readReconstruct().

Here is the caller graph for this function:

warnNoRereading()

void warnNoRereading

Helper: warn that type does not support re-reading.

Definition at line 80 of file IOobjectTemplates.C.

References Foam::endl(), IOobject::MUST_READ_IF_MODIFIED, Foam::name(), and WarningInFunction.

Here is the call graph for this function:

writeBanner()

Stream & writeBanner ( Stream &  os, bool  noHint = false  )

inlinestatic

Write the standard OpenFOAM file/dictionary banner.

Optionally without -*- C++ -*- editor hint (eg, for logs)

Definition at line 45 of file IOobjectI.H.

References Foam::FOAMversion.

Referenced by collatedFileOperation::appendObject(), argList::parse(), OFSsurfaceFormatCore::writeHeader(), IOobject::writeHeader(), and decomposedBlockData::writeHeader().

Here is the caller graph for this function:

writeDivider()

Stream & writeDivider ( Stream &  os )

inlinestatic

Write the standard file section divider.

Definition at line 93 of file IOobjectI.H.

Referenced by collatedFileOperation::appendObject(), Foam::listSwitches(), argList::parse(), writeDictionary::write(), edgeMeshFormat::write(), OFSsurfaceFormatCore::writeHeader(), IOobject::writeHeader(), and decomposedBlockData::writeHeader().

Here is the caller graph for this function:

writeEndDivider()

Stream & writeEndDivider ( Stream &  os )

inlinestatic

Write the standard end file divider.

Definition at line 103 of file IOobjectI.H.

Referenced by collatedFileOperation::appendObject(), MeshedSurfaceProxy< Face >::write(), decomposedBlockData::writeData(), collatedFileOperation::writeObject(), fileOperation::writeObject(), and masterUncollatedFileOperation::writeObject().

Here is the caller graph for this function:

writeHeader() [1/2]

bool writeHeader

(

Ostream &

os

)

const

Write header.

Definition at line 71 of file IOobjectWriteHeader.C.

References Foam::type(), and Foam::vtkWriteOps::writeHeader().

Referenced by collatedFileOperation::appendObject(), IOdictionary::readData(), edgeMeshFormat::write(), MeshedSurfaceProxy< Face >::write(), interpolationLookUpTable::write(), boundaryRegion::writeDict(), cellTable::writeDict(), collatedFileOperation::writeObject(), fileOperation::writeObject(), masterUncollatedFileOperation::writeObject(), and decomposedBlockData::writeObject().

Here is the call graph for this function:

Here is the caller graph for this function:

writeHeader() [2/2]

bool writeHeader	(	Ostream &	os,
		const word &	objectType
	)		const

Write header. Allow override of type.

Definition at line 35 of file IOobjectWriteHeader.C.

References IOstream::currentVersion, IOobject::db(), objectRegistry::dbDir(), Foam::endl(), IOobject::foamFile, IOstream::format(), IOstream::good(), IOstream::info(), InfoInFunction, IOobject::instance(), IOobject::local(), IOobject::name(), Foam::nl, IOobject::note(), Foam::type(), IOstream::version(), IOobject::writeBanner(), and IOobject::writeDivider().

Here is the call graph for this function:

good()

bool good ( ) const

inline

Definition at line 471 of file IOobject.H.

References IOobject::GOOD.

Referenced by regIOobject::writeObject().

Here is the caller graph for this function:

bad()

bool bad ( ) const

inline

Definition at line 476 of file IOobject.H.

References IOobject::BAD.

info()

InfoProxy<IOobject> info ( ) const

inline

Return info proxy.

Used to print token information to a stream

Definition at line 486 of file IOobject.H.

Referenced by searchableSurface::findNearest(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), searchableSurfaceWithGaps::getNormal(), searchableSurfaceWithGaps::getRegion(), and MomentumCloud< CloudType >::solve().

Here is the caller graph for this function:

operator=()

void operator=

(

const IOobject &

io

)

Definition at line 435 of file IOobject.C.

Referenced by regIOobject::operator=().

Here is the caller graph for this function:

groupName() [2/2]

Foam::word groupName ( Name  name, const word &  group  )

inline

Definition at line 31 of file IOobjectI.H.

References IOobject::group(), IOobject::name(), and word::null.

Here is the call graph for this function:

Member Data Documentation

foamFile

constexpr const char* foamFile = "FoamFile"

staticconstexpr

Keyword for the FoamFile header sub-dictionary.

Definition at line 104 of file IOobject.H.

Referenced by collatedFileOperation::appendObject(), includeEntry::execute(), includeEtcEntry::execute(), decomposedBlockData::numBlocks(), dictionary::read(), IOobject::writeHeader(), and decomposedBlockData::writeHeader().

fileCheckTypesNames

const Foam::NamedEnum< Foam::IOobject::fileCheckTypes, 4 > fileCheckTypesNames

static

Definition at line 140 of file IOobject.H.

Referenced by argList::parse().

fileModificationChecking

Foam::IOobject::fileCheckTypes fileModificationChecking

static

Type of file modification checking.

Definition at line 226 of file IOobject.H.

Referenced by regIOobject::addWatch(), collatedFileOperation::collatedFileOperation(), distributedTriSurfaceMesh::distributedTriSurfaceMesh(), hexRef8::hexRef8(), masterUncollatedFileOperation::masterUncollatedFileOperation(), fileOperation::monitor(), argList::parse(), regIOobject::read(), regIOobject::readHeaderOk(), Time::readModifiedObjects(), IOobject::typeHeaderOk(), and regIOobject::writeObject().

---

The documentation for this class was generated from the following files:

• src/OpenFOAM/db/IOobject/IOobject.H
• src/OpenFOAM/db/IOobject/IOobject.C
• src/OpenFOAM/db/IOobject/IOobjectI.H
• src/OpenFOAM/db/IOobject/IOobjectReadHeader.C
• src/OpenFOAM/db/IOobject/IOobjectTemplates.C
• src/OpenFOAM/db/IOobject/IOobjectWriteHeader.C
