Base class for engines and poly patches which provide mapping between two poly patches. More...

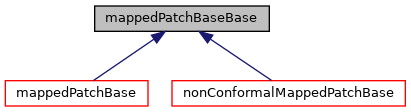

Inheritance diagram for mappedPatchBaseBase:

Collaboration diagram for mappedPatchBaseBase:

[legend]

Classes
struct	from
	Restrict use of the mapper to certain configurations. More...

Public Types
enum class	transformType { none , defaultNone , specified }
	The type of the transformation permitted/required by this patch. More...

enum class	moveUpdate { always , detect , never }
	Enumeration for the condition that triggers re-calculation of the. More...

Public Member Functions
	TypeName ("mappedPatchBaseBase")
	Runtime type information. More...

	mappedPatchBaseBase (const polyPatch &)
	Construct from patch. More...

	mappedPatchBaseBase (const polyPatch &pp, const word &nbrRegionName, const word &nbrPatchName, const cyclicTransform &transform)
	Construct from components. More...

	mappedPatchBaseBase (const polyPatch &pp, const dictionary &dict, const transformType tt)
	Construct from dictionary. More...

	mappedPatchBaseBase (const polyPatch &, const mappedPatchBaseBase &)
	Construct as copy, resetting patch. More...

virtual	~mappedPatchBaseBase ()
	Destructor. More...

const word &	nbrRegionName () const
	Name of the region to map from. More...

const word &	nbrPatchName () const
	Name of the patch to map from. More...

const transformer &	transform () const
	The transformation between the patches. More...

bool	sameRegion () const
	Is the neighbour region the same as for this patch? More...

bool	samePatch () const
	Is the neighbour patch the same as this patch? More...

bool	sameUntransformedPatch () const
	Is the neighbour patch the same as this patch with no transform? More...

bool	haveNbr () const
	Is the neighbour available? More...

const polyMesh &	nbrMesh () const
	Get the mesh for the region to map from. More...

const polyPatch &	nbrPolyPatch () const
	Get the patch to map from. More...

template<class PatchField , class FieldType >
void	validateForField (const PatchField &field, const FieldType &iF, const dictionary &context, const label froms=from::any) const
	Validate that the map is appropriate for the given. More...

virtual void	write (Ostream &) const
	Write as a dictionary. More...

template<class PatchFieldType , class FieldType >
void	validateMapForField (const PatchFieldType &field, const FieldType &iF, const dictionary &context, const label froms)

template<class PatchFieldType , class FieldType >
void	validateForField (const PatchFieldType &field, const FieldType &iF, const dictionary &context, const label froms) const

Static Public Member Functions
template<class PatchField , class FieldType >
static void	validateMapForField (const PatchField &field, const FieldType &iF, const dictionary &context, const label froms=from::any)
	Validate that the map exists and is appropriate for the given. More...

static bool	moving (const polyPatch &patch, const polyPatch &nbrPatch)
	Return whether or not the patches have moved. More...

static bool	specified (const dictionary &dict)
	Return whether or not the given dictionary contains a. More...

Static Public Attributes
static const NamedEnum< moveUpdate, 3 >	moveUpdateNames_ {"always", "detect", "never"}
	Names of the move-update conditions. More...

Protected Attributes
const polyPatch &	patch_
	Patch to map to. More...

const coupleGroupIdentifier	coupleGroup_
	Couple group for the region/patch to map from. More...

word	nbrRegionName_
	Name of the region to map from. More...

word	nbrPatchName_
	Name of the patch to map from. More...

cyclicTransform	transform_
	The transformation between the patches. More...

const moveUpdate	moveUpdate_
	The condition that triggers re-calculation following motion. More...

Detailed Description

Base class for engines and poly patches which provide mapping between two poly patches.

Example:

    // The name of the region to map from. Optional. Defaults to the same
    // region as the patch.
    neighbourRegion region0;

    // The name of the patch to map from
    neighbourPatch movingWall;

    // Couple group to specify the region and patch to map from. This is an
    // alternative to specifying neighbourRegion and neighbourPatch
    // directly, as shown above.
    coupleGroup baffleGroup;

    // The condition that triggers re-calculation following motion. Setting
    // 'always' will re-calculate the mapping, 'never' will not, and
    // 'detect' will compare the new and old points and re-calculate if
    // there is any difference.
    moveUpdate always;

Source files

Definition at line 73 of file mappedPatchBaseBase.H.

Member Enumeration Documentation

◆ transformType

enum transformType

strong

The type of the transformation permitted/required by this patch.

Enumerator
none
defaultNone
specified

Definition at line 80 of file mappedPatchBaseBase.H.

◆ moveUpdate

enum moveUpdate

strong

Enumeration for the condition that triggers re-calculation of the.

mapping following mesh motion.

'always' will re-calculate the mapping, 'never' will not, and 'detect' will compare the new and old points and re-calculate if there is any difference.

The comparison that 'detect' does has an expense associated with it, so it should only really be used if the patch is both moving and static at different times. If the patch is always in motion or is fully stationary, then it is more efficient to specify 'always' or 'never'.

'always' is the default, as it is safest to assume that motion always affects the mapping.

Enumerator
always
detect
never

Definition at line 102 of file mappedPatchBaseBase.H.

Constructor & Destructor Documentation

◆ mappedPatchBaseBase() [1/4]

mappedPatchBaseBase ( const polyPatch & pp )

Construct from patch.

Definition at line 44 of file mappedPatchBaseBase.C.

◆ mappedPatchBaseBase() [2/4]

mappedPatchBaseBase	(	const polyPatch &	pp,
		const word &	nbrRegionName,
		const word &	nbrPatchName,
		const cyclicTransform &	transform
	)

Construct from components.

Definition at line 55 of file mappedPatchBaseBase.C.

◆ mappedPatchBaseBase() [3/4]

mappedPatchBaseBase	(	const polyPatch &	pp,
		const dictionary &	dict,
		const transformType	tt
	)

Construct from dictionary.

Definition at line 72 of file mappedPatchBaseBase.C.

◆ mappedPatchBaseBase() [4/4]

mappedPatchBaseBase	(	const polyPatch &	pp,
		const mappedPatchBaseBase &	mpb
	)

Construct as copy, resetting patch.

Definition at line 157 of file mappedPatchBaseBase.C.

◆ ~mappedPatchBaseBase()

~mappedPatchBaseBase ( )

virtual

Destructor.

Definition at line 174 of file mappedPatchBaseBase.C.

Member Function Documentation

◆ TypeName()

TypeName ( "mappedPatchBaseBase" )

Runtime type information.

◆ nbrRegionName()

const Foam::word & nbrRegionName ( ) const

inline

Name of the region to map from.

Definition at line 30 of file mappedPatchBaseBaseI.H.

References polyMesh::boundaryMesh(), mappedPatchBaseBase::coupleGroup_, IOobject::name(), mappedPatchBaseBase::nbrMesh(), mappedPatchBaseBase::nbrPatchName_, mappedPatchBaseBase::nbrRegionName_, mappedPatchBaseBase::patch_, and coupleGroupIdentifier::valid().

Referenced by nonConformalMappedPatchBase::calcOwner().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ nbrPatchName()

const Foam::word & nbrPatchName ( ) const

inline

Name of the patch to map from.

Definition at line 46 of file mappedPatchBaseBaseI.H.

Referenced by nonConformalMappedPatchBase::calcOwner().

Here is the caller graph for this function:

◆ transform()

const Foam::transformer & transform ( ) const

inline

The transformation between the patches.

Definition at line 57 of file mappedPatchBaseBaseI.H.

References transformer::transform().

Here is the call graph for this function:

◆ sameRegion()

bool sameRegion ( ) const

inline

Is the neighbour region the same as for this patch?

Definition at line 63 of file mappedPatchBaseBaseI.H.

◆ samePatch()

bool samePatch ( ) const

inline

Is the neighbour patch the same as this patch?

Definition at line 69 of file mappedPatchBaseBaseI.H.

◆ sameUntransformedPatch()

bool sameUntransformedPatch ( ) const

inline

Is the neighbour patch the same as this patch with no transform?

Definition at line 75 of file mappedPatchBaseBaseI.H.

Referenced by mappedPatchBase::fromNeighbour().

Here is the caller graph for this function:

◆ haveNbr()

bool haveNbr ( ) const

Is the neighbour available?

Definition at line 180 of file mappedPatchBaseBase.C.

References polyMesh::boundaryMesh(), objectRegistry::foundObject(), polyBoundaryMesh::mesh(), mesh, and fvMesh::time().

Here is the call graph for this function:

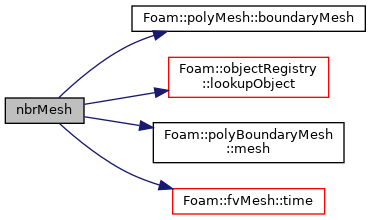

◆ nbrMesh()

const Foam::polyMesh & nbrMesh ( ) const

Get the mesh for the region to map from.

Definition at line 188 of file mappedPatchBaseBase.C.

References polyMesh::boundaryMesh(), objectRegistry::lookupObject(), polyBoundaryMesh::mesh(), mesh, and fvMesh::time().

Referenced by mappedPatchBaseBase::nbrRegionName().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ nbrPolyPatch()

const Foam::polyPatch & nbrPolyPatch ( ) const

Get the patch to map from.

Definition at line 196 of file mappedPatchBaseBase.C.

References polyMesh::boundaryMesh(), Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, polyBoundaryMesh::findIndex(), polyBoundaryMesh::names(), and patchi.

Referenced by nonConformalMappedPatchBase::nbrMappedPatch(), and mappedPatchBase::nbrPatchIsMapped().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ validateMapForField() [1/2]

static void validateMapForField	(	const PatchField &	field,
		const FieldType &	iF,
		const dictionary &	context,
		const label	froms = `from::any`
	)

static

Validate that the map exists and is appropriate for the given.

set of permitted configurations

Referenced by coupledTemperatureFvPatchScalarField::coupledTemperatureFvPatchScalarField(), mappedFlowRateVelocityFvPatchVectorField::mappedFlowRateVelocityFvPatchVectorField(), mappedVelocityFluxFvPatchField::mappedVelocityFluxFvPatchField(), semiPermeableBaffleMassFractionFvPatchScalarField::semiPermeableBaffleMassFractionFvPatchScalarField(), and thermalBaffle1DFvPatchScalarField< solidType >::thermalBaffle1DFvPatchScalarField().

Here is the caller graph for this function:

◆ validateForField() [1/2]

void validateForField	(	const PatchField &	field,
		const FieldType &	iF,
		const dictionary &	context,
		const label	froms = `from::any`
	)		const

Validate that the map is appropriate for the given.

set of permitted configurations

Referenced by mappedValueFvPatchField< Type >::mappedValueFvPatchField().

Here is the caller graph for this function:

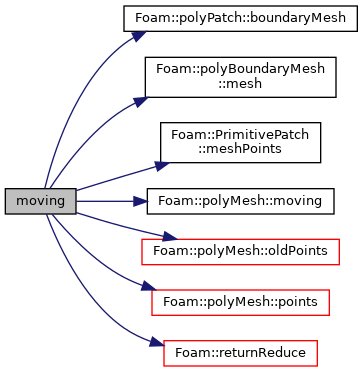

◆ moving()

bool moving	(	const polyPatch &	patch,
		const polyPatch &	nbrPatch
	)

static

Return whether or not the patches have moved.

Definition at line 215 of file mappedPatchBaseBase.C.

References polyPatch::boundaryMesh(), polyBoundaryMesh::mesh(), mesh, PrimitivePatch< FaceList, PointField >::meshPoints(), polyMesh::moving(), polyMesh::oldPoints(), points, polyMesh::points(), and Foam::returnReduce().

Referenced by nonConformalMappedPatchBase::intersection(), nonConformalCyclicPolyPatch::intersection(), mappedPatchBase::mappingIsValid(), and nonConformalCyclicPolyPatch::rays().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ specified()

bool specified ( const dictionary & dict )

static

Return whether or not the given dictionary contains a.

mappedPatchBaseBase specification

Definition at line 257 of file mappedPatchBaseBase.C.

References dict, and dictionary::found().

Here is the call graph for this function:

◆ write()

void write ( Ostream & os ) const

virtual

Write as a dictionary.

Reimplemented in nonConformalMappedWallPolyPatch, nonConformalMappedPatchBase, mappedWallPolyPatch, mappedPolyPatch, mappedPatchBase, mappedExtrudedWallPolyPatch, mappedExtrudedPatchBase, mappedFilmWallPolyPatch, and mappedFilmSurfacePolyPatch.

Definition at line 269 of file mappedPatchBaseBase.C.

References word::null, and Foam::writeEntryIfDifferent().

Referenced by mappedPatchBase::write(), and nonConformalMappedPatchBase::write().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ validateMapForField() [2/2]

void validateMapForField	(	const PatchFieldType &	field,
		const FieldType &	iF,
		const dictionary &	context,
		const label	froms
	)

Definition at line 32 of file mappedPatchBaseBaseTemplates.C.

References Foam::stringOps::breakIntoIndentedLines(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, OSstream::name(), patchIdentifier::name(), OStringStream::str(), and fileName::type().

Here is the call graph for this function:

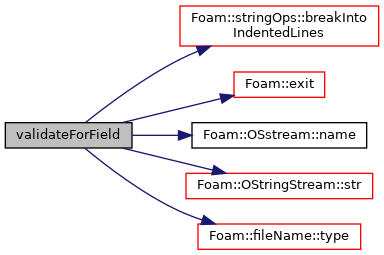

◆ validateForField() [2/2]

void validateForField	(	const PatchFieldType &	field,
		const FieldType &	iF,
		const dictionary &	context,
		const label	froms
	)		const

Definition at line 65 of file mappedPatchBaseBaseTemplates.C.

References Foam::stringOps::breakIntoIndentedLines(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, OSstream::name(), OStringStream::str(), and fileName::type().

Here is the call graph for this function:

Member Data Documentation

◆ moveUpdateNames_

const Foam::NamedEnum< Foam::mappedPatchBaseBase::moveUpdate, 3 > moveUpdateNames_ {"always", "detect", "never"}

static

Names of the move-update conditions.

Definition at line 110 of file mappedPatchBaseBase.H.

◆ patch_

const polyPatch& patch_

protected

Patch to map to.

Definition at line 118 of file mappedPatchBaseBase.H.

Referenced by nonConformalMappedPatchBase::intersection(), nonConformalMappedPatchBase::nbrMappedPatch(), mappedPatchBaseBase::nbrRegionName(), mappedExtrudedPatchBase::patchFaceAreas(), and mappedPatchBase::patchFaceAreas().

◆ coupleGroup_

const coupleGroupIdentifier coupleGroup_

protected

Couple group for the region/patch to map from.

Definition at line 121 of file mappedPatchBaseBase.H.

Referenced by mappedPatchBaseBase::nbrRegionName().

◆ nbrRegionName_

word nbrRegionName_

mutableprotected

Name of the region to map from.

Definition at line 124 of file mappedPatchBaseBase.H.

Referenced by nonConformalMappedPatchBase::nbrMappedPatch(), and mappedPatchBaseBase::nbrRegionName().

◆ nbrPatchName_

word nbrPatchName_

mutableprotected

Name of the patch to map from.

Definition at line 127 of file mappedPatchBaseBase.H.

Referenced by nonConformalMappedPatchBase::nbrMappedPatch(), and mappedPatchBaseBase::nbrRegionName().

◆ transform_

cyclicTransform transform_

mutableprotected

The transformation between the patches.

Definition at line 130 of file mappedPatchBaseBase.H.

Referenced by mappedPatchBase::fromNeighbour().

◆ moveUpdate_

const moveUpdate moveUpdate_

protected

The condition that triggers re-calculation following motion.

Definition at line 133 of file mappedPatchBaseBase.H.

The documentation for this class was generated from the following files:

src/meshTools/mappedPatches/mappedPatchBaseBase/mappedPatchBaseBase.H
src/meshTools/mappedPatches/mappedPatchBaseBase/mappedPatchBaseBase.C
src/meshTools/mappedPatches/mappedPatchBaseBase/mappedPatchBaseBaseI.H
src/meshTools/mappedPatches/mappedPatchBaseBase/mappedPatchBaseBaseTemplates.C

Classes

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ transformType

◆ moveUpdate

Constructor & Destructor Documentation

◆ mappedPatchBaseBase() [1/4]

◆ mappedPatchBaseBase() [2/4]

◆ mappedPatchBaseBase() [3/4]

◆ mappedPatchBaseBase() [4/4]

◆ ~mappedPatchBaseBase()

Member Function Documentation

◆ TypeName()

◆ nbrRegionName()

◆ nbrPatchName()

◆ transform()

◆ sameRegion()

◆ samePatch()

◆ sameUntransformedPatch()

◆ haveNbr()

◆ nbrMesh()

◆ nbrPolyPatch()

◆ validateMapForField() [1/2]

◆ validateForField() [1/2]

◆ moving()

◆ specified()

◆ write()

◆ validateMapForField() [2/2]

◆ validateForField() [2/2]

Member Data Documentation

◆ moveUpdateNames_

◆ patch_

◆ coupleGroup_

◆ nbrRegionName_

◆ nbrPatchName_

◆ transform_

◆ moveUpdate_
