Engine and base class for poly patches which provides interpolative mapping between two globally conforming poly patches. More...

Inheritance diagram for mappedPatchBase:

[legend]

Collaboration diagram for mappedPatchBase:

[legend]

Public Member Functions
	TypeName ("mappedPatchBase")
	Runtime type information. More...

	mappedPatchBase (const polyPatch &)
	Construct from patch. More...

	mappedPatchBase (const polyPatch &pp, const word &nbrRegionName, const word &nbrPatchName, const cyclicTransform &transform)
	Construct from components. More...

	mappedPatchBase (const polyPatch &pp, const dictionary &dict, const transformType tt)
	Construct from dictionary. More...

	mappedPatchBase (const polyPatch &, const mappedPatchBase &)
	Construct as copy, resetting patch. More...

virtual	~mappedPatchBase ()
	Destructor. More...

void	clearOut (const bool move)
	Clear out data on mesh change. More...

template<class Type >
tmp< Field< Type > >	fromNeighbour (const Field< Type > &nbrFld) const
	Map/interpolate the neighbour patch field to this patch. More...

template<class Type >
tmp< Field< Type > >	fromNeighbour (const tmp< Field< Type >> &nbrFld) const
	Map/interpolate the neighbour patch field to this patch. More...

template<class Type >
tmp< Field< Type > >	toNeighbour (const Field< Type > &fld) const
	Map/interpolate patch field to the neighbour patch. More...

template<class Type >
tmp< Field< Type > >	toNeighbour (const tmp< Field< Type >> &fld) const
	Map/interpolate patch field to the neighbour patch. More...

virtual void	write (Ostream &) const
	Write as a dictionary. More...

template<class Type >
Foam::tmp< Foam::Field< Type > >	fromNeighbour (const Field< Type > &nbrFld) const

template<class Type >
Foam::tmp< Foam::Field< Type > >	fromNeighbour (const tmp< Field< Type >> &nbrFld) const

template<class Type >
Foam::tmp< Foam::Field< Type > >	toNeighbour (const Field< Type > &fld) const

template<class Type >
Foam::tmp< Foam::Field< Type > >	toNeighbour (const tmp< Field< Type >> &fld) const

Public Member Functions inherited from mappedPatchBaseBase
	TypeName ("mappedPatchBaseBase")
	Runtime type information. More...

	mappedPatchBaseBase (const polyPatch &)
	Construct from patch. More...

	mappedPatchBaseBase (const polyPatch &pp, const word &nbrRegionName, const word &nbrPatchName, const cyclicTransform &transform)
	Construct from components. More...

	mappedPatchBaseBase (const polyPatch &pp, const dictionary &dict, const transformType tt)
	Construct from dictionary. More...

	mappedPatchBaseBase (const polyPatch &, const mappedPatchBaseBase &)
	Construct as copy, resetting patch. More...

virtual	~mappedPatchBaseBase ()
	Destructor. More...

const word &	nbrRegionName () const
	Name of the region to map from. More...

const word &	nbrPatchName () const
	Name of the patch to map from. More...

const transformer &	transform () const
	The transformation between the patches. More...

bool	sameRegion () const
	Is the neighbour region the same as for this patch? More...

bool	samePatch () const
	Is the neighbour patch the same as this patch? More...

bool	sameUntransformedPatch () const
	Is the neighbour patch the same as this patch with no transform? More...

bool	haveNbr () const
	Is the neighbour available? More...

const polyMesh &	nbrMesh () const
	Get the mesh for the region to map from. More...

const polyPatch &	nbrPolyPatch () const
	Get the patch to map from. More...

template<class PatchField , class FieldType >
void	validateForField (const PatchField &field, const FieldType &iF, const dictionary &context, const label froms=from::any) const
	Validate that the map is appropriate for the given. More...

template<class PatchFieldType , class FieldType >
void	validateMapForField (const PatchFieldType &field, const FieldType &iF, const dictionary &context, const label froms)

template<class PatchFieldType , class FieldType >
void	validateForField (const PatchFieldType &field, const FieldType &iF, const dictionary &context, const label froms) const

Static Public Member Functions
static const mappedPatchBase &	getMap (const polyPatch &patch)
	Cast the given polyPatch to a mappedPatchBase. Handle errors. More...

Static Public Member Functions inherited from mappedPatchBaseBase
template<class PatchField , class FieldType >
static void	validateMapForField (const PatchField &field, const FieldType &iF, const dictionary &context, const label froms=from::any)
	Validate that the map exists and is appropriate for the given. More...

static bool	moving (const polyPatch &patch, const polyPatch &nbrPatch)
	Return whether or not the patches have moved. More...

static bool	specified (const dictionary &dict)
	Return whether or not the given dictionary contains a. More...

Protected Member Functions
virtual tmp< vectorField >	patchFaceAreas () const
	Get the face-areas for this patch. More...

virtual tmp< pointField >	patchFaceCentres () const
	Get the face-centres for this patch. More...

virtual tmp< pointField >	patchLocalPoints () const
	Get the local points for this patch. More...

tmp< vectorField >	nbrPatchFaceAreas () const
	Get the face-areas for the neighbour patch. More...

tmp< pointField >	nbrPatchFaceCentres () const
	Get the face-centres for the neighbour patch. More...

tmp< pointField >	nbrPatchLocalPoints () const
	Get the local points for the neighbour patch. More...

bool	mappingIsValid () const
	Return whether or not the mapping is valid. More...

void	calcMapping () const
	Calculate mapping. More...

virtual void	clearOut () const
	Clear out data on mesh change. More...

bool	nbrPatchIsMapped () const
	Return whether or not the neighbour patch is of mapped type. More...

const mappedPatchBase &	nbrMappedPatch () const
	Get the mapped neighbouring patch. More...

bool	symmetric () const
	Determine whether the neighbouring patch maps from this patch in. More...

Protected Attributes
const bool	usingTree_
	Are we using the tree mapping method, or a patch-to-patch. More...

autoPtr< distributionMap >	treeMapPtr_
	Distributor (if using tree) More...

labelList	treeNbrPatchFaceIndices_
	Indices of the neighbouring patch faces who's values. More...

autoPtr< patchToPatch >	patchToPatchPtr_
	Patch-to-patch intersection engine (if using patch-to-patch) More...

const scalar	matchTol_
	Matching tolerance. More...

label	mappingIsValid_
	Is the mapping engine up to date? Zero if out of date. One if out. More...

label	nbrMappingIsValid_
	If the neighbour's mapping engine (if there is one) up to date? More...

Protected Attributes inherited from mappedPatchBaseBase
const polyPatch &	patch_
	Patch to map to. More...

const coupleGroupIdentifier	coupleGroup_
	Couple group for the region/patch to map from. More...

word	nbrRegionName_
	Name of the region to map from. More...

word	nbrPatchName_
	Name of the patch to map from. More...

cyclicTransform	transform_
	The transformation between the patches. More...

const moveUpdate	moveUpdate_
	The condition that triggers re-calculation following motion. More...

Static Protected Attributes
static const scalar	defaultMatchTol_ = 1e-4
	Default Matching tolerance. More...

Additional Inherited Members
Public Types inherited from mappedPatchBaseBase
enum class	transformType { none , defaultNone , specified }
	The type of the transformation permitted/required by this patch. More...

enum class	moveUpdate { always , detect , never }
	Enumeration for the condition that triggers re-calculation of the. More...

Static Public Attributes inherited from mappedPatchBaseBase
static const NamedEnum< moveUpdate, 3 >	moveUpdateNames_ {"always", "detect", "never"}
	Names of the move-update conditions. More...

Detailed Description

Engine and base class for poly patches which provides interpolative mapping between two globally conforming poly patches.

Example:

    // (Settings inherited from mappedPatchBaseBase to identify the
    // neighbouring region and patch)
    ...

    // Patch-to-patch mapping method. How the interpolation addressing and
    // weights are constructed. Likely to be "matching" if the patches are
    // conformal, or "intersection" if they are not. Optional. If omitted,
    // then it will be assumed that the patches are conformal, and an
    // octree-based method will be used to construct the connections.
    method matching; // nearest, intersection, inverseDistance

    // Tolerance used to check the patches' global conformance (i.e., the
    // conformance of the patches' entire surfaces, not of each pair of
    // faces). Optional. Defaults to a small value.
    matchTol 1e-4;

See also: Foam::mappedPatchBaseBase

Source files

Definition at line 72 of file mappedPatchBase.H.

Constructor & Destructor Documentation

◆ mappedPatchBase() [1/4]

mappedPatchBase ( const polyPatch & pp )

Construct from patch.

Definition at line 417 of file mappedPatchBase.C.

◆ mappedPatchBase() [2/4]

mappedPatchBase	(	const polyPatch &	pp,
		const word &	nbrRegionName,
		const word &	nbrPatchName,
		const cyclicTransform &	transform
	)

Construct from components.

Definition at line 430 of file mappedPatchBase.C.

◆ mappedPatchBase() [3/4]

mappedPatchBase	(	const polyPatch &	pp,
		const dictionary &	dict,
		const transformType	tt
	)

Construct from dictionary.

Definition at line 449 of file mappedPatchBase.C.

◆ mappedPatchBase() [4/4]

mappedPatchBase	(	const polyPatch &	pp,
		const mappedPatchBase &	mpb
	)

Construct as copy, resetting patch.

Definition at line 476 of file mappedPatchBase.C.

◆ ~mappedPatchBase()

~mappedPatchBase ( )

virtual

Destructor.

Definition at line 500 of file mappedPatchBase.C.

Member Function Documentation

◆ patchFaceAreas()

Foam::tmp< Foam::vectorField > patchFaceAreas ( ) const

protectedvirtual

Get the face-areas for this patch.

Reimplemented in mappedExtrudedPatchBase.

Definition at line 47 of file mappedPatchBase.C.

References mappedPatchBaseBase::patch_.

Referenced by mappedExtrudedPatchBase::patchFaceAreas().

Here is the caller graph for this function:

◆ patchFaceCentres()

Foam::tmp< Foam::pointField > patchFaceCentres ( ) const

protectedvirtual

Get the face-centres for this patch.

Reimplemented in mappedExtrudedPatchBase.

Definition at line 53 of file mappedPatchBase.C.

Referenced by mappedExtrudedPatchBase::patchFaceCentres().

Here is the caller graph for this function:

◆ patchLocalPoints()

Foam::tmp< Foam::pointField > patchLocalPoints ( ) const

protectedvirtual

Get the local points for this patch.

Reimplemented in mappedExtrudedPatchBase.

Definition at line 59 of file mappedPatchBase.C.

Referenced by mappedExtrudedPatchBase::patchLocalPoints().

Here is the caller graph for this function:

◆ nbrPatchFaceAreas()

Foam::tmp< Foam::vectorField > nbrPatchFaceAreas ( ) const

protected

Get the face-areas for the neighbour patch.

Definition at line 65 of file mappedPatchBase.C.

References PrimitivePatch< SubList< face >, const pointField & >::faceAreas().

Here is the call graph for this function:

◆ nbrPatchFaceCentres()

Foam::tmp< Foam::pointField > nbrPatchFaceCentres ( ) const

protected

Get the face-centres for the neighbour patch.

Definition at line 74 of file mappedPatchBase.C.

References PrimitivePatch< SubList< face >, const pointField & >::faceCentres().

Here is the call graph for this function:

◆ nbrPatchLocalPoints()

Foam::tmp< Foam::pointField > nbrPatchLocalPoints ( ) const

protected

Get the local points for the neighbour patch.

Definition at line 83 of file mappedPatchBase.C.

◆ mappingIsValid()

bool mappingIsValid ( ) const

protected

Return whether or not the mapping is valid.

Definition at line 92 of file mappedPatchBase.C.

References Foam::min(), and mappedPatchBaseBase::moving().

Referenced by mappedPatchBase::fromNeighbour().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ calcMapping()

void calcMapping ( ) const

protected

Calculate mapping.

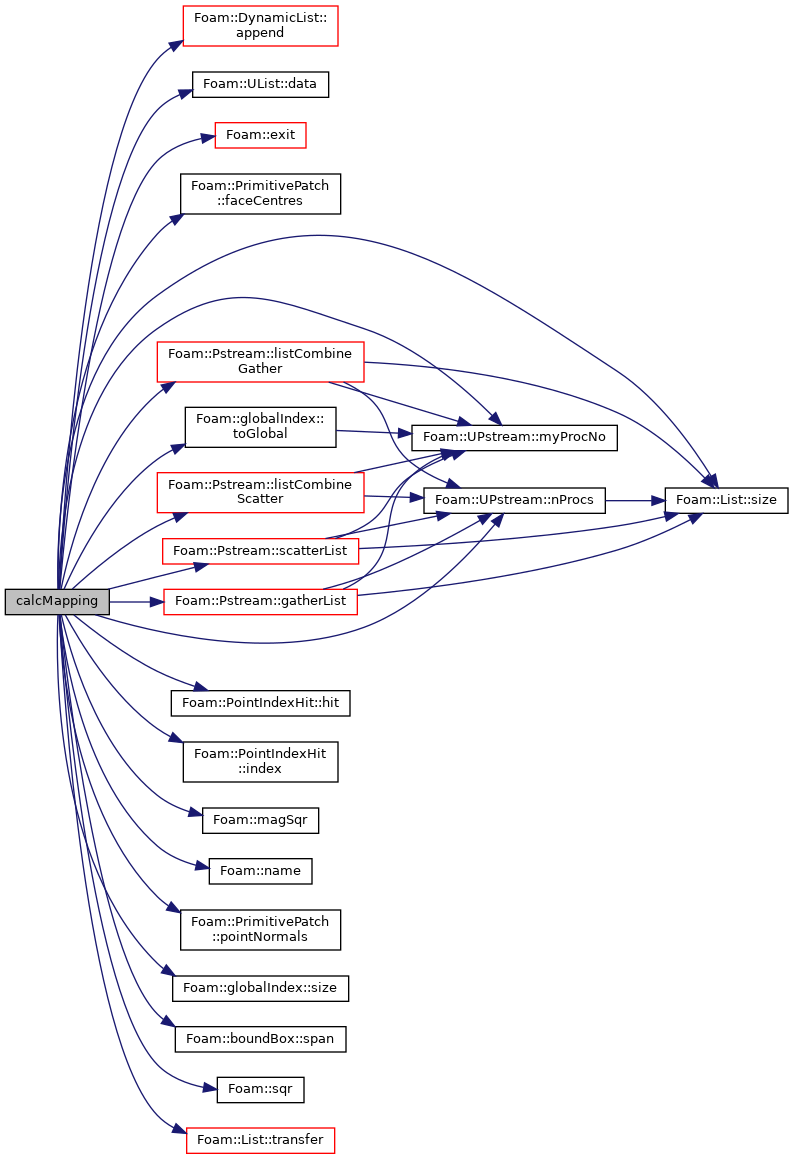

Definition at line 112 of file mappedPatchBase.C.

References DynamicList< T, SizeInc, SizeMult, SizeDiv >::append(), UList< T >::data(), Foam::e, Foam::exit(), PrimitivePatch< FaceList, PointField >::faceCentres(), Foam::FatalError, FatalErrorInFunction, forAll, Pstream::gatherList(), PointIndexHit< Point >::hit(), PointIndexHit< Point >::index(), Pstream::listCombineGather(), Pstream::listCombineScatter(), Foam::magSqr(), UPstream::myProcNo(), Foam::name(), UPstream::nProcs(), p, PrimitivePatch< FaceList, PointField >::pointNormals(), Pstream::scatterList(), globalIndex::size(), List< T >::size(), boundBox::span(), Foam::sqr(), globalIndex::toGlobal(), and List< T >::transfer().

Referenced by mappedPatchBase::fromNeighbour().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clearOut() [1/2]

void clearOut ( ) const

protectedvirtual

Clear out data on mesh change.

Reimplemented in mappedExtrudedPatchBase.

Definition at line 408 of file mappedPatchBase.C.

Referenced by mappedFilmSurfacePolyPatch::calcGeometry(), mappedFilmWallPolyPatch::calcGeometry(), mappedExtrudedWallPolyPatch::calcGeometry(), mappedPolyPatch::calcGeometry(), mappedWallPolyPatch::calcGeometry(), mappedExtrudedPatchBase::clearOut(), mappedFilmSurfacePolyPatch::movePoints(), mappedFilmWallPolyPatch::movePoints(), mappedExtrudedWallPolyPatch::movePoints(), mappedPolyPatch::movePoints(), mappedWallPolyPatch::movePoints(), mappedFilmSurfacePolyPatch::topoChange(), mappedFilmWallPolyPatch::topoChange(), mappedExtrudedWallPolyPatch::topoChange(), mappedPolyPatch::topoChange(), and mappedWallPolyPatch::topoChange().

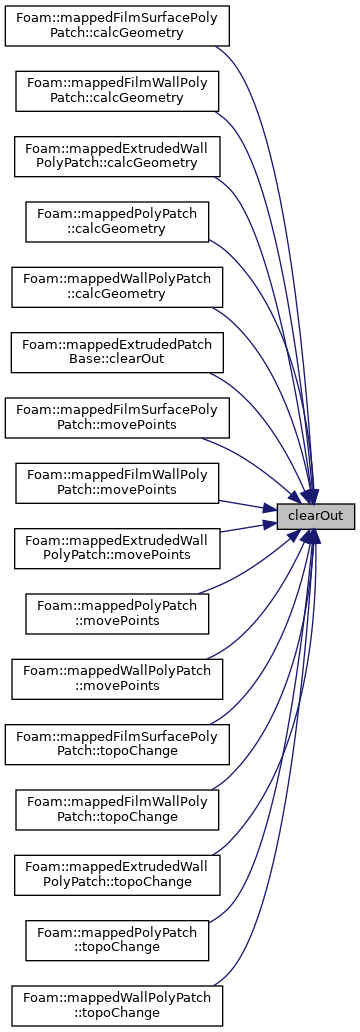

Here is the caller graph for this function:

◆ nbrPatchIsMapped()

bool nbrPatchIsMapped ( ) const

inlineprotected

Return whether or not the neighbour patch is of mapped type.

Definition at line 30 of file mappedPatchBaseI.H.

References mappedPatchBaseBase::nbrPolyPatch().

Here is the call graph for this function:

◆ nbrMappedPatch()

const Foam::mappedPatchBase & nbrMappedPatch ( ) const

inlineprotected

Get the mapped neighbouring patch.

Definition at line 37 of file mappedPatchBaseI.H.

Referenced by mappedPatchBase::fromNeighbour().

Here is the caller graph for this function:

◆ symmetric()

bool symmetric ( ) const

inlineprotected

Determine whether the neighbouring patch maps from this patch in.

the same way as this patch maps from its neighbour

Definition at line 43 of file mappedPatchBaseI.H.

Referenced by mappedPatchBase::fromNeighbour().

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "mappedPatchBase" )

Runtime type information.

◆ getMap()

const Foam::mappedPatchBase & getMap ( const polyPatch & patch )

static

Cast the given polyPatch to a mappedPatchBase. Handle errors.

Definition at line 506 of file mappedPatchBase.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, and patchIdentifier::name().

Here is the call graph for this function:

◆ clearOut() [2/2]

void clearOut ( const bool move )

Clear out data on mesh change.

Definition at line 522 of file mappedPatchBase.C.

References Foam::min().

Here is the call graph for this function:

◆ fromNeighbour() [1/4]

tmp<Field<Type> > fromNeighbour ( const Field< Type > & nbrFld ) const

Map/interpolate the neighbour patch field to this patch.

Referenced by mappedFvPatchBase::fromNeighbour().

Here is the caller graph for this function:

◆ fromNeighbour() [2/4]

tmp<Field<Type> > fromNeighbour ( const tmp< Field< Type >> & nbrFld ) const

Map/interpolate the neighbour patch field to this patch.

◆ toNeighbour() [1/4]

tmp<Field<Type> > toNeighbour ( const Field< Type > & fld ) const

Map/interpolate patch field to the neighbour patch.

◆ toNeighbour() [2/4]

tmp<Field<Type> > toNeighbour ( const tmp< Field< Type >> & fld ) const

Map/interpolate patch field to the neighbour patch.

◆ write()

void write ( Ostream & os ) const

virtual

Write as a dictionary.

Reimplemented from mappedPatchBaseBase.

Reimplemented in mappedWallPolyPatch, mappedPolyPatch, mappedExtrudedWallPolyPatch, mappedExtrudedPatchBase, mappedFilmWallPolyPatch, and mappedFilmSurfacePolyPatch.

Definition at line 542 of file mappedPatchBase.C.

References mappedPatchBaseBase::write(), Foam::writeEntry(), and Foam::writeEntryIfDifferent().

Referenced by mappedFilmWallPolyPatch::write(), mappedExtrudedPatchBase::write(), mappedPolyPatch::write(), and mappedWallPolyPatch::write().

Here is the call graph for this function:

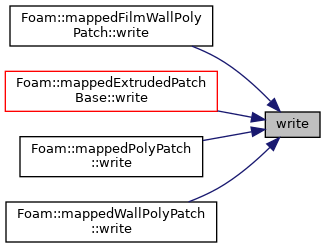

Here is the caller graph for this function:

◆ fromNeighbour() [3/4]

Foam::tmp<Foam::Field<Type> > fromNeighbour ( const Field< Type > & nbrFld ) const

Definition at line 32 of file mappedPatchBaseTemplates.C.

References mappedPatchBase::calcMapping(), mappedPatchBase::mappingIsValid(), mappedPatchBase::nbrMappedPatch(), mappedPatchBase::patchToPatchPtr_, tmp< T >::ref(), mappedPatchBaseBase::sameUntransformedPatch(), mappedPatchBase::symmetric(), cyclicTransform::transform(), transformer::transform(), mappedPatchBaseBase::transform_, mappedPatchBase::treeMapPtr_, mappedPatchBase::treeNbrPatchFaceIndices_, and mappedPatchBase::usingTree_.

Here is the call graph for this function:

◆ fromNeighbour() [4/4]

Foam::tmp<Foam::Field<Type> > fromNeighbour ( const tmp< Field< Type >> & nbrFld ) const

Definition at line 77 of file mappedPatchBaseTemplates.C.

◆ toNeighbour() [3/4]

Foam::tmp<Foam::Field<Type> > toNeighbour ( const Field< Type > & fld ) const

Definition at line 87 of file mappedPatchBaseTemplates.C.

References fld(), and tmp< T >::ref().

Here is the call graph for this function:

◆ toNeighbour() [4/4]

Foam::tmp<Foam::Field<Type> > toNeighbour ( const tmp< Field< Type >> & fld ) const

Definition at line 131 of file mappedPatchBaseTemplates.C.

References fld().

Here is the call graph for this function:

Member Data Documentation

◆ usingTree_

const bool usingTree_

protected

Are we using the tree mapping method, or a patch-to-patch.

intersection engine? The former is typically faster on small, pairs of patches with identical meshes. The latter is better parallelised and provides options for connecting patches with differing surface meshes.

Definition at line 85 of file mappedPatchBase.H.

Referenced by mappedPatchBase::fromNeighbour().

◆ treeMapPtr_

autoPtr<distributionMap> treeMapPtr_

mutableprotected

Distributor (if using tree)

Definition at line 88 of file mappedPatchBase.H.

Referenced by mappedPatchBase::fromNeighbour().

◆ treeNbrPatchFaceIndices_

labelList treeNbrPatchFaceIndices_

mutableprotected

Indices of the neighbouring patch faces who's values.

have to be supplied to the distribution map (if using tree)

Definition at line 92 of file mappedPatchBase.H.

Referenced by mappedPatchBase::fromNeighbour().

◆ patchToPatchPtr_

autoPtr<patchToPatch> patchToPatchPtr_

mutableprotected

Patch-to-patch intersection engine (if using patch-to-patch)

Definition at line 95 of file mappedPatchBase.H.

Referenced by mappedPatchBase::fromNeighbour().

◆ defaultMatchTol_

const scalar defaultMatchTol_ = 1e-4

staticprotected

Default Matching tolerance.

Definition at line 98 of file mappedPatchBase.H.

◆ matchTol_

const scalar matchTol_

protected

Matching tolerance.

Definition at line 101 of file mappedPatchBase.H.

◆ mappingIsValid_

label mappingIsValid_

mutableprotected

Is the mapping engine up to date? Zero if out of date. One if out.

of date (or potentially not out of date) because of motion. Two if up to date.

Definition at line 106 of file mappedPatchBase.H.

◆ nbrMappingIsValid_

label nbrMappingIsValid_

mutableprotected

If the neighbour's mapping engine (if there is one) up to date?

Definition at line 109 of file mappedPatchBase.H.

The documentation for this class was generated from the following files:

src/meshTools/mappedPatches/mappedPatchBase/mappedPatchBase.H
src/meshTools/mappedPatches/mappedPatchBase/mappedPatchBase.C
src/meshTools/mappedPatches/mappedPatchBase/mappedPatchBaseI.H
src/meshTools/mappedPatches/mappedPatchBase/mappedPatchBaseTemplates.C

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ mappedPatchBase() [1/4]

◆ mappedPatchBase() [2/4]

◆ mappedPatchBase() [3/4]

◆ mappedPatchBase() [4/4]

◆ ~mappedPatchBase()

Member Function Documentation

◆ patchFaceAreas()

◆ patchFaceCentres()

◆ patchLocalPoints()

◆ nbrPatchFaceAreas()

◆ nbrPatchFaceCentres()

◆ nbrPatchLocalPoints()

◆ mappingIsValid()

◆ calcMapping()

◆ clearOut() [1/2]

◆ nbrPatchIsMapped()

◆ nbrMappedPatch()

◆ symmetric()

◆ TypeName()

◆ getMap()

◆ clearOut() [2/2]

◆ fromNeighbour() [1/4]

◆ fromNeighbour() [2/4]

◆ toNeighbour() [1/4]

◆ toNeighbour() [2/4]

◆ write()

◆ fromNeighbour() [3/4]

◆ fromNeighbour() [4/4]

◆ toNeighbour() [3/4]

◆ toNeighbour() [4/4]

Member Data Documentation

◆ usingTree_

◆ treeMapPtr_

◆ treeNbrPatchFaceIndices_

◆ patchToPatchPtr_

◆ defaultMatchTol_

◆ matchTol_

◆ mappingIsValid_

◆ nbrMappingIsValid_
