This function object writes graphs of cell values, volume-averaged in planes perpendicular to a given direction or in contours of a given distance field. It adaptively grades the distribution of graph points to match the resolution of the mesh. More...

Inheritance diagram for cutLayerAverage:

[legend]

Collaboration diagram for cutLayerAverage:

[legend]

Public Member Functions
	TypeName ("cutLayerAverage")
	Runtime type information. More...

	cutLayerAverage (const word &name, const Time &runTime, const dictionary &dict)
	Construct from Time and dictionary. More...

virtual	~cutLayerAverage ()
	Destructor. More...

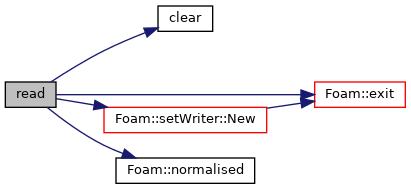

virtual bool	read (const dictionary &)
	Read the cutLayerAverage data. More...

virtual wordList	fields () const
	Return the list of fields required. More...

virtual bool	execute ()
	Execute, currently does nothing. More...

virtual bool	write ()
	Write the cutLayerAverage. More...

virtual void	movePoints (const polyMesh &)
	Update for mesh point-motion. More...

virtual void	topoChange (const polyTopoChangeMap &)
	Update topology using the given map. More...

virtual void	mapMesh (const polyMeshMap &)
	Update from another mesh using the given map. More...

virtual void	distribute (const polyDistributionMap &)
	Redistribute or update using the given distribution map. More...

template<class Type >

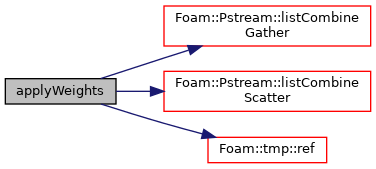

Foam::tmp< Foam::Field< Type > >	applyWeights (const List< weight > &weights, const VolInternalField< Type > &cellValues) const

Public Member Functions inherited from fvMeshFunctionObject
	TypeName ("fvMeshFunctionObject")
	Runtime type information. More...

	fvMeshFunctionObject (const word &name, const Time &runTime, const dictionary &dict)
	Construct from Time and dictionary. More...

	fvMeshFunctionObject (const word &name, const objectRegistry &obr)
	Construct from the region objectRegistry. More...

	fvMeshFunctionObject (const fvMeshFunctionObject &)=delete
	Disallow default bitwise copy construction. More...

virtual	~fvMeshFunctionObject ()
	Destructor. More...

const fvMesh &	mesh () const
	Return a reference to the mesh. More...

void	operator= (const fvMeshFunctionObject &)=delete
	Disallow default bitwise assignment. More...

Public Member Functions inherited from regionFunctionObject
	TypeName ("regionFunctionObject")
	Runtime type information. More...

	regionFunctionObject (const word &name, const Time &runTime, const dictionary &dict)
	Construct from Time and dictionary. More...

	regionFunctionObject (const word &name, const objectRegistry &obr)
	Construct from the region objectRegistry. More...

	regionFunctionObject (const regionFunctionObject &)=delete
	Disallow default bitwise copy construction. More...

virtual	~regionFunctionObject ()
	Destructor. More...

void	operator= (const regionFunctionObject &)=delete
	Disallow default bitwise assignment. More...

Public Member Functions inherited from objectRegistryFunctionObject
	TypeName ("objectRegistryFunctionObject")
	Runtime type information. More...

	objectRegistryFunctionObject (const word &name, const objectRegistry &obr, const dictionary &dict)
	Construct from an objectRegistry and dictionary. More...

	objectRegistryFunctionObject (const word &name, const objectRegistry &obr)
	Construct from an objectRegistry. More...

	objectRegistryFunctionObject (const objectRegistryFunctionObject &)=delete
	Disallow default bitwise copy construction. More...

virtual	~objectRegistryFunctionObject ()
	Destructor. More...

void	operator= (const objectRegistryFunctionObject &)=delete
	Disallow default bitwise assignment. More...

Public Member Functions inherited from functionObject
	ClassName ("functionObject")

virtual const word &	type () const =0
	Runtime type information. More...

	declareRunTimeSelectionTable (autoPtr, functionObject, dictionary,(const word &name, const Time &runTime, const dictionary &dict),(name, runTime, dict))

	functionObject (const word &name, const Time &runTime)
	Construct from components. More...

	functionObject (const word &name, const Time &runTime, const dictionary &dict)
	Construct from dictionary. More...

autoPtr< functionObject >	clone () const
	Return clone. More...

	functionObject (const functionObject &)=delete
	Disallow default bitwise copy construction. More...

virtual	~functionObject ()
	Destructor. More...

const word &	name () const
	Return the name of this functionObject. More...

virtual bool	executeAtStart () const
	Return true if the functionObject should be executed at the start. More...

virtual bool	end ()
	Called when Time::run() determines that the time-loop exits. More...

virtual scalar	timeToNextAction ()
	Called by Time::adjustTimeStep(). Allows the functionObject to. More...

virtual scalar	maxDeltaT () const
	Return the maximum time-step for stable operation. More...

void	operator= (const functionObject &)=delete
	Disallow default bitwise assignment. More...

Additional Inherited Members
Static Public Member Functions inherited from functionObject
static autoPtr< functionObject >	New (const word &name, const Time &, const dictionary &)
	Select from dictionary, based on its "type" entry. More...

Public Attributes inherited from functionObject
Switch	log
	Switch write log to Info. More...

Switch	executeAtStart_
	Switch execute at start time. More...

Static Public Attributes inherited from functionObject
static bool	postProcess
	Global post-processing mode switch. More...

Protected Member Functions inherited from objectRegistryFunctionObject
template<class ObjectType >
bool	foundObject (const word &fieldName) const
	Find field in the objectRegistry. More...

template<class ObjectType >
void	cannotFindObject (const word &fieldName)
	Prints a warning message that fieldName cannot be found. More...

void	cannotFindObject (const word &fieldName)
	Prints a warning message that fieldName cannot be found. More...

void	cannotFindObjects (const wordList &fieldNames)
	Prints a warning message that fieldNames cannot be found. More...

template<class ObjectType >
const ObjectType &	lookupObject (const word &fieldName) const
	Lookup object from the objectRegistry. More...

template<class ObjectType >
ObjectType &	lookupObjectRef (const word &fieldName)
	Lookup non-const object reference from the objectRegistry. More...

template<class ObjectType >
ObjectType &	store (const tmp< ObjectType > &tfield)
	Store the given field in the objectRegistry. More...

template<class ObjectType >
ObjectType &	store (const word &fieldName, const tmp< ObjectType > &tfield, bool cacheable=false)
	Store the given field in the objectRegistry under the given name. More...

bool	writeObject (const word &fieldName)
	Write field if present in objectRegistry. More...

bool	clearObject (const word &fieldName)
	Clear field from the objectRegistry if present. More...

Protected Attributes inherited from fvMeshFunctionObject
const fvMesh &	mesh_
	Reference to the fvMesh. More...

Protected Attributes inherited from objectRegistryFunctionObject
const objectRegistry &	obr_
	Reference to the objectRegistry. More...

Protected Attributes inherited from functionObject
const Time &	time_
	Reference to time. More...

Detailed Description

This function object writes graphs of cell values, volume-averaged in planes perpendicular to a given direction or in contours of a given distance field. It adaptively grades the distribution of graph points to match the resolution of the mesh.

Unlike the layerAverage function, this function does not require the mesh to be of any specific structure. This function will cut cells that span multiple layers in order to distribute their contributions between the layers. The cutting process has an expense associated with it and the point grading is calculated iteratively and is somewhat approximate.

Example of function object specification:

cutLayerAverage1
{
    type            cutLayerAverage;
    libs            ("libcutLayerAverageFunctionObject.so");

    writeControl    writeTime;
    writeInterval   1;

    direction       (1 0 0);
    nPoints         100;
    interpolate     no;

    fields          (p U);

    axis            x;
    setFormat       raw;
}

Usage

Property	Description	Required	Default value
`type`	type name: cutLayerAverage	yes
`cellZone`	The name of the cell zone	yes
`direction`	Axis along which to plot	if distance not specified
`distance`	Distance field along which to plot	if direction not specified
`nPoints`	Number of points in the plot	yes
`interpolate`	Do linear interpolation	no	false
`fields`	Fields to plot values of	yes
`axis`	Component of the position to plot against	yes
`setFormat`	Format of the output file	yes
