Model for tracking the evolution of a dispersed phase size distribution due to coalescence (synonymous with coagulation, aggregation, agglomeration) and breakup events as well as density or phase changes. Provides an approximate solution of the population balance equation by means of a class method. The underlying theory is described in the article of Lehnigk et al. (2021). More...

Inheritance diagram for populationBalanceModel:

[legend]

Collaboration diagram for populationBalanceModel:

[legend]

Classes
class	groups
	Class to accumulate population balance sub-class pointers. More...

class	iNew
	Return a pointer to a new populationBalanceModel object created on. More...

Public Types
typedef HashPtrTable< volScalarField::Internal, phaseInterfaceKey, phaseInterfaceKey::hash >	dmdtfTable
	Table of interfacial mass transfer rates. More...

Public Types inherited from IOobject
enum	objectState { GOOD , BAD }
	Enumeration defining the valid states of an IOobject. More...

enum	readOption { MUST_READ , MUST_READ_IF_MODIFIED , READ_IF_PRESENT , NO_READ }
	Enumeration defining the read options. More...

enum	writeOption { AUTO_WRITE = 0 , NO_WRITE = 1 }
	Enumeration defining the write options. More...

enum	fileCheckTypes { timeStamp , timeStampMaster , inotify , inotifyMaster }
	Enumeration defining the file checking options. More...

Public Member Functions
	TypeName ("populationBalanceModel")
	Runtime type information. More...

	populationBalanceModel (const phaseSystem &fluid, const word &name)
	Construct for a fluid. More...

autoPtr< populationBalanceModel >	clone () const
	Return clone. More...

virtual	~populationBalanceModel ()
	Destructor. More...

bool	writeData (Ostream &) const
	Dummy write for regIOobject. More...

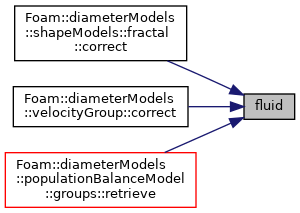

const phaseSystem &	fluid () const
	Return reference to the phaseSystem. More...

const dmdtfTable &	dmdtfs () const
	Return reference to the coalescence and breakup interfacial mass. More...

const dmdtfTable &	expansionDmdtfs () const
	Return reference to the expansion interfacial mass transfer rates. More...

const dmdtfTable &	modelSourceDmdtfs () const
	Return reference to the model source interfacial mass transfer rates. More...

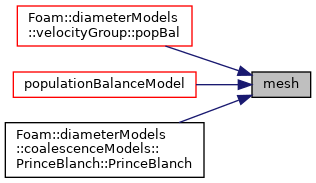

const fvMesh &	mesh () const
	Return reference to the mesh. More...

const dictionary &	solverDict () const
	Return solution settings dictionary for this populationBalance. More...

bool	solveOnFinalIterOnly () const
	Solve on final pimple iteration only. More...

const phaseModel &	continuousPhase () const
	Return continuous phase. More...

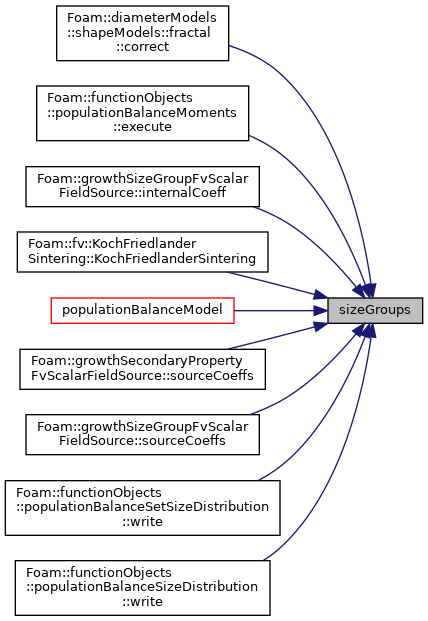

const UPtrList< sizeGroup > &	sizeGroups () const
	Return the size groups belonging to this populationBalance. More...

UPtrList< sizeGroup > &	sizeGroups ()
	Access the size groups belonging to this populationBalance. More...

const List< labelPair > &	coalescencePairs () const
	Return coalescence relevant size group pairs. More...

const List< labelPair > &	binaryBreakupPairs () const
	Return binary breakup relevant size group pairs. More...

const volScalarField &	alphas () const
	Return total void of phases belonging to this populationBalance. More...

const volVectorField &	U () const
	Return average velocity. More...

dimensionedScalar	eta (const label i, const dimensionedScalar &v) const
	Return the number allocation coefficient for a single volume. More...

tmp< volScalarField::Internal >	eta (const label i, const volScalarField::Internal &v) const
	Return the number allocation coefficient for a field of volumes. More...

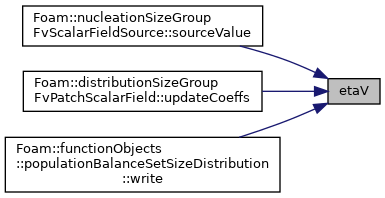

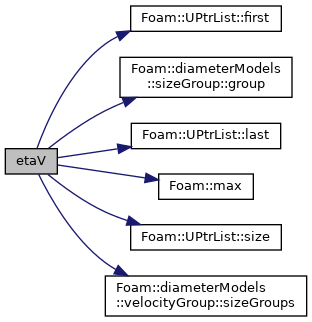

dimensionedScalar	etaV (const label i, const dimensionedScalar &v) const
	Return the volume allocation coefficient for a single volume. More...

tmp< volScalarField::Internal >	etaV (const label i, const volScalarField::Internal &v) const
	Return the volume allocation coefficient for a field of volumes. More...

dimensionedScalar	etaV (const labelPair is, const distribution &d) const
	Return the volume allocation coefficient for a given distribution. More...

dimensionedScalar	etaV (const label i, const distribution &d) const
	Return the volume allocation coefficient for a given distribution. More...

const tmp< volScalarField >	sigmaWithContinuousPhase (const phaseModel &dispersedPhase) const
	Return the surface tension coefficient between a given dispersed. More...

const phaseCompressibleMomentumTransportModel &	continuousTurbulence () const
	Return reference to momentumTransport model of the continuous phase. More...

tmp< volScalarField::Internal >	Sp (const label i) const
	Return the implicit coalescence and breakup source term. More...

tmp< volScalarField::Internal >	expansionSu (const label i, const UPtrList< const volScalarField > &flds=UPtrList< const volScalarField >()) const
	Return the explicit expansion source term. More...

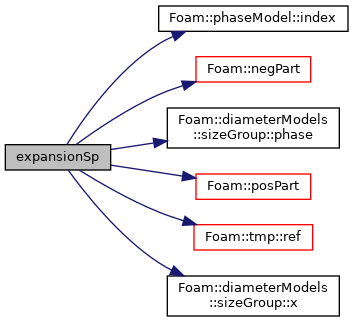

tmp< volScalarField::Internal >	expansionSp (const label i) const
	Return the implicit expansion source term. More...

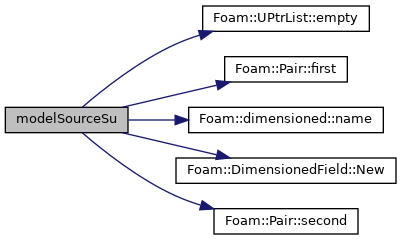

tmp< volScalarField::Internal >	modelSourceSu (const label i, const UPtrList< const volScalarField > &flds=UPtrList< const volScalarField >()) const
	Return the explicit model source source term. More...

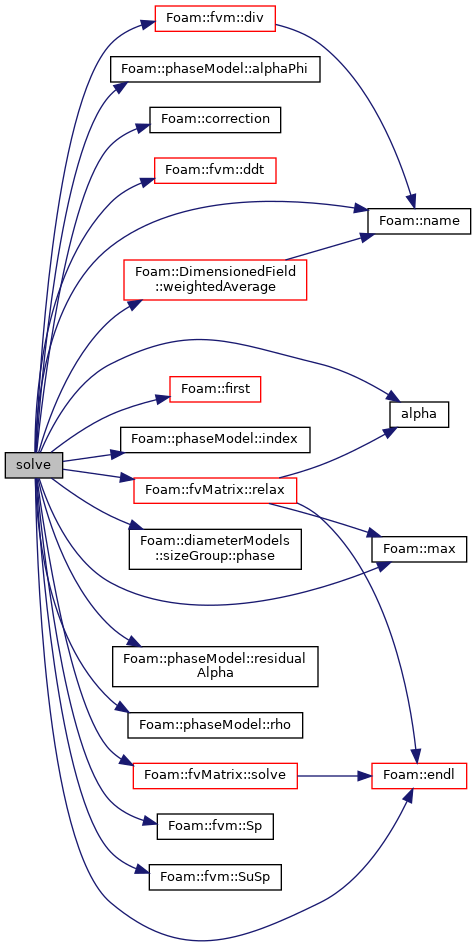

void	solve ()
	Solve the population balance equation. More...

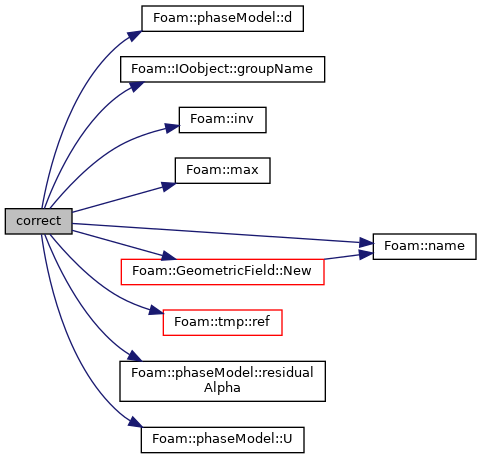

void	correct ()
	Correct derived quantities. More...
