Adds layers of cells to outside of polyPatch. Can optionally create stand-alone extruded mesh (addToMesh=false). More...

Public Member Functions
	ClassName ("addPatchCellLayer")
	Runtime type information. More...

	addPatchCellLayer (const polyMesh &, const bool addToMesh=true)
	Construct from mesh. More...

const labelListList &	addedPoints () const
	Added points per patch point. More...

const labelListList &	layerFaces () const
	Layer faces per patch face. See above. More...

labelListList	addedCells (const polyMesh &) const
	Added cells given current mesh & layerfaces. More...

void	setRefinement (const polyMesh &mesh, const globalIndex &globalFaces, const labelListList &globalEdgeFaces, const scalarField &expansionRatio, const indirectPrimitivePatch &pp, const labelList &sidePatchID, const labelList &exposedPatchID, const labelList &nFaceLayers, const labelList &nPointLayers, const vectorField &firstLayerDisp, const labelList &faceCellZones, polyTopoChange &meshMod)
	Play commands into polyTopoChange to create layers on top. More...

void	setRefinement (const polyMesh &mesh, const globalIndex &globalFaces, const labelListList &globalEdgeFaces, const label nLayers, const indirectPrimitivePatch &pp, const labelList &sidePatchID, const vectorField &overallDisplacement, const labelList &faceCellZones, polyTopoChange &meshMod)
	Add with constant expansion ratio and same nLayers everywhere. More...

void	topoChange (const polyTopoChangeMap &, const labelList &faceMap, const labelList &pointMap)
	Update any locally stored mesh information. Gets additional. More...

void	updateZones (polyMesh &mesh)
	Update the mesh zones. More...

Static Public Member Functions
static labelListList	addedCells (const polyMesh &, const labelListList &layerFaces)
	Helper: get added cells per patch face. More...

static labelListList	globalEdgeFaces (const polyMesh &, const globalIndex &globalFaces, const indirectPrimitivePatch &pp)
	Per patch edge the pp faces (in global indices) using it. Uses. More...

static void	calcSidePatch (const polyMesh &, const globalIndex &globalFaces, const labelListList &globalEdgeFaces, const indirectPrimitivePatch &pp, labelList &sidePatchID, label &nPatches, Map< label > &nbrProcToPatch, Map< label > &patchToNbrProc)
	Boundary edges get extruded into boundary faces. Determine patch. More...

Detailed Description

Adds layers of cells to outside of polyPatch. Can optionally create stand-alone extruded mesh (addToMesh=false).

Call setRefinement with offset vector for every patch point and number of layers per patch face and number of layers per patch point.

offset vector should be zero for any non-manifold point and synchronised on coupled points before calling this.
offset vector of zero will not add any points.
gets supplied the number of extruded layers both per face and per point. Usually the point nlayers is the max of surrounding face nlayers.

point nlayers:
- 0 : no extrusion. Any surrounding face being extruded becomes 'prism'
- >0 : should be max of surrounding face nlayers.
differing face nlayers: 'termination' : (e.g. from 2 to 4 layers) match at original patch face side.

E.g. 2 boundary faces on patches a,b. 2 layers for a, 3 for b.

    Was:

       a      b         <- patch of boundary face
    +------+------+
    |      |      |     <- original cells
    +------+------+

    Becomes:

       a      b         <- patch of boundary face
    +------+------+
    +      +------+
    +------+------+
    +------+------+
    |      |      |     <- original cells
    +------+------+

added faces get same patchID as face they are extruded from
'side' faces (i.e. on the edge of pp) get the patchID/zoneID of the other patch/zone they are connected to (hopefully only 1)

E.g. 3 boundary faces on patches a,b. b gets extruded, a doesn't.

       a      b      b        <- patch of boundary face
    +------+------+------+
    |      |      |      |    <- cells
    +------+------+------+


           ^      ^           <- wanted extrusion vector (none at far right)
       a   |  b   |  b        <- patch of boundary face
    +------+------+------+
    |      |      |      |    <- cells
    +------+------+------+

              b
           +------+\ b        1. prism cell added onto second b face since
       a  a|      | ----\          only one side gets extruded.
    +------+------+------+    2. side-face gets patch a, not b.
    |      |      |      |
    +------+------+------+

Source files

Definition at line 125 of file addPatchCellLayer.H.

Constructor & Destructor Documentation

◆ addPatchCellLayer()

addPatchCellLayer	(	const polyMesh &	mesh,
		const bool	addToMesh = `true`
	)

Construct from mesh.

Definition at line 387 of file addPatchCellLayer.C.

Member Function Documentation

◆ ClassName()

ClassName ( "addPatchCellLayer" )

Runtime type information.

◆ addedPoints()

const labelListList& addedPoints ( ) const

inline

Added points per patch point.

Definition at line 262 of file addPatchCellLayer.H.

◆ layerFaces()

const labelListList& layerFaces ( ) const

inline

Layer faces per patch face. See above.

Definition at line 268 of file addPatchCellLayer.H.

◆ addedCells() [1/2]

Foam::labelListList addedCells	(	const polyMesh &	mesh,
		const labelListList &	layerFaces
	)

static

Helper: get added cells per patch face.

addedCells[patchFace] is list of cells added. Last element is the top cells (i.e. the boundary cell)

Definition at line 404 of file addPatchCellLayer.C.

References polyMesh::faceNeighbour(), forAll, mesh, List< T >::setSize(), and List< T >::size().

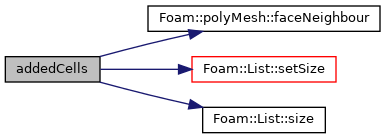

Here is the call graph for this function:

◆ addedCells() [2/2]

Foam::labelListList addedCells ( const polyMesh & mesh ) const

Added cells given current mesh & layerfaces.

Definition at line 431 of file addPatchCellLayer.C.

References mesh.

◆ globalEdgeFaces()

Foam::labelListList globalEdgeFaces	(	const polyMesh &	mesh,
		const globalIndex &	globalFaces,
		const indirectPrimitivePatch &	pp
	)

static

Per patch edge the pp faces (in global indices) using it. Uses.

uniqueEqOp() to remove duplicates.

Definition at line 440 of file addPatchCellLayer.C.

References UIndirectList< T >::addressing(), PrimitivePatch< FaceList, PointField >::edgeFaces(), primitiveMesh::edges(), forAll, mesh, PrimitivePatch< FaceList, PointField >::meshEdges(), primitiveMesh::nEdges(), primitiveMesh::pointEdges(), List< T >::setSize(), List< T >::size(), syncTools::syncEdgeList(), and globalIndex::toGlobal().

Referenced by snappyLayerDriver::addLayers(), and addPatchCellLayer::setRefinement().

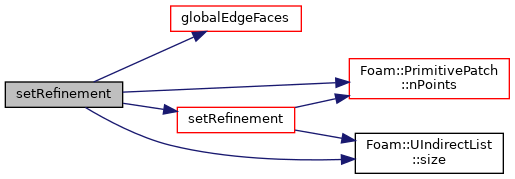

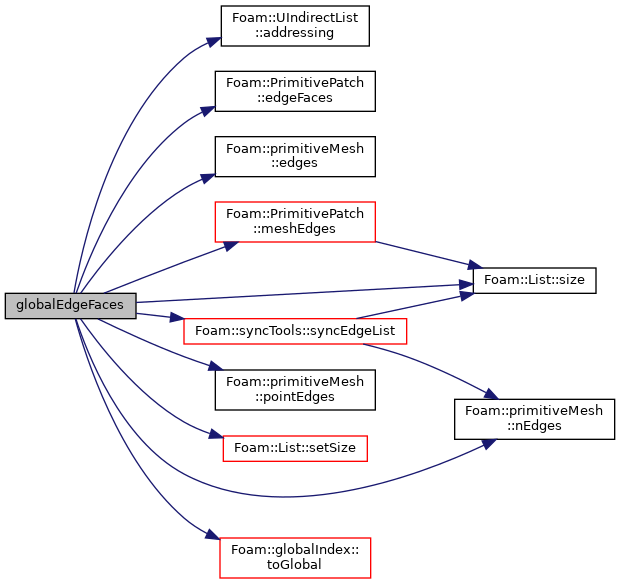

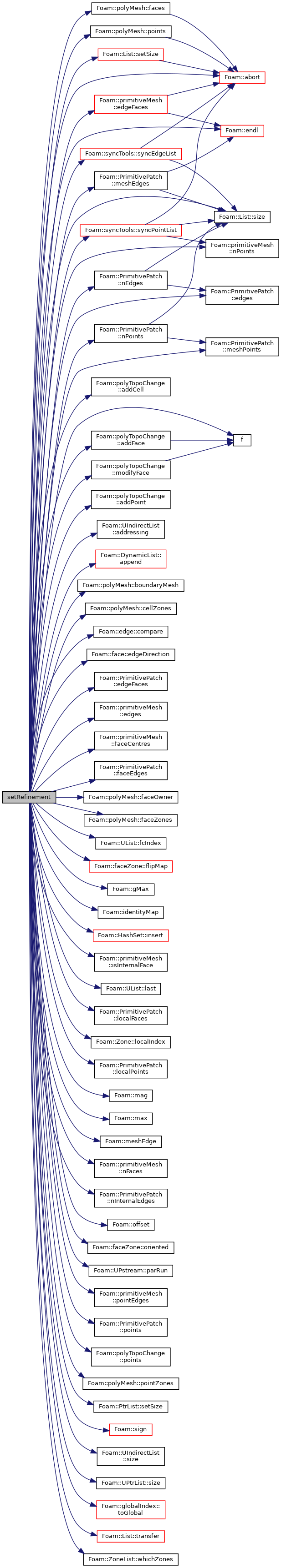

Here is the call graph for this function:

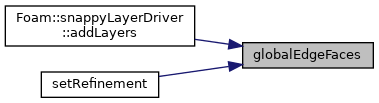

Here is the caller graph for this function:

◆ calcSidePatch()

void calcSidePatch	(	const polyMesh &	mesh,
		const globalIndex &	globalFaces,
		const labelListList &	globalEdgeFaces,
		const indirectPrimitivePatch &	pp,
		labelList &	sidePatchID,
		label &	nPatches,
		Map< label > &	nbrProcToPatch,
		Map< label > &	patchToNbrProc
	)

static

Boundary edges get extruded into boundary faces. Determine patch.

for these faces. This might be a to-be-created processor patch (patchi >= mesh.boundaryMesh().size()) in which case the nbrProcToPatch, patchToNbrProc give the correspondence. nPatches is the new number of patches.

Definition at line 485 of file addPatchCellLayer.C.

References UIndirectList< T >::addressing(), polyMesh::boundaryMesh(), Foam::e, primitiveMesh::edgeFaces(), PrimitivePatch< FaceList, PointField >::edgeFaces(), primitiveMesh::edges(), PrimitivePatch< FaceList, PointField >::edges(), Foam::endl(), forAll, HashTable< T, Key, Hash >::found(), HashTable< T, Key, Hash >::insert(), primitiveMesh::isInternalFace(), globalIndex::isLocal(), k, mesh, PrimitivePatch< FaceList, PointField >::meshEdges(), PrimitivePatch< FaceList, PointField >::meshPoints(), PrimitivePatch< FaceList, PointField >::nEdges(), nPatches, patches, primitiveMesh::pointEdges(), PrimitivePatch< FaceList, PointField >::points(), List< T >::setSize(), UPtrList< T >::size(), List< T >::size(), WarningInFunction, polyBoundaryMesh::whichPatch(), and globalIndex::whichProcID().

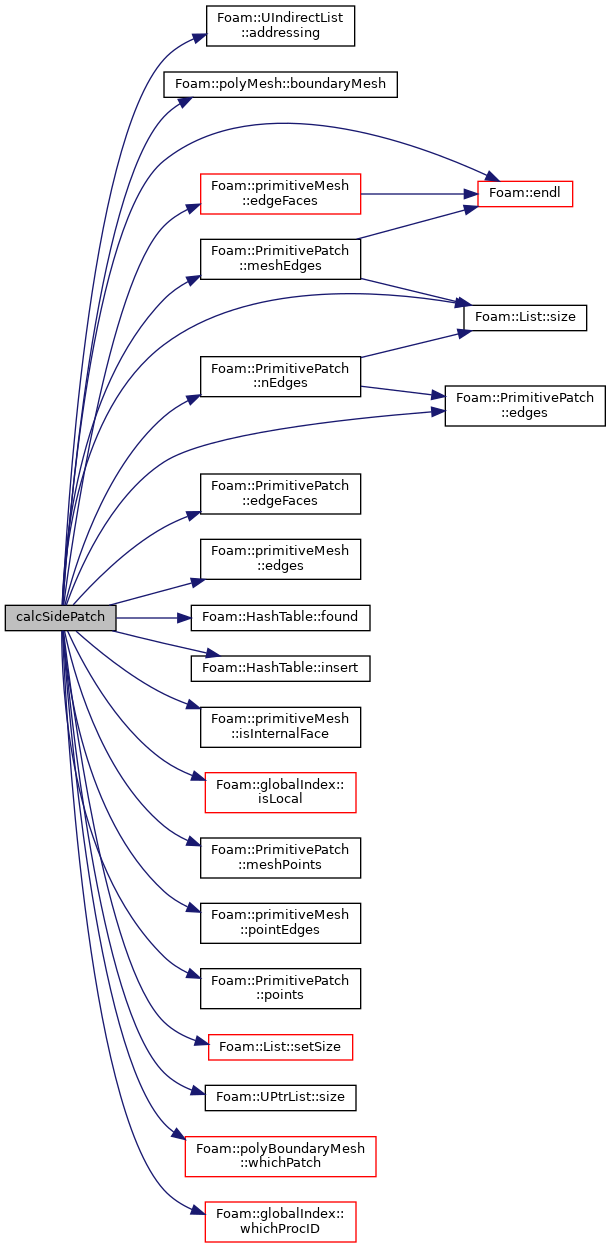

Here is the call graph for this function:

◆ setRefinement() [1/2]

void setRefinement	(	const polyMesh &	mesh,
		const globalIndex &	globalFaces,
		const labelListList &	globalEdgeFaces,
		const scalarField &	expansionRatio,
		const indirectPrimitivePatch &	pp,
		const labelList &	sidePatchID,
		const labelList &	exposedPatchID,
		const labelList &	nFaceLayers,
		const labelList &	nPointLayers,
		const vectorField &	firstLayerDisp,
		const labelList &	faceCellZones,
		polyTopoChange &	meshMod
	)

Play commands into polyTopoChange to create layers on top.

of indirectPrimitivePatch (have to be outside faces). Gets displacement per patch point.

exposedPatchID : only used if creating a new mesh (addToMesh=false) gives per pp face the patch the exposed face should get.
nPointLayers : number of layers per (patch)point.
nFaceLayers : number of layers per (patch) face.
firstDisplacement : displacement per point for first layer of points (i.e. nearest to original mesh). If zero do not add point. Layer thicknesses are calculated to constant geometric expansion. Use expansionRatio 1 for constant size. Sets addedPoints_ which is per pp point a list of points added. Note: firstDisplacement has to be parallel synchronised before calling this routine. Only if all procs sharing a point get a cell should firstDisplacement be <> 0 Note: cells get added from owner cells of patch faces (instead of e.g. from patch faces)

Definition at line 666 of file addPatchCellLayer.C.

Referenced by snappyLayerDriver::addLayers(), and addPatchCellLayer::setRefinement().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setRefinement() [2/2]

void setRefinement	(	const polyMesh &	mesh,
		const globalIndex &	globalFaces,
		const labelListList &	globalEdgeFaces,
		const label	nLayers,
		const indirectPrimitivePatch &	pp,
		const labelList &	sidePatchID,
		const vectorField &	overallDisplacement,
		const labelList &	faceCellZones,
		polyTopoChange &	meshMod
	)
