Direct mesh changes based on v1.3 polyTopoChange syntax. More...

Public Member Functions
	ClassName ("polyTopoChange")
	Runtime type information. More...

	polyTopoChange (const label nPatches, const bool strict=true)
	Construct without mesh. Either specify nPatches or use. More...

	polyTopoChange (const polyMesh &mesh, const bool strict=true)
	Construct from mesh. Adds all points/face/cells from mesh. More...

const DynamicList< point > &	points () const
	Points. Shrunk after constructing mesh (or calling of compact()) More...

const DynamicList< face > &	faces () const

const DynamicList< label > &	region () const

const DynamicList< label > &	faceOwner () const

const DynamicList< label > &	faceNeighbour () const

bool	pointRemoved (const label pointi) const
	Is point removed? More...

bool	faceRemoved (const label facei) const
	Is face removed? More...

bool	cellRemoved (const label celli) const
	Is cell removed? More...

void	clear ()
	Clear all storage. More...

void	setCapacity (const label nPoints, const label nFaces, const label nCells)
	Explicitly pre-size the dynamic storage for expected mesh. More...

label	addPoint (const point &, const label masterPointID, const bool inCell)
	Add point and return new point index. More...

void	modifyPoint (const label, const point &, const bool inCell)
	Modify coordinate. More...

void	removePoint (const label, const label)
	Remove point / merge points. More...

label	addFace (const face &f, const label own, const label nei, const label masterFaceID, const bool flipFaceFlux, const label patchID)
	Add face to cells and return new face index. More...

void	modifyFace (const face &f, const label facei, const label own, const label nei, const bool flipFaceFlux, const label patchID)
	Modify vertices or cell of face. More...

void	removeFace (const label, const label)
	Remove face / merge faces. More...

label	addCell (const label masterCellID)
	Add cell and return new cell index. More...

void	removeCell (const label, const label)
	Remove cell / merge cells. More...

void	setNumPatches (const label nPatches)
	Explicitly set the number of patches if construct-without-mesh. More...

autoPtr< polyTopoChangeMap >	changeMesh (polyMesh &mesh, const bool syncParallel=true, const bool orderCells=false, const bool orderPoints=false)
	Inplace changes mesh without change of patches. More...

autoPtr< polyTopoChangeMap >	makeMesh (autoPtr< fvMesh > &newMesh, const IOobject &io, const polyMesh &mesh, const bool syncParallel=true, const bool orderCells=false, const bool orderPoints=false)
	Create new mesh with old mesh patches. More...

Detailed Description

Direct mesh changes based on v1.3 polyTopoChange syntax.

Instead of recording changes and executing them all in one go (as did v1.3 polyTopoChange) this class actually holds the current points/faces/cells and does the change immediately. It can be asked to compress out all unused points/faces/cells and renumber everything to be consistent.

Note:

polyTopoChange can be copied.
adding a face using non-existing cells causes all intermediate cells to be added. So always first add cells/points and then faces. (or set strict checking)
strict checking:
- any added/modified face can only use already existing vertices
- any added face can only use already existing cells
- no item can be removed more than once.
removed cell: cell set to 0 faces.
removed face: face set to 0 vertices.
removed point: coordinate set to vector::max (vGreat,vGreat,vGreat). Note that this might give problems if this value is used already. To see if point is equal to above value we don't use == (which might give problems with roundoff error) but instead compare the individual component with >.
coupled patches: the reorderCoupledFaces routine (borrowed from the couplePatches utility) reorders coupled patch faces and uses the cyclicPolyPatch,processorPolyPatch functionality.

Source files

Definition at line 97 of file polyTopoChange.H.

Constructor & Destructor Documentation

◆ polyTopoChange() [1/2]

polyTopoChange	(	const label	nPatches,
		const bool	strict = `true`
	)

Construct without mesh. Either specify nPatches or use.

setNumPatches before trying to make a mesh (makeMesh, changeMesh)

Definition at line 1518 of file polyTopoChange.C.

◆ polyTopoChange() [2/2]

polyTopoChange	(	const polyMesh &	mesh,
		const bool	strict = `true`
	)

Construct from mesh. Adds all points/face/cells from mesh.

Definition at line 1540 of file polyTopoChange.C.

References polyTopoChange::addCell(), polyTopoChange::addFace(), polyTopoChange::addPoint(), polyMesh::boundaryMesh(), polyMesh::faceNeighbour(), polyTopoChange::faceNeighbour(), polyMesh::faceOwner(), polyTopoChange::faceOwner(), polyMesh::faces(), polyTopoChange::faces(), forAll, SortableList< T >::indices(), mesh, primitiveMesh::nCells(), primitiveMesh::nInternalFaces(), primitiveMesh::nPoints(), patches, patchi, polyMesh::points(), polyTopoChange::points(), DynamicList< T, SizeInc, SizeMult, SizeDiv >::setCapacity(), PackedList< nBits >::setCapacity(), List< T >::size(), SortableList< T >::sort(), and polyPatch::start().

Here is the call graph for this function:

Member Function Documentation

◆ ClassName()

ClassName ( "polyTopoChange" )

Runtime type information.

◆ points()

const DynamicList<point>& points ( ) const

inline

Points. Shrunk after constructing mesh (or calling of compact())

Definition at line 369 of file polyTopoChange.H.

Referenced by polyTopoChange::polyTopoChange(), duplicatePoints::setRefinement(), and addPatchCellLayer::setRefinement().

Here is the caller graph for this function:

◆ faces()

const DynamicList<face>& faces ( ) const

inline

Definition at line 374 of file polyTopoChange.H.

Referenced by polyTopoChange::polyTopoChange().

Here is the caller graph for this function:

◆ region()

const DynamicList<label>& region ( ) const

inline

Definition at line 379 of file polyTopoChange.H.

◆ faceOwner()

const DynamicList<label>& faceOwner ( ) const

inline

Definition at line 384 of file polyTopoChange.H.

Referenced by polyTopoChange::polyTopoChange().

Here is the caller graph for this function:

◆ faceNeighbour()

const DynamicList<label>& faceNeighbour ( ) const

inline

Definition at line 389 of file polyTopoChange.H.

Referenced by polyTopoChange::polyTopoChange().

Here is the caller graph for this function:

◆ pointRemoved()

bool pointRemoved ( const label pointi ) const

inline

Is point removed?

Definition at line 30 of file polyTopoChangeI.H.

References VectorSpace< Form, Cmpt, Ncmpts >::max, Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Here is the call graph for this function:

◆ faceRemoved()

bool faceRemoved ( const label facei ) const

inline

Is face removed?

Definition at line 41 of file polyTopoChangeI.H.

◆ cellRemoved()

bool cellRemoved ( const label celli ) const

inline

Is cell removed?

Definition at line 47 of file polyTopoChangeI.H.

◆ clear()

void clear ( )

Clear all storage.

Definition at line 1669 of file polyTopoChange.C.

◆ setCapacity()

void setCapacity	(	const label	nPoints,
		const label	nFaces,
		const label	nCells
	)

Explicitly pre-size the dynamic storage for expected mesh.

size for if construct-without-mesh

Definition at line 1691 of file polyTopoChange.C.

References nPoints.

◆ addPoint()

Foam::label addPoint	(	const point &	pt,
		const label	masterPointID,
		const bool	inCell
	)

Add point and return new point index.

Notes:

masterPointID can be < 0 (appended points)
inCell = false: add retired point (to end of point list)

Definition at line 1715 of file polyTopoChange.C.

References Foam::inCell.

Referenced by polyTopoChange::polyTopoChange(), meshCutter::setRefinement(), hexRef8::setRefinement(), duplicatePoints::setRefinement(), createShellMesh::setRefinement(), addPatchCellLayer::setRefinement(), removePoints::setUnrefinement(), and combineFaces::setUnrefinement().

Here is the caller graph for this function:

◆ modifyPoint()

void modifyPoint	(	const label	pointi,
		const point &	pt,
		const bool	inCell
	)

Modify coordinate.

Notes:

inCell = false: add retired point (to end of point list)

Definition at line 1737 of file polyTopoChange.C.

References Foam::abort(), Foam::endl(), Foam::FatalError, FatalErrorInFunction, and Foam::inCell.

Referenced by edgeCollapser::setRefinement().

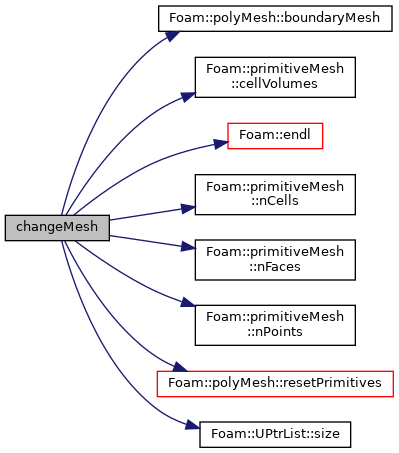

Here is the call graph for this function:

Here is the caller graph for this function:

◆ removePoint()

void removePoint	(	const label	pointi,
		const label	mergePointi
	)

Remove point / merge points.

Definition at line 1772 of file polyTopoChange.C.

References Foam::abort(), Foam::endl(), Foam::FatalError, FatalErrorInFunction, VectorSpace< Form, Cmpt, Ncmpts >::max, and Foam::nl.

Referenced by removePoints::setRefinement(), removeCells::setRefinement(), combineFaces::setRefinement(), and edgeCollapser::setRefinement().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addFace()

Foam::label addFace	(	const face &	f,
		const label	own,
		const label	nei,
		const label	masterFaceID,
		const bool	flipFaceFlux,
		const label	patchID
	)

Add face to cells and return new face index.

own, nei <0 >=0 : add inactive face (to end of face list)

Definition at line 1820 of file polyTopoChange.C.

References f().

Referenced by polyTopoChange::polyTopoChange(), meshCutter::setRefinement(), createShellMesh::setRefinement(), addPatchCellLayer::setRefinement(), combineFaces::setUnrefinement(), and meshRefinement::splitFaces().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ modifyFace()

void modifyFace	(	const face &	f,
		const label	facei,
		const label	own,
		const label	nei,
		const bool	flipFaceFlux,
		const label	patchID
	)

Modify vertices or cell of face.

Definition at line 1864 of file polyTopoChange.C.

References f().

Referenced by meshRefinement::mergeBaffles(), Foam::polyMeshUnMergeCyclics(), removeCells::setRefinement(), combineFaces::setRefinement(), edgeCollapser::setRefinement(), duplicatePoints::setRefinement(), addPatchCellLayer::setRefinement(), combineFaces::setUnrefinement(), and meshRefinement::splitFaces().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ removeFace()

void removeFace	(	const label	facei,
		const label	mergeFacei
	)

Remove face / merge faces.

Definition at line 1889 of file polyTopoChange.C.

References Foam::abort(), Foam::endl(), Foam::FatalError, and FatalErrorInFunction.

Referenced by meshRefinement::mergeBaffles(), removeCells::setRefinement(), combineFaces::setRefinement(), and edgeCollapser::setRefinement().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addCell()

Foam::label addCell ( const label masterCellID )

Add cell and return new cell index.

Definition at line 1928 of file polyTopoChange.C.

Referenced by polyTopoChange::polyTopoChange(), meshCutter::setRefinement(), hexRef8::setRefinement(), createShellMesh::setRefinement(), and addPatchCellLayer::setRefinement().

Here is the caller graph for this function:

◆ removeCell()

void removeCell	(	const label	celli,
		const label	mergeCelli
	)

Remove cell / merge cells.

Definition at line 1938 of file polyTopoChange.C.

References Foam::abort(), Foam::endl(), Foam::FatalError, and FatalErrorInFunction.

Referenced by removeCells::setRefinement(), and edgeCollapser::setRefinement().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setNumPatches()

void setNumPatches ( const label nPatches )

inline

Explicitly set the number of patches if construct-without-mesh.

used

Definition at line 53 of file polyTopoChangeI.H.

References nPatches.

◆ changeMesh()

Foam::autoPtr< Foam::polyTopoChangeMap > changeMesh	(	polyMesh &	mesh,
		const bool	syncParallel = `true`,
		const bool	orderCells = `false`,
		const bool	orderPoints = `false`
	)

Inplace changes mesh without change of patches.

Adapts patch start/end and by default does parallel matching. Clears all data. Returns map. orderCells : whether to order the cells (see bandCompression.H) orderPoints : whether to order the points into internal first followed by boundary points. This is not fully consistent with upper-triangular ordering of points and edges so is only done when explicitly asked for.

Definition at line 1968 of file polyTopoChange.C.

References polyMesh::boundaryMesh(), primitiveMesh::cellVolumes(), Foam::endl(), mesh, primitiveMesh::nCells(), primitiveMesh::nFaces(), Foam::nl, primitiveMesh::nPoints(), Foam::Pout, polyMesh::resetPrimitives(), and UPtrList< T >::size().

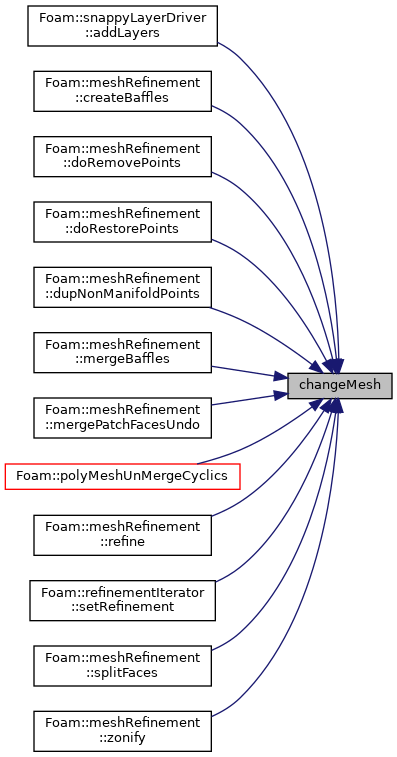

Referenced by snappyLayerDriver::addLayers(), meshRefinement::createBaffles(), meshRefinement::doRemovePoints(), meshRefinement::doRestorePoints(), meshRefinement::dupNonManifoldPoints(), meshRefinement::mergeBaffles(), meshRefinement::mergePatchFacesUndo(), Foam::polyMeshUnMergeCyclics(), meshRefinement::refine(), refinementIterator::setRefinement(), meshRefinement::splitFaces(), and meshRefinement::zonify().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ makeMesh()

Foam::autoPtr< Foam::polyTopoChangeMap > makeMesh	(	autoPtr< fvMesh > &	newMesh,
		const IOobject &	io,
		const polyMesh &	mesh,
		const bool	syncParallel = `true`,
		const bool	orderCells = `false`,
		const bool	orderPoints = `false`
	)

Create new mesh with old mesh patches.

Definition at line 2159 of file polyTopoChange.C.

References fvMesh::addFvPatches(), polyMesh::addZones(), polyMesh::boundaryMesh(), primitiveMesh::cellVolumes(), polyMesh::cellZones(), IOobject::clone(), Foam::endl(), polyMesh::faceZones(), forAll, mesh, primitiveMesh::nCells(), primitiveMesh::nFaces(), Foam::nl, IOobject::NO_READ, primitiveMesh::nPoints(), patchi, polyMesh::pointZones(), Foam::Pout, IOobject::readOpt(), autoPtr< T >::reset(), and UPtrList< T >::size().

Referenced by snappyLayerDriver::addLayers(), polyMeshFilter::copyMesh(), and fvMeshSubset::setLargeCellSubset().

Here is the call graph for this function:

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

src/polyTopoChange/polyTopoChange/polyTopoChange.H
src/polyTopoChange/polyTopoChange/polyTopoChange.C
src/polyTopoChange/polyTopoChange/polyTopoChangeI.H
src/polyTopoChange/polyTopoChange/polyTopoChangeTemplates.C
