Surface, patch or faceZone selection class. More...

Inheritance diagram for surfaceFieldValue:

Collaboration diagram for surfaceFieldValue:

[legend]

Public Types
enum class	selectionTypes { faceZone , patch , patches , sampledSurface }
	Selection type enumeration. More...

enum class	operationType { none , sum , sumMag , orientedSum , average , areaAverage , areaIntegrate , min , max , minMag , maxMag , CoV , UI , areaNormalAverage , areaNormalIntegrate }
	Operation type enumeration. More...

Public Member Functions
	TypeName ("surfaceFieldValue")
	Run-time type information. More...

	surfaceFieldValue (const word &name, const Time &runTime, const dictionary &dict)
	Construct from name, Time and dictionary. More...

	surfaceFieldValue (const word &name, const objectRegistry &obr, const dictionary &dict)
	Construct from name, objectRegistry and dictionary. More...

virtual	~surfaceFieldValue ()
	Destructor. More...

template<class Type >
void	writeValues (const word &fieldName, const Field< Type > &values, const scalarField &signs, const scalarField &weights, const vectorField &Sf)
	Templated helper function to output field values. More...

template<class Type >
tmp< Field< Type > >	filterField (const SurfaceField< Type > &field) const
	Filter a surface field according to faceIds. More...

template<class Type >
tmp< Field< Type > >	filterField (const VolField< Type > &field) const
	Filter a volume field according to faceIds. More...

virtual bool	read (const dictionary &)
	Read from dictionary. More...

virtual bool	write ()
	Calculate and write. More...

virtual void	movePoints (const polyMesh &)
	Update for mesh point-motion. More...

virtual void	topoChange (const polyTopoChangeMap &)
	Update topology using the given map. More...

virtual void	mapMesh (const polyMeshMap &)
	Update from another mesh using the given map. More...

virtual void	distribute (const polyDistributionMap &)
	Redistribute or update using the given distribution map. More...

template<class Type >
Foam::tmp< Foam::Field< Type > >	getFieldValues (const word &fieldName) const

template<class Type >
Foam::tmp< Foam::Field< Type > >	filterField (const VolField< Type > &field) const

template<class Type >
Foam::tmp< Foam::Field< Type > >	filterField (const SurfaceField< Type > &field) const

Public Member Functions inherited from fieldValue
	TypeName ("fieldValue")
	Run-time type information. More...

	declareRunTimeSelectionTable (autoPtr, fieldValue, dictionary,(const word &name, const objectRegistry &obr, const dictionary &dict),(name, obr, dict))

	fieldValue (const word &name, const Time &runTime, const dictionary &dict, const word &valueType)
	Construct from Time and dictionary. More...

	fieldValue (const word &name, const objectRegistry &obr, const dictionary &dict, const word &valueType)
	Construct from objectRegistry and dictionary. More...

virtual	~fieldValue ()
	Destructor. More...

const dictionary &	dict () const
	Return the reference to the construction dictionary. More...

virtual wordList	fields () const
	Return the list of fields required. More...

const Switch &	writeFields () const
	Return the output field values flag. More...

const dictionary &	resultDict () const
	Return access to the latest set of results. More...

virtual bool	execute ()
	Execute. More...

Public Member Functions inherited from fvMeshFunctionObject
	TypeName ("fvMeshFunctionObject")
	Runtime type information. More...

	fvMeshFunctionObject (const word &name, const Time &runTime, const dictionary &dict)
	Construct from Time and dictionary. More...

	fvMeshFunctionObject (const word &name, const objectRegistry &obr)
	Construct from the region objectRegistry. More...

	fvMeshFunctionObject (const fvMeshFunctionObject &)=delete
	Disallow default bitwise copy construction. More...

virtual	~fvMeshFunctionObject ()
	Destructor. More...

const fvMesh &	mesh () const
	Return a reference to the mesh. More...

void	operator= (const fvMeshFunctionObject &)=delete
	Disallow default bitwise assignment. More...

Public Member Functions inherited from regionFunctionObject
	TypeName ("regionFunctionObject")
	Runtime type information. More...

	regionFunctionObject (const word &name, const Time &runTime, const dictionary &dict)
	Construct from Time and dictionary. More...

	regionFunctionObject (const word &name, const objectRegistry &obr)
	Construct from the region objectRegistry. More...

	regionFunctionObject (const regionFunctionObject &)=delete
	Disallow default bitwise copy construction. More...

virtual	~regionFunctionObject ()
	Destructor. More...

void	operator= (const regionFunctionObject &)=delete
	Disallow default bitwise assignment. More...

Public Member Functions inherited from objectRegistryFunctionObject
	TypeName ("objectRegistryFunctionObject")
	Runtime type information. More...

	objectRegistryFunctionObject (const word &name, const objectRegistry &obr, const dictionary &dict)
	Construct from an objectRegistry and dictionary. More...

	objectRegistryFunctionObject (const word &name, const objectRegistry &obr)
	Construct from an objectRegistry. More...

	objectRegistryFunctionObject (const objectRegistryFunctionObject &)=delete
	Disallow default bitwise copy construction. More...

virtual	~objectRegistryFunctionObject ()
	Destructor. More...

void	operator= (const objectRegistryFunctionObject &)=delete
	Disallow default bitwise assignment. More...

Public Member Functions inherited from functionObject
	ClassName ("functionObject")

virtual const word &	type () const =0
	Runtime type information. More...

	declareRunTimeSelectionTable (autoPtr, functionObject, dictionary,(const word &name, const Time &runTime, const dictionary &dict),(name, runTime, dict))

	functionObject (const word &name, const Time &runTime)
	Construct from components. More...

	functionObject (const word &name, const Time &runTime, const dictionary &dict)
	Construct from dictionary. More...

autoPtr< functionObject >	clone () const
	Return clone. More...

	functionObject (const functionObject &)=delete
	Disallow default bitwise copy construction. More...

virtual	~functionObject ()
	Destructor. More...

const word &	name () const
	Return the name of this functionObject. More...

virtual bool	executeAtStart () const
	Return true if the functionObject should be executed at the start. More...

virtual bool	end ()
	Called when Time::run() determines that the time-loop exits. More...

virtual scalar	timeToNextAction ()
	Called by Time::adjustTimeStep(). Allows the functionObject to. More...

virtual scalar	maxDeltaT () const
	Return the maximum time-step for stable operation. More...

void	operator= (const functionObject &)=delete
	Disallow default bitwise assignment. More...

Public Member Functions inherited from logFiles
	logFiles (const objectRegistry &obr, const word &prefix)
	Construct from objectRegistry and prefix. More...

	logFiles (const logFiles &)=delete
	Disallow default bitwise copy construction. More...

virtual	~logFiles ()
	Destructor. More...

const wordList &	toc () const
	Return the list of log file names. More...

const wordList &	names () const
	Return the list of log file names. More...

PtrList< OFstream > &	files ()
	Return access to the files. More...

OFstream &	file ()
	Return access to the file (if only 1) More...

OFstream &	file (const label i)
	Return file 'i'. More...

void	operator= (const logFiles &)=delete
	Disallow default bitwise assignment. More...

Public Member Functions inherited from writeFile
	writeFile (const objectRegistry &obr, const word &prefix)
	Construct from objectRegistry and prefix. More...

	writeFile (const writeFile &)=delete
	Disallow default bitwise copy construction. More...

	~writeFile ()
	Destructor. More...

void	initStream (Ostream &os) const
	Initialise the output stream for writing. More...

fileName	baseFileDir () const
	Return the base directory for output. More...

fileName	baseTimeDir () const
	Return the base directory for the current time value. More...

Omanip< int >	valueWidth (const label offset=0) const
	Return the value width when writing to stream with optional offset. More...

void	writeCommented (Ostream &os, const string &str) const
	Write a commented string to stream. More...

void	writeTabbed (Ostream &os, const string &str) const
	Write a tabbed string to stream. More...

void	writeHeader (Ostream &os, const string &str) const
	Write a commented header to stream. More...

void	writeTime (Ostream &os) const
	Write the current time to stream. More...

template<class Type >
void	writeHeaderValue (Ostream &os, const string &property, const Type &value) const
	Write a (commented) header property and value pair. More...

label	charWidth () const
	Return width of character stream output. More...

void	operator= (const writeFile &)=delete
	Disallow default bitwise assignment. More...

Static Public Attributes
static const NamedEnum< selectionTypes, 4 >	selectionTypeNames
	Selection type names. More...

static const NamedEnum< operationType, 15 >	operationTypeNames_
	Operation type names. More...

Static Public Attributes inherited from functionObject
static bool	postProcess
	Global post-processing mode switch. More...

Static Public Attributes inherited from writeFile
static const word	outputPrefix
	Directory prefix. More...

static label	addChars = 8
	Additional characters for writing. More...

Protected Member Functions
template<class Type >
bool	validField (const word &fieldName) const
	Return true if the field name is valid. More...

template<class Type >
tmp< Field< Type > >	getFieldValues (const word &fieldName) const
	Return field values by looking up field name. More...

template<class Type , class ResultType >
bool	processValues (const Field< Type > &values, const scalarField &signs, const scalarField &weights, const vectorField &Sf, ResultType &result) const
	Apply the operation to the values, and return true if successful. More...

template<class Type >
bool	processValues (const Field< Type > &values, const scalarField &signs, const scalarField &weights, const vectorField &Sf, Type &result) const
	Apply Type -> Type operation to the values. Calls. More...

template<class Type >
bool	processValues (const Field< Type > &values, const scalarField &signs, const scalarField &weights, const vectorField &Sf, scalar &result) const
	Apply Type -> scalar operation to the values. Tries to apply. More...

bool	processValues (const Field< scalar > &values, const scalarField &signs, const scalarField &weights, const vectorField &Sf, scalar &result) const
	Apply scalar -> scalar operation to the values. Tries to apply. More...

bool	processValues (const Field< vector > &values, const scalarField &signs, const scalarField &weights, const vectorField &Sf, scalar &result) const
	Apply vector -> scalar operation to the values. Tries to apply. More...

template<class Type >
bool	processValuesTypeType (const Field< Type > &values, const scalarField &signs, const scalarField &weights, const vectorField &Sf, Type &result) const
	Apply a Type -> Type operation to the values. More...

virtual void	writeFileHeader (const label i)
	Output file header information. More...

void	moveMesh ()
	Update the surface following mesh motion. More...

void	changeMesh ()
	Update the surface following mesh change. More...

Protected Member Functions inherited from objectRegistryFunctionObject
template<class ObjectType >
bool	foundObject (const word &fieldName) const
	Find field in the objectRegistry. More...

template<class ObjectType >
void	cannotFindObject (const word &fieldName)
	Prints a warning message that fieldName cannot be found. More...

void	cannotFindObject (const word &fieldName)
	Prints a warning message that fieldName cannot be found. More...

void	cannotFindObjects (const wordList &fieldNames)
	Prints a warning message that fieldNames cannot be found. More...

template<class ObjectType >
const ObjectType &	lookupObject (const word &fieldName) const
	Lookup object from the objectRegistry. More...

template<class ObjectType >
ObjectType &	lookupObjectRef (const word &fieldName)
	Lookup non-const object reference from the objectRegistry. More...

template<class ObjectType >
ObjectType &	store (const tmp< ObjectType > &tfield)
	Store the given field in the objectRegistry. More...

template<class ObjectType >
ObjectType &	store (const word &fieldName, const tmp< ObjectType > &tfield, bool cacheable=false)
	Store the given field in the objectRegistry under the given name. More...

bool	writeObject (const word &fieldName)
	Write field if present in objectRegistry. More...

bool	clearObject (const word &fieldName)
	Clear field from the objectRegistry if present. More...

Protected Member Functions inherited from logFiles
virtual void	createFiles ()
	Create the output file. More...

virtual void	resetNames (const wordList &names)
	Reset the list of names from a wordList. More...

virtual void	resetName (const word &name)
	Reset the list of names to a single name entry. More...

Protected Attributes
autoPtr< surfaceWriter >	surfaceWriterPtr_
	Surface writer. More...

selectionTypes	selectionType_
	Selection type. More...

string	selectionName_
	Name of face selection (patch, faceZone, etc.) More...

operationType	operation_
	Operation to apply to values. More...

wordList	weightFieldNames_
	Weight field names - optional. More...

label	nFaces_
	Global number of faces. More...

scalar	area_
	Area of the surface. More...

const bool	writeNFaces_
	Optionally write the number of faces in the surface. More...

const bool	writeArea_
	Optionally write the area of the surface. More...

autoPtr< generatedFaceZone >	faceZonePtr_
	The face-zone. More...

wordReList	patchNames_
	The name(s) of the patches. More...

labelList	faceId_
	Local list of face IDs. More...

labelList	facePatchId_
	Local list of patch ID per face. More...

labelList	faceSign_
	List of +1/-1 representing face flip map. More...

autoPtr< sampledSurface >	surfacePtr_
	Underlying sampledSurface. More...

Protected Attributes inherited from fieldValue
const word	valueType_
	The name of the type of value (volFieldValue, or surfaceFieldValue) More...

wordList	fields_
	List of field names to operate on. More...

Switch	writeFields_
	Output field values flag. More...

dictionary	resultDict_
	Results dictionary for external access of results. More...

Protected Attributes inherited from fvMeshFunctionObject
const fvMesh &	mesh_
	Reference to the fvMesh. More...

Protected Attributes inherited from objectRegistryFunctionObject
const objectRegistry &	obr_
	Reference to the objectRegistry. More...

Protected Attributes inherited from functionObject
const Time &	time_
	Reference to time. More...

Protected Attributes inherited from logFiles
wordList	names_
	File names. More...

PtrList< OFstream >	filePtrs_
	File pointer. More...

Protected Attributes inherited from writeFile
const objectRegistry &	fileObr_
	Reference to the region objectRegistry. More...

const word	prefix_
	Prefix. More...

Additional Inherited Members
Static Public Member Functions inherited from fieldValue
static autoPtr< fieldValue >	New (const word &name, const objectRegistry &obr, const dictionary &dict, const bool output=true)
	Return a reference to the selected fieldValue. More...

Static Public Member Functions inherited from functionObject
static autoPtr< functionObject >	New (const word &name, const Time &, const dictionary &)
	Select from dictionary, based on its "type" entry. More...

Public Attributes inherited from functionObject
Switch	log
	Switch write log to Info. More...

Switch	executeAtStart_
	Switch execute at start time. More...

Detailed Description

Surface, patch or faceZone selection class.

Given a list of user-specified fields and a selection of mesh (or general surface) faces, a number of operations can be performed, such as sums, averages and integrals.

For example, to calculate the volumetric or mass flux across a patch, apply the 'orientedSum' operator to the flux field (typically phi)

Examples of function object specification:

movingWallPatch
{
    type            surfaceFieldValue;
    libs            ("libfieldFunctionObjects.so");

    log             true;
    writeControl    writeTime;
    writeFields     true;

    patch           movingWall;

    operation       areaAverage;

    fields
    (
        p
        phi
        U
    );
}

surfaceFieldValue1
{
    type            surfaceFieldValue;
    libs            ("libfieldFunctionObjects.so");

    log             true;
    writeControl    writeTime;
    writeFields     true;

    surfaceFormat   none;

    faceZone        f0;

    operation       sum;

    weightField     alpha1;

    fields
    (
        p
        phi
        U
    );
}

Usage

Property	Description	Required	Default value
`type`	Type name: surfaceFieldValue	yes
`log`	Write data to standard output	no	no
`writeFields`	Write the field values	yes
`writeNumberOfFaces`	Write the number of faces in the surface	no	no
`writeArea`	Write the area of the surface	no	no
`surfaceFormat`	Output value format	if writeFields
`operation`	Operation to perform	yes
`weightField`	Name of field to apply weighting	no	none
`weightFields`	Names of fields to apply weighting	no	none
`fields`	List of fields to operate on	yes

Where the supported selections are:

faceZone	:	requires a 'faceZone' entry to specify the faceZone or dictionary to specify the zoneGenerator
patch	:	requires a 'patch' entry to specify the patch
patches	:	requires a 'patches' entry to specify the patches
sampledSurface	:	requires a 'sampledSurface' sub-dictionary

The operation is one of:

none	:	No operation
sum	:	Sum
sumMag	:	Sum of component magnitudes
orientedSum	:	Sum with face orientations
average	:	Ensemble average
areaAverage	:	Area weighted average
areaIntegrate	:	Area integral
min	:	Minimum
max	:	Maximum
minMag	:	Minimum magnitude
maxMag	:	Maximum magnitude
CoV	:	Coefficient of variation: (standard deviation)/mean
UI	:	Uniformity index: ???
areaNormalAverage	:	Area weighted average in face normal direction
areaNormalIntegrate	:	Area weighted integral in face normal direction

Note:

Faces on empty patches get ignored.
The `oriented' operations will flip the sign of the field so that all the normals point in a consistent direction. This is only of relevance when summing mesh-oriented fields, such as the flux, on faceZones.
If the field is a volField then a faceZone can only consist of boundary faces, because only these faces have a value associated with them. No cell-to-face interpolation is performed.
If the field is a surfaceField then the selection cannot be a sampledSurface
If a sampledSurface has interpolation set to false then the surface face values will be taken directly from the cell that contains the surface face centre
If a sampledSurface has interpolation set to true then the field will be interpolated to the vertices, then averaged onto the surface faces

See also: Foam::fieldValues Foam::functionObject

Source files

Definition at line 309 of file surfaceFieldValue.H.

Member Enumeration Documentation

◆ selectionTypes

enum selectionTypes

strong

Selection type enumeration.

Enumerator
faceZone
patch
patches
sampledSurface

Definition at line 319 of file surfaceFieldValue.H.

◆ operationType

enum operationType

strong

Operation type enumeration.

Enumerator
none
sum
sumMag
orientedSum
average
areaAverage
areaIntegrate
min
max
minMag
maxMag
CoV
UI
areaNormalAverage
areaNormalIntegrate

Definition at line 331 of file surfaceFieldValue.H.

Constructor & Destructor Documentation

◆ surfaceFieldValue() [1/2]

surfaceFieldValue	(	const word &	name,
		const Time &	runTime,
		const dictionary &	dict
	)

Construct from name, Time and dictionary.

Definition at line 535 of file surfaceFieldValue.C.

References fieldValue::dict(), and surfaceFieldValue::read().

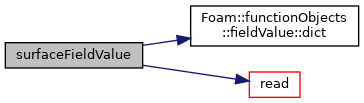

Here is the call graph for this function:

◆ surfaceFieldValue() [2/2]

surfaceFieldValue	(	const word &	name,
		const objectRegistry &	obr,
		const dictionary &	dict
	)

Construct from name, objectRegistry and dictionary.

Definition at line 562 of file surfaceFieldValue.C.

References fieldValue::dict(), and surfaceFieldValue::read().

Here is the call graph for this function:

◆ ~surfaceFieldValue()

~surfaceFieldValue ( )

virtual

Destructor.

Definition at line 592 of file surfaceFieldValue.C.

Member Function Documentation

◆ validField()

bool validField ( const word & fieldName ) const

protected

Return true if the field name is valid.

Definition at line 36 of file surfaceFieldValueTemplates.C.

References objectRegistry::foundObject(), objectRegistryFunctionObject::obr_, surfaceFieldValue::sampledSurface, and surfaceFieldValue::selectionType_.

Here is the call graph for this function:

◆ getFieldValues() [1/2]

tmp<Field<Type> > getFieldValues ( const word & fieldName ) const

protected

Return field values by looking up field name.

◆ processValues() [1/5]

bool processValues	(	const Field< Type > &	values,
		const scalarField &	signs,
		const scalarField &	weights,
		const vectorField &	Sf,
		ResultType &	result
	)		const

protected

Apply the operation to the values, and return true if successful.

Does nothing unless overloaded below.

Definition at line 134 of file surfaceFieldValueTemplates.C.

◆ processValues() [2/5]

bool processValues	(	const Field< Type > &	values,
		const scalarField &	signs,
		const scalarField &	weights,
		const vectorField &	Sf,
		Type &	result
	)		const

protected

Apply Type -> Type operation to the values. Calls.

processValuesTypeType.

Definition at line 148 of file surfaceFieldValueTemplates.C.

◆ processValues() [3/5]

bool processValues	(	const Field< Type > &	values,
		const scalarField &	signs,
		const scalarField &	weights,
		const vectorField &	Sf,
		scalar &	result
	)		const

protected

Apply Type -> scalar operation to the values. Tries to apply.

Type -> scalar specific operations, otherwise does nothing.

Definition at line 162 of file surfaceFieldValueTemplates.C.

References Foam::gMax(), Foam::gMin(), and Foam::mag().

Here is the call graph for this function:

◆ processValues() [4/5]

bool processValues	(	const Field< scalar > &	values,
		const scalarField &	signs,
		const scalarField &	weights,
		const vectorField &	Sf,
		scalar &	result
	)		const

protected

Apply scalar -> scalar operation to the values. Tries to apply.

scalar -> scalar specific operations, otherwise calls processValuesTypeType.

Definition at line 437 of file surfaceFieldValue.C.

◆ processValues() [5/5]

bool processValues	(	const Field< vector > &	values,
		const scalarField &	signs,
		const scalarField &	weights,
		const vectorField &	Sf,
		scalar &	result
	)		const

protected

Apply vector -> scalar operation to the values. Tries to apply.

vector -> scalar specific operations, otherwise does nothing.

Definition at line 464 of file surfaceFieldValue.C.

References Foam::gSum(), and Foam::mag().

Here is the call graph for this function:

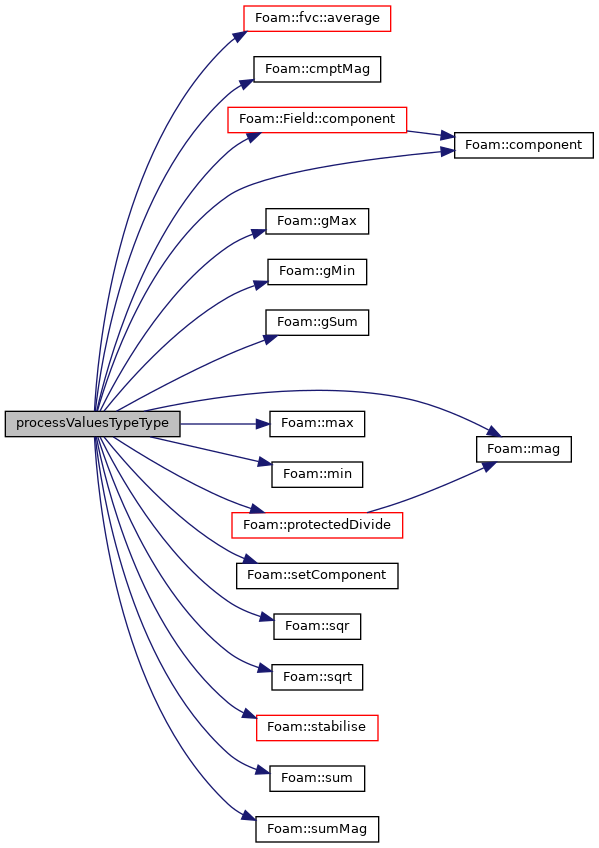

◆ processValuesTypeType()

bool processValuesTypeType	(	const Field< Type > &	values,
		const scalarField &	signs,
		const scalarField &	weights,
		const vectorField &	Sf,
		Type &	result
	)		const

protected

Apply a Type -> Type operation to the values.

Definition at line 193 of file surfaceFieldValueTemplates.C.

References Foam::fvc::average(), Foam::cmptMag(), Field< Type >::component(), Foam::component(), Foam::gMax(), Foam::gMin(), Foam::gSum(), Foam::mag(), Foam::max(), Foam::min(), Foam::protectedDivide(), Foam::setComponent(), Foam::sqr(), Foam::sqrt(), Foam::stabilise(), Foam::sum(), and Foam::sumMag().

Here is the call graph for this function:

◆ writeFileHeader()

void writeFileHeader ( const label i )

protectedvirtual

Output file header information.

Implements logFiles.

Definition at line 403 of file surfaceFieldValue.C.

References Foam::endl(), Foam::file, forAll, Foam::setw(), and Foam::tab.

Here is the call graph for this function:

◆ moveMesh()

void moveMesh ( )

protected

Update the surface following mesh motion.

Definition at line 494 of file surfaceFieldValue.C.

References patches.

◆ changeMesh()

void changeMesh ( )

protected

Update the surface following mesh change.

Definition at line 514 of file surfaceFieldValue.C.

References patches.

◆ TypeName()

TypeName ( "surfaceFieldValue" )

Run-time type information.

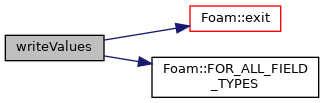

◆ writeValues()

void writeValues	(	const word &	fieldName,
		const Field< Type > &	values,
		const scalarField &	signs,
		const scalarField &	weights,
		const vectorField &	Sf
	)

Templated helper function to output field values.

Definition at line 312 of file surfaceFieldValueTemplates.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::FOR_ALL_FIELD_TYPES(), and writeValuesFieldType.

Here is the call graph for this function:

◆ filterField() [1/4]

tmp<Field<Type> > filterField ( const SurfaceField< Type > & field ) const

Filter a surface field according to faceIds.

◆ filterField() [2/4]

tmp<Field<Type> > filterField ( const VolField< Type > & field ) const

Filter a volume field according to faceIds.

◆ read()

bool read ( const dictionary & dict )

virtual

Read from dictionary.

Reimplemented from fieldValue.

Definition at line 598 of file surfaceFieldValue.C.

References dict, Foam::endl(), forAll, Foam::Info, wordRe::isPattern(), fvPatch::name(), Foam::name(), sampledSurface::New(), surfaceWriter::New(), Foam::nl, patches, fieldValue::read(), and Foam::type().

Referenced by surfaceFieldValue::surfaceFieldValue().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ write()

bool write ( )

virtual

Calculate and write.

Reimplemented from fieldValue.

Definition at line 701 of file surfaceFieldValue.C.

References DeclareValues, Foam::endl(), Foam::file, Foam::FOR_ALL_FIELD_TYPES(), forAll, Log, UPstream::master(), Foam::name(), patches, points, List< T >::size(), Foam::tab, validFieldType, ValuesParameter, fieldValue::write(), and writeValuesFieldType.

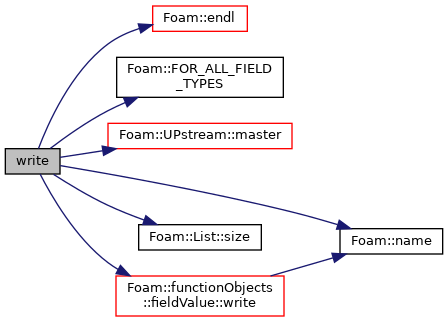

Here is the call graph for this function:

◆ movePoints()

void movePoints ( const polyMesh & mesh )

virtual

Update for mesh point-motion.

Reimplemented from functionObject.

Definition at line 883 of file surfaceFieldValue.C.

References mesh, and functionObject::movePoints().

Here is the call graph for this function:

◆ topoChange()

void topoChange ( const polyTopoChangeMap & map )

virtual

Update topology using the given map.

Reimplemented from functionObject.

Definition at line 900 of file surfaceFieldValue.C.

References polyTopoChangeMap::mesh(), mesh, and functionObject::topoChange().

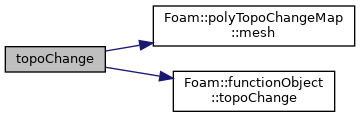

Here is the call graph for this function:

◆ mapMesh()

void mapMesh ( const polyMeshMap & map )

virtual

Update from another mesh using the given map.

Reimplemented from functionObject.

Definition at line 917 of file surfaceFieldValue.C.

References functionObject::mapMesh(), polyMeshMap::mesh(), and mesh.

Here is the call graph for this function:

◆ distribute()

void distribute ( const polyDistributionMap & map )

virtual

Redistribute or update using the given distribution map.

Reimplemented from functionObject.

Definition at line 934 of file surfaceFieldValue.C.

References functionObject::distribute(), polyDistributionMap::mesh(), and mesh.

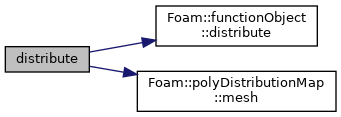

Here is the call graph for this function:

◆ getFieldValues() [2/2]

Foam::tmp<Foam::Field<Type> > getFieldValues ( const word & fieldName ) const

Definition at line 60 of file surfaceFieldValueTemplates.C.

References Foam::abort(), f(), Foam::FatalError, FatalErrorInFunction, fld(), forAll, Foam::fvc::interpolate(), tmp< T >::ref(), List< T >::size(), and Foam::Zero.

Here is the call graph for this function:

◆ filterField() [3/4]

Foam::tmp<Foam::Field<Type> > filterField ( const VolField< Type > & field ) const

Definition at line 368 of file surfaceFieldValueTemplates.C.

References Foam::abort(), GeometricField< Type, GeoMesh, PrimitiveField >::boundaryField(), Foam::FatalError, FatalErrorInFunction, forAll, IOobject::name(), Foam::name(), Foam::nl, patchi, tmp< T >::ref(), and Foam::type().

Here is the call graph for this function:

◆ filterField() [4/4]

Foam::tmp<Foam::Field<Type> > filterField ( const SurfaceField< Type > & field ) const

Definition at line 403 of file surfaceFieldValueTemplates.C.

References GeometricField< Type, GeoMesh, PrimitiveField >::boundaryField(), forAll, patchi, and tmp< T >::ref().

Here is the call graph for this function:

Member Data Documentation

◆ selectionTypeNames

const Foam::NamedEnum< Foam::functionObjects::fieldValues::surfaceFieldValue::selectionTypes, 4 > selectionTypeNames

static

Initial value:

{
    "faceZone",
    "patch",
    "patches",
    "sampledSurface"
}

Selection type names.

Definition at line 328 of file surfaceFieldValue.H.

◆ operationTypeNames_

const Foam::NamedEnum< Foam::functionObjects::fieldValues::surfaceFieldValue::operationType, 15 > operationTypeNames_

static

Initial value:

{
    "none",
    "sum",
    "sumMag",
    "orientedSum",
    "average",
    "areaAverage",
    "areaIntegrate",
    "min",
    "max",
    "minMag",
    "maxMag",
    "CoV",
    "UI",
    "areaNormalAverage",
    "areaNormalIntegrate"
}

Operation type names.

Definition at line 351 of file surfaceFieldValue.H.

◆ surfaceWriterPtr_

autoPtr<surfaceWriter> surfaceWriterPtr_

protected

Surface writer.

Definition at line 393 of file surfaceFieldValue.H.

◆ selectionType_

selectionTypes selectionType_

protected

Selection type.

Definition at line 396 of file surfaceFieldValue.H.

Referenced by surfaceFieldValue::validField().

◆ selectionName_

string selectionName_

protected

Name of face selection (patch, faceZone, etc.)

Definition at line 399 of file surfaceFieldValue.H.

◆ operation_

operationType operation_

protected

Operation to apply to values.

Definition at line 402 of file surfaceFieldValue.H.

◆ weightFieldNames_

wordList weightFieldNames_

protected

Weight field names - optional.

Definition at line 405 of file surfaceFieldValue.H.

◆ nFaces_

label nFaces_

protected

Global number of faces.

Definition at line 408 of file surfaceFieldValue.H.

◆ area_

scalar area_

protected

Area of the surface.

Definition at line 411 of file surfaceFieldValue.H.

◆ writeNFaces_

const bool writeNFaces_

protected

Optionally write the number of faces in the surface.

Definition at line 414 of file surfaceFieldValue.H.

◆ writeArea_

const bool writeArea_

protected

Optionally write the area of the surface.

Definition at line 417 of file surfaceFieldValue.H.

◆ faceZonePtr_

autoPtr<generatedFaceZone> faceZonePtr_

protected

The face-zone.

Definition at line 423 of file surfaceFieldValue.H.

◆ patchNames_

wordReList patchNames_

protected

The name(s) of the patches.

Definition at line 429 of file surfaceFieldValue.H.

◆ faceId_

labelList faceId_

protected

Local list of face IDs.

Definition at line 435 of file surfaceFieldValue.H.

◆ facePatchId_

labelList facePatchId_

protected

Local list of patch ID per face.

Definition at line 438 of file surfaceFieldValue.H.

◆ faceSign_

labelList faceSign_

protected

List of +1/-1 representing face flip map.

(1 use as is, -1 negate)

Definition at line 442 of file surfaceFieldValue.H.

◆ surfacePtr_

autoPtr<sampledSurface> surfacePtr_

protected

Underlying sampledSurface.

Definition at line 448 of file surfaceFieldValue.H.

The documentation for this class was generated from the following files:

src/functionObjects/field/fieldValues/surfaceFieldValue/surfaceFieldValue.H
src/functionObjects/field/fieldValues/surfaceFieldValue/surfaceFieldValue.C
src/functionObjects/field/fieldValues/surfaceFieldValue/surfaceFieldValueTemplates.C
