Container for data on surfaces used for surface-driven refinement. Contains all the data about the level of refinement needed per surface. More...

Public Member Functions
	refinementSurfaces (const searchableSurfaces &allGeometry, const dictionary &, const label gapLevelIncrement)
	Construct from surfaces and dictionary. More...

	refinementSurfaces (const searchableSurfaces &allGeometry, const labelList &surfaces, const wordList &names, const PtrList< surfaceZonesInfo > &surfZones, const labelList &regionOffset, const labelList &minLevel, const labelList &maxLevel, const labelList &gapLevel, const scalarField &perpendicularAngle, PtrList< dictionary > &patchInfo)
	Construct from components. More...

	refinementSurfaces (const refinementSurfaces &)=delete
	Disallow default bitwise copy construction. More...

const searchableSurfaces &	geometry () const

const labelList &	surfaces () const

const wordList &	names () const
	Names of surfaces. More...

const PtrList< surfaceZonesInfo > &	surfZones () const

const labelList &	regionOffset () const
	From local region number to global region number. More...

const labelList &	minLevel () const
	From global region number to refinement level. More...

const labelList &	maxLevel () const
	From global region number to refinement level. More...

const labelList &	gapLevel () const
	From global region number to small gap refinement level. More...

const scalarField &	perpendicularAngle () const
	From global region number to perpendicular angle. More...

const PtrList< dictionary > &	patchInfo () const
	From global region number to patch type. More...

label	globalRegion (const label surfi, const label regioni) const
	From surface and region on surface to global region. More...

label	minLevel (const label surfi, const label regioni) const
	Min level for surface and region on surface. More...

label	maxLevel (const label surfi, const label regioni) const
	Max level for surface and region on surface. More...

label	nRegions () const

void	setMinLevelFields (const refinementRegions &shells, const scalar level0EdgeLength, const bool extendedRefinementSpan)
	Calculate the refinement level for every element. More...

void	findHigherIntersection (const pointField &start, const pointField &end, const labelList &currentLevel, labelList &surfaces, labelList &surfaceLevel) const
	Find intersection of edge. Return -1 or first surface. More...

void	findAllHigherIntersections (const pointField &start, const pointField &end, const labelList &currentLevel, const labelList &globalRegionLevel, List< vectorList > &surfaceNormal, labelListList &surfaceLevel) const
	Find all intersections of edge. Unsorted order. More...

void	findAllHigherIntersections (const pointField &start, const pointField &end, const labelList &currentLevel, const labelList &globalRegionLevel, List< pointList > &surfaceLocation, List< vectorList > &surfaceNormal, labelListList &surfaceLevel) const
	Find all intersections of edge. Unsorted order. More...

void	findNearestIntersection (const labelList &surfacesToTest, const pointField &start, const pointField &end, labelList &surface1, List< pointIndexHit > &hit1, labelList &region1, labelList &surface2, List< pointIndexHit > &hit2, labelList &region2) const
	Find intersection nearest to the endpoints. surface1,2 are. More...

void	findNearestIntersection (const labelList &surfacesToTest, const pointField &start, const pointField &end, labelList &surface1, List< pointIndexHit > &hit1, labelList &region1, vectorField &normal1, labelList &surface2, List< pointIndexHit > &hit2, labelList &region2, vectorField &normal2) const
	findNearestIntersection but also get normals More...

void	findAnyIntersection (const pointField &start, const pointField &end, labelList &surfaces, List< pointIndexHit > &) const
	Used for debugging only: find intersection of edge. More...

void	findNearest (const labelList &surfacesToTest, const pointField &samples, const scalarField &nearestDistSqr, labelList &surfaces, List< pointIndexHit > &) const
	Find nearest point on surfaces. More...

void	findNearestRegion (const labelList &surfacesToTest, const pointField &samples, const scalarField &nearestDistSqr, labelList &hitSurface, labelList &hitRegion) const
	Find nearest point on surfaces. Return surface and region on. More...

void	findNearestRegion (const labelList &surfacesToTest, const pointField &samples, const scalarField &nearestDistSqr, labelList &hitSurface, List< pointIndexHit > &hitinfo, labelList &hitRegion, vectorField &hitNormal) const
	Find nearest point on surfaces. Return surface, region and. More...

void	findInside (const labelList &surfacesToTest, const pointField &pt, labelList &insideSurfaces) const
	Detect if a point is 'inside' (closed) surfaces. More...

void	operator= (const refinementSurfaces &)=delete
	Disallow default bitwise assignment. More...

Detailed Description

Container for data on surfaces used for surface-driven refinement. Contains all the data about the level of refinement needed per surface.

Source files

Definition at line 60 of file refinementSurfaces.H.

Constructor & Destructor Documentation

◆ refinementSurfaces() [1/3]

refinementSurfaces	(	const searchableSurfaces &	allGeometry,
		const dictionary &	surfacesDict,
		const label	gapLevelIncrement
	)

Construct from surfaces and dictionary.

Definition at line 38 of file refinementSurfaces.C.

References dictionary::clone(), Foam::clone(), dict, entry::dict(), Foam::endl(), HashTable< T, Key, Hash >::erase(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, forAll, forAllConstIter, dictionary::found(), IOWarningInFunction, entry::keyword(), dictionary::lookup(), dictionary::lookupEntryPtr(), dictionary::lookupOrDefault(), searchableSurfaces::names(), refinementSurfaces::nRegions(), regionNames(), searchableSurface::regions(), PtrList< T >::set(), List< T >::setSize(), HashTable< T, Key, Hash >::size(), UPtrList< T >::size(), HashTable< T, Key, Hash >::sortedToc(), dictionary::subDict(), and dictionary::toc().

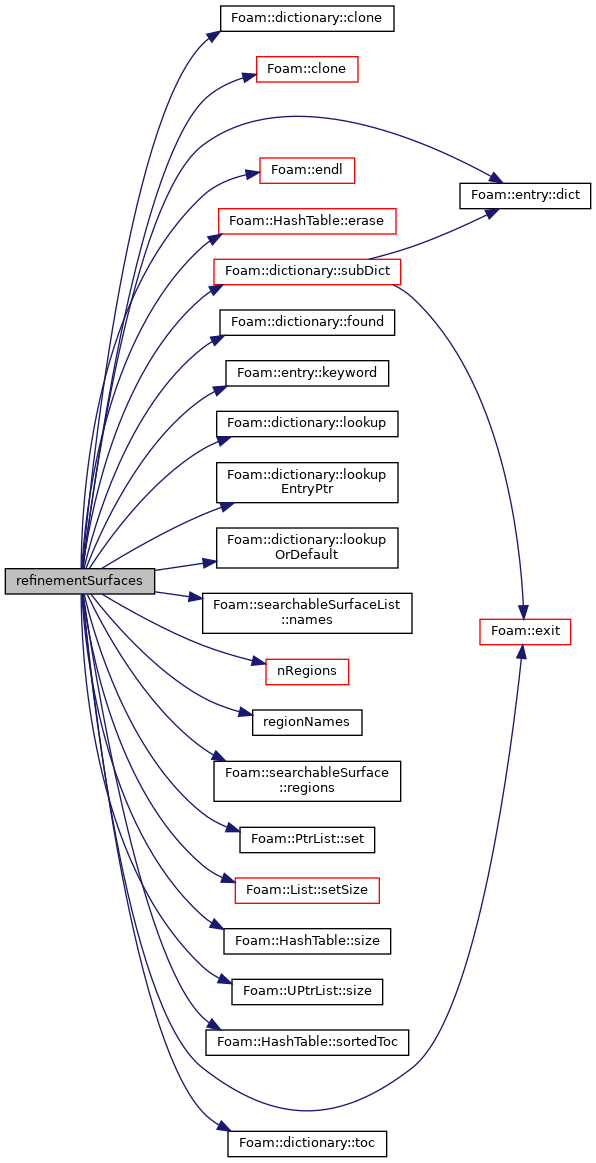

Here is the call graph for this function:

◆ refinementSurfaces() [2/3]

refinementSurfaces	(	const searchableSurfaces &	allGeometry,
		const labelList &	surfaces,
		const wordList &	names,
		const PtrList< surfaceZonesInfo > &	surfZones,
		const labelList &	regionOffset,
		const labelList &	minLevel,
		const labelList &	maxLevel,
		const labelList &	gapLevel,
		const scalarField &	perpendicularAngle,
		PtrList< dictionary > &	patchInfo
	)

Construct from components.

Definition at line 300 of file refinementSurfaces.C.

References forAll, refinementSurfaces::patchInfo(), and Foam::constant::mathematical::pi().

Here is the call graph for this function:

◆ refinementSurfaces() [3/3]

refinementSurfaces ( const refinementSurfaces & )

delete

Disallow default bitwise copy construction.

Member Function Documentation

◆ geometry()

const searchableSurfaces& geometry ( ) const

inline

Definition at line 130 of file refinementSurfaces.H.

◆ surfaces()

const labelList& surfaces ( ) const

inline

Definition at line 135 of file refinementSurfaces.H.

Referenced by snappySnapDriver::detectNearSurfaces(), snappySnapDriver::doSnap(), and snappySnapDriver::repatchToSurface().

Here is the caller graph for this function:

◆ names()

const wordList& names ( ) const

inline

Names of surfaces.

Definition at line 141 of file refinementSurfaces.H.

Referenced by snappySnapDriver::doSnap().

Here is the caller graph for this function:

◆ surfZones()

const PtrList<surfaceZonesInfo>& surfZones ( ) const

inline

Definition at line 146 of file refinementSurfaces.H.

Referenced by snappySnapDriver::calcNearestSurface(), snappySnapDriver::detectNearSurfaces(), snappySnapDriver::doSnap(), and snappySnapDriver::repatchToSurface().

Here is the caller graph for this function:

◆ regionOffset()

const labelList& regionOffset ( ) const

inline

From local region number to global region number.

Definition at line 152 of file refinementSurfaces.H.

◆ minLevel() [1/2]

const labelList& minLevel ( ) const

inline

From global region number to refinement level.

Definition at line 158 of file refinementSurfaces.H.

◆ maxLevel() [1/2]

const labelList& maxLevel ( ) const

inline

From global region number to refinement level.

Definition at line 164 of file refinementSurfaces.H.

◆ gapLevel()

const labelList& gapLevel ( ) const

inline

From global region number to small gap refinement level.

Definition at line 170 of file refinementSurfaces.H.

◆ perpendicularAngle()

const scalarField& perpendicularAngle ( ) const

inline

From global region number to perpendicular angle.

Definition at line 176 of file refinementSurfaces.H.

◆ patchInfo()

const PtrList<dictionary>& patchInfo ( ) const

inline

From global region number to patch type.

Definition at line 182 of file refinementSurfaces.H.

Referenced by refinementSurfaces::refinementSurfaces().

Here is the caller graph for this function:

◆ globalRegion()

label globalRegion	(	const label	surfi,
		const label	regioni
	)		const

inline

From surface and region on surface to global region.

Definition at line 191 of file refinementSurfaces.H.

Referenced by refinementSurfaces::maxLevel(), refinementSurfaces::minLevel(), and snappySnapDriver::repatchToSurface().

Here is the caller graph for this function:

◆ minLevel() [2/2]

label minLevel	(	const label	surfi,
		const label	regioni
	)		const

inline

Min level for surface and region on surface.

Definition at line 197 of file refinementSurfaces.H.

References refinementSurfaces::globalRegion().

Here is the call graph for this function:

◆ maxLevel() [2/2]

label maxLevel	(	const label	surfi,
		const label	regioni
	)		const

inline

Max level for surface and region on surface.

Definition at line 203 of file refinementSurfaces.H.

References refinementSurfaces::globalRegion().

Here is the call graph for this function:

◆ nRegions()

label nRegions ( ) const

inline

Definition at line 208 of file refinementSurfaces.H.

References List< T >::size().

Referenced by refinementSurfaces::refinementSurfaces().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setMinLevelFields()

void setMinLevelFields	(	const refinementRegions &	shells,
		const scalar	level0EdgeLength,
		const bool	extendedRefinementSpan
	)

Calculate the refinement level for every element.

of the searchablesurface

Definition at line 337 of file refinementSurfaces.C.

References searchableSurface::boundingSpheres(), searchableSurface::findNearest(), forAll, searchableSurface::getRegion(), searchableSurface::globalSize(), Foam::max(), searchableSurface::regions(), setField(), and List< T >::size().

Referenced by meshRefinement::meshRefinement().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ findHigherIntersection()

void findHigherIntersection	(	const pointField &	start,
		const pointField &	end,
		const labelList &	currentLevel,
		labelList &	surfaces,
		labelList &	surfaceLevel
	)		const

Find intersection of edge. Return -1 or first surface.

with higher (than currentLevel) minlevel. Return surface number and level.

Definition at line 411 of file refinementSurfaces.C.

References searchableSurface::findLineAny(), forAll, searchableSurface::getField(), Foam::identityMap(), searchableSurface::regions(), Foam::returnReduce(), List< T >::setSize(), and List< T >::size().

Here is the call graph for this function:

◆ findAllHigherIntersections() [1/2]

void findAllHigherIntersections	(	const pointField &	start,
		const pointField &	end,
		const labelList &	currentLevel,
		const labelList &	globalRegionLevel,
		List< vectorList > &	surfaceNormal,
		labelListList &	surfaceLevel
	)		const

Find all intersections of edge. Unsorted order.

Definition at line 554 of file refinementSurfaces.C.

References List< T >::clear(), searchableSurface::findLineAll(), forAll, searchableSurface::getNormal(), searchableSurface::getRegion(), n, List< T >::setSize(), and List< T >::size().

Here is the call graph for this function:

◆ findAllHigherIntersections() [2/2]

void findAllHigherIntersections	(	const pointField &	start,
		const pointField &	end,
		const labelList &	currentLevel,
		const labelList &	globalRegionLevel,
		List< pointList > &	surfaceLocation,
		List< vectorList > &	surfaceNormal,
		labelListList &	surfaceLevel
	)		const

Find all intersections of edge. Unsorted order.

Definition at line 642 of file refinementSurfaces.C.

References searchableSurface::findLineAll(), forAll, searchableSurface::getNormal(), searchableSurface::getRegion(), n, List< T >::setSize(), and List< T >::size().

Here is the call graph for this function:

◆ findNearestIntersection() [1/2]

void findNearestIntersection	(	const labelList &	surfacesToTest,
		const pointField &	start,
		const pointField &	end,
		labelList &	surface1,
		List< pointIndexHit > &	hit1,
		labelList &	region1,
		labelList &	surface2,
		List< pointIndexHit > &	hit2,
		labelList &	region2
	)		const

Find intersection nearest to the endpoints. surface1,2 are.

not indices into surfacesToTest but refinement surface indices. Returns surface, region on surface (so not global surface) and position on surface.

Definition at line 732 of file refinementSurfaces.C.

References searchableSurface::findLine(), forAll, searchableSurface::getRegion(), List< T >::setSize(), and List< T >::size().

Referenced by snappySnapDriver::detectNearSurfaces().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ findNearestIntersection() [2/2]

void findNearestIntersection	(	const labelList &	surfacesToTest,
		const pointField &	start,
		const pointField &	end,
		labelList &	surface1,
		List< pointIndexHit > &	hit1,
		labelList &	region1,
		vectorField &	normal1,
		labelList &	surface2,
		List< pointIndexHit > &	hit2,
		labelList &	region2,
		vectorField &	normal2
	)		const

findNearestIntersection but also get normals

Definition at line 862 of file refinementSurfaces.C.

References searchableSurface::findLine(), forAll, searchableSurface::getNormal(), searchableSurface::getRegion(), List< T >::setSize(), List< T >::size(), and Foam::Zero.

Here is the call graph for this function:

◆ findAnyIntersection()

void findAnyIntersection	(	const pointField &	start,
		const pointField &	end,
		labelList &	surfaces,
		List< pointIndexHit > &	hitinfo
	)		const

Used for debugging only: find intersection of edge.

Definition at line 985 of file refinementSurfaces.C.

References searchableSurfacesQueries::findAnyIntersection().

Here is the call graph for this function:

◆ findNearest()

void findNearest	(	const labelList &	surfacesToTest,
		const pointField &	samples,
		const scalarField &	nearestDistSqr,
		labelList &	surfaces,
		List< pointIndexHit > &	hitinfo
	)		const

Find nearest point on surfaces.

Definition at line 1006 of file refinementSurfaces.C.

References searchableSurfacesQueries::findNearest(), forAll, and samples().

Referenced by snappySnapDriver::calcNearestSurface().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ findNearestRegion() [1/2]

void findNearestRegion	(	const labelList &	surfacesToTest,
		const pointField &	samples,
		const scalarField &	nearestDistSqr,
		labelList &	hitSurface,
		labelList &	hitRegion
	)		const

Find nearest point on surfaces. Return surface and region on.

surface (so not global surface)

Definition at line 1039 of file refinementSurfaces.C.

References Foam::findIndices(), searchableSurfacesQueries::findNearest(), forAll, samples(), List< T >::setSize(), and List< T >::size().

Referenced by snappySnapDriver::calcNearestSurface(), and snappySnapDriver::repatchToSurface().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ findNearestRegion() [2/2]

void findNearestRegion	(	const labelList &	surfacesToTest,
		const pointField &	samples,
		const scalarField &	nearestDistSqr,
		labelList &	hitSurface,
		List< pointIndexHit > &	hitinfo,
		labelList &	hitRegion,
		vectorField &	hitNormal
	)		const

Find nearest point on surfaces. Return surface, region and.

normal on surface (so not global surface)

Definition at line 1102 of file refinementSurfaces.C.

References Foam::findIndices(), searchableSurfacesQueries::findNearest(), forAll, samples(), List< T >::setSize(), List< T >::size(), and Foam::Zero.

Here is the call graph for this function:

◆ findInside()

void findInside	(	const labelList &	surfacesToTest,
		const pointField &	pt,
		labelList &	insideSurfaces
	)		const

Detect if a point is 'inside' (closed) surfaces.

Returns -1 if not, returns first surface it is.

Definition at line 1178 of file refinementSurfaces.C.

References surfaceZonesInfo::areaSelectionAlgoNames, Foam::exit(), Foam::FatalError, FatalErrorInFunction, forAll, searchableSurface::getVolumeType(), searchableSurface::hasVolumeType(), surfaceZonesInfo::INSIDE, volumeType::inside, IOobject::name(), surfaceZonesInfo::OUTSIDE, volumeType::outside, List< T >::setSize(), and List< T >::size().

Here is the call graph for this function:

◆ operator=()

void operator= ( const refinementSurfaces & )

delete

Disallow default bitwise assignment.

The documentation for this class was generated from the following files:

src/mesh/snappyHexMesh/refinementSurfaces/refinementSurfaces.H
src/mesh/snappyHexMesh/refinementSurfaces/refinementSurfaces.C

Public Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ refinementSurfaces() [1/3]

◆ refinementSurfaces() [2/3]

◆ refinementSurfaces() [3/3]

Member Function Documentation

◆ geometry()

◆ surfaces()

◆ names()

◆ surfZones()

◆ regionOffset()

◆ minLevel() [1/2]

◆ maxLevel() [1/2]

◆ gapLevel()

◆ perpendicularAngle()

◆ patchInfo()

◆ globalRegion()

◆ minLevel() [2/2]

◆ maxLevel() [2/2]

◆ nRegions()

◆ setMinLevelFields()

◆ findHigherIntersection()

◆ findAllHigherIntersections() [1/2]

◆ findAllHigherIntersections() [2/2]

◆ findNearestIntersection() [1/2]

◆ findNearestIntersection() [2/2]

◆ findAnyIntersection()

◆ findNearest()

◆ findNearestRegion() [1/2]

◆ findNearestRegion() [2/2]

◆ findInside()

◆ operator=()
