Low level functions for cutting poly faces and cells. More...

Classes
struct	OpIndex

struct	OpBegin

struct	OpDereference

struct	OpNext

struct	OpScaled

struct	OpPreInner

struct	OpIndirectAverage

struct	OpIterableAverage

struct	OpFaceCutValues

struct	OpCellCutValues

struct	InPlaceOpAdvance

struct	BinaryOpAdd

struct	OffsetSequence

struct	OffsetSequence< Int, Offset, std::integer_sequence< Int, Is ... > >

struct	RangeSequence

class	FaceValues

class	FaceCutValues

class	CellCutValues

Typedefs
template<class Type >
using	AreaIntegralType = typename Foam::outerProduct< Foam::vector, Type >::type
	Definition for the type of a face-area-integral. More...

Functions
List< labelPair >	faceCuts (const face &f, const scalarField &pAlphas, const scalar isoAlpha)
	Return the cuts for a given face. This returns a list of pairs of. More...

labelListList	cellCuts (const cell &c, const cellEdgeAddressing &cAddr, const faceUList &fs, const List< List< labelPair >> &fCuts, const scalarField &pAlphas, const scalar isoAlpha)
	Return the cuts for a given cell. This returns a list of lists of cell-edge. More...

void	writeFaceCuts (const face &f, const List< labelPair > &fCuts, const pointField &ps, const scalarField &pAlphas, const scalar isoAlpha, OBJstream &obj)
	Write the cuts for a given face to an OBJ file. More...

void	writeCellCuts (const cell &c, const cellEdgeAddressing &cAddr, const List< List< label >> &cCuts, const faceList &fs, const pointField &ps, const scalarField &pAlphas, const scalar isoAlpha, OBJstream &obj)
	Write the cuts for a given cell to an OBJ file. More...

template<template< class > class FaceValues, class ... Types>
Tuple2< vector, std::tuple< AreaIntegralType< Types > ... > >	faceAreaIntegral (const FaceValues< point > &fPs, const point &fPAvg, const std::tuple< FaceValues< Types > ... > &fPsis, const std::tuple< Types ... > &fPsiAvgs)
	Compute the face-area and face-area-integrals of the given properties. More...

vector	faceArea (const face &f, const point &fPAvg, const pointField &ps)
	Compute the face-area. More...

vector	faceArea (const face &f, const pointField &ps)
	Compute the face-area. More...

template<class Type >
Tuple2< vector, AreaIntegralType< Type > >	faceAreaIntegral (const face &f, const point &fPAvg, const Type &fPsiAvg, const pointField &ps, const Field< Type > &pPsis)
	Compute the face-area and face-area-integral of a given property. More...

template<class Type >
Tuple2< vector, AreaIntegralType< Type > >	faceAreaIntegral (const face &f, const pointField &ps, const Field< Type > &pPsis)
	Compute the face-area and face-area-integral of a given property. More...

template<template< class > class FaceValues, class ... Types>
Tuple2< vector, std::tuple< Types ... > >	faceAreaAverage (const FaceValues< point > &fPs, const point &fPAvg, const std::tuple< FaceValues< Types > ... > &fPsis, const std::tuple< Types ... > &fPsiAvgs)
	Compute the face-area and face-area-averages of the given properties. More...

template<class Type >
Tuple2< vector, Type >	faceAreaAverage (const face &f, const point &fPAvg, const Type &fPsiAvg, const pointField &ps, const Field< Type > &pPsis)
	Compute the face-area and face-area-average of a given property. More...

template<class Type >
Tuple2< vector, Type >	faceAreaAverage (const face &f, const pointField &ps, const Field< Type > &pPsis)
	Compute the face-area and face-area-average of a given property. More...

template<class ... Types>
Tuple2< vector, std::tuple< AreaIntegralType< Types > ... > >	faceCutAreaIntegral (const face &f, const vector &fArea, const std::tuple< Types ... > &fPsis, const List< labelPair > &fCuts, const pointField &ps, const std::tuple< const Field< Types > &... > &pPsis, const scalarField &pAlphas, const scalar isoAlpha, const bool below)
	Compute the face-cut-area and face-cut-area-integral of the given properties. More...

vector	faceCutArea (const face &f, const vector &fArea, const List< labelPair > &fCuts, const pointField &ps, const scalarField &pAlphas, const scalar isoAlpha, const bool below)
	Compute the face-cut-area. More...

template<class Type >
Tuple2< vector, AreaIntegralType< Type > >	faceCutAreaIntegral (const face &f, const vector &fArea, const Type &fPsi, const List< labelPair > &fCuts, const pointField &ps, const Field< Type > &pPsis, const scalarField &pAlphas, const scalar isoAlpha, const bool below)
	Compute the face-cut-area and face-cut-area-integral of the given property. More...

template<class ... Types>
Tuple2< scalar, std::tuple< Types ... > >	cellVolumeIntegral (const cell &c, const cellEdgeAddressing &cAddr, const point &cPAvg, const std::tuple< Types ... > &cPsiAvgs, const vectorField &fAreas, const pointField &fCentres, const std::tuple< const Field< Types > &... > &fPsis)
	Compute the cell-volume and cell-volume-integrals of the given properties. More...

scalar	cellVolume (const cell &c, const cellEdgeAddressing &cAddr, const point &cPAvg, const vectorField &fAreas, const pointField &fCentres)
	Compute the cell-volume. More...

scalar	cellVolume (const cell &c, const cellEdgeAddressing &cAddr, const vectorField &fAreas, const pointField &fCentres)
	Compute the cell-volume. More...

template<class Type >
Tuple2< scalar, Type >	cellVolumeIntegral (const cell &c, const cellEdgeAddressing &cAddr, const point &cPAvg, const Type &cPsiAvg, const vectorField &fAreas, const pointField &fCentres, const Field< Type > &fPsis)
	Compute the cell-volume and cell-volume-integrals of the given property. More...

template<class Type >
Tuple2< scalar, Type >	cellVolumeIntegral (const cell &c, const cellEdgeAddressing &cAddr, const vectorField &fAreas, const pointField &fCentres, const Field< Type > &fPsis)
	Compute the cell-volume and cell-volume-integrals of the given property. More...

template<class ... Types>
Tuple2< scalar, std::tuple< Types ... > >	cellCutVolumeIntegral (const cell &c, const cellEdgeAddressing &cAddr, const scalar cVolume, const std::tuple< Types ... > &cPsis, const labelListList &cCuts, const faceUList &fs, const vectorField &fAreas, const pointField &fCentres, const std::tuple< const Field< Types > &... > &fPsis, const vectorField &fCutAreas, const std::tuple< const Field< Types > &... > &fCutPsis, const pointField &ps, const std::tuple< const Field< Types > &... > &pPsis, const scalarField &pAlphas, const scalar isoAlpha, const bool below)
	Compute the cell-cut-volume and cell-cut-volume-integral. More...

scalar	cellCutVolume (const cell &c, const cellEdgeAddressing &cAddr, const scalar cVolume, const labelListList &cCuts, const faceUList &fs, const vectorField &fAreas, const pointField &fCentres, const vectorField &fCutAreas, const pointField &ps, const scalarField &pAlphas, const scalar isoAlpha, const bool below)
	Compute the cell-cut-volume. More...

template<class Type >
Tuple2< scalar, Type >	cellCutVolumeIntegral (const cell &c, const cellEdgeAddressing &cAddr, const scalar cVolume, const Type &cPsi, const labelListList &cCuts, const faceUList &fs, const vectorField &fAreas, const pointField &fCentres, const Field< Type > &fPsis, const vectorField &fCutAreas, const Field< Type > &fCutPsis, const pointField &ps, const Field< Type > &pPsis, const scalarField &pAlphas, const scalar isoAlpha, const bool below)
	Compute the cell-cut-volume and cell-cut-volume-integral. More...

template<class Tuple , class Int , Int ... Is>
auto	tupleSubset (const Tuple &tuple, const std::integer_sequence< Int, Is ... > &)

template<class Op , class Tuple , class Int , Int ... Is>
auto	tupleSubset (const Tuple &tuple, const std::integer_sequence< Int, Is ... > &, const Op &op)

template<class ... Types>
auto	tupleTail (const std::tuple< Types ... > &tuple)

template<class Op , class ... Types>
auto	tupleOp (const std::tuple< Types ... > &tuple, const Op &op)

template<class Op , class Tuple , class Int , Int ... Is>
void	tupleInPlaceOp (Tuple &tuple, const std::integer_sequence< Int, Is ... > &, const Op &op)

template<class Op , class ... Types>
void	tupleInPlaceOp (std::tuple< Types ... > &tuple, const Op &op)

template<class BinaryOp , class Tuple , class Int , Int ... Is>
auto	tupleBinaryOp (const Tuple &tupleA, const Tuple &tupleB, const std::integer_sequence< Int, Is ... > &, const BinaryOp &bop)

template<class BinaryOp , class ... TypesA, class ... TypesB>
auto	tupleBinaryOp (const std::tuple< TypesA ... > &tupleA, const std::tuple< TypesB ... > &tupleB, const BinaryOp &bop)

scalar	edgeCutLambda (const edge &e, const scalarField &pAlphas, const scalar isoAlpha)
	Get the local coordinate within an edge, given end point values and an. More...

template<class Type >
Type	edgeCutValue (const edge &e, const scalar lambda, const Field< Type > &pPsis)
	Linearly interpolate a value from the end points to the cut point of an. More...

template<class Type >
Type	edgeCutValue (const edge &e, const scalarField &pAlphas, const scalar isoAlpha, const Field< Type > &pPsis)
	Linearly interpolate a value from the end points to the cut point of an. More...

Variables
static const bool	separatedBelow = true
	This flag determines which side of the iso-surface is separated into. More...

Detailed Description

Low level functions for cutting poly faces and cells.

Functions and classes for extracting values from cut edges, faces and cells.

Functions for computing integrals over cut faces and cells.

Cutting a face using an iso-surface defined at the points is done by walking around the face. A start point is chosen and then the walk proceeds until a "cut" edge is found with points on either side of the iso-surface. This edge is noted and the walk continues until another cut edge is found. These two edge cuts, along with all points in-between, form a sub-face on one side of the iso-surface. This algorithm continues around the entire face, potentially cutting off multiple sub-faces. The remainder is a single contiguous face on the other side of the iso-surface.

Cutting a cell is then done by walking from cut-edge to cut-edge around the cell's faces.

Source files

Typedef Documentation

◆ AreaIntegralType

using AreaIntegralType = typename Foam::outerProduct<Foam::vector, Type>::type

Definition for the type of a face-area-integral.

Definition at line 50 of file cutPolyIntegral.H.

Function Documentation

◆ faceCuts()

Foam::List< Foam::labelPair > faceCuts	(	const face &	f,
		const scalarField &	pAlphas,
		const scalar	isoAlpha
	)

Return the cuts for a given face. This returns a list of pairs of.

face-edge indices. Both edges in the pair are cut, and connecting these cuts creates an edge of the iso-surface.

Definition at line 60 of file cutPoly.C.

References DynamicList< T, SizeInc, SizeMult, SizeDiv >::append(), Foam::exit(), f(), Foam::FatalError, FatalErrorInFunction, forAll, UList< T >::last(), Foam::max(), Foam::min(), separatedBelow, and DynamicList< T, SizeInc, SizeMult, SizeDiv >::shrink().

Referenced by faceCutData::cache(), and cutPolyIsoSurface::cutPolyIsoSurface().

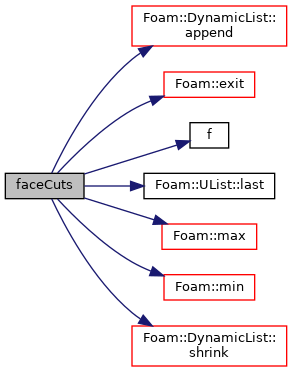

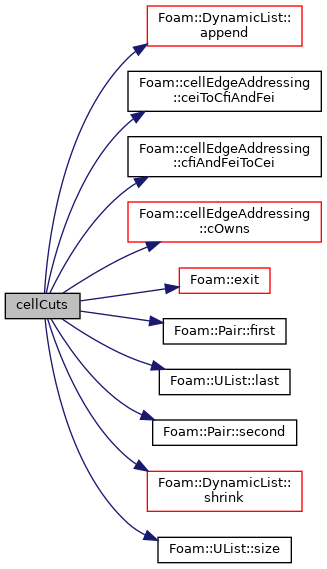

Here is the call graph for this function:

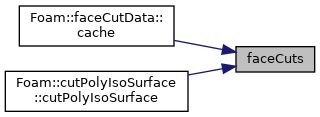

Here is the caller graph for this function:

◆ cellCuts()

Foam::labelListList cellCuts	(	const cell &	c,
		const cellEdgeAddressing &	cAddr,
		const faceUList &	fs,
		const List< List< labelPair >> &	fCuts,
		const scalarField &	pAlphas,
		const scalar	isoAlpha
	)

Return the cuts for a given cell. This returns a list of lists of cell-edge.

indices. Each sub-list represents a single closed loop of cell-edges. The edges listed are all cut, and connecting these cuts up creates a face of the iso-surface.

Definition at line 120 of file cutPoly.C.

References DynamicList< T, SizeInc, SizeMult, SizeDiv >::append(), Foam::constant::universal::c, cellEdgeAddressing::ceiToCfiAndFei(), cellEdgeAddressing::cfiAndFeiToCei(), cellEdgeAddressing::cOwns(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, Pair< Type >::first(), forAll, found, UList< T >::last(), Pair< Type >::second(), DynamicList< T, SizeInc, SizeMult, SizeDiv >::shrink(), and UList< T >::size().

Referenced by cutPolyIsoSurface::cutPolyIsoSurface().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeFaceCuts()

void writeFaceCuts	(	const face &	f,
		const List< labelPair > &	fCuts,
		const pointField &	ps,
		const scalarField &	pAlphas,
		const scalar	isoAlpha,
		OBJstream &	obj
	)

Write the cuts for a given face to an OBJ file.

Definition at line 244 of file cutPoly.C.

References Foam::constant::electromagnetic::e, edgeCutValue(), f(), forAll, and OBJstream::write().

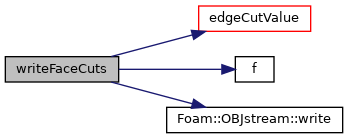

Here is the call graph for this function:

◆ writeCellCuts()

void writeCellCuts	(	const cell &	c,
		const cellEdgeAddressing &	cAddr,
		const List< List< label >> &	cCuts,
		const faceList &	fs,
		const pointField &	ps,
		const scalarField &	pAlphas,
		const scalar	isoAlpha,
		OBJstream &	obj
	)

Write the cuts for a given cell to an OBJ file.

Definition at line 270 of file cutPoly.C.

References Foam::constant::universal::c, cellEdgeAddressing::ceiToCfiAndFei(), Foam::constant::electromagnetic::e, edgeCutValue(), forAll, Foam::identityMap(), and OBJstream::write().

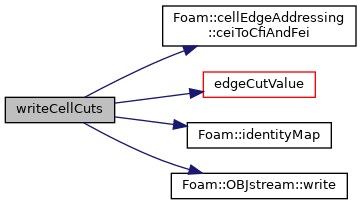

Here is the call graph for this function:

◆ faceAreaIntegral() [1/3]

Tuple2<vector, std::tuple<AreaIntegralType<Types> ...> > Foam::cutPoly::faceAreaIntegral	(	const FaceValues< point > &	fPs,
		const point &	fPAvg,
		const std::tuple< FaceValues< Types > ... > &	fPsis,
		const std::tuple< Types ... > &	fPsiAvgs
	)

Compute the face-area and face-area-integrals of the given properties.

Referenced by faceArea().

Here is the caller graph for this function:

◆ faceArea() [1/2]

Foam::vector faceArea	(	const face &	f,
		const point &	fPAvg,
		const pointField &	ps
	)

inline

Compute the face-area.

Definition at line 277 of file cutPolyIntegralI.H.

References f(), and faceAreaIntegral().

Referenced by faceArea().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ faceArea() [2/2]

Foam::vector faceArea	(	const face &	f,
		const pointField &	ps
	)

inline

Compute the face-area.

Definition at line 295 of file cutPolyIntegralI.H.

References f(), and faceArea().

Here is the call graph for this function:

◆ faceAreaIntegral() [2/3]

Tuple2<vector, AreaIntegralType<Type> > Foam::cutPoly::faceAreaIntegral	(	const face &	f,
		const point &	fPAvg,
		const Type &	fPsiAvg,
		const pointField &	ps,
		const Field< Type > &	pPsis
	)

inline

Compute the face-area and face-area-integral of a given property.

◆ faceAreaIntegral() [3/3]

Tuple2<vector, AreaIntegralType<Type> > Foam::cutPoly::faceAreaIntegral	(	const face &	f,
		const pointField &	ps,
		const Field< Type > &	pPsis
	)

inline

Compute the face-area and face-area-integral of a given property.

◆ faceAreaAverage() [1/3]

Tuple2<vector, std::tuple<Types ...> > Foam::cutPoly::faceAreaAverage	(	const FaceValues< point > &	fPs,
		const point &	fPAvg,
		const std::tuple< FaceValues< Types > ... > &	fPsis,
		const std::tuple< Types ... > &	fPsiAvgs
	)

Compute the face-area and face-area-averages of the given properties.

Referenced by faceFsData::cache().

Here is the caller graph for this function:

◆ faceAreaAverage() [2/3]

Tuple2<vector, Type> Foam::cutPoly::faceAreaAverage	(	const face &	f,
		const point &	fPAvg,
		const Type &	fPsiAvg,
		const pointField &	ps,
		const Field< Type > &	pPsis
	)

inline

Compute the face-area and face-area-average of a given property.

◆ faceAreaAverage() [3/3]

Tuple2<vector, Type> Foam::cutPoly::faceAreaAverage	(	const face &	f,
		const pointField &	ps,
		const Field< Type > &	pPsis
	)

inline

Compute the face-area and face-area-average of a given property.

◆ faceCutAreaIntegral() [1/2]

Tuple2<vector, std::tuple<AreaIntegralType<Types> ...> > Foam::cutPoly::faceCutAreaIntegral	(	const face &	f,
		const vector &	fArea,
		const std::tuple< Types ... > &	fPsis,
		const List< labelPair > &	fCuts,
		const pointField &	ps,
		const std::tuple< const Field< Types > &... > &	pPsis,
		const scalarField &	pAlphas,
		const scalar	isoAlpha,
		const bool	below
	)

Compute the face-cut-area and face-cut-area-integral of the given properties.

Referenced by faceFsData::cache(), and faceCutArea().

Here is the caller graph for this function:

◆ faceCutArea()

Foam::vector faceCutArea	(	const face &	f,
		const vector &	fArea,
		const List< labelPair > &	fCuts,
		const pointField &	ps,
		const scalarField &	pAlphas,
		const scalar	isoAlpha,
		const bool	below
	)

inline

Compute the face-cut-area.

Definition at line 409 of file cutPolyIntegralI.H.

References f(), and faceCutAreaIntegral().

Referenced by faceCutData::cache().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ faceCutAreaIntegral() [2/2]

Tuple2<vector, AreaIntegralType<Type> > Foam::cutPoly::faceCutAreaIntegral	(	const face &	f,
		const vector &	fArea,
		const Type &	fPsi,
		const List< labelPair > &	fCuts,
		const pointField &	ps,
		const Field< Type > &	pPsis,
		const scalarField &	pAlphas,
		const scalar	isoAlpha,
		const bool	below
	)

inline

Compute the face-cut-area and face-cut-area-integral of the given property.

◆ cellVolumeIntegral() [1/3]

Tuple2<scalar, std::tuple<Types ...> > Foam::cutPoly::cellVolumeIntegral	(	const cell &	c,
		const cellEdgeAddressing &	cAddr,
		const point &	cPAvg,
		const std::tuple< Types ... > &	cPsiAvgs,
		const vectorField &	fAreas,
		const pointField &	fCentres,
		const std::tuple< const Field< Types > &... > &	fPsis
	)

Compute the cell-volume and cell-volume-integrals of the given properties.

Referenced by cellVolume().

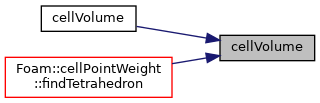

Here is the caller graph for this function:

◆ cellVolume() [1/2]

Foam::scalar cellVolume	(	const cell &	c,
		const cellEdgeAddressing &	cAddr,
		const point &	cPAvg,
		const vectorField &	fAreas,
		const pointField &	fCentres
	)

inline

Compute the cell-volume.

Definition at line 474 of file cutPolyIntegralI.H.

References Foam::constant::universal::c, and cellVolumeIntegral().

Referenced by cellVolume(), and cellPointWeight::findTetrahedron().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ cellVolume() [2/2]

Foam::scalar cellVolume	(	const cell &	c,
		const cellEdgeAddressing &	cAddr,
		const vectorField &	fAreas,
		const pointField &	fCentres
	)

inline

Compute the cell-volume.

Definition at line 497 of file cutPolyIntegralI.H.

References Foam::constant::universal::c, and cellVolume().

Here is the call graph for this function:

◆ cellVolumeIntegral() [2/3]

Tuple2<scalar, Type> Foam::cutPoly::cellVolumeIntegral	(	const cell &	c,
		const cellEdgeAddressing &	cAddr,
		const point &	cPAvg,
		const Type &	cPsiAvg,
		const vectorField &	fAreas,
		const pointField &	fCentres,
		const Field< Type > &	fPsis
	)

inline

Compute the cell-volume and cell-volume-integrals of the given property.

◆ cellVolumeIntegral() [3/3]

Tuple2<scalar, Type> Foam::cutPoly::cellVolumeIntegral	(	const cell &	c,
		const cellEdgeAddressing &	cAddr,
		const vectorField &	fAreas,
		const pointField &	fCentres,
		const Field< Type > &	fPsis
	)

inline

Compute the cell-volume and cell-volume-integrals of the given property.

◆ cellCutVolumeIntegral() [1/2]

Tuple2<scalar, std::tuple<Types ...> > Foam::cutPoly::cellCutVolumeIntegral	(	const cell &	c,
		const cellEdgeAddressing &	cAddr,
		const scalar	cVolume,
		const std::tuple< Types ... > &	cPsis,
		const labelListList &	cCuts,
		const faceUList &	fs,
		const vectorField &	fAreas,
		const pointField &	fCentres,
		const std::tuple< const Field< Types > &... > &	fPsis,
		const vectorField &	fCutAreas,
		const std::tuple< const Field< Types > &... > &	fCutPsis,
		const pointField &	ps,
		const std::tuple< const Field< Types > &... > &	pPsis,
		const scalarField &	pAlphas,
		const scalar	isoAlpha,
		const bool	below
	)

Compute the cell-cut-volume and cell-cut-volume-integral.

of the given properties

Referenced by cellCutVolume().

Here is the caller graph for this function:

◆ cellCutVolume()

Foam::scalar cellCutVolume	(	const cell &	c,
		const cellEdgeAddressing &	cAddr,
		const scalar	cVolume,
		const labelListList &	cCuts,
		const faceUList &	fs,
		const vectorField &	fAreas,
		const pointField &	fCentres,
		const vectorField &	fCutAreas,
		const pointField &	ps,
		const scalarField &	pAlphas,
		const scalar	isoAlpha,
		const bool	below
	)

inline

Compute the cell-cut-volume.

Definition at line 574 of file cutPolyIntegralI.H.

References Foam::constant::universal::c, and cellCutVolumeIntegral().

Here is the call graph for this function:

◆ cellCutVolumeIntegral() [2/2]

Tuple2<scalar, Type> Foam::cutPoly::cellCutVolumeIntegral	(	const cell &	c,
		const cellEdgeAddressing &	cAddr,
		const scalar	cVolume,
		const Type &	cPsi,
		const labelListList &	cCuts,
		const faceUList &	fs,
		const vectorField &	fAreas,
		const pointField &	fCentres,
		const Field< Type > &	fPsis,
		const vectorField &	fCutAreas,
		const Field< Type > &	fCutPsis,
		const pointField &	ps,
		const Field< Type > &	pPsis,
		const scalarField &	pAlphas,
		const scalar	isoAlpha,
		const bool	below
	)
