A zoneGenerator which selects points, cells or faces with centres either inside or outside a surface. More...

Inheritance diagram for insideSurface:

Collaboration diagram for insideSurface:

Public Member Functions
	TypeName ("insideSurface")
	Runtime type information. More...

	insideSurface (const word &name, const polyMesh &mesh, const dictionary &dict)
	Construct from dictionary. More...

virtual	~insideSurface ()
	Destructor. More...

virtual zoneSet	generate () const
	Generate and return the zoneSet. More...

template<class ZoneType , class UnaryOp >
Foam::labelList	select (const insideSurface &zoneGen, const vectorField &pts, const UnaryOp &uop) const

template<class ZoneType , class UnaryOp >
Foam::labelList	select (const insideSurface &zoneGen, const zoneGeneratorList &zoneGenerators, const vectorField &pts, const UnaryOp &uop) const

template<class UnaryOp >
Foam::labelList	select (const insideSurface &zoneGen, const zoneGeneratorList &zoneGenerators, const vectorField &pts, boolList &flipMap, const UnaryOp &uop) const

Public Member Functions inherited from volume
	volume (const word &name, const polyMesh &mesh, const dictionary &dict)
	Construct from dictionary. More...

virtual	~volume ()
	Destructor. More...

template<class ZoneType , class UnaryOp , class ZoneGenType >
Foam::labelList	select (const ZoneGenType &zoneGen, const vectorField &pts, const UnaryOp &uop) const

template<class ZoneType , class UnaryOp , class ZoneGenType >
Foam::labelList	select (const ZoneGenType &zoneGen, const zoneGeneratorList &zoneGenerators, const vectorField &pts, const UnaryOp &uop) const

template<class ZoneType , class ZoneGenType >
Foam::labelList	selectOp (const ZoneGenType &zoneGen, const zoneGeneratorList &zoneGenerators, const vectorField &pts) const

template<class UnaryOp , class ZoneGenType >
Foam::labelList	select (const ZoneGenType &zoneGen, const zoneGeneratorList &zoneGenerators, const vectorField &pts, boolList &flipMap, const UnaryOp &uop) const

template<class ZoneGenType >
Foam::labelList	selectOp (const ZoneGenType &zoneGen, const zoneGeneratorList &zoneGenerators, const vectorField &pts, boolList &flipMap) const

template<class ZoneGenType >
Foam::zoneSet	generate (const ZoneGenType &zoneGen) const

Public Member Functions inherited from zoneGenerator
	TypeName ("zoneGenerator")
	Runtime type information. More...

	declareRunTimeSelectionTable (autoPtr, zoneGenerator, dictionary,(const word &name, const polyMesh &mesh, const dictionary &dict),(name, mesh, dict))

	zoneGenerator (const word &name, const polyMesh &mesh, const dictionary &dict)
	Construct from name, polyMesh and dictionary. More...

	zoneGenerator (const zoneGenerator &)=delete
	Disallow default bitwise copy construction. More...

virtual	~zoneGenerator ()
	Destructor. More...

const word &	name () const

const word &	zoneName () const

bool	moveUpdate () const
	Return true if the zoneGenerator updates any of the zones. More...

virtual zoneSet	movePoints () const
	Regenerate the zoneSet following mesh point motion. More...

void	operator= (const zoneGenerator &)=delete
	Disallow default bitwise assignment. More...

Protected Member Functions
template<class ZoneType , class UnaryOp >
labelList	select (const insideSurface &zoneGen, const vectorField &pts, const UnaryOp &uop) const

template<class ZoneType , class UnaryOp >
labelList	select (const insideSurface &zoneGen, const zoneGeneratorList &zoneGenerators, const vectorField &pts, const UnaryOp &uop) const

template<class UnaryOp >
labelList	select (const insideSurface &zoneGen, const zoneGeneratorList &zoneGenerators, const vectorField &pts, boolList &flipMap, const UnaryOp &uop) const

Protected Member Functions inherited from volume
template<class ZoneType , class UnaryOp , class ZoneGenType >
labelList	select (const ZoneGenType &zoneGen, const vectorField &pts, const UnaryOp &uop) const

template<class ZoneType , class UnaryOp , class ZoneGenType >
labelList	select (const ZoneGenType &zoneGen, const zoneGeneratorList &zoneGenerators, const vectorField &pts, const UnaryOp &uop) const

template<class ZoneType , class ZoneGenType >
labelList	selectOp (const ZoneGenType &zoneGen, const zoneGeneratorList &zoneGenerators, const vectorField &pts) const

template<class UnaryOp , class ZoneGenType >
labelList	select (const ZoneGenType &zoneGen, const zoneGeneratorList &zoneGenerators, const vectorField &pts, boolList &flipMap, const UnaryOp &uop) const

template<class ZoneGenType >
labelList	selectOp (const ZoneGenType &zoneGen, const zoneGeneratorList &zoneGenerators, const vectorField &pts, boolList &flipMap) const

template<class ZoneGenType >
zoneSet	generate (const ZoneGenType &zone) const
	Generate the zone of the given type. More...

Friends
class	volume

Additional Inherited Members
Static Public Member Functions inherited from zoneGenerator
static autoPtr< zoneGenerator >	New (const word &name, const polyMesh &mesh, const dictionary &dict)
	Select constructed from name, mesh and dictionary. More...

static autoPtr< zoneGenerator >	New (const word &name, const zoneTypes &zoneType, const polyMesh &mesh, const dictionary &dict)
	Select constructed from name, zoneType, mesh and dictionary. More...

static autoPtr< zoneGenerator >	New (const polyMesh &mesh, const dictionary &dict)
	Select constructed from mesh and first valid dictionary. More...

static labelList	indices (const boolList &selected)
	Return the list of selected indices. More...

Protected Types inherited from volume
enum class	selection { inside , outside }
	Enumeration for inside/outside selection. More...

Static Protected Member Functions inherited from volume
static NamedEnum< selection, 2 >::namesType	selectionNames_ ()
	Initialisation function for selection enumeration names. More...

Protected Attributes inherited from volume
zoneTypes	zoneType_

selection	select_
	Inside/outside selection. More...

zoneGeneratorList	zoneGenerators_
	Optional list of zoneGenerators which provide the zones to sub-set. More...

Protected Attributes inherited from zoneGenerator
const word	name_
	Name of zone generator. More...

const dictionary	dict_
	Dictionary cached for error context. More...

const word	zoneName_
	Name of the zone (defaults to the name of the generator) More...

const polyMesh &	mesh_
	Reference to the polyMesh. More...

bool	moveUpdate_
	Switch to update the zones if the mesh points are moved. More...

Static Protected Attributes inherited from volume
static const NamedEnum< selection, 2 >	selectionNames
	Enumeration names for inside/outside selection. More...

Detailed Description

A zoneGenerator which selects points, cells or faces with centres either inside or outside a surface.

By default all the points, cells or faces of the mesh are tested for being inside or outside the surface but an optional single zone or list of zones may be provided and those points, cells or faces are tested instead. This provides an efficient method of hierarchical sub-division of space where an initial selection of points cells or faces is refined by selecting the sub-set inside or outside the given surface rather than having to generate another zone to intersect with.

Usage

Property	Description	Required	Default value
`type`	Type: insideSurface	yes
`name`	Name of the zone	no	zoneGenerator name
`zoneType`	Type of zone	yes
`select`	Select either the inside or outside	no	inside
`moveUpdate`	Switch to update after mesh motion	no	false
`surface`	searchableSurface type	yes
`zone`	Optional zone to sub-set	no
`zones`	Optional list of zones to sub-set	no

A cellZone named cylinder containing the cells with centres inside the closedTriSurface "sloshingCylinder.obj" is generated by

        cylinder
        {
            type        insideSurface;
            zoneType    cell;

            surface     closedTriSurface;
            file        "sloshingCylinder.obj";
        }

See also: zoneGenerators::volume

Source files

Definition at line 136 of file insideSurface.H.

Constructor & Destructor Documentation

◆ insideSurface()

insideSurface	(	const word &	name,
		const polyMesh &	mesh,
		const dictionary &	dict
	)

Construct from dictionary.

Definition at line 177 of file insideSurface.C.

◆ ~insideSurface()

~insideSurface ( )

virtual

Destructor.

Definition at line 211 of file insideSurface.C.

Member Function Documentation

◆ select() [1/6]

labelList select	(	const insideSurface &	zoneGen,
		const vectorField &	pts,
		const UnaryOp &	uop
	)		const

protected

Referenced by insideSurface::select().

Here is the caller graph for this function:

◆ select() [2/6]

labelList select	(	const insideSurface &	zoneGen,
		const zoneGeneratorList &	zoneGenerators,
		const vectorField &	pts,
		const UnaryOp &	uop
	)		const

protected

◆ select() [3/6]

labelList select	(	const insideSurface &	zoneGen,
		const zoneGeneratorList &	zoneGenerators,
		const vectorField &	pts,
		boolList &	flipMap,
		const UnaryOp &	uop
	)		const

protected

◆ TypeName()

TypeName ( "insideSurface" )

Runtime type information.

◆ generate()

Foam::zoneSet generate ( ) const

virtual

Generate and return the zoneSet.

Implements volume.

Definition at line 217 of file insideSurface.C.

References volume::generate().

Here is the call graph for this function:

◆ select() [4/6]

Foam::labelList select	(	const insideSurface &	zoneGen,
		const vectorField &	pts,
		const UnaryOp &	uop
	)		const

Definition at line 47 of file insideSurface.C.

References forAll, zoneGenerator::indices(), volumeType::inside, List< T >::setSize(), and List< T >::size().

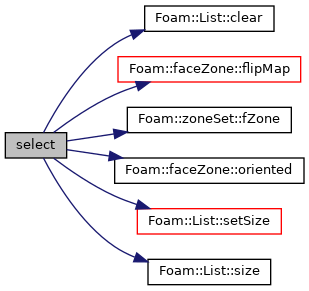

Here is the call graph for this function:

◆ select() [5/6]

Foam::labelList select	(	const insideSurface &	zoneGen,
		const zoneGeneratorList &	zoneGenerators,
		const vectorField &	pts,
		const UnaryOp &	uop
	)		const

Definition at line 75 of file insideSurface.C.

References forAll, volumeType::inside, insideSurface::select(), List< T >::size(), and zoneSet::zone().

Here is the call graph for this function:

◆ select() [6/6]

Foam::labelList select	(	const insideSurface &	zoneGen,
		const zoneGeneratorList &	zoneGenerators,
		const vectorField &	pts,
		boolList &	flipMap,
		const UnaryOp &	uop
	)		const

Definition at line 114 of file insideSurface.C.

References List< T >::clear(), faceZone::flipMap(), forAll, zoneSet::fZone(), volumeType::inside, faceZone::oriented(), List< T >::setSize(), and List< T >::size().

Here is the call graph for this function:

Friends And Related Function Documentation

◆ volume

friend class volume

friend

Definition at line 150 of file insideSurface.H.

The documentation for this class was generated from the following files:

src/meshTools/zoneGenerators/volume/insideSurface/insideSurface.H
src/meshTools/zoneGenerators/volume/insideSurface/insideSurface.C
