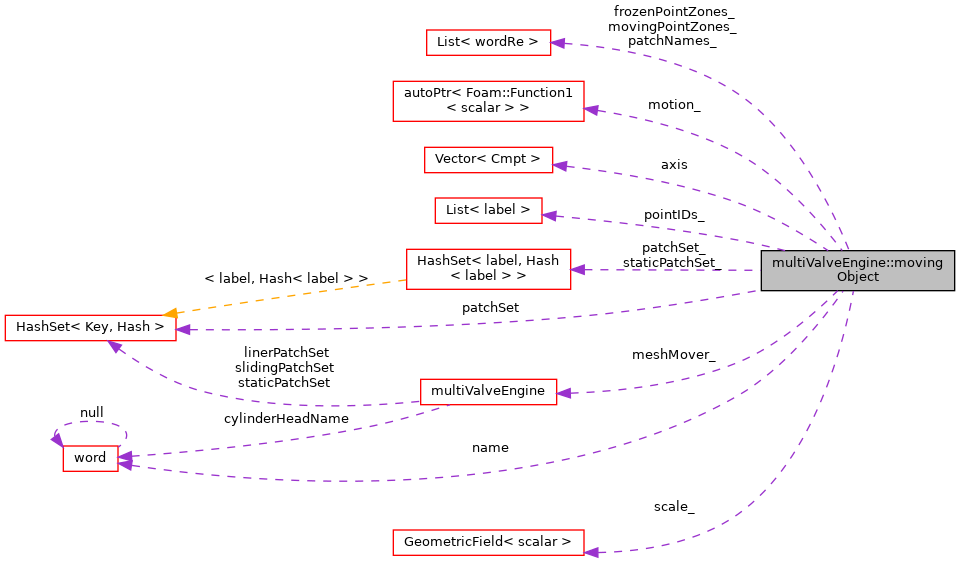

Collaboration diagram for multiValveEngine::movingObject:

[legend]

Public Member Functions
	movingObject (const word &name, const multiValveEngine &engine, const dictionary &dict)
	Construct from dictionary. More...

virtual	~movingObject ()
	Destructor. More...

virtual void	mapMesh (const polyMeshMap &)
	Update from another mesh using the given map. More...

Public Attributes
const word	name
	Name of the object. More...

const vector	axis
	Axis. More...

const labelHashSet &	patchSet
	Object patchSet. More...

Protected Member Functions
void	calcScale (const pointMesh &pMesh, const scalarField &pDistMoving, const scalarField &pDistStatic, scalar dMoving, scalar dMax, scalar dStatic)
	Scale the mesh point deformation with distance functions. More...

void	transformPoints (pointField &newPoints, const vector &translationVector)

void	createStaticPatchSet ()
	Generate staticPatchSet_ based on patch entries. More...

void	initPatchSets ()
	Patch-set construction. More...

labelHashSet	movingPointZones () const

labelHashSet	staticPointZones () const

Protected Attributes
const multiValveEngine &	meshMover_
	Reference to engine mesh mover. More...

autoPtr< Function1< scalar > >	motion_
	Piston motion function. More...

wordReList	patchNames_
	Object patchNames. More...

labelHashSet	patchSet_
	Object patchSet. More...

labelHashSet	staticPatchSet_
	Patches which must not deform during mesh motion. More...

scalar	maxMotionDistance_
	Distance from object beyond which the mesh does not deform. More...

scalar	movingFrozenLayerThickness_
	Distance from object within mesh nodes move. More...

scalar	staticFrozenLayerThickness_
	Distance from static wall patch at domain perimeter. More...

wordReList	movingPointZones_

wordReList	frozenPointZones_

labelList	pointIDs_
	Points to move when cell zone is supplied. More...

pointScalarField	scale_
	Interpolation scale (1 at moving patches, 0 at far-field) More...

const scalar	cosineScale_
	Cosine scale for the boundary point motion, between 0 and 1. More...

const scalar	travelInterval_
	Update the scale_ field when the travel exceeds travelInterval. More...

label	executionCount_
	Count of the scale_ field updates. More...

scalar	position0_
	Position at last scale update. More...

Friends
class	multiValveEngine

Detailed Description

Definition at line 249 of file multiValveEngine.H.

Constructor & Destructor Documentation

◆ movingObject()

movingObject	(	const word &	name,
		const multiValveEngine &	engine,
		const dictionary &	dict
	)

Construct from dictionary.

Definition at line 264 of file movingObject.C.

References dict, HashTable< T, Key, Hash >::empty(), Foam::endl(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, Foam::indent(), Foam::Info, multiValveEngine::movingObject::initPatchSets(), multiValveEngine::movingObject::name, and multiValveEngine::movingObject::patchSet_.

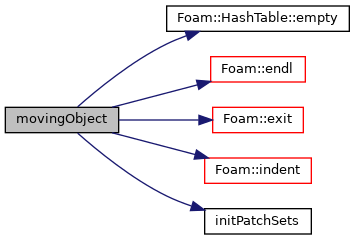

Here is the call graph for this function:

◆ ~movingObject()

virtual ~movingObject ( )

inlinevirtual

Destructor.

Definition at line 367 of file multiValveEngine.H.

Member Function Documentation

◆ calcScale()

void calcScale	(	const pointMesh &	pMesh,
		const scalarField &	pDistMoving,
		const scalarField &	pDistStatic,
		scalar	dMoving,
		scalar	dMax,
		scalar	dStatic
	)

protected

Scale the mesh point deformation with distance functions.

w.r.t. moving patches, static patches and a frozen zones.

Definition at line 32 of file movingObject.C.

References pointConstraints::constrain(), Foam::cos(), multiValveEngine::movingObject::cosineScale_, forAll, Foam::max(), Foam::min(), DemandDrivenMeshObject< pointMesh, TopoChangeableMeshObject, pointConstraints >::New(), Foam::constant::mathematical::pi(), GeometricField< Type, GeoMesh, PrimitiveField >::primitiveField(), GeometricField< Type, GeoMesh, PrimitiveField >::primitiveFieldRef(), multiValveEngine::movingObject::scale_, and regIOobject::write().

Here is the call graph for this function:

◆ transformPoints()

void transformPoints	(	pointField &	newPoints,
		const vector &	translationVector
	)

protected

Definition at line 116 of file movingObject.C.

References forAll, Foam::mag(), and Foam::constant::mathematical::pi().

Here is the call graph for this function:

◆ createStaticPatchSet()

void createStaticPatchSet ( )

protected

Generate staticPatchSet_ based on patch entries.

Definition at line 142 of file movingObject.C.

References polyPatch::boundaryMesh(), HashTable< T, Key, Hash >::clear(), polyPatch::constraintType(), forAll, patchIdentifier::index(), and HashSet< Key, Hash >::insert().

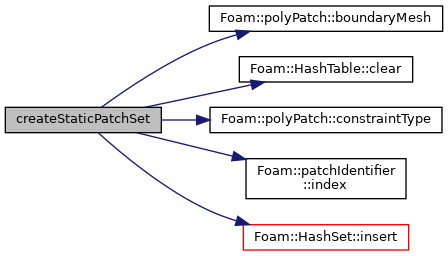

Here is the call graph for this function:

◆ initPatchSets()

void initPatchSets ( )

protected

Patch-set construction.

Definition at line 164 of file movingObject.C.

Referenced by multiValveEngine::movingObject::movingObject().

Here is the caller graph for this function:

◆ movingPointZones()

Foam::labelHashSet movingPointZones ( ) const

protected

Definition at line 173 of file movingObject.C.

References Foam::endl(), forAll, Foam::Info, HashSet< Key, Hash >::insert(), Foam::name(), and List< T >::size().

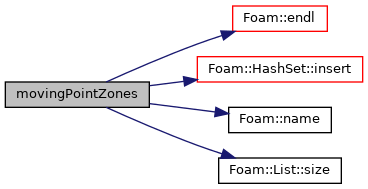

Here is the call graph for this function:

◆ staticPointZones()

Foam::labelHashSet staticPointZones ( ) const

protected

Definition at line 205 of file movingObject.C.

References Foam::endl(), forAll, Foam::Info, HashSet< Key, Hash >::insert(), and List< T >::size().

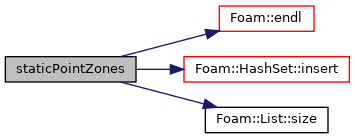

Here is the call graph for this function:

◆ mapMesh()

void mapMesh ( const polyMeshMap & )

virtual

Update from another mesh using the given map.

Reimplemented in multiValveEngine::pistonObject.

Definition at line 335 of file movingObject.C.

References Foam::Zero.

Referenced by multiValveEngine::pistonObject::mapMesh().

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ multiValveEngine

friend class multiValveEngine

friend

Definition at line 251 of file multiValveEngine.H.

Member Data Documentation

◆ meshMover_

const multiValveEngine& meshMover_

protected

Reference to engine mesh mover.

Definition at line 258 of file multiValveEngine.H.

◆ name

const word name

Name of the object.

Definition at line 264 of file multiValveEngine.H.

Referenced by multiValveEngine::movingObject::movingObject(), multiValveEngineState::write(), and multiValveEngineState::writeFileHeader().

◆ axis

const vector axis

Axis.

Definition at line 267 of file multiValveEngine.H.

Referenced by cylinderHeadPoints::generate(), and pistonBowlPoints::generate().

◆ motion_

autoPtr<Function1<scalar> > motion_

protected

Piston motion function.

Definition at line 275 of file multiValveEngine.H.

◆ patchNames_

wordReList patchNames_

protected

Object patchNames.

Definition at line 278 of file multiValveEngine.H.

◆ patchSet_

labelHashSet patchSet_

protected

Object patchSet.

Definition at line 281 of file multiValveEngine.H.

Referenced by multiValveEngine::movingObject::movingObject().

◆ staticPatchSet_

labelHashSet staticPatchSet_

protected

Patches which must not deform during mesh motion.

Definition at line 284 of file multiValveEngine.H.

◆ maxMotionDistance_

scalar maxMotionDistance_

protected

Distance from object beyond which the mesh does not deform.

Definition at line 287 of file multiValveEngine.H.

◆ movingFrozenLayerThickness_

scalar movingFrozenLayerThickness_

protected

Distance from object within mesh nodes move.

along with the patch

Definition at line 291 of file multiValveEngine.H.

◆ staticFrozenLayerThickness_

scalar staticFrozenLayerThickness_

protected

Distance from static wall patch at domain perimeter.

within mesh nodes do not move

Definition at line 295 of file multiValveEngine.H.

◆ movingPointZones_

wordReList movingPointZones_

protected

Definition at line 297 of file multiValveEngine.H.

◆ frozenPointZones_

wordReList frozenPointZones_

protected

Definition at line 299 of file multiValveEngine.H.

◆ pointIDs_

labelList pointIDs_

protected

Points to move when cell zone is supplied.

Definition at line 302 of file multiValveEngine.H.

◆ scale_

pointScalarField scale_

protected

Interpolation scale (1 at moving patches, 0 at far-field)

Definition at line 305 of file multiValveEngine.H.

Referenced by multiValveEngine::movingObject::calcScale().

◆ cosineScale_

const scalar cosineScale_

protected

Cosine scale for the boundary point motion, between 0 and 1.

Definition at line 308 of file multiValveEngine.H.

Referenced by multiValveEngine::movingObject::calcScale().

◆ travelInterval_

const scalar travelInterval_

protected

Update the scale_ field when the travel exceeds travelInterval.

Definition at line 311 of file multiValveEngine.H.

◆ executionCount_

label executionCount_

mutableprotected

Count of the scale_ field updates.

Definition at line 314 of file multiValveEngine.H.

◆ position0_

scalar position0_

mutableprotected

Position at last scale update.

Definition at line 317 of file multiValveEngine.H.

◆ patchSet

const labelHashSet& patchSet

Object patchSet.

Definition at line 354 of file multiValveEngine.H.

Referenced by pistonBowlPoints::generate().

The documentation for this class was generated from the following files:

src/fvMeshMovers/multiValveEngine/multiValveEngine.H
src/fvMeshMovers/multiValveEngine/movingObject.C
