This injector injects particles in a number of cones. The user specifies a position and a direction to inject at, and two angles to inject between. Optionally, this injector can introduce particles over a disc, instead of at a point, in which case inner and outer diameters of the disc are also specified. More...

Inheritance diagram for ConeInjection< CloudType >:

[legend]

Collaboration diagram for ConeInjection< CloudType >:

[legend]

Public Types
enum	injectionMethod { imPoint , imDisc }
	Injection method enumeration. More...

enum	flowType { ftConstantVelocity , ftPressureDrivenVelocity , ftFlowRateAndDischarge }
	Flow type enumeration. More...

Public Types inherited from InjectionModel< CloudType >
typedef CloudType::parcelType	parcelType
	Convenience typedef for parcelType. More...

Public Types inherited from injectionModel
enum class	uniformParcelSize { nParticle , surfaceArea , volume }
	Enumeration for the parcels' uniform size. More...

Public Types inherited from CloudSubModelBase< CloudType >
typedef CloudType	cloudType
	Type of cloud this model was instantiated for. More...

Public Member Functions
	TypeName ("coneInjection")
	Runtime type information. More...

	ConeInjection (const dictionary &dict, CloudType &owner, const word &modelName)
	Construct from dictionary. More...

	ConeInjection (const ConeInjection< CloudType > &im)
	Construct copy. More...

virtual autoPtr< InjectionModel< CloudType > >	clone () const
	Construct and return a clone. More...

virtual	~ConeInjection ()
	Destructor. More...

virtual void	topoChange ()
	Set injector locations when mesh is updated. More...

scalar	timeEnd () const
	Return the end-of-injection time. More...

virtual label	nParcelsToInject (const scalar time0, const scalar time1)
	Number of parcels to introduce relative to SOI. More...

virtual scalar	massToInject (const scalar time0, const scalar time1)
	Parcel mass to introduce relative to SOI. More...

virtual void	setPositionAndCell (const label parcelI, const label nParcels, const scalar time, barycentric &coordinates, label &celli, label &tetFacei, label &tetPti, label &facei)
	Set the injection position and owner cell, tetFace and tetPt. More...

virtual void	setProperties (const label parcelI, const label nParcels, const scalar time, typename CloudType::parcelType &parcel)
	Set the parcel properties. More...

virtual bool	fullyDescribed () const
	Flag to identify whether model fully describes the parcel. More...

Public Member Functions inherited from InjectionModel< CloudType >
	TypeName ("injectionModel")
	Runtime type information. More...

	declareRunTimeSelectionTable (autoPtr, InjectionModel, dictionary,(const dictionary &dict, CloudType &owner, const word &modelType),(dict, owner, modelType))
	Declare runtime constructor selection table. More...

	InjectionModel (CloudType &owner)
	Construct null from owner. More...

	InjectionModel (const dictionary &dict, CloudType &owner, const word &modelName, const word &modelType)
	Construct from dictionary. More...

	InjectionModel (const InjectionModel< CloudType > &im)
	Construct copy. More...

virtual	~InjectionModel ()
	Destructor. More...

scalar	timeStart () const
	Return the start-of-injection time. More...

scalar	massInjected () const
	Return mass of particles injected (cumulative) More...

scalar	averageParcelMass ()
	Return the average injected parcel mass. More...

label	nInjections () const
	Return the number of injections. More...

label	parcelsAddedTotal () const
	Return the total number parcels added. More...

template<class TrackCloudType >
void	inject (TrackCloudType &cloud, typename CloudType::parcelType::trackingData &td)
	Main injection loop. More...

template<class TrackCloudType >
void	injectSteadyState (TrackCloudType &cloud, typename CloudType::parcelType::trackingData &td)
	Main injection loop - steady-state. More...

virtual void	info (Ostream &os)
	Write injection info to stream. More...

Public Member Functions inherited from CloudSubModelBase< CloudType >
	CloudSubModelBase (CloudType &owner)
	Construct null from owner cloud. More...

	CloudSubModelBase (CloudType &owner, const dictionary &dict, const word &baseName, const word &modelType, const word &dictExt="Coeffs")
	Construct from owner cloud without name. More...

	CloudSubModelBase (const word &modelName, CloudType &owner, const dictionary &dict, const word &baseName, const word &modelType)
	Construct from owner cloud with name. More...

	CloudSubModelBase (const CloudSubModelBase< CloudType > &smb)
	Copy constructor. More...

virtual	~CloudSubModelBase ()
	Destructor. More...

const CloudType &	owner () const
	Return const access to the owner cloud. More...

virtual bool	writeTime () const
	Flag to indicate when to write a property. More...

CloudType &	owner ()
	Return non-const access to the owner cloud for manipulation. More...

virtual void	write (Ostream &os) const
	Write. More...

Public Member Functions inherited from subModelBase
	subModelBase (dictionary &properties)
	Construct null. More...

	subModelBase (dictionary &properties, const dictionary &dict, const word &baseName, const word &modelType, const word &dictExt="Coeffs")
	Construct from components without name. More...

	subModelBase (const word &modelName, dictionary &properties, const dictionary &dict, const word &baseName, const word &modelType)
	Construct from components with name. More...

	subModelBase (const subModelBase &smb)
	Copy constructor. More...

virtual	~subModelBase ()
	Destructor. More...

const word &	modelName () const
	Return const access to the name of the sub-model. More...

const dictionary &	dict () const
	Return const access to the cloud dictionary. More...

const word &	baseName () const
	Return const access to the base name of the sub-model. More...

const word &	modelType () const
	Return const access to the sub-model type. More...

const dictionary &	coeffDict () const
	Return const access to the coefficients dictionary. More...

const dictionary &	properties () const
	Return const access to the properties dictionary. More...

virtual bool	defaultCoeffs (const bool printMsg) const
	Returns true if defaultCoeffs is true and outputs on printMsg. More...

virtual void	cacheFields (const bool store)
	Cache dependent sub-model fields. More...

template<class Type >
Type	getBaseProperty (const word &entryName, const Type &defaultValue=pTraits< Type >::zero) const
	Retrieve generic property from the base model. More...

template<class Type >
void	getBaseProperty (const word &entryName, Type &value) const
	Retrieve generic property from the base model. More...

template<class Type >
void	setBaseProperty (const word &entryName, const Type &value)
	Add generic property to the base model. More...

template<class Type >
void	getModelProperty (const word &entryName, Type &value) const
	Retrieve generic property from the sub-model. More...

template<class Type >
Type	getModelProperty (const word &entryName, const Type &defaultValue=pTraits< Type >::zero) const
	Retrieve generic property from the sub-model. More...

template<class Type >
void	setModelProperty (const word &entryName, const Type &value)
	Add generic property to the sub-model. More...

void	operator= (const subModelBase &)=delete
	Disallow default bitwise assignment. More...

Additional Inherited Members
Static Public Member Functions inherited from InjectionModel< CloudType >
static autoPtr< InjectionModel< CloudType > >	New (const dictionary &dict, CloudType &owner)
	Selector with lookup from dictionary. More...

static autoPtr< InjectionModel< CloudType > >	New (const dictionary &dict, const word &modelName, const word &modelType, CloudType &owner)
	Selector with name and type. More...

Static Public Attributes inherited from injectionModel
static const NamedEnum< uniformParcelSize, 3 >	uniformParcelSizeNames_
	Names of the parcels' uniform size. More...

Protected Member Functions inherited from InjectionModel< CloudType >
scalar	readMassTotal (const dictionary &dict, CloudType &owner)
	Read the total mass value for instantaneous injections. More...

scalar	readDuration (const dictionary &dict, CloudType &owner)
	Read the duration for continuous injections. More...

TimeFunction1< scalar >	readMassFlowRate (const dictionary &dict, CloudType &owner, const scalar duration)
	Read the mass flow rate function for continuous injections. More...

TimeFunction1< scalar >	readParcelsPerSecond (const dictionary &dict, CloudType &owner)
	Read the number of parcels injected per second for continuous. More...

label	index () const
	Get the index of this injector. More...

bool	findCellAtPosition (const point &position, barycentric &coordinates, label &celli, label &tetFacei, label &tetPti, bool errorOnNotFound=true)
	Find the cell that contains the supplied position. More...

void	constrainPosition (typename CloudType::parcelType::trackingData &td, typename CloudType::parcelType &parcel)
	Constrain a parcel's position appropriately to the geometric. More...

label	sizeSampleQ () const
	Return the sampling moment to be used by the size distribution. More...

void	setNumberOfParticles (PtrList< parcelType > &parcelPtrs, const scalar mass) const
	Set number of particles to inject given parcel properties. More...

void	postInjectCheck (const label parcelsAdded, const scalar massAdded)
	Post injection checks. More...

Protected Member Functions inherited from subModelBase
bool	inLine () const
	Flag to indicate whether data is/was read in-line. More...

Protected Attributes inherited from InjectionModel< CloudType >
scalar	SOI_
	Start of injection [s]. More...

scalar	massInjected_
	Total mass injected to date [kg]. More...

label	nInjections_
	Number of injections counter. More...

label	parcelsAddedTotal_
	Running counter of total number of parcels added. More...

scalar	nParticleFixed_
	Fixed nParticle to assign to parcels. Only valid if. More...

uniformParcelSize	uniformParcelSize_
	Size uniform to all parcels. More...

scalar	time0_
	Continuous phase time at start of injection time step [s]. More...

scalar	timeStep0_
	Time at start of injection time step [s]. More...

Protected Attributes inherited from CloudSubModelBase< CloudType >
CloudType &	owner_
	Reference to the cloud. More...

Protected Attributes inherited from subModelBase
const word	modelName_
	Name of the sub-model. More...

dictionary &	properties_
	Reference to properties dictionary e.g. for restart. More...

const dictionary	dict_
	Copy of dictionary used during construction. More...

const word	baseName_
	Name of the sub-model base class. More...

const word	modelType_
	Type of the sub-model. More...

const dictionary	coeffDict_
	Coefficients dictionary. More...

Detailed Description

template<class CloudType>
class Foam::ConeInjection< CloudType >

This injector injects particles in a number of cones. The user specifies a position and a direction to inject at, and two angles to inject between. Optionally, this injector can introduce particles over a disc, instead of at a point, in which case inner and outer diameters of the disc are also specified.

The velocity is specified either as constant, or it is calculated from an injection pressure, or it is calculated from the injector mass flow rate and a discharge coefficient; i.e.:

Constant velocity:

$U = U_{constant}$

Pressure driven velocity:

$U = \sqrt{2(p_{injection} - p)/\rho}$

Flow rate and discharge:

$U = \dot{m}/(\rho A C_{discharge})$

Usage

Property	Description	Required	Default
`position`	The injection position	yes
`direction`	The injection direction	yes
`thetaInner`	The inner cone angle	yes
`thetaOuter`	The outer cone angle	yes
`injectionMethod`	Inject at a point or on a disc	no	point
`dInner`	The inner disc diameter	if disc or flowRateAndDischarge
`dInner`	The outer disc diameter	if disc or flowRateAndDischarge
`flowType`	Inject with constantVelocity, pressureDrivenVelocity or flowRateAndDischarge	no	constantVelocity
`Umag`	The injection velocity	if constantVelocity
`Pinj`	The injection pressure	if pressureDrivenVelocity
`Cd`	The discharge coefficient	if flowRateAndDischarge

Example specification:

    injectionModels
    {
        model1
        {
            type            coneInjection;

            // Times
            SOI             0;
            duration        1;

            // Quantities
            parcelsPerSecond 1000000;

            // - Inject parcels with a fixed number of particles
            nParticle       1;

            //// - Or, inject a specified mass of particles
            //massTotal       6.0e-6;
            //uniformParcelSize volume;

            // Sizes
            sizeDistribution
            {
                type        fixedValue;
                fixedValueDistribution
                {
                    value   0.0025;
                }
            }

            // Geometry
            position        (-0.15 -0.1 0);
            direction       (1 0 0);
            thetaInner      0;
            thetaOuter      45;

            // - Inject at a point
            injectionMethod point;

            //// - Or, inject over a disc:
            //injectionMethod disc;
            //dInner          0;
            //dOuter          0.05;

            // Velocity

            // - Inject with constant velocity
            flowType        constantVelocity;
            Umag            1;

            //// - Or, inject with flow rate and discharge coefficient
            ////   This also requires massTotal, dInner and dOuter
            //flowType        flowRateAndDischarge;
            //Cd              0.9;

            //// - Or, inject at a pressure
            //flowType        pressureDrivenVelocity;
            //Pinj            10e5;
        }
    }

Source files

Definition at line 215 of file ConeInjection.H.

Member Enumeration Documentation

◆ injectionMethod

enum injectionMethod

Injection method enumeration.

Enumerator
imPoint
imDisc

Definition at line 222 of file ConeInjection.H.

◆ flowType

enum flowType

Flow type enumeration.

Enumerator
ftConstantVelocity
ftPressureDrivenVelocity
ftFlowRateAndDischarge

Definition at line 229 of file ConeInjection.H.

Constructor & Destructor Documentation

◆ ConeInjection() [1/2]

ConeInjection	(	const dictionary &	dict,
		CloudType &	owner,
		const word &	modelName
	)

Construct from dictionary.

Definition at line 112 of file ConeInjection.C.

References ConeInjection< CloudType >::topoChange().

Here is the call graph for this function:

◆ ConeInjection() [2/2]

ConeInjection ( const ConeInjection< CloudType > & im )

Construct copy.

Definition at line 190 of file ConeInjection.C.

◆ ~ConeInjection()

~ConeInjection

virtual

Destructor.

Definition at line 222 of file ConeInjection.C.

Member Function Documentation

◆ TypeName()

TypeName ( "coneInjection" )

Runtime type information.

◆ clone()

virtual autoPtr<InjectionModel<CloudType> > clone ( ) const

inlinevirtual

Construct and return a clone.

Implements InjectionModel< CloudType >.

Definition at line 337 of file ConeInjection.H.

◆ topoChange()

void topoChange

virtual

Set injector locations when mesh is updated.

Reimplemented from InjectionModel< CloudType >.

Definition at line 229 of file ConeInjection.C.

Referenced by ConeInjection< CloudType >::ConeInjection().

Here is the caller graph for this function:

◆ timeEnd()

Foam::scalar timeEnd

virtual

Return the end-of-injection time.

Implements InjectionModel< CloudType >.

Definition at line 247 of file ConeInjection.C.

◆ nParcelsToInject()

Foam::label nParcelsToInject	(	const scalar	time0,
		const scalar	time1
	)

virtual

Number of parcels to introduce relative to SOI.

Implements InjectionModel< CloudType >.

Definition at line 254 of file ConeInjection.C.

◆ massToInject()

Foam::scalar massToInject	(	const scalar	time0,
		const scalar	time1
	)

virtual

Parcel mass to introduce relative to SOI.

Implements InjectionModel< CloudType >.

Definition at line 281 of file ConeInjection.C.

◆ setPositionAndCell()

void setPositionAndCell	(	const label	parcelI,
		const label	nParcels,
		const scalar	time,
		barycentric &	coordinates,
		label &	celli,
		label &	tetFacei,
		label &	tetPti,
		label &	facei
	)

virtual

Set the injection position and owner cell, tetFace and tetPt.

Implements InjectionModel< CloudType >.

Definition at line 299 of file ConeInjection.C.

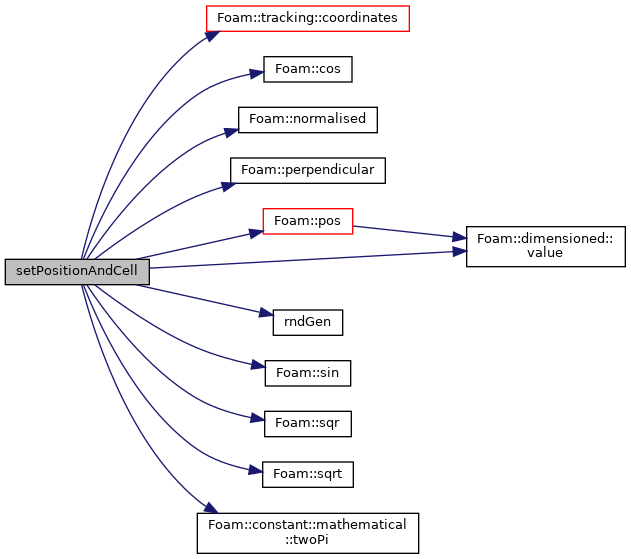

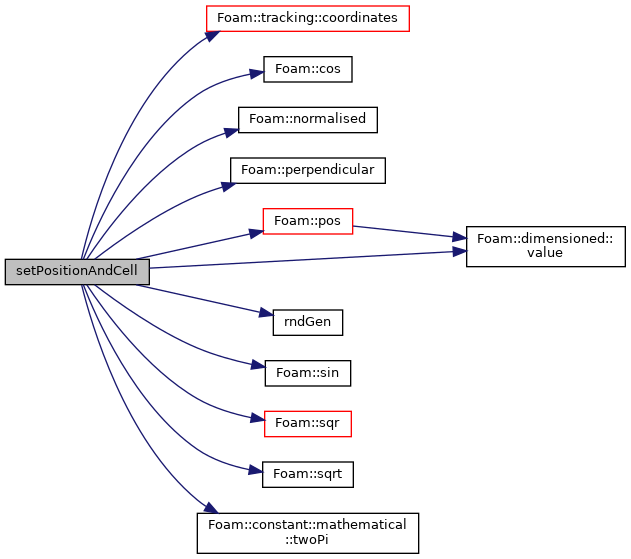

References Foam::cos(), Random::globalScalar01(), n, Foam::normalised(), Foam::perpendicular(), Foam::pos(), rndGen(), Foam::sin(), Foam::sqr(), Foam::sqrt(), Foam::constant::mathematical::twoPi(), and dimensioned< Type >::value().

Here is the call graph for this function:

◆ setProperties()

void setProperties	(	const label	parcelI,
		const label	nParcels,
		const scalar	time,
		typename CloudType::parcelType &	parcel
	)

virtual

Set the parcel properties.

Implements InjectionModel< CloudType >.

Definition at line 371 of file ConeInjection.C.

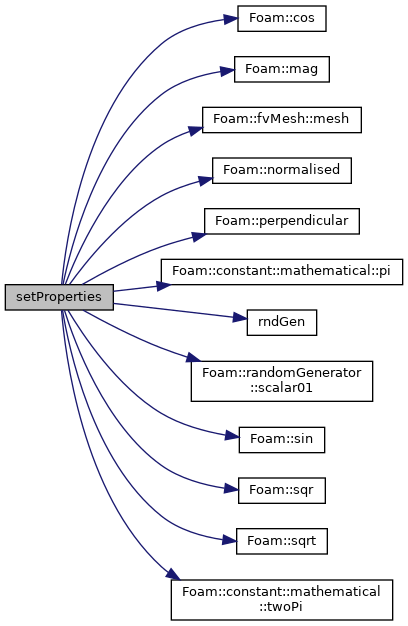

References A, Foam::cos(), Foam::degToRad(), Foam::mag(), VectorSpace< Form, Cmpt, Ncmpts >::max, n, Foam::normalised(), Foam::perpendicular(), Foam::constant::mathematical::pi(), rho, rndGen(), Random::scalar01(), Foam::sin(), Foam::sqr(), Foam::sqrt(), and Foam::constant::mathematical::twoPi().

Here is the call graph for this function:

◆ fullyDescribed()

bool fullyDescribed

virtual

Flag to identify whether model fully describes the parcel.

Implements InjectionModel< CloudType >.

Definition at line 476 of file ConeInjection.C.

The documentation for this class was generated from the following files:

src/lagrangian/parcel/submodels/Momentum/InjectionModel/ConeInjection/ConeInjection.H
src/lagrangian/parcel/submodels/Momentum/InjectionModel/ConeInjection/ConeInjection.C

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

template<class CloudType> class Foam::ConeInjection< CloudType >

Member Enumeration Documentation

◆ injectionMethod

◆ flowType

Constructor & Destructor Documentation

◆ ConeInjection() [1/2]

◆ ConeInjection() [2/2]

◆ ~ConeInjection()

Member Function Documentation

◆ TypeName()

◆ clone()

◆ topoChange()

◆ timeEnd()

◆ nParcelsToInject()

◆ massToInject()

◆ setPositionAndCell()

◆ setProperties()

◆ fullyDescribed()

template<class CloudType>
class Foam::ConeInjection< CloudType >
