surfaceDisplacementPointPatchVectorField Class Reference

Displacement fixed by projection onto triSurface. Use in a displacementMotionSolver as a bc on the pointDisplacement field. More...

Inheritance diagram for surfaceDisplacementPointPatchVectorField:
Inheritance graph
[legend]
Collaboration diagram for surfaceDisplacementPointPatchVectorField:
Collaboration graph
[legend]

Public Types

enum  projectMode { NEAREST, POINTNORMAL, FIXEDNORMAL }


Public Member Functions

 TypeName ("surfaceDisplacement")
 Runtime type information. More...

 surfaceDisplacementPointPatchVectorField (const pointPatch &, const DimensionedField< vector, pointMesh > &)
 Construct from patch and internal field. More...

 surfaceDisplacementPointPatchVectorField (const pointPatch &, const DimensionedField< vector, pointMesh > &, const dictionary &)
 Construct from patch, internal field and dictionary. More...

 surfaceDisplacementPointPatchVectorField (const surfaceDisplacementPointPatchVectorField &, const pointPatch &, const DimensionedField< vector, pointMesh > &, const pointPatchFieldMapper &)
 Construct by mapping given patchField<vector> onto a new patch. More...

 surfaceDisplacementPointPatchVectorField (const surfaceDisplacementPointPatchVectorField &)=delete
 Disallow copy without setting internal field reference. More...

 surfaceDisplacementPointPatchVectorField (const surfaceDisplacementPointPatchVectorField &, const DimensionedField< vector, pointMesh > &)
 Copy constructor setting internal field reference. More...

virtual autoPtr< pointPatchVectorField > clone (const DimensionedField< vector, pointMesh > &iF) const
 Construct and return a clone setting internal field reference. More...

const searchableSurfaces & surfaces () const
 Surface to follow. Demand loads surfaceNames. More...

virtual void updateCoeffs ()
 Update the coefficients associated with the patch field. More...

virtual void write (Ostream &) const
 Write. More...

void operator= (const surfaceDisplacementPointPatchVectorField &)=delete
 Disallow default bitwise assignment. More...


Detailed Description

Displacement fixed by projection onto triSurface. Use in a displacementMotionSolver as a bc on the pointDisplacement field.

Calculates the projection onto the surface according to the projectMode

  • NEAREST : nearest
  • POINTNORMAL : intersection with point normal
  • FIXEDNORMAL : intersection with fixed vector

This displacement is then clipped with the specified velocity * deltaT.

Optionally (intersection only) removes a component ("wedgePlane") to stay in 2D.

Needs:

  • geometry : dictionary with searchableSurfaces. (usually triSurfaceMeshes in constant/triSurface)
  • projectMode : see above
  • projectDirection : if projectMode = fixedNormal
  • wedgePlane : -1 or component to knock out of intersection normal
  • frozenPointsZone : empty or name of pointZone containing points that do not move
Source files

Definition at line 73 of file surfaceDisplacementPointPatchVectorField.H.

Member Enumeration Documentation

◆ projectMode

enum projectMode
Enumerator
NEAREST
POINTNORMAL
FIXEDNORMAL

Definition at line 81 of file surfaceDisplacementPointPatchVectorField.H.

Constructor & Destructor Documentation

◆ surfaceDisplacementPointPatchVectorField() [1/5]

surfaceDisplacementPointPatchVectorField ( const pointPatch &  p,
const DimensionedField< vector, pointMesh > &  iF
)

Construct from patch and internal field.

Definition at line 306 of file surfaceDisplacementPointPatchVectorField.C.

Referenced by surfaceDisplacementPointPatchVectorField::clone(), NamedEnum< compressibleField, 8 >::names(), and surfaceDisplacementPointPatchVectorField::surfaceDisplacementPointPatchVectorField().

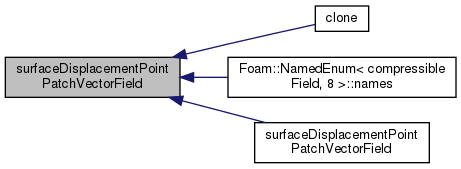

Here is the caller graph for this function:

◆ surfaceDisplacementPointPatchVectorField() [2/5]

surfaceDisplacementPointPatchVectorField ( const pointPatch &  p,
const DimensionedField< vector, pointMesh > &  iF,
const dictionary &  dict
)

Construct from patch, internal field and dictionary.

Definition at line 321 of file surfaceDisplacementPointPatchVectorField.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::nl, surfaceDisplacementPointPatchVectorField::surfaceDisplacementPointPatchVectorField(), Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

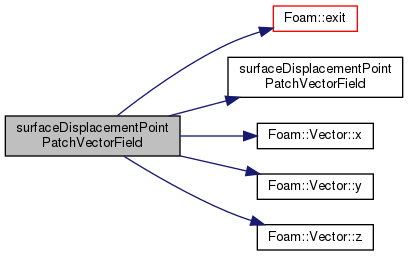

Here is the call graph for this function:

◆ surfaceDisplacementPointPatchVectorField() [3/5]

surfaceDisplacementPointPatchVectorField ( const surfaceDisplacementPointPatchVectorField &  ppf,
const pointPatch &  p,
const DimensionedField< vector, pointMesh > &  iF,
const pointPatchFieldMapper &  mapper
)

Construct by mapping given patchField<vector> onto a new patch.

Definition at line 348 of file surfaceDisplacementPointPatchVectorField.C.

References surfaceDisplacementPointPatchVectorField::surfaceDisplacementPointPatchVectorField().

Here is the call graph for this function:

◆ surfaceDisplacementPointPatchVectorField() [4/5]

surfaceDisplacementPointPatchVectorField ( const surfaceDisplacementPointPatchVectorField &  )
delete

Disallow copy without setting internal field reference.

◆ surfaceDisplacementPointPatchVectorField() [5/5]

surfaceDisplacementPointPatchVectorField ( const surfaceDisplacementPointPatchVectorField &  ppf,
const DimensionedField< vector, pointMesh > &  iF
)

Copy constructor setting internal field reference.

Definition at line 367 of file surfaceDisplacementPointPatchVectorField.C.

Member Function Documentation

◆ TypeName()

TypeName ( "surfaceDisplacement"  )

Runtime type information.

◆ clone()

virtual autoPtr<pointPatchVectorField> clone ( const DimensionedField< vector, pointMesh > &  iF) const
inlinevirtual

Construct and return a clone setting internal field reference.

Definition at line 170 of file surfaceDisplacementPointPatchVectorField.H.

References surfaceDisplacementPointPatchVectorField::surfaceDisplacementPointPatchVectorField(), surfaceDisplacementPointPatchVectorField::surfaces(), surfaceDisplacementPointPatchVectorField::updateCoeffs(), and surfaceDisplacementPointPatchVectorField::write().

Here is the call graph for this function:

◆ surfaces()

const searchableSurfaces & surfaces ( ) const

Surface to follow. Demand loads surfaceNames.

Definition at line 385 of file surfaceDisplacementPointPatchVectorField.C.

References searchableSurface::geometryDir(), IOobject::MUST_READ, and IOobject::NO_WRITE.

Referenced by surfaceDisplacementPointPatchVectorField::clone(), and NamedEnum< compressibleField, 8 >::names().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ updateCoeffs()

void updateCoeffs ( )
virtual

Update the coefficients associated with the patch field.

Definition at line 411 of file surfaceDisplacementPointPatchVectorField.C.

References TimeState::deltaTValue(), forAll, Foam::max(), mesh, Foam::min(), VectorSpace< Vector< scalar >, scalar, 3 >::nComponents, Foam::operator==(), and objectRegistry::time().

Referenced by surfaceDisplacementPointPatchVectorField::clone().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ write()

void write ( Ostream &  os) const
virtual

Write.

Definition at line 457 of file surfaceDisplacementPointPatchVectorField.C.

References Foam::makePointPatchTypeField(), word::null, Foam::vtkWriteOps::write(), and Foam::writeEntry().

Referenced by surfaceDisplacementPointPatchVectorField::clone().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ operator=()

void operator= ( const surfaceDisplacementPointPatchVectorField &  )
delete

Disallow default bitwise assignment.

The documentation for this class was generated from the following files:
