Volume injection model. This injects particles instantaneously within the volume of a set of cells. Particles are positioned randomly. More...

Inheritance diagram for volumeInjection:

[legend]

Collaboration diagram for volumeInjection:

[legend]

Public Member Functions
	TypeName ("volumeInjection")
	Runtime type information. More...

	volumeInjection (const word &name, const LagrangianMesh &mesh, const dictionary &modelDict, const dictionary &stateDict)
	Construct from components. More...

virtual void	correct ()
	Correct the LagrangianModel. More...

LagrangianSubMesh	modify (LagrangianMesh &mesh, const LagrangianSubMesh &) const
	Create new elements in the Lagrangian mesh. More...

virtual void	topoChange (const polyTopoChangeMap &)
	Update topology using the given map. More...

virtual void	mapMesh (const polyMeshMap &)
	Update from another mesh using the given map. More...

virtual void	distribute (const polyDistributionMap &)
	Redistribute or update using the given distribution map. More...

virtual bool	read (const dictionary &modelDict)
	Read dictionary. More...

virtual void	writeState (Ostream &os) const
	Write state. More...

virtual void	writeProcessorState (Ostream &os) const
	Write state. More...

Public Member Functions inherited from LagrangianInjection
	TypeName ("LagrangianInjection")
	Runtime type information. More...

	LagrangianInjection (const word &name, const LagrangianMesh &mesh)
	Construct from components. More...

virtual	~LagrangianInjection ()
	Destructor. More...

virtual bool	addsSupToField (const word &fieldName, const word &eqnFieldName) const
	Return true if the LagrangianModel adds a source term to the. More...

Public Member Functions inherited from LagrangianModel
	TypeName ("LagrangianModel")
	Runtime type information. More...

	declareRunTimeSelectionTable (autoPtr, LagrangianModel, dictionary,(const word &name, const LagrangianMesh &mesh, const dictionary &modelDict, const dictionary &stateDict),(name, mesh, modelDict, stateDict))
	Declare run-time constructor selection table. More...

	LagrangianModel (const word &name, const LagrangianMesh &mesh)
	Construct from components. More...

	LagrangianModel (const LagrangianModel &)=delete
	Disallow default bitwise copy construction. More...

autoPtr< LagrangianModel >	clone () const
	Clone. More...

virtual	~LagrangianModel ()
	Destructor. More...

const word &	name () const
	The source name. More...

const objectRegistry &	db () const
	The database. More...

const Time &	time () const
	Return time. More...

const LagrangianMesh &	mesh () const
	The mesh. More...

virtual wordList	addSupFields () const
	Return the list of fields for which the LagrangianModel adds. More...

template<class Type , template< class > class PrimitiveField, template< class > class PrimitiveEqnField>
bool	addsSupToField (const LagrangianSubField< Type, PrimitiveField > &field, const LagrangianSubField< Type, PrimitiveEqnField > &eqnfield) const
	Return true if the LagrangianModels adds a source term to the. More...

virtual void	postConstruct ()
	Do post construction steps which require access to other models. More...

virtual void	preModify (const LagrangianMesh &mesh, DynamicList< elementModification > &elementModifications) const
	Identify elements in the Lagrangian mesh which are to be. More...

virtual void	calculate (const LagrangianSubScalarField &deltaT, const bool final)
	Solve equations and/or update continually changing properties. More...

virtual void	preAddSup (const LagrangianSubScalarField &deltaT, const bool final)
	Hook before source evaluation. More...

virtual void	addSup (const LagrangianSubScalarField &deltaT, LagrangianEqn< scalar > &eqn) const
	Add a fractional source term. More...

virtual void	postAddSup (const LagrangianSubScalarField &deltaT, const bool final)
	Add a source term to an equation. More...

virtual bool	write (const bool write) const
	Write data. More...

void	operator= (const LagrangianModel &)=delete
	Disallow default bitwise assignment. More...

template<class AlphaRhoFieldType , class ... AlphaRhoFieldTypes>
Foam::word	fieldName (const AlphaRhoFieldType &alphaRhoField, const AlphaRhoFieldTypes &... alphaRhoFields)

template<class Type , class GeoMesh , template< class > class PrimitiveField>
const Foam::word &	fieldName (const GeometricField< Type, GeoMesh, PrimitiveField > &field)

template<class Type , class GeoMesh , template< class > class PrimitiveField>
const Foam::word &	fieldName (const DimensionedField< Type, GeoMesh, PrimitiveField > &field)

template<class Type , template< class > class PrimitiveField>
Foam::word	fieldName (const DimensionedField< Type, LagrangianSubMesh, PrimitiveField > &field)

template<class AlphaRhoFieldType , class ... AlphaRhoFieldTypes>
Foam::word	fieldsName (const AlphaRhoFieldType &alphaRhoField, const AlphaRhoFieldTypes &... alphaRhoFields)

template<class AlphaRhoFieldType >
Foam::word	fieldsName (const AlphaRhoFieldType &alphaRhoField)

Public Member Functions inherited from stateModel
	stateModel ()
	Construct null. More...

	stateModel (const stateModel &)=delete
	Disallow default bitwise copy construction. More...

virtual	~stateModel ()
	Destructor. More...

bool	writeState (const bool write) const
	Write state. More...

void	operator= (const stateModel &)=delete
	Disallow default bitwise assignment. More...

Additional Inherited Members
Public Types inherited from LagrangianModel
enum class	modification : label { change = 0 , remove = 1 }
	Enumeration of the types of instantaneous modification. More...

typedef LagrangianMesh::elementGroup< modification >	elementModification
	Class containing an element-index and a modification-enumeration. More...

Static Public Member Functions inherited from LagrangianModel
template<class AlphaRhoFieldType , class ... AlphaRhoFieldTypes>
static word	fieldName (const AlphaRhoFieldType &alphaRhoField, const AlphaRhoFieldTypes &... alphaRhoFields)
	Return the name of the field associated with a source term. More...

template<class Type , class GeoMesh , template< class > class PrimitiveField>
static const word &	fieldName (const GeometricField< Type, GeoMesh, PrimitiveField > &)
	Return the name of the field associated with a source term (base. More...

template<class Type , class GeoMesh , template< class > class PrimitiveField>
static const word &	fieldName (const DimensionedField< Type, GeoMesh, PrimitiveField > &)
	Return the name of the field associated with a source term (base. More...

template<class Type , template< class > class PrimitiveField>
static word	fieldName (const DimensionedField< Type, LagrangianSubMesh, PrimitiveField > &)
	Return the name of the field associated with a source term (base. More...

template<class AlphaRhoFieldType , class ... AlphaRhoFieldTypes>
static word	fieldsName (const AlphaRhoFieldType &alphaRhoField, const AlphaRhoFieldTypes &... alphaRhoFields)
	Return the name of the product of the fields associated with a. More...

template<class AlphaRhoFieldType >
static word	fieldsName (const AlphaRhoFieldType &alphaRhoField)
	Return the name of the product of the fields associated with a. More...

static autoPtr< LagrangianModel >	New (const word &name, const LagrangianMesh &mesh, const dictionary &modelDict)
	Selector. More...

Static Public Member Functions inherited from stateModel
static dictionary	stateDict (const word &name, const objectRegistry &db)
	Construct and return the state dictionary for reading. More...

Protected Member Functions inherited from LagrangianInjection
void	checkLocation (const LagrangianMesh::location, const point &) const
	Check the location and error or warn as appropriate. More...

void	checkLocation (const List< LagrangianMesh::location > &, const List< point > &) const
	Check the locations and error or warn as appropriate. More...

Protected Member Functions inherited from LagrangianModel
template<class Type >
void	addSupType (const LagrangianSubScalarField &deltaT, const LagrangianSubSubField< Type > &field, LagrangianEqn< Type > &eqn) const
	Add a source term to an equation. More...

template<class Type >
void	addSupType (const LagrangianSubScalarField &deltaT, const LagrangianSubScalarSubField &vOrM, const LagrangianSubSubField< Type > &field, LagrangianEqn< Type > &eqn) const
	Add a source term to a volume or mass-weighted equation. More...

Static Protected Member Functions inherited from LagrangianInjection
template<class ... OtherFields>
static void	filter (barycentricField &coordinates, labelField &celli, labelField &facei, labelField &faceTrii, OtherFields &... otherFields)
	Filter out injected elements that are on other processes. These. More...

Detailed Description

Volume injection model. This injects particles instantaneously within the volume of a set of cells. Particles are positioned randomly.

Usage

Property	Description	Required?	Default
`cellZone`	The name of the cell zone	yes
`number`	The number to inject	if numberDensity is </td>
`not` specified
`numberDensity`	The number to inject per unit </td>
`volume`	if number is not </td>
`specified`
`time`	The time at which to inject	no	0

Example specification:

    <LagrangianModelName>
    {
        type        volumeInjection;
        cellZone    bed;
        numberDensity 2 [mm^-3];
        time        0.01;
    }

See also: Foam::generatedCellZone

Source files

Definition at line 110 of file volumeInjection.H.

Constructor & Destructor Documentation

◆ volumeInjection()

volumeInjection	(	const word &	name,
		const LagrangianMesh &	mesh,
		const dictionary &	modelDict,
		const dictionary &	stateDict
	)

Construct from components.

Definition at line 79 of file volumeInjection.C.

Member Function Documentation

◆ TypeName()

TypeName ( "volumeInjection" )

Runtime type information.

◆ correct()

void correct ( )

virtual

Correct the LagrangianModel.

Reimplemented from LagrangianModel.

Definition at line 102 of file volumeInjection.C.

References TimeState::deltaT(), mesh, fvMesh::time(), and dimensioned< Type >::value().

Here is the call graph for this function:

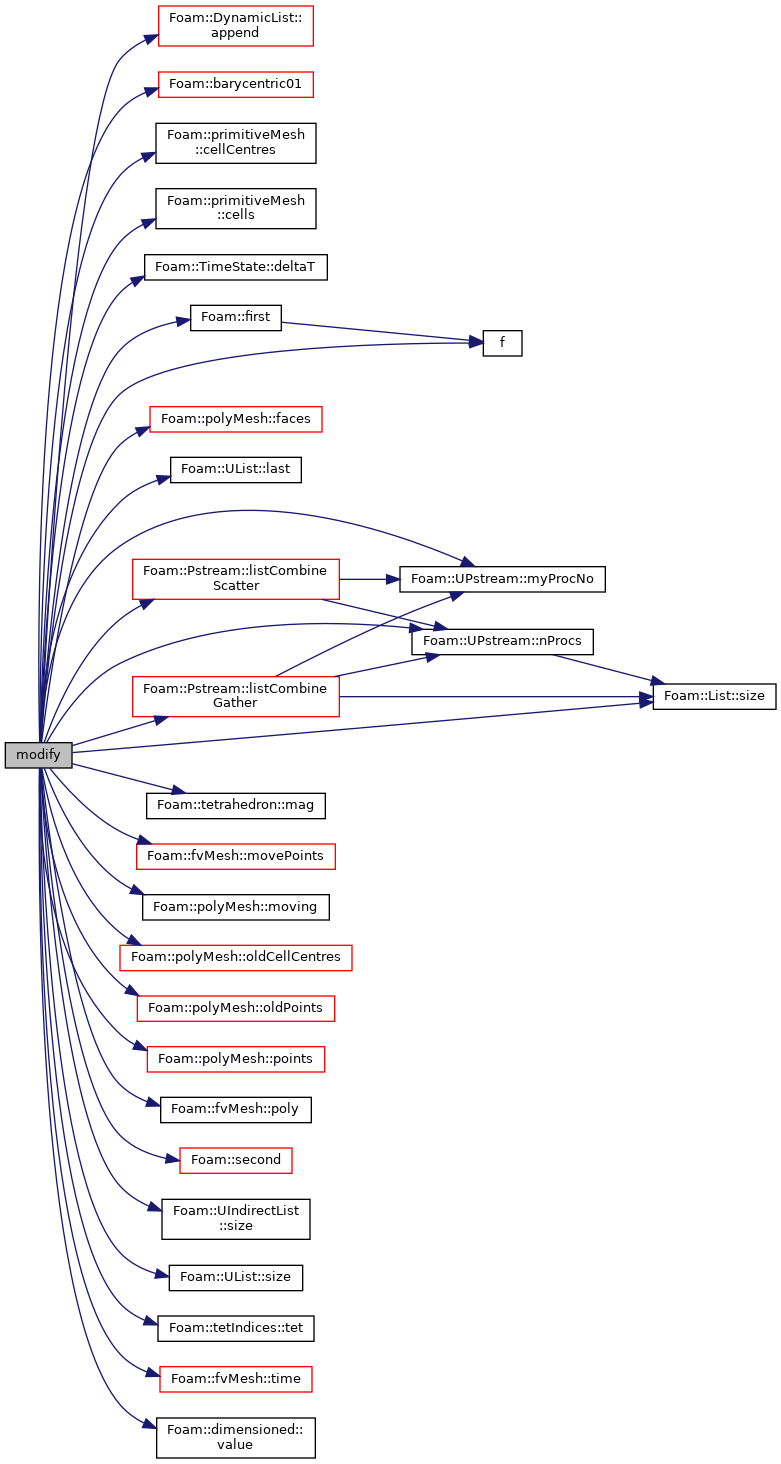

◆ modify()

Foam::LagrangianSubMesh modify	(	LagrangianMesh &	mesh,
		const LagrangianSubMesh &
	)		const

virtual

Create new elements in the Lagrangian mesh.

Reimplemented from LagrangianModel.

Definition at line 122 of file volumeInjection.C.

References DynamicList< T, SizeInc, SizeMult, SizeDiv >::append(), Foam::barycentric01(), Foam::constant::universal::c, primitiveMesh::cellCentres(), primitiveMesh::cells(), TimeState::deltaT(), f(), polyMesh::faces(), Foam::first(), forAll, Foam::units::fraction, LagrangianMesh::fractionName, UList< T >::last(), Pstream::listCombineGather(), Pstream::listCombineScatter(), tetrahedron< Point, PointRef >::mag(), mesh, fvMesh::movePoints(), polyMesh::moving(), UPstream::myProcNo(), UPstream::nProcs(), polyMesh::oldCellCentres(), polyMesh::oldPoints(), points, polyMesh::points(), fvMesh::poly(), Foam::second(), UIndirectList< T >::size(), UList< T >::size(), List< T >::size(), tetIndices::tet(), fvMesh::time(), Foam::dimensions::time, dimensioned< Type >::value(), and Foam::dimensions::volume.

Here is the call graph for this function:

◆ topoChange()

void topoChange ( const polyTopoChangeMap & map )

virtual

Update topology using the given map.

Reimplemented from LagrangianModel.

Definition at line 314 of file volumeInjection.C.

◆ mapMesh()

void mapMesh ( const polyMeshMap & map )

virtual

Update from another mesh using the given map.

Reimplemented from LagrangianModel.

Definition at line 320 of file volumeInjection.C.

◆ distribute()

void distribute ( const polyDistributionMap & map )

virtual

Redistribute or update using the given distribution map.

Reimplemented from LagrangianModel.

Definition at line 326 of file volumeInjection.C.

◆ read()

bool read ( const dictionary & modelDict )

virtual

Read dictionary.

Reimplemented from LagrangianModel.

Definition at line 335 of file volumeInjection.C.

References LagrangianModel::read().

Here is the call graph for this function:

◆ writeState()

void writeState ( Ostream & os ) const

virtual

Write state.

Reimplemented from stateModel.

Definition at line 349 of file volumeInjection.C.

References Foam::writeEntry(), and stateModel::writeState().

Here is the call graph for this function:

◆ writeProcessorState()

void writeProcessorState ( Ostream & os ) const

virtual

Write state.

Reimplemented from stateModel.

Definition at line 357 of file volumeInjection.C.

References Foam::writeEntry(), and stateModel::writeProcessorState().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/Lagrangian/cloud/LagrangianModels/volumeInjection/volumeInjection.H
src/Lagrangian/cloud/LagrangianModels/volumeInjection/volumeInjection.C
