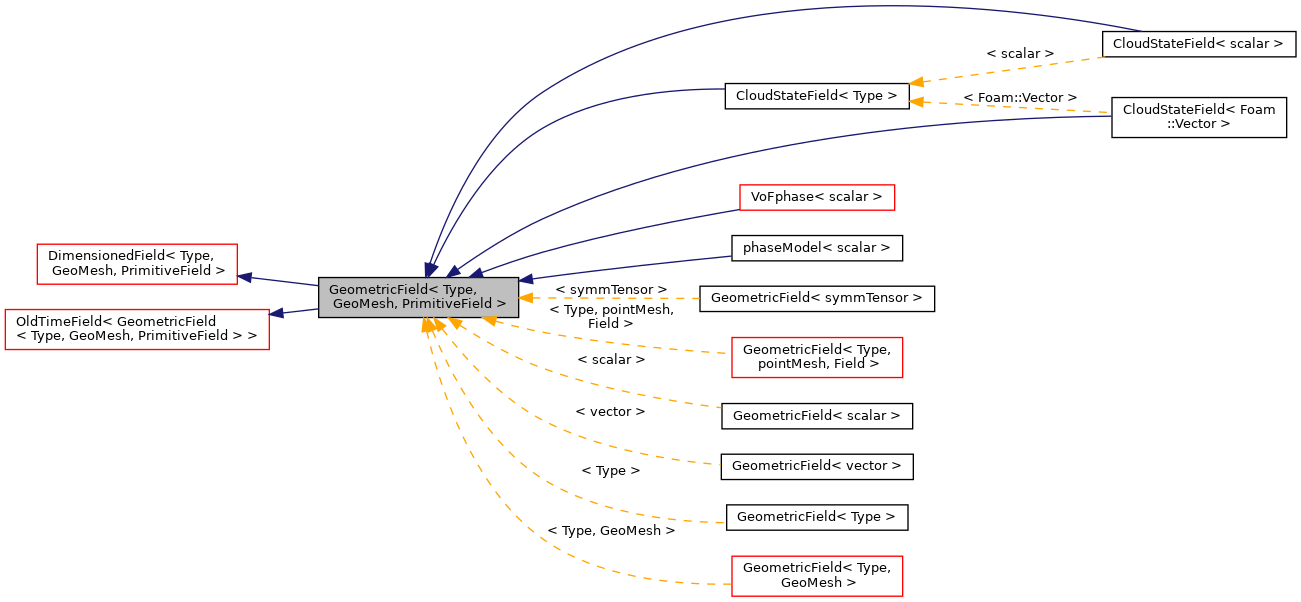

Inheritance diagram for GeometricField< Type, GeoMesh, PrimitiveField >:

[legend]

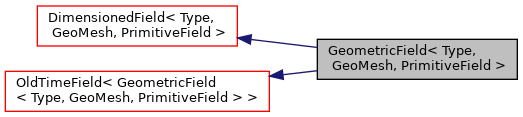

Collaboration diagram for GeometricField< Type, GeoMesh, PrimitiveField >:

Public Types
typedef Type	Type_
	Value type. More...

typedef GeoMesh	GeoMesh_
	Geometric mesh type. More...

typedef GeoMesh::Mesh	Mesh
	Base mesh type from which GeoMesh is constructed. More...

typedef DimensionedField< Type, GeoMesh, PrimitiveField >	Internal
	Type of the internal field from which this GeometricField is derived. More...

typedef DimensionedField< Type, GeoMesh, PrimitiveField >	Base
	Type of the field from which this GeometricField is derived. More...

typedef GeoMesh::template PatchField< Type >	Patch
	Type of the patch field of which the Boundary is composed. More...

typedef GeometricBoundaryField< Type, GeoMesh, PrimitiveField >	Boundary
	Type of the boundary field. More...

typedef GeoMesh::template FieldSource< Type >	Source
	Type of the field source of which the Sources is composed. More...

typedef GeometricFieldSources< Type, GeoMesh, PrimitiveField >	Sources
	Type of the field sources. More...

typedef PrimitiveField< Type >::cmptType	cmptType
	Component type of the elements of the field. More...

Public Types inherited from DimensionedField< Type, GeoMesh, PrimitiveField >
typedef Type	Type_
	Value type. More...

typedef GeoMesh	GeoMesh_
	Geometric mesh type. More...

typedef GeoMesh::Mesh	Mesh
	Base mesh type from which GeoMesh is constructed. More...

typedef PrimitiveField< Type >	FieldType
	Type of the field from which this DimensionedField is derived. More...

typedef PrimitiveField< Type >	Base
	Type of the field from which this DimensionedField is derived. More...

typedef PrimitiveField< Type >::cmptType	cmptType
	Component type of the elements of the field. More...

Public Types inherited from IOobject
enum	objectState { GOOD , BAD }
	Enumeration defining the valid states of an IOobject. More...

enum	readOption { MUST_READ , MUST_READ_IF_MODIFIED , READ_IF_PRESENT , NO_READ }
	Enumeration defining the read options. More...

enum	writeOption { AUTO_WRITE = 0 , NO_WRITE = 1 }
	Enumeration defining the write options. More...

enum	fileCheckTypes { timeStamp , timeStampMaster , inotify , inotifyMaster }
	Enumeration defining the file checking options. More...

Public Member Functions
	TypeName ("GeometricField")
	Runtime type information. More...

	GeometricField (const IOobject &, const GeoMesh &, const dimensionSet &, const word &patchFieldType)
	Constructor given IOobject, mesh, dimensions and patch field type. More...

	GeometricField (const IOobject &, const GeoMesh &, const dimensioned< Type > &, const word &patchFieldType=Patch::calculatedType())
	Constructor given IOobject, mesh, dimensioned<Type> More...

	GeometricField (const IOobject &, const GeoMesh &, const dimensioned< Type > &, const wordList &wantedPatchTypes, const wordList &actualPatchTypes=wordList(), const HashTable< word > &fieldSourceTypes=HashTable< word >(), const IOerrorLocation &fieldSourceErrorLocation=IOerrorLocation())
	Constructor given IOobject, mesh, dimensioned<Type> More...

	GeometricField (const IOobject &, const Internal &, const PtrList< Patch > &, const HashPtrTable< Source > &=HashPtrTable< Source >())
	Constructor from components. More...

	GeometricField (const IOobject &, const GeoMesh &, const dimensionSet &, const PrimitiveField< Type > &, const PtrList< Patch > &, const HashPtrTable< Source > &=HashPtrTable< Source >())
	Constructor from components. More...

	GeometricField (const IOobject &, const GeoMesh &, const dimensionSet &dims=dimensions::invalid)
	Construct and read given IOobject. More...

	GeometricField (const IOobject &, const GeoMesh &, const dictionary &, const dimensionSet &dims=dimensions::invalid)
	Construct from dictionary. More...

	GeometricField (const GeometricField< Type, GeoMesh, PrimitiveField > &)
	Copy constructor. More...

template<template< class > class PrimitiveField2>
	GeometricField (const GeometricField< Type, GeoMesh, PrimitiveField2 > &)
	Copy constructor. More...

	GeometricField (GeometricField< Type, GeoMesh, PrimitiveField > &&)
	Move constructor. More...

	GeometricField (const tmp< GeometricField< Type, GeoMesh, PrimitiveField >> &)
	Construct as copy of tmp. More...

template<template< class > class PrimitiveField2>
	GeometricField (const IOobject &, const GeometricField< Type, GeoMesh, PrimitiveField2 > &)
	Construct as copy resetting IO parameters. More...

	GeometricField (const IOobject &, const tmp< GeometricField< Type, GeoMesh, PrimitiveField >> &)
	Construct as copy of tmp resetting IO parameters. More...

template<template< class > class PrimitiveField2>
	GeometricField (const word &newName, const GeometricField< Type, GeoMesh, PrimitiveField2 > &)
	Construct as copy resetting name. More...

	GeometricField (const word &newName, const tmp< GeometricField< Type, GeoMesh, PrimitiveField >> &)
	Construct as copy of tmp resetting name. More...

template<template< class > class PrimitiveField2>
	GeometricField (const IOobject &, const GeometricField< Type, GeoMesh, PrimitiveField2 > &, const word &patchFieldType)
	Construct as copy resetting IO parameters and patch field type. More...

	GeometricField (const IOobject &, const tmp< GeometricField< Type, GeoMesh, PrimitiveField >> &, const word &patchFieldType)
	Construct as copy of tmp resetting IO parameters. More...

template<template< class > class PrimitiveField2>
	GeometricField (const IOobject &, const DimensionedField< Type, GeoMesh, PrimitiveField2 > &, const word &patchFieldType)
	Constructor from internal field and patch field type. More...

	GeometricField (const IOobject &, const tmp< Internal > &, const word &patchFieldType)
	Constructor from temporary internal field and patch field type. More...

template<template< class > class PrimitiveField2>
	GeometricField (const IOobject &, const GeometricField< Type, GeoMesh, PrimitiveField2 > &, const wordList &patchFieldTypes, const wordList &actualPatchTypes=wordList(), const HashTable< word > &fieldSourceTypes=HashTable< word >(), const IOerrorLocation &fieldSourceErrorLocation=IOerrorLocation())
	Construct as copy resetting IO parameters and patch field types. More...

	GeometricField (const IOobject &, const tmp< GeometricField< Type, GeoMesh, PrimitiveField >> &, const wordList &patchFieldTypes, const wordList &actualPatchTypes=wordList(), const HashTable< word > &fieldSourceTypes=HashTable< word >(), const IOerrorLocation &fieldSourceErrorLocation=IOerrorLocation())
	Construct as copy of tmp resetting IO parameters. More...

template<template< class > class PrimitiveField2>
	GeometricField (const IOobject &, const DimensionedField< Type, GeoMesh, PrimitiveField2 > &, const wordList &patchFieldTypes, const wordList &actualPatchTypes=wordList(), const HashTable< word > &fieldSourceTypes=HashTable< word >(), const IOerrorLocation &fieldSourceErrorLocation=IOerrorLocation())
	Construct from IOobject, internal field and patch field types. More...

	GeometricField (const IOobject &, const tmp< Internal > &, const wordList &patchFieldTypes, const wordList &actualPatchTypes=wordList(), const HashTable< word > &fieldSourceTypes=HashTable< word >(), const IOerrorLocation &fieldSourceErrorLocation=IOerrorLocation())
	Construct from IOobject, tmp internal field and patch field types. More...

tmp< GeometricField< Type, GeoMesh, PrimitiveField > >	clone () const
	Clone. More...

tmp< GeometricField< Type, GeoMesh, PrimitiveField > >	cloneUnSliced () const
	Clone un-sliced. More...

virtual	~GeometricField ()
	Destructor. More...

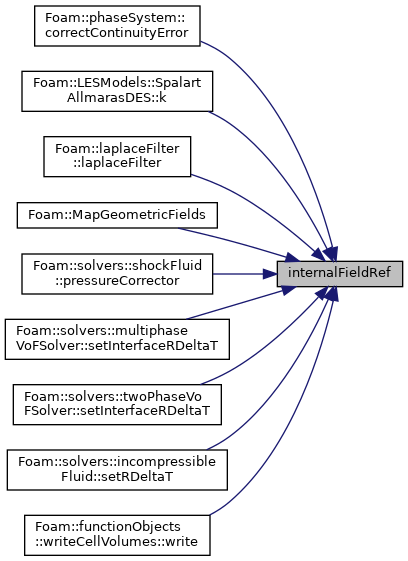

Internal &	internalFieldRef ()
	Return a reference to the dimensioned internal field. More...

const Internal &	internalField () const
	Return a const-reference to the dimensioned internal field. More...

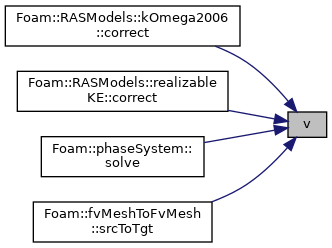

const Internal &	v () const
	Return a const-reference to the dimensioned internal field. More...

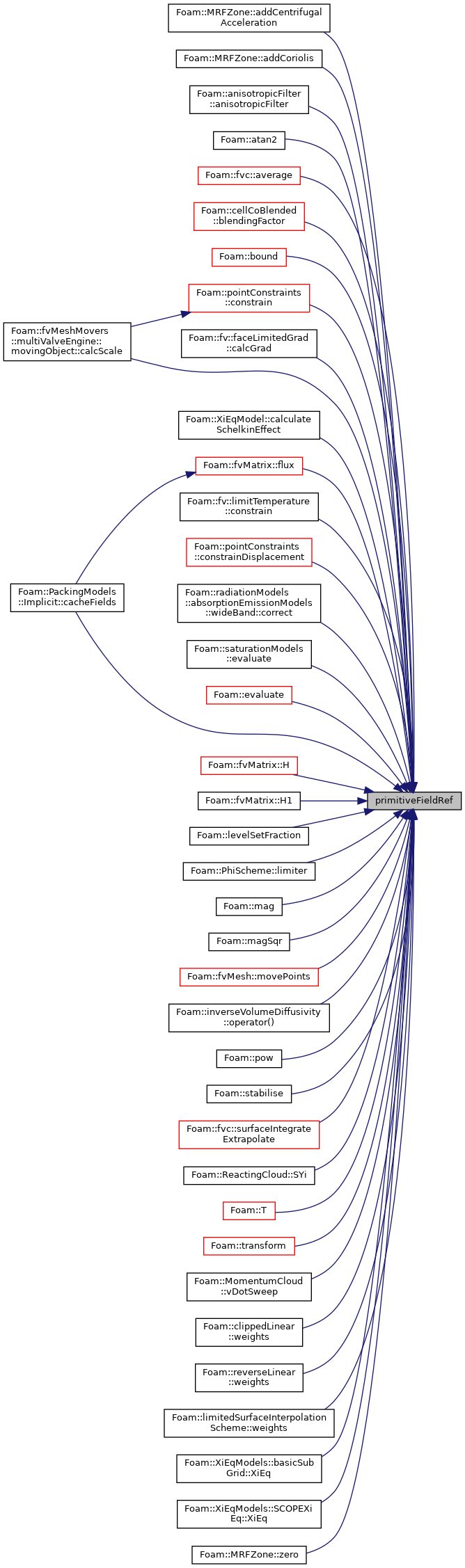

Internal::FieldType &	primitiveFieldRef ()
	Return a reference to the primitive field. More...

const Internal::FieldType &	primitiveField () const
	Return a const-reference to the primitive field. More...

Boundary &	boundaryFieldRef ()
	Return a reference to the boundary field. More...

Boundary &	boundaryFieldRefNoStoreOldTimes ()
	Return a reference to the boundary field without storing old times. More...

const Boundary &	boundaryField () const
	Return const-reference to the boundary field. More...

Sources &	sourcesRef ()
	Return a reference to the sources. More...

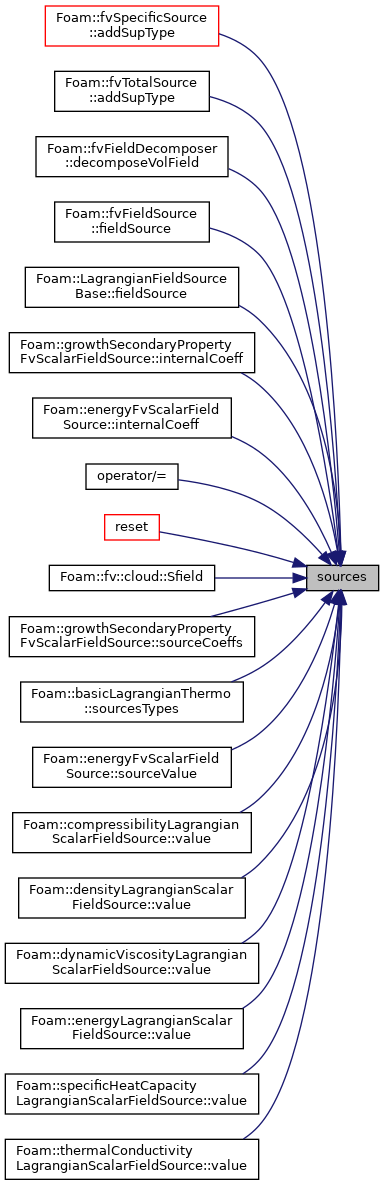

const Sources &	sources () const
	Return const-reference to the sources. More...

void	storePrevIter () const
	Store the field as the previous iteration value. More...

void	clearPrevIter ()
	Delete the previous iteration field. More...

const GeometricField< Type, GeoMesh, Field > &	prevIter () const
	Return previous iteration field. More...

	USING_OLD_TIME_FIELD (GeometricField)
	Use old-time methods from the base class. More...

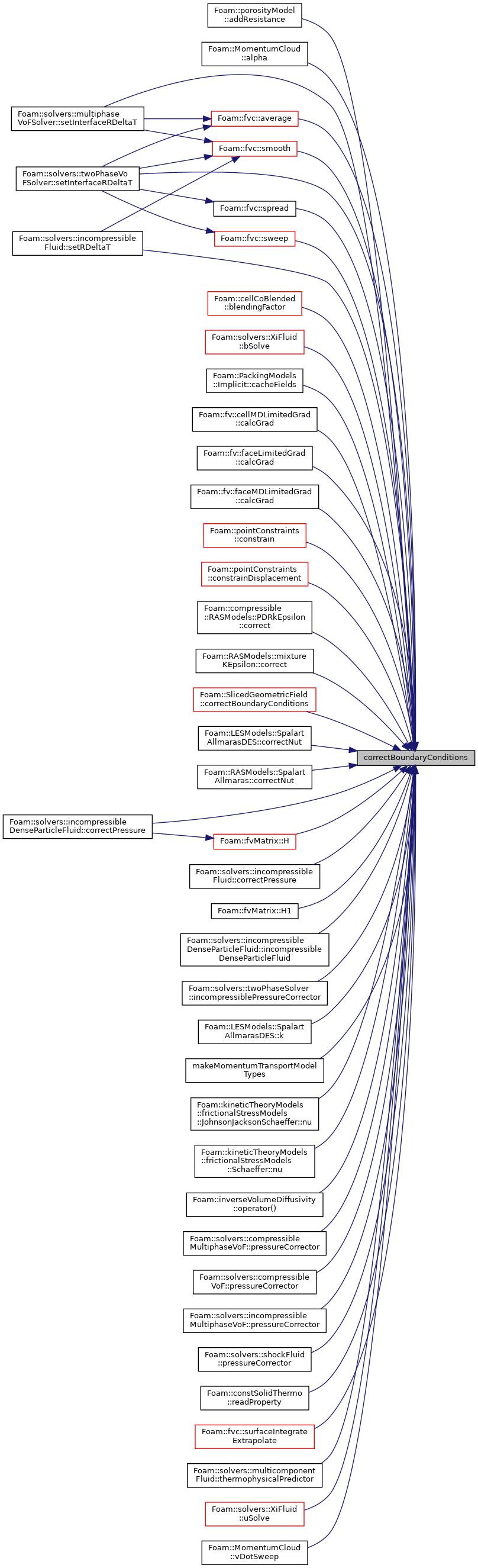

void	correctBoundaryConditions ()
	Correct boundary field. More...

template<template< class > class PrimitiveField2>
void	reset (const GeometricField< Type, GeoMesh, PrimitiveField2 > &)
	Reset the field contents to the given field. More...

void	reset (const tmp< GeometricField< Type, GeoMesh, PrimitiveField >> &)
	Reset the field contents to the given tmp-field. More...

template<template< class > class PrimitiveField2>
void	reset (const tmp< GeometricField< Type, GeoMesh, PrimitiveField2 >> &)
	Reset the field contents to the given tmp-field. More...

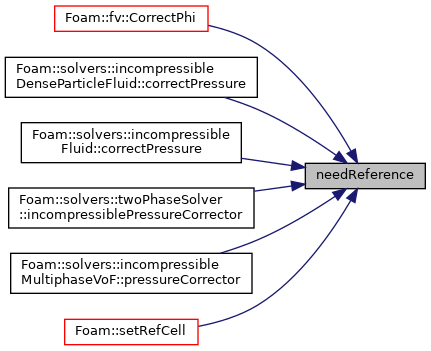

bool	needReference () const
	Does the field need a reference level for solution. More...

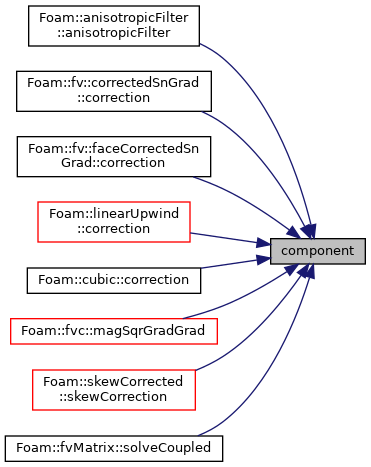

tmp< GeometricField< cmptType, GeoMesh, Field > >	component (const direction) const
	Return a component of the field. More...

bool	writeData (Ostream &) const
	WriteData member function required by regIOobject. More...

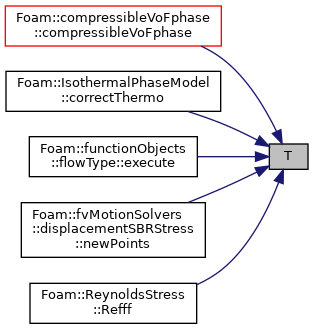

tmp< GeometricField< Type, GeoMesh, Field > >	T () const
	Return transpose (only if it is a tensor field) More...

void	relax (const scalar alpha)
	Relax field (for steady-state solution). More...

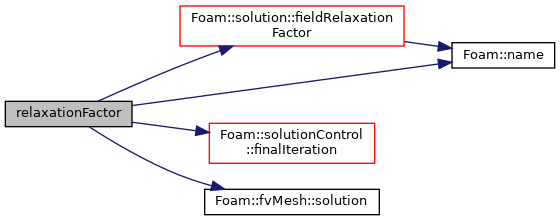

scalar	relaxationFactor () const
	Return the field relaxation factor read from fvSolution. More...

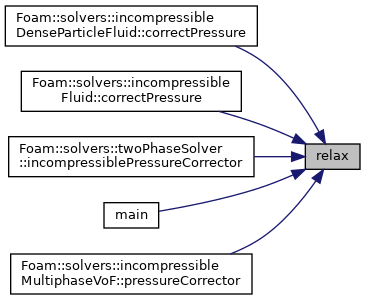

void	relax ()
	Relax current field with respect to the cached previous iteration. More...

template<template< class > class PrimitiveField2>
void	relax (const tmp< GeometricField< Type, GeoMesh, PrimitiveField2 >> &, const scalar alpha)
	Relax given field with respect to the current field. More...

template<template< class > class PrimitiveField2>
void	relax (const tmp< GeometricField< Type, GeoMesh, PrimitiveField2 >> &)
	Relax given field with respect to the current field. More...

word	select (bool final) const
	Select the final iteration parameters if `final' is true. More...

void	writeMinMax (Ostream &os) const
	Helper function to write the min and max to an Ostream. More...

void	negate ()

template<template< class > class PrimitiveField2>

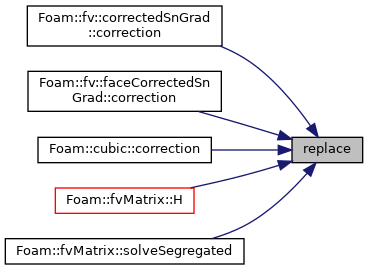

void	replace (const direction, const GeometricField< cmptType, GeoMesh, PrimitiveField2 > &)
	Replace a component field of the field. More...

template<template< class > class PrimitiveField2>
void	replace (const direction, const tmp< GeometricField< cmptType, GeoMesh, PrimitiveField2 >> &)
	Replace a component field of the field. More...

void	replace (const direction, const dimensioned< cmptType > &)
	Replace a component field of the field. More...

void	max (const dimensioned< Type > &)

void	min (const dimensioned< Type > &)

void	maxMin (const dimensioned< Type > &minDt, const dimensioned< Type > &maxDt)

const Internal &	operator() () const
	Return a const-reference to the dimensioned internal field. More...

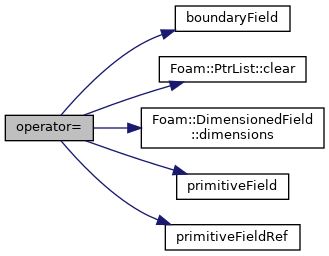

void	operator= (const GeometricField< Type, GeoMesh, PrimitiveField > &)

void	operator= (GeometricField< Type, GeoMesh, PrimitiveField > &&)

template<template< class > class PrimitiveField2>
void	operator= (const GeometricField< Type, GeoMesh, PrimitiveField2 > &)

void	operator= (const tmp< GeometricField< Type, GeoMesh, PrimitiveField >> &)

template<template< class > class PrimitiveField2>
void	operator= (const tmp< GeometricField< Type, GeoMesh, PrimitiveField2 >> &)

void	operator= (const dimensioned< Type > &)

void	operator= (const zero &)

template<template< class > class PrimitiveField2>

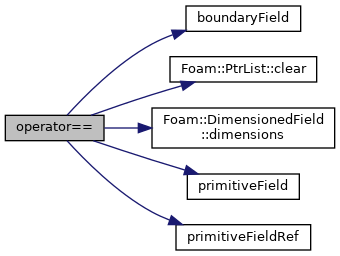

void	operator== (const GeometricField< Type, GeoMesh, PrimitiveField2 > &)

void	operator== (const tmp< GeometricField< Type, GeoMesh, PrimitiveField >> &)

template<template< class > class PrimitiveField2>
void	operator== (const tmp< GeometricField< Type, GeoMesh, PrimitiveField2 >> &)

void	operator== (const dimensioned< Type > &)

void	operator== (const zero &)

template<template< class > class PrimitiveField2>
void	operator+= (const GeometricField< Type, GeoMesh, PrimitiveField2 > &)

template<template< class > class PrimitiveField2>
void	operator+= (const tmp< GeometricField< Type, GeoMesh, PrimitiveField2 >> &)

void	operator+= (const dimensioned< Type > &)

template<template< class > class PrimitiveField2>
void	operator-= (const GeometricField< Type, GeoMesh, PrimitiveField2 > &)

template<template< class > class PrimitiveField2>
void	operator-= (const tmp< GeometricField< Type, GeoMesh, PrimitiveField2 >> &)

void	operator-= (const dimensioned< Type > &)

template<template< class > class PrimitiveField2>
void	operator*= (const GeometricField< scalar, GeoMesh, PrimitiveField2 > &)

template<template< class > class PrimitiveField2>
void	operator*= (const tmp< GeometricField< scalar, GeoMesh, PrimitiveField2 >> &)

void	operator*= (const dimensioned< scalar > &)

template<template< class > class PrimitiveField2>

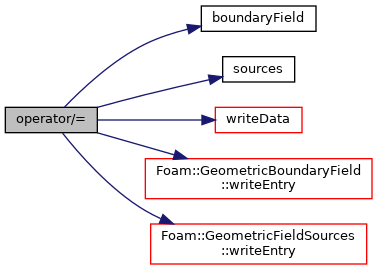

void	operator/= (const GeometricField< scalar, GeoMesh, PrimitiveField2 > &)

template<template< class > class PrimitiveField2>
void	operator/= (const tmp< GeometricField< scalar, GeoMesh, PrimitiveField2 >> &)

void	operator/= (const dimensioned< scalar > &)

template<template< class > class PrimitiveField2>

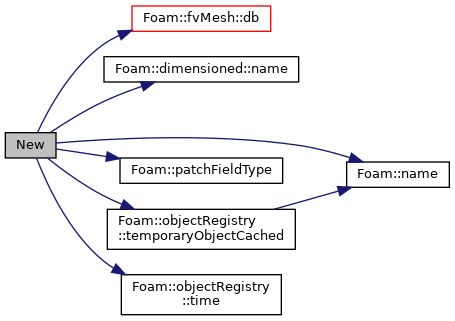

Foam::tmp< Foam::GeometricField< Type, GeoMesh, PrimitiveField > >	New (const word &newName, const GeometricField< Type, GeoMesh, PrimitiveField2 > &gf, const word &patchFieldType)

template<template< class > class PrimitiveField2>

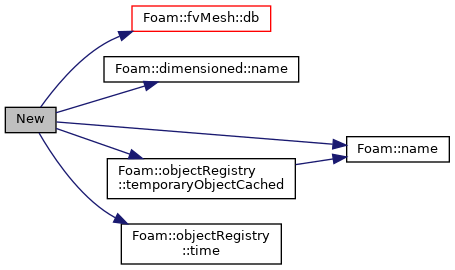

Foam::tmp< Foam::GeometricField< Type, GeoMesh, PrimitiveField > >	New (const word &newName, const DimensionedField< Type, GeoMesh, PrimitiveField2 > &df, const word &patchFieldType)

template<template< class > class PrimitiveField2>
Foam::tmp< Foam::GeometricField< Type, GeoMesh, PrimitiveField > >	New (const word &newName, const GeometricField< Type, GeoMesh, PrimitiveField2 > &gf, const wordList &patchFieldTypes, const wordList &actualPatchTypes, const HashTable< word > &fieldSourceTypes, const IOerrorLocation &fieldSourceErrorLocation)

template<template< class > class PrimitiveField2>
Foam::tmp< Foam::GeometricField< Type, GeoMesh, PrimitiveField > >	New (const word &newName, const DimensionedField< Type, GeoMesh, PrimitiveField2 > &df, const wordList &patchFieldTypes, const wordList &actualPatchTypes, const HashTable< word > &fieldSourceTypes, const IOerrorLocation &fieldSourceErrorLocation)

template<template< class > class PrimitiveField2>
void	replace (const direction d, const GeometricField< typename GeometricField< Type, GeoMesh, PrimitiveField >::cmptType, GeoMesh, PrimitiveField2 > &gcf)

template<template< class > class PrimitiveField2>
void	replace (const direction d, const tmp< GeometricField< typename GeometricField< Type, GeoMesh, PrimitiveField >::cmptType, GeoMesh, PrimitiveField2 > > &gcf)

tmp< VolField< scalar > >	component (const direction) const

void	replace (const direction, const GeometricField< scalar, fvMesh, PrimitiveField > &sf)

Foam::tmp< Foam::GeometricField< Foam::scalar, Foam::fvMesh > >	component (const direction) const

void	replace (const direction, const GeometricField< scalar, fvMesh, PrimitiveField > &gsf)

Public Member Functions inherited from DimensionedField< Type, GeoMesh, PrimitiveField >
	TypeName ("DimensionedField")
	Runtime type information. More...

	DimensionedField (const IOobject &, const GeoMesh &mesh, const dimensionSet &, const PrimitiveField< Type > &)
	Construct from components. More...

	DimensionedField (const IOobject &, const GeoMesh &mesh, const dimensionSet &, const tmp< PrimitiveField< Type >> &)
	Construct from components. More...

	DimensionedField (const IOobject &, const GeoMesh &mesh, const dimensionSet &, const bool checkIOFlags)
	Construct from components. More...

	DimensionedField (const IOobject &, const GeoMesh &mesh, const dimensioned< Type > &, const bool checkIOFlags=true)
	Construct from components. More...

	DimensionedField (const IOobject &, const GeoMesh &mesh, const dictionary &fieldDict, const dimensionSet &dims=dimensions::invalid, const word &fieldDictEntry="value")
	Construct from dictionary. More...

	DimensionedField (const IOobject &, const GeoMesh &mesh, const dimensionSet &dims=dimensions::invalid, const word &fieldDictEntry="value")
	Construct from dictionary constructed from IOobject. More...

	DimensionedField (const DimensionedField< Type, GeoMesh, PrimitiveField > &)
	Copy constructor. More...

	DimensionedField (DimensionedField< Type, GeoMesh, PrimitiveField > &&)
	Move constructor. More...

template<template< class > class PrimitiveField2>
	DimensionedField (const DimensionedField< Type, GeoMesh, PrimitiveField2 > &)
	Copy constructor. More...

template<template< class > class PrimitiveField2>
	DimensionedField (DimensionedField< Type, GeoMesh, PrimitiveField2 > &, const bool reuse)
	Copy constructor or reuse as specified. More...

	DimensionedField (const tmp< DimensionedField< Type, GeoMesh, PrimitiveField >> &)
	Copy constructor of tmp<DimensionedField> deleting argument. More...

template<template< class > class PrimitiveField2>
	DimensionedField (const IOobject &, const DimensionedField< Type, GeoMesh, PrimitiveField2 > &, const bool checkIOFlags=true)
	Copy constructor resetting IO parameters. More...

template<template< class > class PrimitiveField2>
	DimensionedField (const IOobject &, DimensionedField< Type, GeoMesh, PrimitiveField2 > &, const bool reuse, const bool checkIOFlags=true)
	Copy constructor resetting IO parameters and reuse as specified. More...

	DimensionedField (const IOobject &, const tmp< DimensionedField< Type, GeoMesh, PrimitiveField >> &, const bool checkIOFlags=true)
	Copy constructor from tmp resetting IO parameters. More...

template<template< class > class PrimitiveField2>
	DimensionedField (const word &newName, const DimensionedField< Type, GeoMesh, PrimitiveField2 > &)
	Copy constructor resetting name. More...

template<template< class > class PrimitiveField2>
	DimensionedField (const word &newName, DimensionedField< Type, GeoMesh, PrimitiveField2 > &, const bool reuse)
	Copy constructor resetting name and reuse as specified. More...

	DimensionedField (const word &newName, const tmp< DimensionedField< Type, GeoMesh, PrimitiveField >> &)
	Copy constructor from tmp resetting name. More...

tmp< DimensionedField< Type, GeoMesh, PrimitiveField > >	clone () const
	Clone. More...

virtual	~DimensionedField ()
	Destructor. More...

void	readField (const dictionary &fieldDict, const word &fieldDictEntry="value")

const GeoMesh &	mesh () const
	Return mesh. More...

const dimensionSet &	dimensions () const
	Return dimensions. More...

dimensionSet &	dimensions ()
	Return non-const access to dimensions. More...

PrimitiveField< Type > &	primitiveFieldRef ()
	Return a reference to the internal field. More...

const PrimitiveField< Type > &	primitiveField () const
	Return a const-reference to the primitive field. More...

virtual void	transfer (PrimitiveField< Type > &)
	Transfer the list pointer from the given PrimitiveField. More...

	USING_OLD_TIME_FIELD (DimensionedField)
	Use old-time methods from the base class. More...

tmp< DimensionedField< cmptType, GeoMesh, Field > >	component (const direction) const
	Return a component field of the field. More...

template<template< class > class PrimitiveField2>
void	replace (const direction, const DimensionedField< cmptType, GeoMesh, PrimitiveField2 > &)
	Replace a component field of the field. More...

template<template< class > class PrimitiveField2>
void	replace (const direction, const tmp< DimensionedField< cmptType, GeoMesh, PrimitiveField2 >> &)
	Replace a component field of the field. More...

tmp< DimensionedField< Type, GeoMesh, Field > >	T () const
	Return the field transpose (only defined for second rank tensors) More...

dimensioned< Type >	average () const
	Calculate and return arithmetic average. More...

template<template< class > class PrimitiveField2>
dimensioned< Type >	weightedAverage (const DimensionedField< scalar, GeoMesh, PrimitiveField2 > &) const
	Calculate and return weighted average. More...

template<template< class > class PrimitiveField2>
dimensioned< Type >	weightedAverage (const tmp< DimensionedField< scalar, GeoMesh, PrimitiveField2 >> &) const
	Calculate and return weighted average. More...

template<template< class > class PrimitiveField2>
void	reset (const DimensionedField< Type, GeoMesh, PrimitiveField2 > &)
	Reset the field values to the given field. More...

void	reset (const tmp< DimensionedField< Type, GeoMesh, PrimitiveField >> &)
	Reset the field values to the given tmp-field. More...

template<template< class > class PrimitiveField2>
void	reset (const tmp< DimensionedField< Type, GeoMesh, PrimitiveField2 >> &)
	Reset the field values to the given tmp-field. More...

void	max (const dimensioned< Type > &)
	Set the field to the maximum of its value and a given value. More...

void	min (const dimensioned< Type > &)
	Set the field to the minimum of its value and a given value. More...

void	maxMin (const dimensioned< Type > &minDt, const dimensioned< Type > &maxDt)
	Clip the field to between two values. More...

bool	writeData (Ostream &, const word &fieldDictEntry) const

void	operator= (const DimensionedField< Type, GeoMesh, PrimitiveField > &)

void	operator= (DimensionedField< Type, GeoMesh, PrimitiveField > &&)

void	operator= (const tmp< DimensionedField< Type, GeoMesh, PrimitiveField >> &)

template<template< class > class PrimitiveField2>
void	operator= (const DimensionedField< Type, GeoMesh, PrimitiveField2 > &)

template<template< class > class PrimitiveField2>
void	operator= (const tmp< DimensionedField< Type, GeoMesh, PrimitiveField2 >> &)

void	operator= (const dimensioned< Type > &)

void	operator= (const zero &)

template<template< class > class PrimitiveField2>
void	operator== (const DimensionedField< Type, GeoMesh, PrimitiveField2 > &)

template<template< class > class PrimitiveField2>
void	operator== (const tmp< DimensionedField< Type, GeoMesh, PrimitiveField2 >> &)

void	operator== (const dimensioned< Type > &)

void	operator== (const zero &)

template<template< class > class PrimitiveField2>
void	operator+= (const DimensionedField< Type, GeoMesh, PrimitiveField2 > &)

template<template< class > class PrimitiveField2>
void	operator+= (const tmp< DimensionedField< Type, GeoMesh, PrimitiveField2 >> &)

void	operator+= (const dimensioned< Type > &)

template<template< class > class PrimitiveField2>
void	operator-= (const DimensionedField< Type, GeoMesh, PrimitiveField2 > &)

template<template< class > class PrimitiveField2>
void	operator-= (const tmp< DimensionedField< Type, GeoMesh, PrimitiveField2 >> &)

void	operator-= (const dimensioned< Type > &)

template<template< class > class PrimitiveField2>
void	operator*= (const DimensionedField< scalar, GeoMesh, PrimitiveField2 > &)

template<template< class > class PrimitiveField2>
void	operator*= (const tmp< DimensionedField< scalar, GeoMesh, PrimitiveField2 >> &)

void	operator*= (const dimensioned< scalar > &)

template<template< class > class PrimitiveField2>
void	operator/= (const DimensionedField< scalar, GeoMesh, PrimitiveField2 > &)

template<template< class > class PrimitiveField2>
void	operator/= (const tmp< DimensionedField< scalar, GeoMesh, PrimitiveField2 >> &)

void	operator/= (const dimensioned< scalar > &)

template<template< class > class PrimitiveField2>
Foam::tmp< Foam::DimensionedField< Type, GeoMesh, PrimitiveField > >	New (const word &newName, const DimensionedField< Type, GeoMesh, PrimitiveField2 > &df)

template<template< class > class PrimitiveField2>
void	replace (const direction d, const DimensionedField< typename DimensionedField< Type, GeoMesh, PrimitiveField >::cmptType, GeoMesh, PrimitiveField2 > &df)

template<template< class > class PrimitiveField2>
void	replace (const direction d, const tmp< DimensionedField< typename DimensionedField< Type, GeoMesh, PrimitiveField >::cmptType, GeoMesh, PrimitiveField2 > > &tdf)

Public Member Functions inherited from regIOobject
	TypeName ("regIOobject")
	Runtime type information. More...

	regIOobject (const IOobject &, const bool isTime=false)
	Construct from IOobject. Optional flag for if IOobject is the. More...

	regIOobject (const word &newName, const IOobject &, bool registerObject)
	Construct from IOobject with new name, and overriding the. More...

	regIOobject (const regIOobject &)
	Copy constructor. More...

	regIOobject (regIOobject &&)
	Move constructor. More...

	regIOobject (const regIOobject &, bool registerCopy)
	Copy constructor, transferring registry registration to copy. More...

virtual	~regIOobject ()
	Destructor. More...

virtual bool	global () const
	Return true if object is global, i.e. same for all processors. More...

virtual bool	globalFile () const
	Return true if object is global, i.e. same for all processors. More...

const fileName &	caseName () const

fileName	path () const
	Return complete path. More...

fileName	objectPath () const
	Return complete path + object name. More...

fileName	filePath () const
	Return complete path + object name if the file exists. More...

bool	checkIn ()
	Add object to registry. More...

bool	checkOut ()
	Remove object from registry. More...

void	addWatch ()
	Add file watch on object (if registered and READ_IF_MODIFIED) More...

bool	registered () const
	Is this object registered with the registry? More...

bool	ownedByRegistry () const
	Is this object owned by the registry? More...

void	store ()
	Transfer ownership of this object to its registry. More...

void	release ()
	Release ownership of this object from its registry. More...

uint64_t	eventNo () const
	Event number at last update. More...

uint64_t &	eventNo ()
	Event number at last update. More...

bool	upToDate (const regIOobject &) const
	Return true if up-to-date with respect to given object. More...

bool	upToDate (const regIOobject &, const regIOobject &) const
	Return true if up-to-date with respect to given objects. More...

bool	upToDate (const regIOobject &, const regIOobject &, const regIOobject &) const
	Return true if up-to-date with respect to given objects. More...

bool	upToDate (const regIOobject &, const regIOobject &, const regIOobject &, const regIOobject &) const
	Return true if up-to-date with respect to given objects. More...

void	setUpToDate ()
	Set up to date (obviously) More...

virtual void	rename (const word &newName)
	Rename. More...

bool	headerOk ()
	Read and check header info. More...

Istream &	readStream (const word &, const bool read=true)
	Return Istream and check object type against that given. More...

void	close ()
	Close Istream. More...

virtual bool	readData (Istream &)
	Virtual readData function. More...

virtual bool	read ()
	Read object. More...

const labelList &	watchIndices () const
	Return file-monitoring handles. More...

labelList &	watchIndices ()
	Return file-monitoring handles. More...

virtual bool	modified () const
	Return true if the object's file (or files for objectRegistry) More...

virtual bool	dependenciesModified () const
	Return true if the object's dependencies have been modified. More...

virtual bool	readIfModified ()
	Read object if modified (as set by call to modified) More...

virtual bool	writeObject (IOstream::streamFormat, IOstream::versionNumber, IOstream::compressionType, const bool write) const
	Write using given format, version and compression. More...

virtual bool	write (const bool write=true) const
	Write using setting from DB. More...

void	operator= (const IOobject &)=delete
	Assign to IOobject. More...

void	operator= (const regIOobject &)=delete
	Disallow default assignment. More...

const fileName &	caseName (const bool global) const

fileName	path (const bool global) const
	Return complete path including the processor sub-directory. More...

fileName	objectPath (const bool global) const
	Return complete path + object name including the processor. More...

fileName	filePath (const bool global) const
	Return complete path + object name if the file exists. More...

Public Member Functions inherited from IOobject
	TypeName ("IOobject")
	Runtime type information. More...

	IOobject (const word &name, const fileName &instance, const objectRegistry &registry, readOption r=NO_READ, writeOption w=NO_WRITE, bool registerObject=true)
	Construct from name, instance, registry, io options. More...

	IOobject (const word &name, const fileName &instance, const fileName &local, const objectRegistry &registry, readOption r=NO_READ, writeOption w=NO_WRITE, bool registerObject=true)
	Construct from name, instance, local, registry, io options. More...

	IOobject (const fileName &path, const objectRegistry &registry, readOption r=NO_READ, writeOption w=NO_WRITE, bool registerObject=true)
	Construct from path, registry, io options. More...

	IOobject (const IOobject &io, const objectRegistry &registry)
	Construct from copy resetting registry. More...

	IOobject (const IOobject &io, const word &name)
	Construct from copy resetting name. More...

	IOobject (const IOobject &io)=default
	Copy constructor. More...

autoPtr< IOobject >	clone () const
	Clone. More...

autoPtr< IOobject >	clone (const objectRegistry &registry) const
	Clone resetting registry. More...

virtual	~IOobject ()
	Destructor. More...

const Time &	time () const
	Return time. More...

const objectRegistry &	db () const
	Return the local objectRegistry. More...

const word &	name () const
	Return name. More...

const word &	headerClassName () const
	Return name of the class name read from header. More...

word &	headerClassName ()
	Return name of the class name read from header. More...

string &	note ()
	Return non-constant access to the optional note. More...

const string &	note () const
	Return the optional note. More...

bool &	registerObject ()
	Register object created from this IOobject with registry if true. More...

bool	registerObject () const
	Register object created from this IOobject with registry if true. More...

readOption	readOpt () const

readOption &	readOpt ()

writeOption &	writeOpt () const

writeOption &	writeOpt ()

word	group () const
	Return group (extension part of name) More...

word	member () const
	Return member (name without the extension) More...

const fileName &	rootPath () const

const fileName &	caseName (const bool global) const

fileName &	instance () const
	Return the instance directory, constant, system, <time> etc. More...

void	updateInstance () const
	If the instance is a time directory update to the current time. More...

void	updateTimeInstance () const
	Update instance to the current time. More...

const fileName &	local () const

fileName	path (const bool global) const
	Return complete path including the processor sub-directory. More...

fileName	objectPath (const bool global) const
	Return complete path + object name including the processor. More...

fileName	relativePath () const
	Return the path relative to the case directory. More...

fileName	relativeObjectPath () const
	Return complete relativePath + object name. More...

fileName	filePath (const bool global) const
	Return complete path + object name if the file exists. More...

bool	readHeader (Istream &)
	Read header. More...

bool	headerOk ()
	Read header of local object without type-checking. More...

template<class Type >
void	warnNoRereading () const
	Helper: warn that type does not support re-reading. More...

bool	writeHeader (Ostream &) const
	Write header. More...

bool	writeHeader (Ostream &, const word &objectType) const
	Write header. Allow override of type. More...

bool	good () const

bool	bad () const

InfoProxy< IOobject >	info () const
	Return info proxy. More...

void	operator= (const IOobject &)

template<class Name >
Foam::word	groupName (Name name, const word &group)

Public Member Functions inherited from OldTimeField< DimensionedField< Type, GeoMesh, PrimitiveField > >
	OldTimeField (const label timeIndex)
	Construct from a time index. More...

	OldTimeField (const OldTimeField< DimensionedField< Type, GeoMesh, PrimitiveField > > &otf)
	Copy construct. More...

	OldTimeField (OldTimeField< DimensionedField< Type, GeoMesh, PrimitiveField > > &&otf)
	Move construct. More...

	~OldTimeField ()
	Destructor. More...

label	timeIndex () const
	Return the time index of the field. More...

label &	timeIndex ()
	Return a non-const reference to the time index of the field. More...

bool	isOldTime () const
	Return whether or not this is an old-time field. More...

bool	hasStoredOldTimes () const
	Return whether old-time fields have been stored yet. More...

void	storeOldTimes () const
	Store the old-time fields. More...

void	clearOldTimes ()
	Clear old-time fields. More...

void	nullOldestTime ()
	Set the oldest field pointer to nullObjectPtr. This removes the. More...

label	nOldTimes (const bool includeNull=true) const
	Return the number of old-time fields stored. More...

const Field0Type &	oldTime () const
	Return the old-time field. More...

const Field0Type &	oldTime (const label n) const
	Return the n-th old-time field. More...

Field0Type &	oldTimeRef ()
	Return a non-const reference to the old-time field. More...

Field0Type &	oldTimeRef (const label n)
	Return a non-const reference to the n-th old time field. More...

void	operator= (const OldTimeField< DimensionedField< Type, GeoMesh, PrimitiveField > > &)=delete
	Disallow default bitwise assignment. More...

Public Member Functions inherited from OldTimeField< GeometricField< Type, GeoMesh, PrimitiveField > >
	OldTimeField (const label timeIndex)
	Construct from a time index. More...

	OldTimeField (const OldTimeField< GeometricField< Type, GeoMesh, PrimitiveField > > &otf)
	Copy construct. More...

	OldTimeField (OldTimeField< GeometricField< Type, GeoMesh, PrimitiveField > > &&otf)
	Move construct. More...

	~OldTimeField ()
	Destructor. More...

label	timeIndex () const
	Return the time index of the field. More...

label &	timeIndex ()
	Return a non-const reference to the time index of the field. More...

bool	isOldTime () const
	Return whether or not this is an old-time field. More...

bool	hasStoredOldTimes () const
	Return whether old-time fields have been stored yet. More...

void	storeOldTimes () const
	Store the old-time fields. More...

void	clearOldTimes ()
	Clear old-time fields. More...

void	nullOldestTime ()
	Set the oldest field pointer to nullObjectPtr. This removes the. More...

label	nOldTimes (const bool includeNull=true) const
	Return the number of old-time fields stored. More...

const Field0Type &	oldTime () const
	Return the old-time field. More...

const Field0Type &	oldTime (const label n) const
	Return the n-th old-time field. More...

Field0Type &	oldTimeRef ()
	Return a non-const reference to the old-time field. More...

Field0Type &	oldTimeRef (const label n)
	Return a non-const reference to the n-th old time field. More...

void	operator= (const OldTimeField< GeometricField< Type, GeoMesh, PrimitiveField > > &)=delete
	Disallow default bitwise assignment. More...

Static Public Member Functions
static const GeometricField< Type, GeoMesh, PrimitiveField > &	null ()
	Return a null geometric field. More...

static tmp< GeometricField< Type, GeoMesh, PrimitiveField > >	New (const word &name, const Internal &, const PtrList< Patch > &, const HashPtrTable< Source > &=HashPtrTable< Source >())
	Return a temporary field constructed from name,. More...

static tmp< GeometricField< Type, GeoMesh, PrimitiveField > >	New (const word &name, const GeoMesh &, const dimensionSet &, const word &patchFieldType=Patch::calculatedType())
	Return a temporary field constructed from name, mesh, dimensionSet. More...

static tmp< GeometricField< Type, GeoMesh, PrimitiveField > >	New (const word &name, const GeoMesh &, const dimensioned< Type > &, const word &patchFieldType=Patch::calculatedType())
	Return a temporary field constructed from mesh, dimensioned<Type> More...

static tmp< GeometricField< Type, GeoMesh, PrimitiveField > >	New (const word &name, const GeoMesh &, const dimensioned< Type > &, const wordList &patchFieldTypes, const wordList &actualPatchTypes=wordList(), const HashTable< word > &fieldSourceTypes=HashTable< word >(), const IOerrorLocation &fieldSourceErrorLocation=IOerrorLocation())
	Return a temporary field constructed from mesh, dimensioned<Type> More...

static tmp< GeometricField< Type, GeoMesh, PrimitiveField > >	New (const word &newName, const tmp< GeometricField< Type, GeoMesh, PrimitiveField >> &)
	Rename temporary field and return. More...

template<template< class > class PrimitiveField2>
static tmp< GeometricField< Type, GeoMesh, PrimitiveField > >	New (const word &newName, const GeometricField< Type, GeoMesh, PrimitiveField2 > &, const word &patchFieldType)
	Rename field, reset patch field type and return. More...

static tmp< GeometricField< Type, GeoMesh, PrimitiveField > >	New (const word &newName, const tmp< GeometricField< Type, GeoMesh, PrimitiveField >> &, const word &patchFieldType)
	Rename temporary field, reset patch field type and return. More...

template<template< class > class PrimitiveField2>
static tmp< GeometricField< Type, GeoMesh, PrimitiveField > >	New (const word &name, const DimensionedField< Type, GeoMesh, PrimitiveField2 > &, const word &patchFieldType)
	Return a temporary field constructed from name,. More...

static tmp< GeometricField< Type, GeoMesh, PrimitiveField > >	New (const word &name, const tmp< Internal > &, const word &patchFieldType)
	Return a temporary field constructed from name,. More...

template<template< class > class PrimitiveField2>
static tmp< GeometricField< Type, GeoMesh, PrimitiveField > >	New (const word &newName, const GeometricField< Type, GeoMesh, PrimitiveField2 > &, const wordList &patchFieldTypes, const wordList &actualPatchTypes=wordList(), const HashTable< word > &fieldSourceTypes=HashTable< word >(), const IOerrorLocation &fieldSourceErrorLocation=IOerrorLocation())
	Rename and reset patch fields types of field and return. More...

static tmp< GeometricField< Type, GeoMesh, PrimitiveField > >	New (const word &newName, const tmp< GeometricField< Type, GeoMesh, PrimitiveField >> &, const wordList &patchFieldTypes, const wordList &actualPatchTypes=wordList(), const HashTable< word > &fieldSourceTypes=HashTable< word >(), const IOerrorLocation &fieldSourceErrorLocation=IOerrorLocation())
	Rename and reset patch fields types of temporary field and return. More...

template<template< class > class PrimitiveField2>
static tmp< GeometricField< Type, GeoMesh, PrimitiveField > >	New (const word &newName, const DimensionedField< Type, GeoMesh, PrimitiveField2 > &, const wordList &patchFieldTypes, const wordList &actualPatchTypes=wordList(), const HashTable< word > &fieldSourceTypes=HashTable< word >(), const IOerrorLocation &fieldSourceErrorLocation=IOerrorLocation())
	Return a temporary field constructed from IOobject,. More...

static tmp< GeometricField< Type, GeoMesh, PrimitiveField > >	New (const word &newName, const tmp< Internal > &, const wordList &patchFieldTypes, const wordList &actualPatchTypes=wordList(), const HashTable< word > &fieldSourceTypes=HashTable< word >(), const IOerrorLocation &fieldSourceErrorLocation=IOerrorLocation())
	Return a temporary field constructed from IOobject,. More...

Static Public Member Functions inherited from DimensionedField< Type, GeoMesh, PrimitiveField >
static const DimensionedField< Type, GeoMesh, PrimitiveField > &	null ()
	Return a null DimensionedField. More...

static tmp< DimensionedField< Type, GeoMesh, PrimitiveField > >	New (const word &name, const GeoMesh &mesh, const dimensionSet &, const PrimitiveField< Type > &)
	Return a temporary field constructed from name, mesh,. More...

static tmp< DimensionedField< Type, GeoMesh, PrimitiveField > >	New (const word &name, const GeoMesh &mesh, const dimensionSet &, const tmp< PrimitiveField< Type >> &)
	Return a temporary field constructed from name, mesh,. More...

static tmp< DimensionedField< Type, GeoMesh, PrimitiveField > >	New (const word &name, const GeoMesh &mesh, const dimensionSet &)
	Return a temporary field constructed from name, mesh. More...

static tmp< DimensionedField< Type, GeoMesh, PrimitiveField > >	New (const word &name, const GeoMesh &mesh, const dimensioned< Type > &)
	Return a temporary field constructed from name, mesh. More...

template<template< class > class PrimitiveField2>
static tmp< DimensionedField< Type, GeoMesh, PrimitiveField > >	New (const word &newName, const DimensionedField< Type, GeoMesh, PrimitiveField2 > &)
	Return a temporary field constructed from name and a field. More...

static tmp< DimensionedField< Type, GeoMesh, PrimitiveField > >	New (const word &newName, const tmp< DimensionedField< Type, GeoMesh, PrimitiveField >> &)
	Return renamed temporary field. More...

Static Public Member Functions inherited from regIOobject
template<class Type >
static Type &	store (Type *)
	Transfer ownership of the given object pointer to its registry. More...

template<class Type >
static Type &	store (autoPtr< Type > &)
	Transfer ownership of the given object pointer to its registry. More...

Static Public Member Functions inherited from IOobject
static bool	fileNameComponents (const fileName &path, fileName &instance, fileName &local, word &name)
	Split path into instance, local, name components. More...

template<class Name >
static word	groupName (Name name, const word &group)

static word	group (const word &name)
	Return group (extension part of name) More...

static word	member (const word &name)
	Return member (name without the extension) More...

template<class Stream >
static Stream &	writeBanner (Stream &os, bool noHint=false)
	Write the standard OpenFOAM file/dictionary banner. More...

template<class Stream >
static Stream &	writeDivider (Stream &os)
	Write the standard file section divider. More...

template<class Stream >
static Stream &	writeEndDivider (Stream &os)
	Write the standard end file divider. More...

static bool	writeHeader (Ostream &os, const IOstream::versionNumber version, const IOstream::streamFormat format, const word &type, const string &note, const fileName &location, const word &name)
	Write header. More...

static bool	writeHeader (Ostream &, const dictionary &foamFileDict)
	Write header. More...

Friends
template<class Type2 , class GeoMesh2 , template< class > class PrimitiveField2>
class	GeometricField
	Declare friendship with other geometric fields. More...

Ostream &	operator (Ostream &, const GeometricField< Type, GeoMesh, PrimitiveField > &)

Ostream &	operator (Ostream &, const tmp< GeometricField< Type, GeoMesh, PrimitiveField >> &)

Additional Inherited Members
Static Public Attributes inherited from regIOobject
static float	fileModificationSkew

Static Public Attributes inherited from IOobject
static constexpr const char *	foamFile = "FoamFile"
	Keyword for the FoamFile header sub-dictionary. More...

static const NamedEnum< fileCheckTypes, 4 >	fileCheckTypesNames

static fileCheckTypes	fileModificationChecking
	Type of file modification checking. More...

Protected Member Functions inherited from regIOobject
bool	readHeaderOk (const IOstream::streamFormat defaultFormat, const word &typeName)
	Read header, check readOpt flags and read data if necessary. More...

Protected Member Functions inherited from IOobject
template<class Type >
bool	typeHeaderOk (const bool checkType)
	Read header using typeGlobalFile to find file. More...

Protected Member Functions inherited from OldTimeField< DimensionedField< Type, GeoMesh, PrimitiveField > >
bool	readOldTimeIfPresent ()
	Read old-time field from file if it is present. More...

void	copyOldTimes (const IOobject &io, const OtherOldTime< OtherPrimitiveField > &)
	Copy the old-times from the given field. More...

void	copyOldTimes (const word &newName, const OtherOldTime< OtherPrimitiveField > &)
	Copy the old-times from the given field. More...

Protected Member Functions inherited from OldTimeField< GeometricField< Type, GeoMesh, PrimitiveField > >
bool	readOldTimeIfPresent ()
	Read old-time field from file if it is present. More...

void	copyOldTimes (const IOobject &io, const OtherOldTime< OtherPrimitiveField > &)
	Copy the old-times from the given field. More...

void	copyOldTimes (const word &newName, const OtherOldTime< OtherPrimitiveField > &)
	Copy the old-times from the given field. More...

Detailed Description

template<class Type, class GeoMesh, template< class > class PrimitiveField>
class Foam::GeometricField< Type, GeoMesh, PrimitiveField >

Generic GeometricField class.

Source files

Definition at line 73 of file GeometricField.H.

Member Typedef Documentation

◆ Type_

typedef Type Type_

Value type.

Definition at line 84 of file GeometricField.H.

◆ GeoMesh_

typedef GeoMesh GeoMesh_

Geometric mesh type.

Definition at line 87 of file GeometricField.H.

◆ Mesh

typedef GeoMesh::Mesh Mesh

Base mesh type from which GeoMesh is constructed.

Definition at line 90 of file GeometricField.H.

◆ Internal

typedef DimensionedField<Type, GeoMesh, PrimitiveField> Internal

Type of the internal field from which this GeometricField is derived.

Definition at line 93 of file GeometricField.H.

◆ Base

typedef DimensionedField<Type, GeoMesh, PrimitiveField> Base

Type of the field from which this GeometricField is derived.

Definition at line 96 of file GeometricField.H.

◆ Patch

typedef GeoMesh::template PatchField<Type> Patch

Type of the patch field of which the Boundary is composed.

Definition at line 99 of file GeometricField.H.

◆ Boundary

typedef GeometricBoundaryField<Type, GeoMesh, PrimitiveField> Boundary

Type of the boundary field.

Definition at line 102 of file GeometricField.H.

◆ Source

typedef GeoMesh::template FieldSource<Type> Source

Type of the field source of which the Sources is composed.

Definition at line 105 of file GeometricField.H.

◆ Sources

typedef GeometricFieldSources<Type, GeoMesh, PrimitiveField> Sources

Type of the field sources.

Definition at line 108 of file GeometricField.H.

◆ cmptType

typedef PrimitiveField<Type>::cmptType cmptType

Component type of the elements of the field.

Definition at line 111 of file GeometricField.H.

Constructor & Destructor Documentation

◆ GeometricField() [1/23]

GeometricField	(	const IOobject &	io,
		const GeoMesh &	mesh,
		const dimensionSet &	ds,
		const word &	patchFieldType
	)

Constructor given IOobject, mesh, dimensions and patch field type.

Warning: this allocates storage but does not set field values!

Definition at line 158 of file GeometricField.C.

References InfoInFunction.

◆ GeometricField() [2/23]

GeometricField	(	const IOobject &	io,
		const GeoMesh &	mesh,
		const dimensioned< Type > &	dt,
		const word &	patchFieldType = `Patch::calculatedType()`
	)

Constructor given IOobject, mesh, dimensioned<Type>

and optional patch field type.

Definition at line 211 of file GeometricField.C.

◆ GeometricField() [3/23]

GeometricField	(	const IOobject &	io,
		const GeoMesh &	mesh,
		const dimensioned< Type > &	dt,
		const wordList &	wantedPatchTypes,
		const wordList &	actualPatchTypes = `wordList()`,
		const HashTable< word > &	fieldSourceTypes = `HashTable<word>()`,
		const IOerrorLocation &	fieldSourceErrorLocation = `IOerrorLocation()`
	)

Constructor given IOobject, mesh, dimensioned<Type>

and patch field types.

Definition at line 238 of file GeometricField.C.

◆ GeometricField() [4/23]

GeometricField	(	const IOobject &	io,
		const Internal &	diField,
		const PtrList< Patch > &	ptfl,
		const HashPtrTable< Source > &	stft = `HashPtrTable<Source>()`
	)

Constructor from components.

Definition at line 268 of file GeometricField.C.

◆ GeometricField() [5/23]

GeometricField	(	const IOobject &	io,
		const GeoMesh &	mesh,
		const dimensionSet &	ds,
		const PrimitiveField< Type > &	iField,
		const PtrList< Patch > &	ptfl,
		const HashPtrTable< Source > &	stft = `HashPtrTable<Source>()`
	)

Constructor from components.

Definition at line 294 of file GeometricField.C.

◆ GeometricField() [6/23]

GeometricField	(	const IOobject &	io,
		const GeoMesh &	mesh,
		const dimensionSet &	dims = `dimensions::invalid`
	)

Construct and read given IOobject.

Definition at line 320 of file GeometricField.C.

◆ GeometricField() [7/23]

GeometricField	(	const IOobject &	io,
		const GeoMesh &	mesh,
		const dictionary &	dict,
		const dimensionSet &	dims = `dimensions::invalid`
	)

Construct from dictionary.

Definition at line 356 of file GeometricField.C.

◆ GeometricField() [8/23]

GeometricField ( const GeometricField< Type, GeoMesh, PrimitiveField > & gf )

Copy constructor.

Definition at line 392 of file GeometricField.C.

◆ GeometricField() [9/23]

GeometricField ( const GeometricField< Type, GeoMesh, PrimitiveField2 > & gf )

explicit

Copy constructor.

Definition at line 415 of file GeometricField.C.

◆ GeometricField() [10/23]

GeometricField ( GeometricField< Type, GeoMesh, PrimitiveField > && gf )

Move constructor.

Definition at line 437 of file GeometricField.C.

◆ GeometricField() [11/23]

GeometricField ( const tmp< GeometricField< Type, GeoMesh, PrimitiveField >> & tgf )

Construct as copy of tmp.

Definition at line 459 of file GeometricField.C.

◆ GeometricField() [12/23]

GeometricField	(	const IOobject &	io,
		const GeometricField< Type, GeoMesh, PrimitiveField2 > &	gf
	)

Construct as copy resetting IO parameters.

Definition at line 488 of file GeometricField.C.

References Foam::endl(), IOobject::info(), and InfoInFunction.

Here is the call graph for this function:

◆ GeometricField() [13/23]

GeometricField	(	const IOobject &	io,
		const tmp< GeometricField< Type, GeoMesh, PrimitiveField >> &	tgf
	)

Construct as copy of tmp resetting IO parameters.

Definition at line 515 of file GeometricField.C.

◆ GeometricField() [14/23]

GeometricField	(	const word &	newName,
		const GeometricField< Type, GeoMesh, PrimitiveField2 > &	gf
	)

Construct as copy resetting name.

Definition at line 548 of file GeometricField.C.

◆ GeometricField() [15/23]

GeometricField	(	const word &	newName,
		const tmp< GeometricField< Type, GeoMesh, PrimitiveField >> &	tgf
	)

Construct as copy of tmp resetting name.

Definition at line 572 of file GeometricField.C.

◆ GeometricField() [16/23]

GeometricField	(	const IOobject &	io,
		const GeometricField< Type, GeoMesh, PrimitiveField2 > &	gf,
		const word &	patchFieldType
	)

Construct as copy resetting IO parameters and patch field type.

Definition at line 602 of file GeometricField.C.

◆ GeometricField() [17/23]

GeometricField	(	const IOobject &	io,
		const tmp< GeometricField< Type, GeoMesh, PrimitiveField >> &	tgf,
		const word &	patchFieldType
	)

Construct as copy of tmp resetting IO parameters.

and patch field type

Definition at line 632 of file GeometricField.C.

◆ GeometricField() [18/23]

GeometricField	(	const IOobject &	io,
		const DimensionedField< Type, GeoMesh, PrimitiveField2 > &	df,
		const word &	patchFieldType
	)

Constructor from internal field and patch field type.

Definition at line 668 of file GeometricField.C.

◆ GeometricField() [19/23]

GeometricField	(	const IOobject &	io,
		const tmp< Internal > &	tdf,
		const word &	patchFieldType
	)

Constructor from temporary internal field and patch field type.

Definition at line 696 of file GeometricField.C.

◆ GeometricField() [20/23]

GeometricField	(	const IOobject &	io,
		const GeometricField< Type, GeoMesh, PrimitiveField2 > &	gf,
		const wordList &	patchFieldTypes,
		const wordList &	actualPatchTypes = `wordList()`,
		const HashTable< word > &	fieldSourceTypes = `HashTable<word>()`,
		const IOerrorLocation &	fieldSourceErrorLocation = `IOerrorLocation()`
	)

Construct as copy resetting IO parameters and patch field types.

Definition at line 725 of file GeometricField.C.

◆ GeometricField() [21/23]

GeometricField	(	const IOobject &	io,
		const tmp< GeometricField< Type, GeoMesh, PrimitiveField >> &	tgf,
		const wordList &	patchFieldTypes,
		const wordList &	actualPatchTypes = `wordList()`,
		const HashTable< word > &	fieldSourceTypes = `HashTable<word>()`,
		const IOerrorLocation &	fieldSourceErrorLocation = `IOerrorLocation()`
	)

Construct as copy of tmp resetting IO parameters.

and patch field types

Definition at line 764 of file GeometricField.C.

◆ GeometricField() [22/23]

GeometricField	(	const IOobject &	io,
		const DimensionedField< Type, GeoMesh, PrimitiveField2 > &	df,
		const wordList &	patchFieldTypes,
		const wordList &	actualPatchTypes = `wordList()`,
		const HashTable< word > &	fieldSourceTypes = `HashTable<word>()`,
		const IOerrorLocation &	fieldSourceErrorLocation = `IOerrorLocation()`
	)

Construct from IOobject, internal field and patch field types.

Definition at line 809 of file GeometricField.C.

References Foam::endl(), IOobject::info(), and InfoInFunction.

Here is the call graph for this function:

◆ GeometricField() [23/23]

GeometricField	(	const IOobject &	io,
		const tmp< Internal > &	tdf,
		const wordList &	patchFieldTypes,
		const wordList &	actualPatchTypes = `wordList()`,
		const HashTable< word > &	fieldSourceTypes = `HashTable<word>()`,
		const IOerrorLocation &	fieldSourceErrorLocation = `IOerrorLocation()`
	)

Construct from IOobject, tmp internal field and patch field types.

Definition at line 843 of file GeometricField.C.

References tmp< T >::clear(), Foam::endl(), IOobject::info(), and InfoInFunction.

Here is the call graph for this function:

◆ ~GeometricField()

~GeometricField

virtual

Destructor.

Definition at line 1382 of file GeometricField.C.

Member Function Documentation

◆ TypeName()

TypeName ( "GeometricField< Type, GeoMesh, PrimitiveField >" )

Runtime type information.

◆ null()

const Foam::GeometricField< Type, GeoMesh, PrimitiveField > & null

inlinestatic

Return a null geometric field.

Definition at line 32 of file GeometricFieldI.H.

Here is the caller graph for this function:

◆ clone()

Foam::tmp< Foam::GeometricField< Type, GeoMesh, PrimitiveField > > clone

Clone.

Definition at line 880 of file GeometricField.C.

Referenced by ParticleTracks< CloudType >::preFace().

Here is the caller graph for this function:

◆ cloneUnSliced()

Foam::tmp< Foam::GeometricField< Type, GeoMesh, PrimitiveField > > cloneUnSliced

Clone un-sliced.

Definition at line 891 of file GeometricField.C.

References mesh, Foam::name(), IOobject::NO_READ, IOobject::NO_WRITE, and Foam::dimensions::time.

Here is the call graph for this function:

◆ New() [1/17]

Foam::tmp< Foam::GeometricField< Type, GeoMesh, PrimitiveField > > New	(	const word &	name,
		const Internal &	diField,
		const PtrList< Patch > &	ptfl,
		const HashPtrTable< Source > &	stft = `HashPtrTable<Source>()`
	)

static

Return a temporary field constructed from name,.

internal field and list of patch fields

Definition at line 915 of file GeometricField.C.

References DimensionedField< Type, GeoMesh, PrimitiveField >::mesh(), Foam::name(), IOobject::NO_READ, and IOobject::NO_WRITE.

Here is the call graph for this function:

◆ New() [2/17]

Foam::tmp< Foam::GeometricField< Type, GeoMesh, PrimitiveField > > New	(	const word &	name,
		const GeoMesh &	mesh,
		const dimensionSet &	ds,
		const word &	patchFieldType = `Patch::calculatedType()`
	)

static

Return a temporary field constructed from name, mesh, dimensionSet.

and patch field type

Definition at line 949 of file GeometricField.C.

References fvMesh::db(), mesh, dimensioned< Type >::name(), Foam::name(), IOobject::NO_READ, IOobject::NO_WRITE, Foam::patchFieldType(), objectRegistry::temporaryObjectCached(), and objectRegistry::time().

Here is the call graph for this function:

◆ New() [3/17]

Foam::tmp< Foam::GeometricField< Type, GeoMesh, PrimitiveField > > New	(	const word &	name,
		const GeoMesh &	mesh,
		const dimensioned< Type > &	dt,
		const word &	patchFieldType = `Patch::calculatedType()`
	)

static

Return a temporary field constructed from mesh, dimensioned<Type>

and patch field type

Definition at line 983 of file GeometricField.C.

References fvMesh::db(), mesh, dimensioned< Type >::name(), Foam::name(), IOobject::NO_READ, IOobject::NO_WRITE, Foam::patchFieldType(), objectRegistry::temporaryObjectCached(), and objectRegistry::time().

Here is the call graph for this function:

◆ New() [4/17]

Foam::tmp< Foam::GeometricField< Type, GeoMesh, PrimitiveField > > New	(	const word &	name,
		const GeoMesh &	mesh,
		const dimensioned< Type > &	dt,
		const wordList &	patchFieldTypes,
		const wordList &	actualPatchTypes = `wordList()`,
		const HashTable< word > &	fieldSourceTypes = `HashTable<word>()`,
		const IOerrorLocation &	fieldSourceErrorLocation = `IOerrorLocation()`
	)

static

Return a temporary field constructed from mesh, dimensioned<Type>

and patch field types

Definition at line 1018 of file GeometricField.C.

References fvMesh::db(), mesh, dimensioned< Type >::name(), Foam::name(), IOobject::NO_READ, IOobject::NO_WRITE, objectRegistry::temporaryObjectCached(), and objectRegistry::time().

Here is the call graph for this function:

◆ New() [5/17]

Foam::tmp< Foam::GeometricField< Type, GeoMesh, PrimitiveField > > New	(	const word &	newName,
		const tmp< GeometricField< Type, GeoMesh, PrimitiveField >> &	tgf
	)

static

Rename temporary field and return.

Definition at line 1058 of file GeometricField.C.

References IOobject::NO_READ, and IOobject::NO_WRITE.

◆ New() [6/17]

static tmp<GeometricField<Type, GeoMesh, PrimitiveField> > New	(	const word &	newName,
		const GeometricField< Type, GeoMesh, PrimitiveField2 > &	,
		const word &	patchFieldType
	)

static

Rename field, reset patch field type and return.

◆ New() [7/17]

Foam::tmp< Foam::GeometricField< Type, GeoMesh, PrimitiveField > > New	(	const word &	newName,
		const tmp< GeometricField< Type, GeoMesh, PrimitiveField >> &	tgf,
		const word &	patchFieldType
	)

static

Rename temporary field, reset patch field type and return.

Definition at line 1123 of file GeometricField.C.

References IOobject::NO_READ, IOobject::NO_WRITE, and Foam::patchFieldType().

Here is the call graph for this function:

◆ New() [8/17]

static tmp<GeometricField<Type, GeoMesh, PrimitiveField> > New	(	const word &	name,
		const DimensionedField< Type, GeoMesh, PrimitiveField2 > &	,
		const word &	patchFieldType
	)

static

Return a temporary field constructed from name,.

internal field and patch field type

◆ New() [9/17]

Foam::tmp< Foam::GeometricField< Type, GeoMesh, PrimitiveField > > New	(	const word &	name,
		const tmp< Internal > &	tdf,
		const word &	patchFieldType
	)

static

Return a temporary field constructed from name,.

temporary internal field and patch field type

Definition at line 1190 of file GeometricField.C.

References IOobject::NO_READ, IOobject::NO_WRITE, and Foam::patchFieldType().

Here is the call graph for this function:

◆ New() [10/17]

static tmp<GeometricField<Type, GeoMesh, PrimitiveField> > New	(	const word &	newName,
		const GeometricField< Type, GeoMesh, PrimitiveField2 > &	,
		const wordList &	patchFieldTypes,
		const wordList &	actualPatchTypes = `wordList()`,
		const HashTable< word > &	fieldSourceTypes = `HashTable< word >()`,
		const IOerrorLocation &	fieldSourceErrorLocation = `IOerrorLocation()`
	)

static

Rename and reset patch fields types of field and return.

◆ New() [11/17]

Foam::tmp< Foam::GeometricField< Type, GeoMesh, PrimitiveField > > New	(	const word &	newName,
		const tmp< GeometricField< Type, GeoMesh, PrimitiveField >> &	tgf,
		const wordList &	patchFieldTypes,
		const wordList &	actualPatchTypes = `wordList()`,
		const HashTable< word > &	fieldSourceTypes = `HashTable<word>()`,
		const IOerrorLocation &	fieldSourceErrorLocation = `IOerrorLocation()`
	)

static

Rename and reset patch fields types of temporary field and return.

Definition at line 1263 of file GeometricField.C.

References IOobject::NO_READ, and IOobject::NO_WRITE.

◆ New() [12/17]

static tmp<GeometricField<Type, GeoMesh, PrimitiveField> > New	(	const word &	newName,
		const DimensionedField< Type, GeoMesh, PrimitiveField2 > &	,
		const wordList &	patchFieldTypes,
		const wordList &	actualPatchTypes = `wordList()`,
		const HashTable< word > &	fieldSourceTypes = `HashTable< word >()`,
		const IOerrorLocation &	fieldSourceErrorLocation = `IOerrorLocation()`
	)

static

Return a temporary field constructed from IOobject,.

internal field and patch field types

◆ New() [13/17]

Foam::tmp< Foam::GeometricField< Type, GeoMesh, PrimitiveField > > New	(	const word &	newName,
		const tmp< Internal > &	tdf,
		const wordList &	patchFieldTypes,
		const wordList &	actualPatchTypes = `wordList()`,
		const HashTable< word > &	fieldSourceTypes = `HashTable<word>()`,
		const IOerrorLocation &	fieldSourceErrorLocation = `IOerrorLocation()`
	)

static

Return a temporary field constructed from IOobject,.

temporary internal field and patch field types

Definition at line 1342 of file GeometricField.C.

References IOobject::NO_READ, and IOobject::NO_WRITE.

◆ internalFieldRef()

Foam::GeometricField< Type, GeoMesh, PrimitiveField >::Internal & internalFieldRef

Return a reference to the dimensioned internal field.

Note: this increments the event counter and checks the old-time fields; avoid in loops.

Definition at line 1394 of file GeometricField.C.

Referenced by phaseSystem::correctContinuityError(), SpalartAllmarasDES< BasicMomentumTransportModel >::k(), laplaceFilter::laplaceFilter(), Foam::MapGeometricFields(), shockFluid::pressureCorrector(), multiphaseVoFSolver::setInterfaceRDeltaT(), twoPhaseVoFSolver::setInterfaceRDeltaT(), incompressibleFluid::setRDeltaT(), and writeCellVolumes::write().

Here is the caller graph for this function:

◆ internalField()

const Foam::GeometricField< Type, GeoMesh, PrimitiveField >::Internal & internalField

inline

Return a const-reference to the dimensioned internal field.

Definition at line 41 of file GeometricFieldI.H.

Referenced by fvMeshSubset::interpolate(), GeometricField< Type, GeoMesh, PrimitiveField >::operator=(), GeometricField< Type, GeoMesh, PrimitiveField >::operator==(), and fvMeshToFvMesh::srcToTgt().

Here is the caller graph for this function:

◆ v()

const Foam::GeometricField< Type, GeoMesh, PrimitiveField >::Internal & v

inline

Return a const-reference to the dimensioned internal field.

of a "vol" field. Useful in the formulation of source-terms for FV equations

Definition at line 29 of file volFieldsI.H.

Referenced by kOmega2006< BasicMomentumTransportModel >::correct(), realizableKE< BasicMomentumTransportModel >::correct(), phaseSystem::solve(), and fvMeshToFvMesh::srcToTgt().

Here is the caller graph for this function:

◆ primitiveFieldRef()

Foam::GeometricField< Type, GeoMesh, PrimitiveField >::Internal::FieldType & primitiveFieldRef

Return a reference to the primitive field.

Note: this increments the event counter and checks the old-time fields; avoid in loops.

Definition at line 1405 of file GeometricField.C.

Referenced by MRFZone::addCentrifugalAcceleration(), MRFZone::addCoriolis(), anisotropicFilter::anisotropicFilter(), Foam::atan2(), Foam::fvc::average(), cellCoBlended< Type >::blendingFactor(), Foam::bound(), Implicit< CloudType >::cacheFields(), faceLimitedGrad< Type >::calcGrad(), multiValveEngine::movingObject::calcScale(), XiEqModel::calculateSchelkinEffect(), pointConstraints::constrain(), limitTemperature::constrain(), pointConstraints::constrainDisplacement(), wideBand::correct(), Foam::saturationModels::evaluate(), Foam::evaluate(), fvMatrix< Type >::flux(), fvMatrix< Type >::H(), fvMatrix< Type >::H1(), Foam::levelSetFraction(), PhiScheme< Type, PhiLimiter >::limiter(), Foam::mag(), Foam::magSqr(), fvMesh::movePoints(), inverseVolumeDiffusivity::operator()(), Foam::pow(), Foam::stabilise(), Foam::fvc::surfaceIntegrateExtrapolate(), ReactingCloud< CloudType >::SYi(), Foam::T(), Foam::transform(), MomentumCloud< CloudType >::vDotSweep(), clippedLinear< Type >::weights(), reverseLinear< Type >::weights(), limitedSurfaceInterpolationScheme< Type >::weights(), basicSubGrid::XiEq(), SCOPEXiEq::XiEq(), and MRFZone::zero().

Here is the caller graph for this function:

◆ primitiveField()

const Foam::GeometricField< Type, GeoMesh, PrimitiveField >::Internal::FieldType & primitiveField

inline

Return a const-reference to the primitive field.

Definition at line 50 of file GeometricFieldI.H.

Referenced by Foam::atan2(), cellMDLimitedGrad< Type >::calcGrad(), faceLimitedGrad< Type >::calcGrad(), multiValveEngine::movingObject::calcScale(), Foam::cmptAv(), Foam::component(), function2::correct(), motionSmootherAlgo::curPoints(), pointFieldDecomposer::decomposeField(), fvFieldDecomposer::decomposeFvSurfaceField(), fvFieldDecomposer::decomposeVolField(), faceAreaPairGAMGAgglomeration::faceAreaPairGAMGAgglomeration(), CoEulerDdtScheme< Type >::fvcDdt(), SLTSDdtScheme< Type >::fvcDdt(), ddtScheme< Type >::fvcDdtPhiCoeff(), gaussConvectionScheme< Type >::fvmDiv(), gaussLaplacianScheme< Type, GType >::fvmLaplacianUncorrected(), multicomponentLagrangianThermo::implementation::implementation(), fvMeshSubset::interpolate(), sampledIsoSurfaceSurface::interpolateField(), Kmesh::Kmesh(), Foam::levelSetFraction(), Foam::mag(), Foam::magSqr(), main(), GeometricField< Type, GeoMesh, PrimitiveField >::operator=(), GeometricField< Type, GeoMesh, PrimitiveField >::operator==(), displacement::points(), Foam::pow(), pointFieldReconstructor::reconstructField(), fvFieldReconstructor::reconstructFvSurfaceField(), fvFieldReconstructor::reconstructVolField(), GeometricField< Type, GeoMesh, PrimitiveField >::reset(), sampledIsoSurfaceSurface::sampleField(), patchInternalField::sampleField(), multiphaseVoFSolver::setInterfaceRDeltaT(), twoPhaseVoFSolver::setInterfaceRDeltaT(), incompressibleFluid::setRDeltaT(), SlicedGeometricField< Type, GeoMesh >::SlicedGeometricField(), phaseSystem::solve(), Foam::sqr(), Foam::stabilise(), Foam::T(), Foam::transform(), Foam::fvc::volumeIntegrate(), clippedLinear< Type >::weights(), and reverseLinear< Type >::weights().

Here is the caller graph for this function:

◆ boundaryFieldRef()

Foam::GeometricField< Type, GeoMesh, PrimitiveField >::Boundary & boundaryFieldRef

Return a reference to the boundary field.

Note: this increments the event counter and checks the old-time fields; avoid in loops.

Definition at line 1416 of file GeometricField.C.

Referenced by MRFZone::addCentrifugalAcceleration(), Foam::adjustPhi(), Foam::atan2(), Foam::fvc::average(), Foam::bound(), limitTemperature::constrain(), Foam::constrainPhid(), PDRkEpsilon::correct(), mixtureKEpsilon< BasicMomentumTransportModel >::correct(), advectionDiffusion::correct(), gaussGrad< Type >::correctBoundaryConditions(), motionSmootherAlgo::correctBoundaryConditions(), phaseSystem::correctBoundaryFlux(), Foam::correctFixedFluxBCs(), phaseModel::correctInflowOutflow(), linearUpwindV< Type >::correction(), cubic< Type >::correction(), linearUpwind< Type >::correction(), phaseSystem::correctPhi(), Foam::correctUphiBCs(), fvFieldDecomposer::decomposeFvSurfaceField(), fvFieldDecomposer::decomposeVolField(), Foam::saturationModels::evaluate(), Foam::evaluate(), wallBoilingProperty::execute(), fvMatrix< Type >::flux(), ddtScheme< Type >::fvcDdtPhiCoeff(), fvMatrix< Type >::fvMatrix(), psiuMulticomponentThermo::heuBoundaryCorrection(), wallCellWallFunctionFvPatchScalarField::initMaster(), singleCellFvMesh::interpolate(), localMax< Type >::interpolate(), localMin< Type >::interpolate(), fvMeshSubset::interpolate(), interfaceCompressionNew::interpolate(), momentumTransferSystem::invADVs(), Foam::levelSetFraction(), Foam::MULES::limit(), PhiScheme< Type, PhiLimiter >::limiter(), Foam::mag(), Foam::magSqr(), makeMomentumTransportModelTypes(), Foam::MapGeometricFields(), fvMesh::movePoints(), JohnsonJacksonSchaeffer::nu(), Schaeffer::nu(), consumptionSpeed::omega0Sigma(), RaviPetersen::operator()(), inversePointDistanceDiffusivity::operator()(), fvPatch::patchField(), Foam::pow(), shockFluid::pressureCorrector(), constSolidThermo::readProperty(), nearWallFields::sampleBoundaryField(), motionSmootherAlgo::setDisplacementPatchFields(), pointConstraints::setPatchFields(), snGradScheme< Type >::snGrad(), Foam::stabilise(), Gulder::Su(), RaviPetersen::Su(), MPLIC::surfaceAlpha(), Foam::T(), Foam::transform(), waveSurfacePressureFvPatchScalarField::updateCoeffs(), greyDiffusiveRadiationMixedFvPatchScalarField::updateCoeffs(), wideBandDiffusiveRadiationMixedFvPatchScalarField::updateCoeffs(), extendedCellToFaceStencil::weightedSum(), clippedLinear< Type >::weights(), reverseLinear< Type >::weights(), limitedSurfaceInterpolationScheme< Type >::weights(), Foam::patchCutPlot::writeLayers(), SCOPEXiEq::XiEq(), MRFZone::zero(), and wallLubricationModel::zeroGradWalls().

Here is the caller graph for this function:

◆ boundaryFieldRefNoStoreOldTimes()

Foam::GeometricField< Type, GeoMesh, PrimitiveField >::Boundary & boundaryFieldRefNoStoreOldTimes

Return a reference to the boundary field without storing old times.

Note: this increments the event counter; avoid in loops.

Definition at line 1427 of file GeometricField.C.

◆ boundaryField()

const Foam::GeometricField< Type, GeoMesh, PrimitiveField >::Boundary & boundaryField

inline

Return const-reference to the boundary field.

Definition at line 59 of file GeometricFieldI.H.

Here is the caller graph for this function:

◆ sourcesRef()

Foam::GeometricField< Type, GeoMesh, PrimitiveField >::Sources & sourcesRef

Return a reference to the sources.

Note: this increments the event counter and checks the old-time fields; avoid in loops.

Definition at line 1438 of file GeometricField.C.

◆ sources()

const Foam::GeometricField< Type, GeoMesh, PrimitiveField >::Sources & sources

inline

Return const-reference to the sources.

Definition at line 68 of file GeometricFieldI.H.

Referenced by fvSpecificSource::addSupType(), fvTotalSource::addSupType(), fvFieldDecomposer::decomposeVolField(), fvFieldSource< Type >::fieldSource(), LagrangianFieldSourceBase::fieldSource(), growthSecondaryPropertyFvScalarFieldSource::internalCoeff(), energyFvScalarFieldSource::internalCoeff(), GeometricField< Type, GeoMesh, PrimitiveField >::operator/=(), GeometricField< Type, GeoMesh, PrimitiveField >::reset(), cloud::Sfield(), growthSecondaryPropertyFvScalarFieldSource::sourceCoeffs(), basicLagrangianThermo::sourcesTypes(), energyFvScalarFieldSource::sourceValue(), compressibilityLagrangianScalarFieldSource::value(), densityLagrangianScalarFieldSource::value(), dynamicViscosityLagrangianScalarFieldSource::value(), energyLagrangianScalarFieldSource::value(), specificHeatCapacityLagrangianScalarFieldSource::value(), and thermalConductivityLagrangianScalarFieldSource::value().

Here is the caller graph for this function:

◆ storePrevIter()

void storePrevIter

Store the field as the previous iteration value.

Definition at line 1447 of file GeometricField.C.

References Foam::endl(), InfoInFunction, and Foam::name().

Referenced by singleRegionSolutionControl::storePrevIterTypeFields().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clearPrevIter()

void clearPrevIter

Delete the previous iteration field.

Definition at line 1473 of file GeometricField.C.

References Foam::deleteDemandDrivenData().

Here is the call graph for this function:

◆ prevIter()

const Foam::GeometricField< Type, GeoMesh, Foam::Field > & prevIter

Return previous iteration field.

Definition at line 1481 of file GeometricField.C.

References Foam::abort(), Foam::endl(), Foam::FatalError, and FatalErrorInFunction.

Here is the call graph for this function:

◆ USING_OLD_TIME_FIELD()

USING_OLD_TIME_FIELD ( GeometricField< Type, GeoMesh, PrimitiveField > )

Use old-time methods from the base class.

◆ correctBoundaryConditions()

void correctBoundaryConditions

Correct boundary field.

Definition at line 1497 of file GeometricField.C.

Referenced by porosityModel::addResistance(), MomentumCloud< CloudType >::alpha(), Foam::fvc::average(), cellCoBlended< Type >::blendingFactor(), XiFluid::bSolve(), Implicit< CloudType >::cacheFields(), cellMDLimitedGrad< Type >::calcGrad(), faceLimitedGrad< Type >::calcGrad(), faceMDLimitedGrad< Type >::calcGrad(), pointConstraints::constrain(), pointConstraints::constrainDisplacement(), PDRkEpsilon::correct(), mixtureKEpsilon< BasicMomentumTransportModel >::correct(), SlicedGeometricField< Type, GeoMesh >::correctBoundaryConditions(), SpalartAllmarasDES< BasicMomentumTransportModel >::correctNut(), SpalartAllmaras< BasicMomentumTransportModel >::correctNut(), incompressibleDenseParticleFluid::correctPressure(), incompressibleFluid::correctPressure(), fvMatrix< Type >::H(), fvMatrix< Type >::H1(), incompressibleDenseParticleFluid::incompressibleDenseParticleFluid(), twoPhaseSolver::incompressiblePressureCorrector(), SpalartAllmarasDES< BasicMomentumTransportModel >::k(), makeMomentumTransportModelTypes(), JohnsonJacksonSchaeffer::nu(), Schaeffer::nu(), inverseVolumeDiffusivity::operator()(), compressibleMultiphaseVoF::pressureCorrector(), compressibleVoF::pressureCorrector(), incompressibleMultiphaseVoF::pressureCorrector(), shockFluid::pressureCorrector(), constSolidThermo::readProperty(), multiphaseVoFSolver::setInterfaceRDeltaT(), twoPhaseVoFSolver::setInterfaceRDeltaT(), incompressibleFluid::setRDeltaT(), Foam::fvc::smooth(), Foam::fvc::spread(), Foam::fvc::surfaceIntegrateExtrapolate(), Foam::fvc::sweep(), multicomponentFluid::thermophysicalPredictor(), XiFluid::uSolve(), and MomentumCloud< CloudType >::vDotSweep().

Here is the caller graph for this function:

◆ reset() [1/3]

void reset ( const GeometricField< Type, GeoMesh, PrimitiveField2 > & gf )

Reset the field contents to the given field.

Used for mesh to mesh mapping

Definition at line 1508 of file GeometricField.C.

References GeometricField< Type, GeoMesh, PrimitiveField >::boundaryField(), and GeometricField< Type, GeoMesh, PrimitiveField >::sources().

Referenced by Foam::MeshToMeshMapVolFields(), and FunctionalGeometricField< Type, GeoMesh >::reset().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ reset() [2/3]

void reset ( const tmp< GeometricField< Type, GeoMesh, PrimitiveField >> & tgf )

Reset the field contents to the given tmp-field.

Used for mesh to mesh mapping

Definition at line 1521 of file GeometricField.C.

References GeometricField< Type, GeoMesh, PrimitiveField >::boundaryField(), checkFieldAssignment, DimensionedField< Type, GeoMesh, PrimitiveField >::dimensions(), GeometricField< Type, GeoMesh, PrimitiveField >::primitiveField(), and GeometricField< Type, GeoMesh, PrimitiveField >::sources().

Here is the call graph for this function:

◆ reset() [3/3]

void reset ( const tmp< GeometricField< Type, GeoMesh, PrimitiveField2 >> & tgf )

Reset the field contents to the given tmp-field.

Used for mesh to mesh mapping

Definition at line 1550 of file GeometricField.C.

◆ needReference()

bool needReference

Does the field need a reference level for solution.

Definition at line 1562 of file GeometricField.C.

References forAll, patchi, and Foam::reduce().

Referenced by Foam::fv::CorrectPhi(), incompressibleDenseParticleFluid::correctPressure(), incompressibleFluid::correctPressure(), twoPhaseSolver::incompressiblePressureCorrector(), incompressibleMultiphaseVoF::pressureCorrector(), and Foam::setRefCell().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ component() [1/3]

tmp<GeometricField<cmptType, GeoMesh, Field> > component ( const direction ) const

Return a component of the field.

Referenced by anisotropicFilter::anisotropicFilter(), correctedSnGrad< Type >::correction(), faceCorrectedSnGrad< Type >::correction(), linearUpwind< Type >::correction(), cubic< Type >::correction(), Foam::fvc::magSqrGradGrad(), skewCorrected< Type >::skewCorrection(), and fvMatrix< Type >::solveCoupled().

Here is the caller graph for this function:

◆ writeData()

bool writeData ( Ostream & os ) const

virtual

WriteData member function required by regIOobject.

Reimplemented from DimensionedField< Type, GeoMesh, PrimitiveField >.

Definition at line 1705 of file GeometricField.C.

References IOstream::good().

Referenced by GeometricField< Type, GeoMesh, PrimitiveField >::operator/=().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ T()

Foam::tmp< Foam::GeometricField< Type, GeoMesh, Foam::Field > > T

Return transpose (only if it is a tensor field)

Definition at line 1719 of file GeometricField.C.

References mesh, Foam::name(), tmp< T >::ref(), and Foam::T().

Referenced by compressibleVoFphase::compressibleVoFphase(), IsothermalPhaseModel< BasePhaseModel >::correctThermo(), flowType::execute(), displacementSBRStress::newPoints(), and ReynoldsStress< BasicMomentumTransportModel >::Refff().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ relax() [1/4]

void relax ( const scalar alpha )

Relax field (for steady-state solution).

alpha >= 1 : no relaxation alpha < 1 : relaxation

Definition at line 1585 of file GeometricField.C.

References alpha(), Foam::endl(), InfoInFunction, and Foam::operator==().

Referenced by incompressibleDenseParticleFluid::correctPressure(), incompressibleFluid::correctPressure(), twoPhaseSolver::incompressiblePressureCorrector(), main(), and incompressibleMultiphaseVoF::pressureCorrector().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ relaxationFactor()

Foam::scalar relaxationFactor

Return the field relaxation factor read from fvSolution.

or 1 if not specified

Definition at line 1606 of file GeometricField.C.

References solution::fieldRelaxationFactor(), solutionControl::finalIteration(), mesh, Foam::name(), and fvMesh::solution().

Here is the call graph for this function:

◆ relax() [2/4]

void relax

Relax current field with respect to the cached previous iteration.

Relaxation factor is read from fvSolution

Definition at line 1631 of file GeometricField.C.

References relax().

Here is the call graph for this function:

◆ relax() [3/4]

void relax	(	const tmp< GeometricField< Type, GeoMesh, PrimitiveField2 >> &	tgf,
		const scalar	alpha
	)

Relax given field with respect to the current field.

and reset the field to the result

Definition at line 1639 of file GeometricField.C.

References alpha(), Foam::endl(), InfoInFunction, and Foam::operator==().

Here is the call graph for this function:

◆ relax() [4/4]

void relax ( const tmp< GeometricField< Type, GeoMesh, PrimitiveField2 >> & tgf )

Relax given field with respect to the current field.

and reset the field to the result Relaxation factor is read from fvSolution

Definition at line 1665 of file GeometricField.C.

References relax().

Here is the call graph for this function:

◆ select()

Foam::word select ( bool final ) const

Select the final iteration parameters if `final' is true.

by returning the field name + "Final" otherwise the standard parameters by returning the field name

Definition at line 1675 of file GeometricField.C.

References Foam::name().

Here is the call graph for this function:

◆ writeMinMax()

void writeMinMax ( Ostream & os ) const

Helper function to write the min and max to an Ostream.

Definition at line 1692 of file GeometricField.C.

References Foam::endl(), Foam::max(), Foam::min(), and Foam::name().

Here is the call graph for this function:

◆ negate()

void negate

Definition at line 1858 of file GeometricField.C.

References primitiveFieldRef().

Here is the call graph for this function:

◆ replace() [1/7]

void replace	(	const	direction,
		const GeometricField< cmptType, GeoMesh, PrimitiveField2 > &
	)

Replace a component field of the field.

Referenced by correctedSnGrad< Type >::correction(), faceCorrectedSnGrad< Type >::correction(), cubic< Type >::correction(), fvMatrix< Type >::H(), and fvMatrix< Type >::solveSegregated().

Here is the caller graph for this function:

◆ replace() [2/7]

void replace	(	const	direction,
		const tmp< GeometricField< cmptType, GeoMesh, PrimitiveField2 >> &
	)

Replace a component field of the field.

◆ replace() [3/7]

void replace	(	const direction	d,
		const dimensioned< cmptType > &	ds
	)

Replace a component field of the field.

Definition at line 1810 of file GeometricField.C.

References primitiveFieldRef(), and dimensioned< Type >::value().

Here is the call graph for this function:

◆ max()

void max ( const dimensioned< Type > & dt )

Definition at line 1822 of file GeometricField.C.

References Foam::max(), primitiveFieldRef(), and dimensioned< Type >::value().

Referenced by Moraga::Cl(), Foam::combine(), and incompressibleFluid::setRDeltaT().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ min()

void min ( const dimensioned< Type > & dt )

Definition at line 1833 of file GeometricField.C.

References Foam::min(), primitiveFieldRef(), and dimensioned< Type >::value().

Referenced by Moraga::Cl(), Foam::combine(), and incompressibleFluid::setRDeltaT().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ maxMin()

void maxMin	(	const dimensioned< Type > &	minDt,
		const dimensioned< Type > &	maxDt
	)

Definition at line 1844 of file GeometricField.C.

References Foam::max(), Foam::min(), primitiveFieldRef(), and dimensioned< Type >::value().

Referenced by comfort::execute(), and phaseSystem::solve().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator()()

const Foam::GeometricField< Type, GeoMesh, PrimitiveField >::Internal & operator()

inline

Return a const-reference to the dimensioned internal field.

Useful in the formulation of source-terms for FV equations

Definition at line 79 of file GeometricFieldI.H.

◆ operator=() [1/7]

void operator= ( const GeometricField< Type, GeoMesh, PrimitiveField > & gf )

Definition at line 1868 of file GeometricField.C.

References GeometricField< Type, GeoMesh, PrimitiveField >::boundaryField(), checkFieldAssignment, checkFieldOperation, and GeometricField< Type, GeoMesh, PrimitiveField >::internalField().

Here is the call graph for this function:

◆ operator=() [2/7]

void operator= ( GeometricField< Type, GeoMesh, PrimitiveField > && gf )

Definition at line 1882 of file GeometricField.C.

References GeometricField< Type, GeoMesh, PrimitiveField >::boundaryField(), checkFieldAssignment, checkFieldOperation, and GeometricField< Type, GeoMesh, PrimitiveField >::internalField().

Here is the call graph for this function:

◆ operator=() [3/7]

void operator= ( const GeometricField< Type, GeoMesh, PrimitiveField2 > & gf )

Definition at line 1897 of file GeometricField.C.

References GeometricField< Type, GeoMesh, PrimitiveField >::boundaryField(), checkFieldOperation, and GeometricField< Type, GeoMesh, PrimitiveField >::internalField().

Here is the call graph for this function:

◆ operator=() [4/7]

void operator= ( const tmp< GeometricField< Type, GeoMesh, PrimitiveField >> & tgf )

Definition at line 1910 of file GeometricField.C.

References GeometricField< Type, GeoMesh, PrimitiveField >::boundaryField(), checkFieldAssignment, checkFieldOperation, PtrList< T >::clear(), DimensionedField< Type, GeoMesh, PrimitiveField >::dimensions(), GeometricField< Type, GeoMesh, PrimitiveField >::primitiveField(), and primitiveFieldRef().

Here is the call graph for this function:

◆ operator=() [5/7]

void operator= ( const tmp< GeometricField< Type, GeoMesh, PrimitiveField2 >> & tgf )

Definition at line 1939 of file GeometricField.C.

References GeometricField< Type, GeoMesh, PrimitiveField >::boundaryField(), checkFieldOperation, PtrList< T >::clear(), and GeometricField< Type, GeoMesh, PrimitiveField >::internalField().

Here is the call graph for this function:

◆ operator=() [6/7]

void operator= ( const dimensioned< Type > & dt )

Definition at line 1956 of file GeometricField.C.

References dimensioned< Type >::value().

Here is the call graph for this function:

◆ operator=() [7/7]

void operator= ( const zero & )

Definition at line 1967 of file GeometricField.C.

References Foam::Zero.

◆ operator==() [1/5]

void operator== ( const GeometricField< Type, GeoMesh, PrimitiveField2 > & gf )

Definition at line 1979 of file GeometricField.C.

References GeometricField< Type, GeoMesh, PrimitiveField >::boundaryField(), checkFieldOperation, and GeometricField< Type, GeoMesh, PrimitiveField >::internalField().

Here is the call graph for this function:

◆ operator==() [2/5]

void operator== ( const tmp< GeometricField< Type, GeoMesh, PrimitiveField >> & tgf )

Definition at line 1992 of file GeometricField.C.

References GeometricField< Type, GeoMesh, PrimitiveField >::boundaryField(), checkFieldOperation, PtrList< T >::clear(), DimensionedField< Type, GeoMesh, PrimitiveField >::dimensions(), GeometricField< Type, GeoMesh, PrimitiveField >::primitiveField(), and primitiveFieldRef().

Here is the call graph for this function:

◆ operator==() [3/5]

void operator== ( const tmp< GeometricField< Type, GeoMesh, PrimitiveField2 >> & tgf )

Definition at line 2020 of file GeometricField.C.

References GeometricField< Type, GeoMesh, PrimitiveField >::boundaryField(), checkFieldOperation, PtrList< T >::clear(), and GeometricField< Type, GeoMesh, PrimitiveField >::internalField().

Here is the call graph for this function:

◆ operator==() [4/5]

void operator== ( const dimensioned< Type > & dt )

Definition at line 2037 of file GeometricField.C.

References dimensioned< Type >::value().

Here is the call graph for this function:

◆ operator==() [5/5]

void operator== ( const zero & )

Definition at line 2048 of file GeometricField.C.

References Foam::Zero.

◆ operator+=() [1/3]

void operator+= ( const GeometricField< Type, GeoMesh, PrimitiveField2 > & gf )

Definition at line 2094 of file GeometricField.C.

◆ operator+=() [2/3]

void operator+= ( const tmp< GeometricField< Type, GeoMesh, PrimitiveField2 >> & tgf )

Definition at line 2094 of file GeometricField.C.

◆ operator+=() [3/3]

void operator+= ( const dimensioned< Type > & dt )

Definition at line 2094 of file GeometricField.C.

◆ operator-=() [1/3]

void operator-= ( const GeometricField< Type, GeoMesh, PrimitiveField2 > & gf )

Definition at line 2095 of file GeometricField.C.

◆ operator-=() [2/3]

void operator-= ( const tmp< GeometricField< Type, GeoMesh, PrimitiveField2 >> & tgf )

Definition at line 2095 of file GeometricField.C.

◆ operator-=() [3/3]

void operator-= ( const dimensioned< Type > & dt )

Definition at line 2095 of file GeometricField.C.

◆ operator*=() [1/3]

void operator*= ( const GeometricField< scalar, GeoMesh, PrimitiveField2 > & gf )

Definition at line 2096 of file GeometricField.C.

◆ operator*=() [2/3]

void operator*= ( const tmp< GeometricField< scalar, GeoMesh, PrimitiveField2 >> & tgf )

Definition at line 2096 of file GeometricField.C.

◆ operator*=() [3/3]

void operator*= ( const dimensioned< scalar > & dt )

Definition at line 2096 of file GeometricField.C.

◆ operator/=() [1/3]

void operator/= ( const GeometricField< scalar, GeoMesh, PrimitiveField2 > & gf )

Definition at line 2097 of file GeometricField.C.

References GeometricField< Type, GeoMesh, PrimitiveField >::boundaryField(), Foam::nl, GeometricField< Type, GeoMesh, PrimitiveField >::sources(), GeometricField< Type, GeoMesh, PrimitiveField >::writeData(), GeometricBoundaryField< Type, GeoMesh, PrimitiveField >::writeEntry(), and GeometricFieldSources< Type, GeoMesh, PrimitiveField >::writeEntry().

Here is the call graph for this function:

◆ operator/=() [2/3]

void operator/= ( const tmp< GeometricField< scalar, GeoMesh, PrimitiveField2 >> & tgf )

Definition at line 2097 of file GeometricField.C.

◆ operator/=() [3/3]

void operator/= ( const dimensioned< scalar > & dt )

Definition at line 2097 of file GeometricField.C.

◆ New() [14/17]

Foam::tmp<Foam::GeometricField<Type, GeoMesh, PrimitiveField> > New	(	const word &	newName,
		const GeometricField< Type, GeoMesh, PrimitiveField2 > &	gf,
		const word &	patchFieldType
	)

Definition at line 1090 of file GeometricField.C.

References IOobject::db(), IOobject::instance(), IOobject::local(), IOobject::NO_READ, IOobject::NO_WRITE, Foam::patchFieldType(), and objectRegistry::temporaryObjectCached().

Here is the call graph for this function:

◆ New() [15/17]

Foam::tmp<Foam::GeometricField<Type, GeoMesh, PrimitiveField> > New	(	const word &	newName,
		const DimensionedField< Type, GeoMesh, PrimitiveField2 > &	df,
		const word &	patchFieldType
	)

Definition at line 1157 of file GeometricField.C.

References IOobject::db(), IOobject::instance(), IOobject::local(), IOobject::NO_READ, IOobject::NO_WRITE, Foam::patchFieldType(), and objectRegistry::temporaryObjectCached().

Here is the call graph for this function:

◆ New() [16/17]

Foam::tmp<Foam::GeometricField<Type, GeoMesh, PrimitiveField> > New	(	const word &	newName,
		const GeometricField< Type, GeoMesh, PrimitiveField2 > &	gf,
		const wordList &	patchFieldTypes,
		const wordList &	actualPatchTypes,
		const HashTable< word > &	fieldSourceTypes,
		const IOerrorLocation &	fieldSourceErrorLocation
	)

Definition at line 1224 of file GeometricField.C.

References IOobject::db(), IOobject::instance(), IOobject::local(), IOobject::NO_READ, IOobject::NO_WRITE, and objectRegistry::temporaryObjectCached().

Here is the call graph for this function:

◆ New() [17/17]

Foam::tmp<Foam::GeometricField<Type, GeoMesh, PrimitiveField> > New	(	const word &	newName,
		const DimensionedField< Type, GeoMesh, PrimitiveField2 > &	df,
		const wordList &	patchFieldTypes,
		const wordList &	actualPatchTypes,
		const HashTable< word > &	fieldSourceTypes,
		const IOerrorLocation &	fieldSourceErrorLocation
	)

Definition at line 1303 of file GeometricField.C.

References IOobject::db(), IOobject::instance(), IOobject::local(), IOobject::NO_READ, IOobject::NO_WRITE, and objectRegistry::temporaryObjectCached().

Here is the call graph for this function:

◆ replace() [4/7]

void replace	(	const direction	d,
		const GeometricField< typename GeometricField< Type, GeoMesh, PrimitiveField >::cmptType, GeoMesh, PrimitiveField2 > &	gcf
	)

Definition at line 1772 of file GeometricField.C.

References primitiveFieldRef().

Here is the call graph for this function:

◆ replace() [5/7]

void replace	(	const direction	d,
		const tmp< GeometricField< typename GeometricField< Type, GeoMesh, PrimitiveField >::cmptType, GeoMesh, PrimitiveField2 > > &	gcf
	)

Definition at line 1790 of file GeometricField.C.

◆ component() [2/3]

tmp< VolField< scalar > > component ( const direction ) const

inline

◆ replace() [6/7]

void replace	(	const	direction,
		const GeometricField< scalar, fvMesh, PrimitiveField > &	sf
	)

inline

◆ component() [3/3]

Foam::tmp< Foam::GeometricField< Foam::scalar, Foam::fvMesh > > component ( const direction ) const

inline

Definition at line 38 of file volFieldsI.H.

◆ replace() [7/7]

void replace	(	const	direction,
		const GeometricField< scalar, fvMesh, PrimitiveField > &	gsf
	)

inline

Definition at line 49 of file volFieldsI.H.

Friends And Related Function Documentation

◆ GeometricField

friend class GeometricField

friend

Declare friendship with other geometric fields.

Definition at line 161 of file GeometricField.H.

◆ operator [1/2]

Ostream& operator	(	Ostream &	,
		const GeometricField< Type, GeoMesh, PrimitiveField > &
	)

friend

◆ operator [2/2]

Ostream& operator	(	Ostream &	,
		const tmp< GeometricField< Type, GeoMesh, PrimitiveField >> &
	)

friend

The documentation for this class was generated from the following files:

src/finiteVolume/fields/GeometricFields/GeometricField/GeometricField.H
src/finiteVolume/fields/GeometricFields/GeometricField/GeometricField.C
src/finiteVolume/fields/GeometricFields/GeometricField/GeometricFieldI.H
src/finiteVolume/fields/GeometricFields/volFields/volFieldsI.H

Public Types

Public Member Functions

Static Public Member Functions

Friends

Additional Inherited Members

Detailed Description

template<class Type, class GeoMesh, template< class > class PrimitiveField> class Foam::GeometricField< Type, GeoMesh, PrimitiveField >

Member Typedef Documentation

◆ Type_

◆ GeoMesh_

◆ Mesh

◆ Internal

◆ Base

◆ Patch

◆ Boundary

◆ Source

◆ Sources

◆ cmptType

Constructor & Destructor Documentation

◆ GeometricField() [1/23]

◆ GeometricField() [2/23]

◆ GeometricField() [3/23]

◆ GeometricField() [4/23]

◆ GeometricField() [5/23]

◆ GeometricField() [6/23]

◆ GeometricField() [7/23]

◆ GeometricField() [8/23]

◆ GeometricField() [9/23]

◆ GeometricField() [10/23]

◆ GeometricField() [11/23]

◆ GeometricField() [12/23]

◆ GeometricField() [13/23]

◆ GeometricField() [14/23]

◆ GeometricField() [15/23]

◆ GeometricField() [16/23]

◆ GeometricField() [17/23]

◆ GeometricField() [18/23]

◆ GeometricField() [19/23]

◆ GeometricField() [20/23]

◆ GeometricField() [21/23]

◆ GeometricField() [22/23]

◆ GeometricField() [23/23]

◆ ~GeometricField()

Member Function Documentation

◆ TypeName()

◆ null()

◆ clone()

◆ cloneUnSliced()

◆ New() [1/17]

◆ New() [2/17]

◆ New() [3/17]

◆ New() [4/17]

◆ New() [5/17]

◆ New() [6/17]

◆ New() [7/17]

◆ New() [8/17]

◆ New() [9/17]

◆ New() [10/17]

◆ New() [11/17]

◆ New() [12/17]

◆ New() [13/17]

◆ internalFieldRef()

◆ internalField()

◆ v()

◆ primitiveFieldRef()

◆ primitiveField()

◆ boundaryFieldRef()

◆ boundaryFieldRefNoStoreOldTimes()

◆ boundaryField()

◆ sourcesRef()

◆ sources()

◆ storePrevIter()

◆ clearPrevIter()

◆ prevIter()

◆ USING_OLD_TIME_FIELD()

◆ correctBoundaryConditions()

◆ reset() [1/3]

◆ reset() [2/3]

◆ reset() [3/3]

◆ needReference()

template<class Type, class GeoMesh, template< class > class PrimitiveField>
class Foam::GeometricField< Type, GeoMesh, PrimitiveField >
