A faceZone zoneGenerator which selects faces based on the intersection of a surface with the vector between the adjacent cell centres. More...

Inheritance diagram for surface:

[legend]

Collaboration diagram for surface:

[legend]

Public Member Functions
	TypeName ("surface")
	Runtime type information. More...

	surface (const word &name, const polyMesh &mesh, const dictionary &dict)
	Construct from dictionary. More...

virtual	~surface ()
	Destructor. More...

virtual zoneSet	generate () const
	Generate and return the zoneSet. More...

Public Member Functions inherited from zoneGenerator
	TypeName ("zoneGenerator")
	Runtime type information. More...

	declareRunTimeSelectionTable (autoPtr, zoneGenerator, dictionary,(const word &name, const polyMesh &mesh, const dictionary &dict),(name, mesh, dict))

	zoneGenerator (const word &name, const polyMesh &mesh, const dictionary &dict)
	Construct from name, polyMesh and dictionary. More...

	zoneGenerator (const zoneGenerator &)=delete
	Disallow default bitwise copy construction. More...

virtual	~zoneGenerator ()
	Destructor. More...

const word &	name () const

const word &	zoneName () const

bool	moveUpdate () const
	Return true if the zoneGenerator updates any of the zones. More...

virtual zoneSet	movePoints () const
	Regenerate the zoneSet following mesh point motion. More...

void	operator= (const zoneGenerator &)=delete
	Disallow default bitwise assignment. More...

Additional Inherited Members
Static Public Member Functions inherited from zoneGenerator
static autoPtr< zoneGenerator >	New (const word &name, const polyMesh &mesh, const dictionary &dict)
	Select constructed from name, mesh and dictionary. More...

static autoPtr< zoneGenerator >	New (const word &name, const zoneTypes &zoneType, const polyMesh &mesh, const dictionary &dict)
	Select constructed from name, zoneType, mesh and dictionary. More...

static autoPtr< zoneGenerator >	New (const polyMesh &mesh, const dictionary &dict)
	Select constructed from mesh and first valid dictionary. More...

static labelList	indices (const boolList &selected)
	Return the list of selected indices. More...

Protected Attributes inherited from zoneGenerator
const word	name_
	Name of zone generator. More...

const dictionary	dict_
	Dictionary cached for error context. More...

const word	zoneName_
	Name of the zone (defaults to the name of the generator) More...

const polyMesh &	mesh_
	Reference to the polyMesh. More...

bool	moveUpdate_
	Switch to update the zones if the mesh points are moved. More...

Detailed Description

A faceZone zoneGenerator which selects faces based on the intersection of a surface with the vector between the adjacent cell centres.

The returned faceZone is oriented and provides the corresponding flipMap.

Usage

Property	Description	Required	Default value
`type`	Type: face	yes
`name`	Name of the zone	no	zoneGenerator name
`surface`	searchableSurface type	yes
`tol`	cell-cell vector intersection tolerance	no	rootSmall
`moveUpdate`	Switch to update after mesh motion	no	false

To create the faceZone baffles containing the faces based on the adjacent cell centres spanning the given triangulated surface:

        baffles
        {
            type        surface;
            surface     triSurface;
            file        "baffles.obj";
        }

To create the faceZone rotatingZone containing the faces based on the adjacent cell centres spanning the given cylinder:

        rotatingZone
        {
            type        surface;
            surface     cylinder;
            point1      (0 0 0.54);
            point2      (0 0 0.66);
            radius      0.2;
        }

See also: searchableSurface zoneGenerators::plane_zoneGenerator

Source files

Definition at line 124 of file surface_zoneGenerator.H.

Constructor & Destructor Documentation

◆ surface()

surface	(	const word &	name,
		const polyMesh &	mesh,
		const dictionary &	dict
	)

Construct from dictionary.

Definition at line 52 of file surface_zoneGenerator.C.

◆ ~surface()

~surface ( )

virtual

Destructor.

Definition at line 87 of file surface_zoneGenerator.C.

Member Function Documentation

◆ TypeName()

TypeName ( "surface" )

Runtime type information.

◆ generate()

Foam::zoneSet generate ( ) const

virtual

Generate and return the zoneSet.

Implements zoneGenerator.

Definition at line 93 of file surface_zoneGenerator.C.

References forAll, patchi, List< T >::resize(), List< T >::setSize(), Foam::sign(), List< T >::size(), syncTools::swapBoundaryCellList(), and syncTools::swapBoundaryCellPositions().

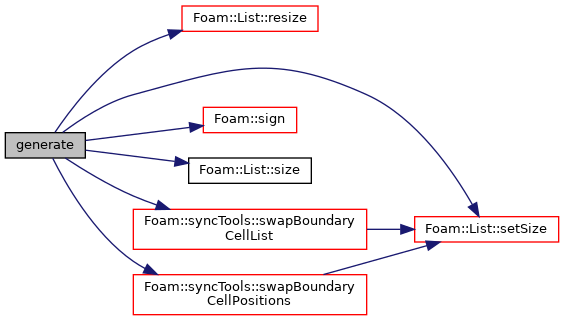

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/meshTools/zoneGenerators/face/surface/surface_zoneGenerator.H
src/meshTools/zoneGenerators/face/surface/surface_zoneGenerator.C
