From a set of input surface geometry files and some configuration parameters, writes out a snappyHexMeshDict configuration file. More...

Inheritance diagram for snappyHexMeshConfiguration:

[legend]

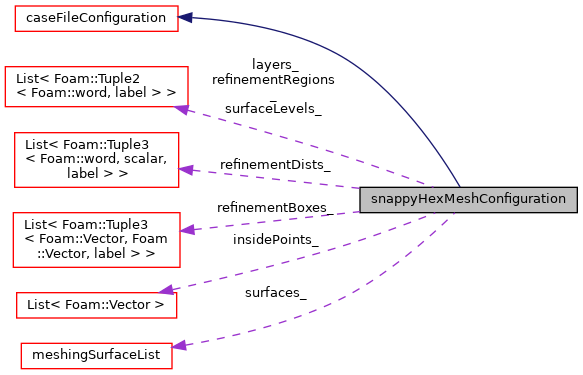

Collaboration diagram for snappyHexMeshConfiguration:

[legend]

Public Member Functions
	snappyHexMeshConfiguration (const fileName &name, const fileName &dir, const Time &time, const meshingSurfaceList &surfaces, const label refinementLevel, const List< Tuple2< word, label >> &surfaceLevels, const List< Tuple2< word, label >> &refinementRegions, const List< Tuple3< vector, vector, label >> &refinementBoxes, const List< Tuple3< word, scalar, label >> &refinementDists, const bool explicitFeatures, const List< Tuple2< word, label >> &layers, const scalar firstLayerThickness, const scalar layerExpansionRatio, const bool insidePointsOpt, const List< point > &insidePoints, const label nCellsBetweenLevels)
	Construct from components. More...

	snappyHexMeshConfiguration (const snappyHexMeshConfiguration &)=delete
	Disallow default bitwise copy construction. More...

	~snappyHexMeshConfiguration ()
	Destructor. More...

void	write ()

void	operator= (const snappyHexMeshConfiguration &)=delete
	Disallow default bitwise assignment. More...

Public Member Functions inherited from caseFileConfiguration
	caseFileConfiguration (const fileName &name, const fileName &dir, const Time &time)
	Construct from components. More...

	caseFileConfiguration (const caseFileConfiguration &)=delete
	Disallow default bitwise copy construction. More...

	~caseFileConfiguration ()
	Destructor. More...

void	operator= (const caseFileConfiguration &)=delete
	Disallow default bitwise assignment. More...

Protected Types
typedef meshingSurface::surfaceType	surfaceType
	The surface type. More...

Protected Member Functions
void	writeSnappySwitches ()
	Write switches. More...

void	writeGeometrySurface (const label surfID)
	Write surface entry for geometry sub-dictionary. More...

void	writeSearchableBox (const label i)
	Write searchableBox entry for geometry sub-dictionary. More...

void	writeSnappyGeometry ()
	Write geometry sub-dictionary. More...

void	writeFeatures ()
	Write features list in castellatedMeshControls. More...

void	writeRefinementSurfacesLevel (const label rl)
	Write refinementSurfaces level entry. More...

void	writeRefinementSurfacesLevel ()
	Write refinementSurfaces level entry using refinementLevel_. More...

void	writeRefinementSurfacesLevel (const word &name)
	Write refinementSurfaces level entry for a surface with name. More...

void	writePatchInfo (const word &type, const word &group="")
	Write refinementSurfaces wall patchInfo entry. More...

void	writeRefinementSurfaces ()
	Write refinementSurfaces. More...

void	writeRefinementSurfacesRegion (const word regionName, const List< word > &regions)
	Write a refinement surface region. More...

void	writeRefinementSurfacesRegions (const wordList &inletRegions, const wordList &outletRegions)
	Write refinement surface region information. More...

void	writeRefinementRegion (const word &name, const label level)
	Write a refinement region. More...

void	writeRefinementRegions ()
	Write refinementRegions. More...

void	writeCastellatedMeshControls ()
	Write castellatedMeshControls. More...

void	writeSnapControls ()
	Write snapControls. More...

void	writeAddLayersControls ()
	Write addLayersControls. More...

void	writeWriteFlags ()
	Write writeFlags. More...

Protected Member Functions inherited from caseFileConfiguration
void	beginDict (OFstream &os)
	Output stream to begin a new dictionary without name. More...

void	beginDict (OFstream &os, const word &name)
	Output stream to begin a new dictionary with name. More...

void	endDict (OFstream &os, bool newline=true)
	Output stream to end a dictionary. More...

void	beginList (OFstream &os)
	Output stream to begin a new list without name. More...

void	beginList (OFstream &os, const word &name)
	Output stream to begin a new list with name. More...

void	endList (OFstream &os, bool newline=true)
	Output stream to end a list. More...

Protected Attributes
const meshingSurfaceList &	surfaces_
	List of surfaces used for meshing. More...

const label	refinementLevel_
	Refinement level applied across the snappyHexMeshDict file. More...

const List< Tuple2< word, label > > &	surfaceLevels_
	Level of refinement on specified surfaces. More...

const List< Tuple2< word, label > > &	refinementRegions_
	Refinement regions specified by surface and level. More...

const List< Tuple3< vector, vector, label > > &	refinementBoxes_
	Refinement boxes with level of refinement. More...

const List< Tuple3< word, scalar, label > > &	refinementDists_
	Refinement distances with level of refinement. More...

const bool	explicitFeatures_
	Using explicit feature capturing? More...

const List< Tuple2< word, label > >	layers_
	Number of layers on specified surfaces. More...

const scalar	firstLayerThickness_
	Thickness of the near wall cells with layer addition. More...

const scalar	layerExpansionRatio_
	Expansion ratio used with layer addition. More...

const bool	insidePointsOpt_
	insidePoints option (true when '-insidePoints' selected) More...

const List< point >	insidePoints_
	insidePoints More...

const label	nCellsBetweenLevels_
	nCellsBetweenLevels parameter More...

Protected Attributes inherited from caseFileConfiguration
IOobject	dict_
	IOobject to write file headers. More...

OFstream	os_
	Output file stream to write file content. More...

Detailed Description

From a set of input surface geometry files and some configuration parameters, writes out a snappyHexMeshDict configuration file.

Source files

Definition at line 52 of file snappyHexMeshConfiguration.H.

Member Typedef Documentation

◆ surfaceType

typedef meshingSurface::surfaceType surfaceType

protected

The surface type.

Definition at line 61 of file snappyHexMeshConfiguration.H.

Constructor & Destructor Documentation

◆ snappyHexMeshConfiguration() [1/2]

snappyHexMeshConfiguration	(	const fileName &	name,
		const fileName &	dir,
		const Time &	time,
		const meshingSurfaceList &	surfaces,
		const label	refinementLevel,
		const List< Tuple2< word, label >> &	surfaceLevels,
		const List< Tuple2< word, label >> &	refinementRegions,
		const List< Tuple3< vector, vector, label >> &	refinementBoxes,
		const List< Tuple3< word, scalar, label >> &	refinementDists,
		const bool	explicitFeatures,
		const List< Tuple2< word, label >> &	layers,
		const scalar	firstLayerThickness,
		const scalar	layerExpansionRatio,
		const bool	insidePointsOpt,
		const List< point > &	insidePoints,
		const label	nCellsBetweenLevels
	)

Construct from components.

◆ snappyHexMeshConfiguration() [2/2]

snappyHexMeshConfiguration ( const snappyHexMeshConfiguration & )

delete

Disallow default bitwise copy construction.

◆ ~snappyHexMeshConfiguration()

~snappyHexMeshConfiguration ( )

Destructor.

Member Function Documentation

◆ writeSnappySwitches()

void writeSnappySwitches ( )

protected

Write switches.

◆ writeGeometrySurface()

void writeGeometrySurface ( const label surfID )

protected

Write surface entry for geometry sub-dictionary.

◆ writeSearchableBox()

void writeSearchableBox ( const label i )

protected

Write searchableBox entry for geometry sub-dictionary.

◆ writeSnappyGeometry()

void writeSnappyGeometry ( )

protected

Write geometry sub-dictionary.

◆ writeFeatures()

void writeFeatures ( )

protected

Write features list in castellatedMeshControls.

◆ writeRefinementSurfacesLevel() [1/3]

void writeRefinementSurfacesLevel ( const label rl )

protected

Write refinementSurfaces level entry.

◆ writeRefinementSurfacesLevel() [2/3]

void writeRefinementSurfacesLevel ( )

protected

Write refinementSurfaces level entry using refinementLevel_.

◆ writeRefinementSurfacesLevel() [3/3]

void writeRefinementSurfacesLevel ( const word & name )

protected

Write refinementSurfaces level entry for a surface with name.

◆ writePatchInfo()

void writePatchInfo	(	const word &	type,
		const word &	group = `""`
	)

protected

Write refinementSurfaces wall patchInfo entry.

◆ writeRefinementSurfaces()

void writeRefinementSurfaces ( )

protected

Write refinementSurfaces.

◆ writeRefinementSurfacesRegion()

void writeRefinementSurfacesRegion	(	const word	regionName,
		const List< word > &	regions
	)

protected

Write a refinement surface region.

◆ writeRefinementSurfacesRegions()

void writeRefinementSurfacesRegions	(	const wordList &	inletRegions,
		const wordList &	outletRegions
	)

protected

Write refinement surface region information.

◆ writeRefinementRegion()

void writeRefinementRegion	(	const word &	name,
		const label	level
	)

protected

Write a refinement region.

◆ writeRefinementRegions()

void writeRefinementRegions ( )

protected

Write refinementRegions.

◆ writeCastellatedMeshControls()

void writeCastellatedMeshControls ( )

protected

Write castellatedMeshControls.

◆ writeSnapControls()

void writeSnapControls ( )

protected

Write snapControls.

◆ writeAddLayersControls()

void writeAddLayersControls ( )

protected

Write addLayersControls.

◆ writeWriteFlags()

void writeWriteFlags ( )

protected

Write writeFlags.

◆ write()

void write ( )

◆ operator=()

void operator= ( const snappyHexMeshConfiguration & )

delete

Disallow default bitwise assignment.

Member Data Documentation

◆ surfaces_

const meshingSurfaceList& surfaces_

protected

List of surfaces used for meshing.

Definition at line 67 of file snappyHexMeshConfiguration.H.

◆ refinementLevel_

const label refinementLevel_

protected

Refinement level applied across the snappyHexMeshDict file.

Definition at line 70 of file snappyHexMeshConfiguration.H.

◆ surfaceLevels_

const List<Tuple2<word, label> >& surfaceLevels_

protected

Level of refinement on specified surfaces.

Definition at line 73 of file snappyHexMeshConfiguration.H.

◆ refinementRegions_

const List<Tuple2<word, label> >& refinementRegions_

protected

Refinement regions specified by surface and level.

Definition at line 76 of file snappyHexMeshConfiguration.H.

◆ refinementBoxes_

const List<Tuple3<vector, vector, label> >& refinementBoxes_

protected

Refinement boxes with level of refinement.

Definition at line 79 of file snappyHexMeshConfiguration.H.

◆ refinementDists_

const List<Tuple3<word, scalar, label> >& refinementDists_

protected

Refinement distances with level of refinement.

Definition at line 82 of file snappyHexMeshConfiguration.H.

◆ explicitFeatures_

const bool explicitFeatures_

protected

Using explicit feature capturing?

Definition at line 85 of file snappyHexMeshConfiguration.H.

◆ layers_

const List<Tuple2<word, label> > layers_

protected

Number of layers on specified surfaces.

Definition at line 88 of file snappyHexMeshConfiguration.H.

◆ firstLayerThickness_

const scalar firstLayerThickness_

protected

Thickness of the near wall cells with layer addition.

Definition at line 91 of file snappyHexMeshConfiguration.H.

◆ layerExpansionRatio_

const scalar layerExpansionRatio_

protected

Expansion ratio used with layer addition.

Definition at line 94 of file snappyHexMeshConfiguration.H.

◆ insidePointsOpt_

const bool insidePointsOpt_

protected

insidePoints option (true when '-insidePoints' selected)

Definition at line 97 of file snappyHexMeshConfiguration.H.

◆ insidePoints_

const List<point> insidePoints_

protected

insidePoints

Definition at line 100 of file snappyHexMeshConfiguration.H.

◆ nCellsBetweenLevels_

const label nCellsBetweenLevels_

protected

nCellsBetweenLevels parameter

Definition at line 103 of file snappyHexMeshConfiguration.H.

The documentation for this class was generated from the following file:

applications/utilities/preProcessing/snappyHexMeshConfig/snappyHexMeshConfiguration.H

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ surfaceType

Constructor & Destructor Documentation

◆ snappyHexMeshConfiguration() [1/2]

◆ snappyHexMeshConfiguration() [2/2]

◆ ~snappyHexMeshConfiguration()

Member Function Documentation

◆ writeSnappySwitches()

◆ writeGeometrySurface()

◆ writeSearchableBox()

◆ writeSnappyGeometry()

◆ writeFeatures()

◆ writeRefinementSurfacesLevel() [1/3]

◆ writeRefinementSurfacesLevel() [2/3]

◆ writeRefinementSurfacesLevel() [3/3]

◆ writePatchInfo()

◆ writeRefinementSurfaces()

◆ writeRefinementSurfacesRegion()

◆ writeRefinementSurfacesRegions()

◆ writeRefinementRegion()

◆ writeRefinementRegions()

◆ writeCastellatedMeshControls()

◆ writeSnapControls()

◆ writeAddLayersControls()

◆ writeWriteFlags()

◆ write()

◆ operator=()

Member Data Documentation

◆ surfaces_

◆ refinementLevel_

◆ surfaceLevels_

◆ refinementRegions_

◆ refinementBoxes_

◆ refinementDists_

◆ explicitFeatures_

◆ layers_

◆ firstLayerThickness_

◆ layerExpansionRatio_

◆ insidePointsOpt_

◆ insidePoints_

◆ nCellsBetweenLevels_
