This boundary condition can be applied to assign either a pressure inlet or outlet total pressure condition for a fan. More...

Inheritance diagram for fanPressureFvPatchScalarField:

[legend]

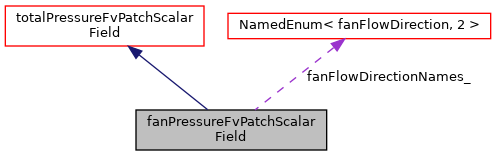

Collaboration diagram for fanPressureFvPatchScalarField:

[legend]

Public Types
enum	fanFlowDirection { ffdIn , ffdOut }
	Fan flow direction. More...

Public Member Functions
	TypeName ("fanPressure")
	Runtime type information. More...

	fanPressureFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary. More...

	fanPressureFvPatchScalarField (const fanPressureFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fieldMapper &)
	Construct by mapping given fanPressureFvPatchScalarField. More...

	fanPressureFvPatchScalarField (const fanPressureFvPatchScalarField &)=delete
	Disallow copy without setting internal field reference. More...

	fanPressureFvPatchScalarField (const fanPressureFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
	Copy constructor setting internal field reference. More...

virtual tmp< fvPatchScalarField >	clone (const DimensionedField< scalar, volMesh > &iF) const
	Construct and return a clone setting internal field reference. More...

virtual void	updateCoeffs ()
	Update the coefficients associated with the patch field. More...

virtual void	write (Ostream &) const
	Write. More...

Public Member Functions inherited from totalPressureFvPatchScalarField
	TypeName ("totalPressure")
	Runtime type information. More...

	totalPressureFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary. More...

	totalPressureFvPatchScalarField (const totalPressureFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fieldMapper &)
	Construct by mapping given totalPressureFvPatchScalarField. More...

	totalPressureFvPatchScalarField (const totalPressureFvPatchScalarField &)=delete
	Disallow copy without setting internal field reference. More...

	totalPressureFvPatchScalarField (const totalPressureFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
	Copy constructor setting internal field reference. More...

Public Member Functions inherited from dynamicPressureFvPatchScalarField
	TypeName ("dynamicPressure")
	Runtime type information. More...

	dynamicPressureFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary. More...

	dynamicPressureFvPatchScalarField (const dynamicPressureFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fieldMapper &)
	Construct by mapping given dynamicPressureFvPatchScalarField. More...

	dynamicPressureFvPatchScalarField (const dynamicPressureFvPatchScalarField &)=delete
	Disallow copy without setting internal field reference. More...

	dynamicPressureFvPatchScalarField (const dynamicPressureFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
	Copy constructor setting internal field reference. More...

virtual void	map (const fvPatchScalarField &, const fieldMapper &)
	Map the given fvPatchField onto this fvPatchField. More...

virtual void	reset (const fvPatchScalarField &)
	Reset the fvPatchField to the given fvPatchField. More...

Static Public Attributes
static const NamedEnum< fanFlowDirection, 2 >	fanFlowDirectionNames_
	Fan flow directions names. More...

Additional Inherited Members
Protected Member Functions inherited from dynamicPressureFvPatchScalarField
void	updateCoeffs (const scalarField &p0p, const scalarField &K0mKp)
	Update the coefficients associated with the patch field. More...

Protected Attributes inherited from totalPressureFvPatchScalarField
const word	UName_
	Name of the velocity field. More...

const word	phiName_
	Name of the flux field. More...

Protected Attributes inherited from dynamicPressureFvPatchScalarField
const word	rhoName_
	Name of the density field used to normalise the mass flux. More...

const word	psiName_
	Name of the compressibility field used to calculate the wave speed. More...

const scalar	gamma_
	Heat capacity ratio. More...

scalarField	p0_
	Reference pressure. More...

Detailed Description

This boundary condition can be applied to assign either a pressure inlet or outlet total pressure condition for a fan.

Usage

Property	Description	Required	Default value
`fanCurve`	fan curve function	yes
`p0`	environmental total pressure	yes

Example of the boundary condition specification:

    inlet
    {
        type            fanPressure;

        fanCurve        table;
        file            "$FOAM_CASE/constant/pressureVsQ";
        format          csv;
        nHeaderLine     1;
        columns         (0 1);
        separator       ",";
        mergeSeparators no;
        outOfBounds     clamp;
        interpolationScheme linear;

        direction       in;
        p0              uniform 0;
        value           uniform 0;
    }

    outlet
    {
        type            fanPressure;

        fanCurve        table;
        file            "$FOAM_CASE/constant/pressureVsQ";
        format          csv;
        nHeaderLine     1;
        columns         (0 1);
        separator       ",";
        mergeSeparators no;
        outOfBounds     clamp;
        interpolationScheme linear;

        direction       out;
        p0              uniform 0;
        value           uniform 0;
    }

The above example shows the use of a comma separated (CSV) file to specify the condition.

See also: Foam::totalPressureFvPatchScalarField Foam::Function1s

Source files

Definition at line 120 of file fanPressureFvPatchScalarField.H.

Member Enumeration Documentation

◆ fanFlowDirection

enum fanFlowDirection

Fan flow direction.

Enumerator
ffdIn
ffdOut

Definition at line 129 of file fanPressureFvPatchScalarField.H.

Constructor & Destructor Documentation

◆ fanPressureFvPatchScalarField() [1/4]

fanPressureFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const dictionary &	dict
	)

Construct from patch, internal field and dictionary.

Definition at line 46 of file fanPressureFvPatchScalarField.C.

◆ fanPressureFvPatchScalarField() [2/4]

fanPressureFvPatchScalarField	(	const fanPressureFvPatchScalarField &	pfopsf,
		const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const fieldMapper &	mapper
	)

Construct by mapping given fanPressureFvPatchScalarField.

onto a new patch

Definition at line 68 of file fanPressureFvPatchScalarField.C.

◆ fanPressureFvPatchScalarField() [3/4]

fanPressureFvPatchScalarField ( const fanPressureFvPatchScalarField & )

delete

Disallow copy without setting internal field reference.

◆ fanPressureFvPatchScalarField() [4/4]

fanPressureFvPatchScalarField	(	const fanPressureFvPatchScalarField &	pfopsf,
		const DimensionedField< scalar, volMesh > &	iF
	)

Copy constructor setting internal field reference.

Definition at line 82 of file fanPressureFvPatchScalarField.C.

Member Function Documentation

◆ TypeName()

TypeName ( "fanPressure" )

Runtime type information.

◆ clone()

virtual tmp<fvPatchScalarField> clone ( const DimensionedField< scalar, volMesh > & iF ) const

inlinevirtual

Construct and return a clone setting internal field reference.

Reimplemented from totalPressureFvPatchScalarField.

Definition at line 190 of file fanPressureFvPatchScalarField.H.

◆ updateCoeffs()

void updateCoeffs ( )

virtual

Update the coefficients associated with the patch field.

Reimplemented from totalPressureFvPatchScalarField.

Definition at line 96 of file fanPressureFvPatchScalarField.C.

References Foam::dimMassFlux, Foam::dimVolumetricFlux, Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::gSum(), fvsPatchField< Type >::internalField(), Foam::magSqr(), Foam::max(), Foam::neg(), Foam::nl, Foam::sign(), and dynamicPressureFvPatchScalarField::updateCoeffs().

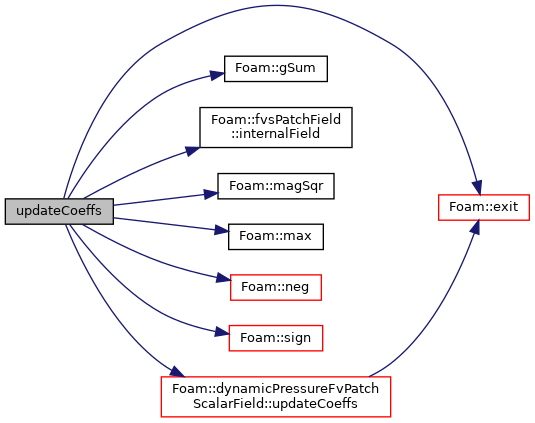

Here is the call graph for this function:

◆ write()

void write ( Ostream & os ) const

virtual

Write.

Reimplemented from totalPressureFvPatchScalarField.

Definition at line 148 of file fanPressureFvPatchScalarField.C.

References totalPressureFvPatchScalarField::write(), and Foam::writeEntry().

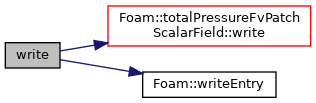

Here is the call graph for this function:

Member Data Documentation

◆ fanFlowDirectionNames_

const Foam::NamedEnum< Foam::fanPressureFvPatchScalarField::fanFlowDirection, 2 > fanFlowDirectionNames_

static

Initial value:

{
    "in",
    "out"
}

Fan flow directions names.

Definition at line 136 of file fanPressureFvPatchScalarField.H.

The documentation for this class was generated from the following files:

src/finiteVolume/fields/fvPatchFields/derived/fanPressure/fanPressureFvPatchScalarField.H
src/finiteVolume/fields/fvPatchFields/derived/fanPressure/fanPressureFvPatchScalarField.C
