blockEdge Class Reference

Define a curved edge that is parameterised for 0<lambda<1 between the start and end point. More...

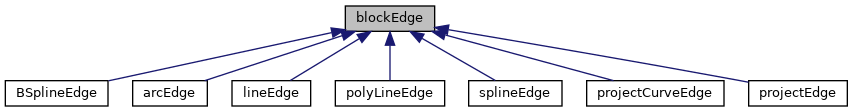

Inheritance diagram for blockEdge:

Collaboration diagram for blockEdge:

Classes
class	iNew
	Class used for the read-construction of. More...

Public Member Functions
	TypeName ("blockEdge")
	Runtime type information. More...
	declareRunTimeSelectionTable (autoPtr, blockEdge, Istream,(const dictionary &dict, const label index, const searchableSurfaceList &geometry, const pointField &points, Istream &is),(dict, index, geometry, points, is))
	blockEdge (const pointField &points, const label start, const label end)
	Construct from components. More...
	blockEdge (const dictionary &dict, const label index, const pointField &, Istream &)
	Construct from Istream setting pointsList. More...
virtual autoPtr< blockEdge >	clone () const
	Clone function. More...
virtual	~blockEdge ()
	Destructor. More...
label	start () const
	Return label of start point. More...
label	end () const
	Return label of end point. More...
int	compare (const blockEdge &) const
	Compare the given start and end points with this curve. More...
int	compare (const edge &) const
	Compare the given start and end points with this curve. More...
int	compare (const label start, const label end) const
	Compare the given start and end points with this curve. More...
virtual point	position (const scalar) const =0
	Return the point position corresponding to the curve parameter. More...
virtual tmp< pointField >	position (const scalarList &) const
	Return the point positions corresponding to the curve parameters. More...
virtual scalar	length () const =0
	Return the length of the curve. More...
void	write (Ostream &, const dictionary &) const
	Write edge with variable backsubstitution. More...

Static Public Member Functions
static autoPtr< blockEdge >	New (const dictionary &dict, const label index, const searchableSurfaceList &geometry, const pointField &, Istream &)
	New function which constructs and returns pointer to a blockEdge. More...

Static Protected Member Functions
static pointField	appendEndPoints (const pointField &, const label start, const label end, const pointField &otherKnots)
	Return a complete point field by appending the start/end points. More...

Protected Attributes
const pointField &	points_
const label	start_
const label	end_

Friends
Ostream &	operator<< (Ostream &, const blockEdge &)

Detailed Description

Define a curved edge that is parameterised for 0<lambda<1 between the start and end point.

Source files

• blockEdge.H
• blockEdge.C

Definition at line 56 of file blockEdge.H.

Constructor & Destructor Documentation

blockEdge() [1/2]

blockEdge	(	const pointField &	points,
		const label	start,
		const label	end
	)

Construct from components.

Definition at line 40 of file blockEdge.C.

blockEdge() [2/2]

blockEdge	(	const dictionary &	dict,
		const label	index,
		const pointField &	points,
		Istream &	is
	)

Construct from Istream setting pointsList.

Definition at line 53 of file blockEdge.C.

~blockEdge()

virtual ~blockEdge ( )

inlinevirtual

Destructor.

Definition at line 168 of file blockEdge.H.

Member Function Documentation

appendEndPoints()

Foam::pointField appendEndPoints ( const pointField &  points, const label  start, const label  end, const pointField &  otherKnots  )

staticprotected

Return a complete point field by appending the start/end points.

to the given list

Definition at line 109 of file blockEdge.C.

References forAll, points, and List< T >::size().

Here is the call graph for this function:

TypeName()

TypeName

(

"blockEdge"

)

Runtime type information.

declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		blockEdge	,
		Istream	,
		(const dictionary &dict, const label index, const searchableSurfaceList &geometry, const pointField &points, Istream &is)	,
		(dict, index, geometry, points, is)
	)

clone()

Foam::autoPtr< Foam::blockEdge > clone ( ) const

virtual

Clone function.

Definition at line 67 of file blockEdge.C.

References NotImplemented.

New()

Foam::autoPtr< Foam::blockEdge > New ( const dictionary &  dict, const label  index, const searchableSurfaceList &  geometry, const pointField &  points, Istream &  is  )

static

New function which constructs and returns pointer to a blockEdge.

Definition at line 74 of file blockEdge.C.

References Foam::abort(), dict, Foam::endl(), Foam::FatalError, FatalErrorInFunction, InfoInFunction, Foam::nl, and points.

Referenced by blockEdge::iNew::operator()().

Here is the call graph for this function:

Here is the caller graph for this function:

start()

Foam::label start ( ) const

inline

Return label of start point.

Definition at line 28 of file blockEdgeI.H.

References blockEdge::start_.

end()

Foam::label end ( ) const

inline

Return label of end point.

Definition at line 34 of file blockEdgeI.H.

compare() [1/3]

int compare ( const blockEdge &  e ) const

inline

Compare the given start and end points with this curve.

Return:

• 0: different
• +1: identical
• -1: same edge, but different orientation

Definition at line 57 of file blockEdgeI.H.

References Foam::e.

Referenced by blockEdge::compare().

Here is the caller graph for this function:

compare() [2/3]

int compare ( const edge &  e ) const

inline

Compare the given start and end points with this curve.

Return:

• 0: different
• +1: identical
• -1: same edge, but different orientation

Definition at line 63 of file blockEdgeI.H.

References blockEdge::compare(), and Foam::e.

Here is the call graph for this function:

compare() [3/3]

int compare ( const label  start, const label  end  ) const

inline

Compare the given start and end points with this curve.

Return:

• 0: different
• +1: identical
• -1: same edge, but different orientation

Definition at line 40 of file blockEdgeI.H.

position() [1/2]

virtual point position ( const  scalar ) const

pure virtual

Return the point position corresponding to the curve parameter.

0 <= lambda <= 1

Implemented in splineEdge, projectEdge, projectCurveEdge, lineEdge, BSplineEdge, arcEdge, and polyLineEdge.

Referenced by lineDivide::lineDivide().

Here is the caller graph for this function:

position() [2/2]

Foam::tmp< Foam::pointField > position ( const scalarList &  lambdas ) const

virtual

Return the point positions corresponding to the curve parameters.

0 <= lambda <= 1

Reimplemented in projectEdge, and projectCurveEdge.

Definition at line 134 of file blockEdge.C.

References forAll, points, Foam::tracking::position(), tmp< T >::ref(), and List< T >::size().

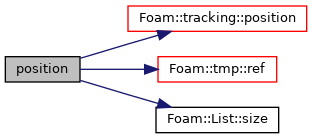

Here is the call graph for this function:

length()

virtual scalar length ( ) const

pure virtual

Return the length of the curve.

Implemented in splineEdge, projectEdge, projectCurveEdge, polyLineEdge, lineEdge, BSplineEdge, and arcEdge.

write()

void write	(	Ostream &	os,
		const dictionary &	d
	)		const

Write edge with variable backsubstitution.

Definition at line 147 of file blockEdge.C.

References Foam::endl(), Foam::tab, and blockVertex::write().

Here is the call graph for this function:

Friends And Related Function Documentation

operator<<

Ostream& operator<< ( Ostream &  , const blockEdge &    )

friend

Member Data Documentation

points_

const pointField& points_

protected

Definition at line 62 of file blockEdge.H.

start_

const label start_

protected

Definition at line 64 of file blockEdge.H.

Referenced by blockEdge::start().

end_

const label end_

protected

Definition at line 65 of file blockEdge.H.

---

The documentation for this class was generated from the following files:

• src/mesh/blockMesh/blockEdges/blockEdge/blockEdge.H
• src/mesh/blockMesh/blockEdges/blockEdge/blockEdge.C
• src/mesh/blockMesh/blockEdges/blockEdge/blockEdgeI.H
