Thermo parcel<->film transfer model. More...

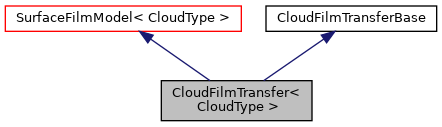

Inheritance diagram for CloudFilmTransfer< CloudType >:

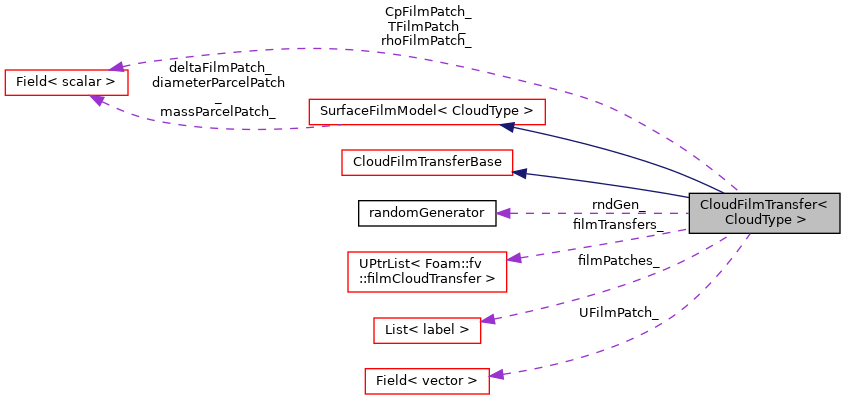

Collaboration diagram for CloudFilmTransfer< CloudType >:

[legend]

Public Member Functions
	TypeName ("cloudFilmTransfer")
	Runtime type information. More...

	CloudFilmTransfer (const dictionary &dict, CloudType &owner)
	Construct from components. More...

	CloudFilmTransfer (const CloudFilmTransfer< CloudType > &sfm)
	Construct copy. More...

virtual autoPtr< SurfaceFilmModel< CloudType > >	clone () const
	Construct and return a clone using supplied owner cloud. More...

virtual	~CloudFilmTransfer ()
	Destructor. More...

virtual bool	transferParcel (parcelType &p, const polyPatch &pp, bool &keepParticle)
	Transfer parcel from cloud to film. More...

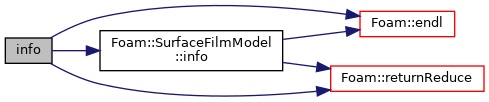

virtual void	info (Ostream &os)
	Write film info to stream. More...

Public Member Functions inherited from SurfaceFilmModel< CloudType >
	TypeName ("surfaceFilm")
	Runtime type information. More...

	declareRunTimeSelectionTable (autoPtr, SurfaceFilmModel, dictionary,(const dictionary &dict, CloudType &owner),(dict, owner))
	Declare runtime constructor selection table. More...

	SurfaceFilmModel (CloudType &owner)
	Construct null from owner. More...

	SurfaceFilmModel (const dictionary &dict, CloudType &owner, const word &type)
	Construct from components. More...

	SurfaceFilmModel (const SurfaceFilmModel< CloudType > &sfm)
	Construct copy. More...

virtual	~SurfaceFilmModel ()
	Destructor. More...

const dimensionedVector &	g () const
	Return gravitational acceleration constant. More...

label	nParcelsTransferred () const
	Return const access to the number of parcels transferred to the. More...

label &	nParcelsTransferred ()
	Return non-const access to the number of parcels transferred to. More...

label	nParcelsInjected () const
	Return const access to the number of parcels injected from the. More...

label &	nParcelsInjected ()
	Return non-const access to the number of parcels injected from. More...

template<class TrackCloudType >
void	inject (TrackCloudType &cloud)
	Inject parcels into the cloud. More...

Public Member Functions inherited from CloudSubModelBase< CloudType >
	CloudSubModelBase (CloudType &owner)
	Construct null from owner cloud. More...

	CloudSubModelBase (CloudType &owner, const dictionary &dict, const word &baseName, const word &modelType, const word &dictExt="Coeffs")
	Construct from owner cloud without name. More...

	CloudSubModelBase (const word &modelName, CloudType &owner, const dictionary &dict, const word &baseName, const word &modelType)
	Construct from owner cloud with name. More...

	CloudSubModelBase (const CloudSubModelBase< CloudType > &smb)
	Copy constructor. More...

virtual	~CloudSubModelBase ()
	Destructor. More...

const CloudType &	owner () const
	Return const access to the owner cloud. More...

virtual bool	writeTime () const
	Flag to indicate when to write a property. More...

CloudType &	owner ()
	Return non-const access to the owner cloud for manipulation. More...

virtual void	write (Ostream &os) const
	Write. More...

Public Member Functions inherited from subModelBase
	subModelBase (dictionary &properties)
	Construct null. More...

	subModelBase (dictionary &properties, const dictionary &dict, const word &baseName, const word &modelType, const word &dictExt="Coeffs")
	Construct from components without name. More...

	subModelBase (const word &modelName, dictionary &properties, const dictionary &dict, const word &baseName, const word &modelType)
	Construct from components with name. More...

	subModelBase (const subModelBase &smb)
	Copy constructor. More...

virtual	~subModelBase ()
	Destructor. More...

const word &	modelName () const
	Return const access to the name of the sub-model. More...

const dictionary &	dict () const
	Return const access to the cloud dictionary. More...

const word &	baseName () const
	Return const access to the base name of the sub-model. More...

const word &	modelType () const
	Return const access to the sub-model type. More...

const dictionary &	coeffDict () const
	Return const access to the coefficients dictionary. More...

const dictionary &	properties () const
	Return const access to the properties dictionary. More...

virtual bool	defaultCoeffs (const bool printMsg) const
	Returns true if defaultCoeffs is true and outputs on printMsg. More...

virtual void	cacheFields (const bool store)
	Cache dependent sub-model fields. More...

template<class Type >
Type	getBaseProperty (const word &entryName, const Type &defaultValue=pTraits< Type >::zero) const
	Retrieve generic property from the base model. More...

template<class Type >
void	getBaseProperty (const word &entryName, Type &value) const
	Retrieve generic property from the base model. More...

template<class Type >
void	setBaseProperty (const word &entryName, const Type &value)
	Add generic property to the base model. More...

template<class Type >
void	getModelProperty (const word &entryName, Type &value) const
	Retrieve generic property from the sub-model. More...

template<class Type >
Type	getModelProperty (const word &entryName, const Type &defaultValue=pTraits< Type >::zero) const
	Retrieve generic property from the sub-model. More...

template<class Type >
void	setModelProperty (const word &entryName, const Type &value)
	Add generic property to the sub-model. More...

void	operator= (const subModelBase &)=delete
	Disallow default bitwise assignment. More...

Protected Types
typedef CloudType::parcelType	parcelType
	Convenience typedef to the cloud's parcel type. More...

Protected Types inherited from SurfaceFilmModel< CloudType >
typedef CloudType::parcelType	parcelType
	Convenience typedef to the cloud's parcel type. More...

Protected Member Functions
vector	splashDirection (const vector &tanVec1, const vector &tanVec2, const vector &nf) const
	Return splashed parcel direction. More...

void	absorbInteraction (fv::filmCloudTransfer &, const parcelType &p, const polyPatch &pp, const label facei, const scalar mass, bool &keepParticle)
	Absorb parcel into film. More...

void	bounceInteraction (parcelType &p, const polyPatch &pp, const label facei, bool &keepParticle) const
	Bounce parcel (flip parcel normal velocity) More...

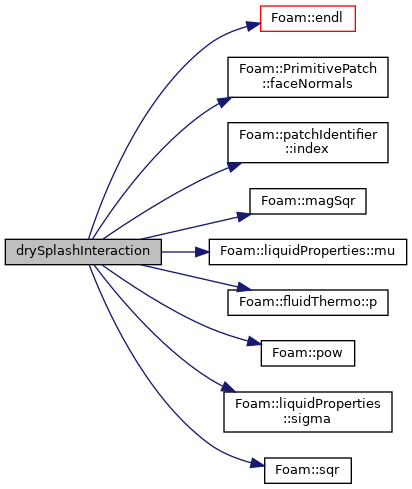

void	drySplashInteraction (fv::filmCloudTransfer &, const parcelType &p, const polyPatch &pp, const label facei, bool &keepParticle)
	Parcel interaction with dry surface. More...

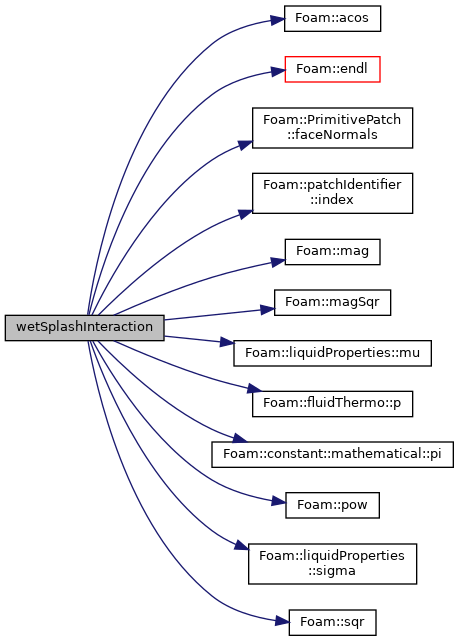

void	wetSplashInteraction (fv::filmCloudTransfer &, parcelType &p, const polyPatch &pp, const label facei, bool &keepParticle)
	Parcel interaction with wetted surface. More...

void	splashInteraction (fv::filmCloudTransfer &, const parcelType &p, const polyPatch &pp, const label facei, const scalar mRatio, const scalar We, const scalar Wec, const scalar sigma, bool &keepParticle)
	Bai parcel splash interaction model. More...

virtual const labelList &	filmPatches () const
	Return pointers to the films. More...

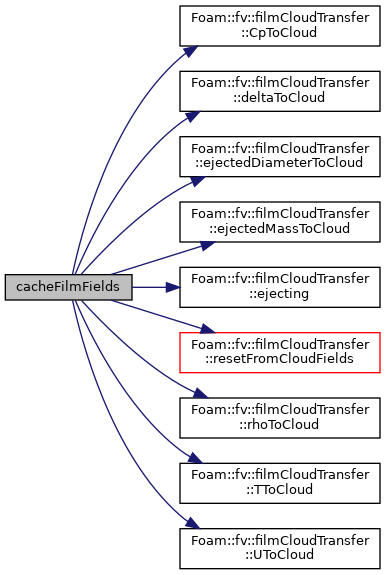

virtual void	cacheFilmFields (const label filmi)
	Cache the film fields in preparation for injection. More...

virtual void	setParcelProperties (parcelType &p, const label filmFacei) const
	Set the individual parcel properties. More...

Protected Member Functions inherited from subModelBase
bool	inLine () const
	Flag to indicate whether data is/was read in-line. More...

Protected Attributes
randomGenerator &	rndGen_
	Reference to the cloud random number generator. More...

UPtrList< fv::filmCloudTransfer >	filmTransfers_
	Pointers to the films. More...

labelList	filmPatches_
	List of film patches. More...

vectorField	UFilmPatch_
	Film velocity / patch face. More...

scalarField	rhoFilmPatch_
	Film density / patch face. More...

scalarField	TFilmPatch_
	Film temperature / patch face. More...

scalarField	CpFilmPatch_
	Film specific heat capacity / patch face. More...

interactionType	interactionType_
	Interaction type enumeration. More...

scalar	deltaWet_
	Film thickness beyond which patch is assumed to be wet. More...

label	splashParcelType_
	Splash parcel type label - id assigned to identify parcel for. More...

label	parcelsPerSplash_
	Number of new parcels resulting from splash event. More...

scalar	Adry_
	Dry surface roughness coefficient. More...

scalar	Awet_
	Wet surface roughness coefficient. More...

scalar	Cf_
	Skin friction typically in the range 0.6 < Cf < 0.8. More...

label	nParcelsSplashed_
	Counter for number of new splash parcels. More...

Protected Attributes inherited from SurfaceFilmModel< CloudType >
const dimensionedVector &	g_
	Gravitational acceleration constant. More...

label	ejectedParcelType_
	Ejected parcel type label - id assigned to identify parcel for. More...

scalarField	massParcelPatch_
	Parcel mass / patch face. More...

scalarField	diameterParcelPatch_
	Parcel diameter / patch face. More...

scalarField	deltaFilmPatch_
	Film height of all film patches / patch face. More...

label	nParcelsTransferred_
	Number of parcels transferred to the film model. More...

label	nParcelsInjected_
	Number of parcels injected from the film model. More...

Protected Attributes inherited from CloudSubModelBase< CloudType >
CloudType &	owner_
	Reference to the cloud. More...

Protected Attributes inherited from subModelBase
const word	modelName_
	Name of the sub-model. More...

dictionary &	properties_
	Reference to properties dictionary e.g. for restart. More...

const dictionary	dict_
	Copy of dictionary used during construction. More...

const word	baseName_
	Name of the sub-model base class. More...

const word	modelType_
	Type of the sub-model. More...

const dictionary	coeffDict_
	Coefficients dictionary. More...

Additional Inherited Members
Public Types inherited from CloudSubModelBase< CloudType >
typedef CloudType	cloudType
	Type of cloud this model was instantiated for. More...

Public Types inherited from CloudFilmTransferBase
enum class	interactionType { absorb , bounce , splashBai }
	Interaction types. More...

Static Public Member Functions inherited from SurfaceFilmModel< CloudType >
static autoPtr< SurfaceFilmModel< CloudType > >	New (const dictionary &dict, CloudType &owner)
	Selector. More...

Static Public Attributes inherited from CloudFilmTransferBase
static const NamedEnum< interactionType, 3 >	interactionTypeNames_ {"absorb", "bounce", "splashBai"}
	Interaction type names. More...

Detailed Description

template<class CloudType>
class Foam::CloudFilmTransfer< CloudType >

Thermo parcel<->film transfer model.

Responsible for:

injecting parcels from the film model into the cloud, e.g. for dripping
parcel interaction with the film, e.g absorb, bounce, splash

References:

    Bai, C., & Gosman, A. D. (1996).
    Mathematical modelling of wall films formed by impinging sprays.
    SAE transactions, 782-796.

    Bai, C. X., Rusche, H., & Gosman, A. D. (2002).
    Modeling of gasoline spray impingement.
    Atomization and Sprays, 12(1-3).

Source files

Definition at line 94 of file CloudFilmTransfer.H.

Member Typedef Documentation

◆ parcelType

typedef CloudType::parcelType parcelType

protected

Convenience typedef to the cloud's parcel type.

Definition at line 110 of file CloudFilmTransfer.H.

Constructor & Destructor Documentation

◆ CloudFilmTransfer() [1/2]

CloudFilmTransfer	(	const dictionary &	dict,
		CloudType &	owner
	)

Construct from components.

Definition at line 561 of file CloudFilmTransfer.C.

References CloudFilmTransfer< CloudType >::Adry_, CloudFilmTransfer< CloudType >::Awet_, CloudFilmTransfer< CloudType >::Cf_, subModelBase::coeffDict(), CloudFilmTransfer< CloudType >::deltaWet_, Foam::endl(), Foam::Info, CloudFilmTransfer< CloudType >::interactionType_, CloudFilmTransferBase::interactionTypeNames_, dictionary::lookup(), dictionary::lookupOrDefault(), CloudFilmTransfer< CloudType >::parcelsPerSplash_, CloudFilmTransferBase::splashBai, and CloudFilmTransfer< CloudType >::splashParcelType_.

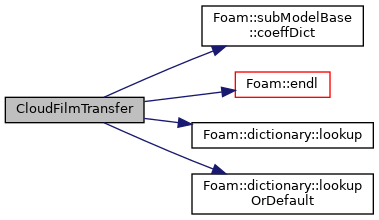

Here is the call graph for this function:

◆ CloudFilmTransfer() [2/2]

CloudFilmTransfer ( const CloudFilmTransfer< CloudType > & sfm )

Construct copy.

Definition at line 603 of file CloudFilmTransfer.C.

◆ ~CloudFilmTransfer()

~CloudFilmTransfer

virtual

Destructor.

Definition at line 628 of file CloudFilmTransfer.C.

Member Function Documentation

◆ splashDirection()

Foam::vector splashDirection	(	const vector &	tanVec1,
		const vector &	tanVec2,
		const vector &	nf
	)		const

protected

Return splashed parcel direction.

Definition at line 39 of file CloudFilmTransfer.C.

References alpha(), Foam::cos(), Foam::mag(), Foam::constant::mathematical::pi(), Foam::sin(), and Foam::constant::mathematical::twoPi().

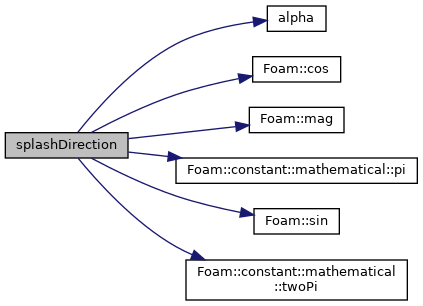

Here is the call graph for this function:

◆ absorbInteraction()

void absorbInteraction	(	fv::filmCloudTransfer &	filmCloudTransfer,
		const parcelType &	p,
		const polyPatch &	pp,
		const label	facei,
		const scalar	mass,
		bool &	keepParticle
	)

protected

Absorb parcel into film.

Definition at line 64 of file CloudFilmTransfer.C.

References Foam::endl(), liquidProperties::hs(), patchIdentifier::index(), Foam::Info, p, fluidThermo::p(), filmCloudTransfer::parcelFromCloud(), and thermo.

Here is the call graph for this function:

◆ bounceInteraction()

void bounceInteraction	(	parcelType &	p,
		const polyPatch &	pp,
		const label	facei,
		bool &	keepParticle
	)		const

protected

Bounce parcel (flip parcel normal velocity)

Definition at line 112 of file CloudFilmTransfer.C.

References Foam::endl(), PrimitivePatch< FaceList, PointField >::faceNormals(), patchIdentifier::index(), Foam::Info, and p.

Here is the call graph for this function:

◆ drySplashInteraction()

void drySplashInteraction	(	fv::filmCloudTransfer &	filmCloudTransfer,
		const parcelType &	p,
		const polyPatch &	pp,
		const label	facei,
		bool &	keepParticle
	)

protected

Parcel interaction with dry surface.

Definition at line 142 of file CloudFilmTransfer.C.

References Foam::endl(), PrimitivePatch< FaceList, PointField >::faceNormals(), patchIdentifier::index(), Foam::Info, Foam::magSqr(), Foam::constant::physicoChemical::mu, liquidProperties::mu(), p, fluidThermo::p(), Foam::pow(), rho, Foam::constant::physicoChemical::sigma, liquidProperties::sigma(), Foam::sqr(), and thermo.

Here is the call graph for this function:

◆ wetSplashInteraction()

void wetSplashInteraction	(	fv::filmCloudTransfer &	filmCloudTransfer,
		parcelType &	p,
		const polyPatch &	pp,
		const label	facei,
		bool &	keepParticle
	)

protected

Parcel interaction with wetted surface.

Definition at line 215 of file CloudFilmTransfer.C.

References Foam::acos(), Foam::endl(), epsilon, PrimitivePatch< FaceList, PointField >::faceNormals(), patchIdentifier::index(), Foam::Info, Foam::mag(), Foam::magSqr(), Foam::constant::physicoChemical::mu, liquidProperties::mu(), p, fluidThermo::p(), Foam::constant::mathematical::pi(), Foam::pow(), rho, Foam::constant::physicoChemical::sigma, liquidProperties::sigma(), Foam::sqr(), thermo, and U.

Here is the call graph for this function:

◆ splashInteraction()

void splashInteraction	(	fv::filmCloudTransfer &	filmCloudTransfer,
		const parcelType &	p,
		const polyPatch &	pp,
		const label	facei,
		const scalar	mRatio,
		const scalar	We,
		const scalar	Wec,
		const scalar	sigma,
		bool &	keepParticle
	)

protected

Bai parcel splash interaction model.

Definition at line 309 of file CloudFilmTransfer.C.

References GeometricField< Type, GeoMesh, PrimitiveField >::boundaryField(), fvMesh::C(), Foam::cbrt(), fvMesh::Cf(), Foam::meshTools::constrainDirection(), Foam::exp(), PrimitivePatch< FaceList, PointField >::faceNormals(), forAll, patchIdentifier::index(), K, Foam::log(), Foam::mag(), Foam::magSqr(), Foam::max(), fvMesh::mesh(), mesh, UPstream::myProcNo(), Foam::normalised(), p, Foam::perpendicular(), Foam::constant::mathematical::pi(), Foam::pow3(), Foam::constant::physicoChemical::sigma, polyMesh::solutionD(), Foam::sqr(), Foam::sqrt(), and y.

Here is the call graph for this function:

◆ filmPatches()

const Foam::labelList & filmPatches

protectedvirtual

Return pointers to the films.

Implements SurfaceFilmModel< CloudType >.

Definition at line 496 of file CloudFilmTransfer.C.

◆ cacheFilmFields()

void cacheFilmFields ( const label filmi )

protectedvirtual

Cache the film fields in preparation for injection.

Implements SurfaceFilmModel< CloudType >.

Definition at line 506 of file CloudFilmTransfer.C.

References filmCloudTransfer::CpToCloud(), filmCloudTransfer::deltaToCloud(), filmCloudTransfer::ejectedDiameterToCloud(), filmCloudTransfer::ejectedMassToCloud(), filmCloudTransfer::ejecting(), filmCloudTransfer::resetFromCloudFields(), filmCloudTransfer::rhoToCloud(), filmCloudTransfer::TToCloud(), and filmCloudTransfer::UToCloud().

Here is the call graph for this function:

◆ setParcelProperties()

void setParcelProperties	(	parcelType &	p,
		const label	filmFacei
	)		const

protectedvirtual

Set the individual parcel properties.

Implements SurfaceFilmModel< CloudType >.

Definition at line 532 of file CloudFilmTransfer.C.

References p, Foam::constant::mathematical::pi(), and Foam::pow3().

Here is the call graph for this function:

◆ TypeName()

TypeName ( "cloudFilmTransfer" )

Runtime type information.

◆ clone()

virtual autoPtr<SurfaceFilmModel<CloudType> > clone ( ) const

inlinevirtual

Construct and return a clone using supplied owner cloud.

Implements SurfaceFilmModel< CloudType >.

Definition at line 272 of file CloudFilmTransfer.H.

◆ transferParcel()

bool transferParcel	(	parcelType &	p,
		const polyPatch &	pp,
		bool &	keepParticle
	)

virtual

Transfer parcel from cloud to film.

Returns true if parcel is to be transferred

Implements SurfaceFilmModel< CloudType >.

Definition at line 635 of file CloudFilmTransfer.C.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, forAll, patchIdentifier::index(), p, patchi, and polyPatch::whichFace().

Here is the call graph for this function:

◆ info()

void info ( Ostream & os )

virtual

Write film info to stream.

Reimplemented from SurfaceFilmModel< CloudType >.

Definition at line 718 of file CloudFilmTransfer.C.

References Foam::endl(), SurfaceFilmModel< CloudType >::info(), and Foam::returnReduce().

Here is the call graph for this function:

Member Data Documentation

◆ rndGen_

randomGenerator& rndGen_

protected

Reference to the cloud random number generator.

Definition at line 113 of file CloudFilmTransfer.H.

◆ filmTransfers_

UPtrList<fv::filmCloudTransfer> filmTransfers_

mutableprotected

Pointers to the films.

Definition at line 119 of file CloudFilmTransfer.H.

◆ filmPatches_

labelList filmPatches_

mutableprotected

List of film patches.

Definition at line 122 of file CloudFilmTransfer.H.

◆ UFilmPatch_

vectorField UFilmPatch_

protected

Film velocity / patch face.

Definition at line 128 of file CloudFilmTransfer.H.

◆ rhoFilmPatch_

scalarField rhoFilmPatch_

protected

Film density / patch face.

Definition at line 131 of file CloudFilmTransfer.H.

◆ TFilmPatch_

scalarField TFilmPatch_

protected

Film temperature / patch face.

Definition at line 134 of file CloudFilmTransfer.H.

◆ CpFilmPatch_

scalarField CpFilmPatch_

protected

Film specific heat capacity / patch face.

Definition at line 137 of file CloudFilmTransfer.H.

◆ interactionType_

interactionType interactionType_

protected

Interaction type enumeration.

Definition at line 143 of file CloudFilmTransfer.H.

Referenced by CloudFilmTransfer< CloudType >::CloudFilmTransfer().

◆ deltaWet_

scalar deltaWet_

protected

Film thickness beyond which patch is assumed to be wet.

Definition at line 146 of file CloudFilmTransfer.H.

Referenced by CloudFilmTransfer< CloudType >::CloudFilmTransfer().

◆ splashParcelType_

label splashParcelType_

protected

Splash parcel type label - id assigned to identify parcel for.

post-processing. If not specified, defaults to originating cloud type

Definition at line 151 of file CloudFilmTransfer.H.

Referenced by CloudFilmTransfer< CloudType >::CloudFilmTransfer().

◆ parcelsPerSplash_

label parcelsPerSplash_

protected

Number of new parcels resulting from splash event.

Definition at line 154 of file CloudFilmTransfer.H.

Referenced by CloudFilmTransfer< CloudType >::CloudFilmTransfer().

◆ Adry_

scalar Adry_

protected

Dry surface roughness coefficient.

= 2630 for dry interaction (ref. Bai)

Definition at line 162 of file CloudFilmTransfer.H.

Referenced by CloudFilmTransfer< CloudType >::CloudFilmTransfer().

◆ Awet_

scalar Awet_

protected

Wet surface roughness coefficient.

= 1320 for wet interaction (ref. Bai)

Definition at line 166 of file CloudFilmTransfer.H.

Referenced by CloudFilmTransfer< CloudType >::CloudFilmTransfer().

◆ Cf_

scalar Cf_

protected

Skin friction typically in the range 0.6 < Cf < 0.8.

Definition at line 170 of file CloudFilmTransfer.H.

Referenced by CloudFilmTransfer< CloudType >::CloudFilmTransfer().

◆ nParcelsSplashed_

label nParcelsSplashed_

protected

Counter for number of new splash parcels.

Definition at line 173 of file CloudFilmTransfer.H.

The documentation for this class was generated from the following files:

applications/modules/isothermalFilm/fvModels/filmCloudTransfer/cloudFilmTransfer/CloudFilmTransfer/CloudFilmTransfer.H
applications/modules/isothermalFilm/fvModels/filmCloudTransfer/cloudFilmTransfer/CloudFilmTransfer/CloudFilmTransfer.C

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

template<class CloudType> class Foam::CloudFilmTransfer< CloudType >

Member Typedef Documentation

◆ parcelType

Constructor & Destructor Documentation

◆ CloudFilmTransfer() [1/2]

◆ CloudFilmTransfer() [2/2]

◆ ~CloudFilmTransfer()

Member Function Documentation

◆ splashDirection()

◆ absorbInteraction()

◆ bounceInteraction()

◆ drySplashInteraction()

◆ wetSplashInteraction()

◆ splashInteraction()

◆ filmPatches()

◆ cacheFilmFields()

◆ setParcelProperties()

◆ TypeName()

◆ clone()

◆ transferParcel()

◆ info()

Member Data Documentation

◆ rndGen_

◆ filmTransfers_

◆ filmPatches_

◆ UFilmPatch_

◆ rhoFilmPatch_

◆ TFilmPatch_

◆ CpFilmPatch_

◆ interactionType_

◆ deltaWet_

◆ splashParcelType_

◆ parcelsPerSplash_

◆ Adry_

◆ Awet_

◆ Cf_

◆ nParcelsSplashed_

template<class CloudType>
class Foam::CloudFilmTransfer< CloudType >
