Model for heat exchange. Requires specification of an ambient temperature with which to exchange heat, and a model for the heat transfer coefficient (htc) and the area per unit volume (AoV). These are then used to apply the following source to the energy equation: More...

Inheritance diagram for heatTransfer:

[legend]

Collaboration diagram for heatTransfer:

[legend]

Public Member Functions
	TypeName ("heatTransfer")
	Runtime type information. More...

	heatTransfer (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)
	Construct from dictionary. More...

virtual	~heatTransfer ()
	Destructor. More...

virtual wordList	addSupFields () const
	Return the list of fields for which the fvModel adds source term. More...

virtual void	addSup (fvMatrix< scalar > &eqn, const word &fieldName) const
	Source term to energy equation. More...

virtual void	addSup (const volScalarField &rho, fvMatrix< scalar > &eqn, const word &fieldName) const
	Source term to compressible energy equation. More...

virtual void	correct ()
	Correct the model. More...

virtual bool	movePoints ()
	Update for mesh motion. More...

virtual void	topoChange (const polyTopoChangeMap &)
	Update topology using the given map. More...

virtual void	mapMesh (const polyMeshMap &)
	Update from another mesh using the given map. More...

virtual void	distribute (const polyDistributionMap &)
	Redistribute or update using the given distribution map. More...

virtual bool	read (const dictionary &dict)
	Read dictionary. More...

Public Member Functions inherited from fvModel
	TypeName ("fvModel")
	Runtime type information. More...

	declareRunTimeSelectionTable (autoPtr, fvModel, dictionary,(const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh),(name, modelType, dict, mesh))

	fvModel (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)
	Construct from components. More...

autoPtr< fvModel >	clone () const
	Return clone. More...

virtual	~fvModel ()
	Destructor. More...

const word &	name () const
	Return const access to the source name. More...

const fvMesh &	mesh () const
	Return const access to the mesh database. More...

const dictionary &	coeffs () const
	Return dictionary. More...

virtual bool	addsSupToField (const word &fieldName) const
	Return true if the fvModel adds a source term to the given. More...

virtual scalar	maxDeltaT () const
	Return the maximum time-step for stable operation. More...

	FOR_ALL_FIELD_TYPES (DEFINE_FV_MODEL_ADD_SUP)
	Add a source term to an equation. More...

	FOR_ALL_FIELD_TYPES (DEFINE_FV_MODEL_ADD_RHO_SUP)
	Add a source term to a compressible equation. More...

	FOR_ALL_FIELD_TYPES (DEFINE_FV_MODEL_ADD_ALPHA_RHO_SUP)
	Add a source term to a phase equation. More...

template<class Type >
tmp< fvMatrix< Type > >	source (const GeometricField< Type, fvPatchField, volMesh > &field) const
	Return source for an equation. More...

template<class Type >
tmp< fvMatrix< Type > >	source (const GeometricField< Type, fvPatchField, volMesh > &field, const word &fieldName) const
	Return source for an equation with a specified name. More...

template<class Type >
tmp< fvMatrix< Type > >	source (const volScalarField &rho, const GeometricField< Type, fvPatchField, volMesh > &field) const
	Return source for a compressible equation. More...

template<class Type >
tmp< fvMatrix< Type > >	source (const volScalarField &rho, const GeometricField< Type, fvPatchField, volMesh > &field, const word &fieldName) const
	Return source for a compressible equation with a specified name. More...

template<class Type >
tmp< fvMatrix< Type > >	source (const volScalarField &alpha, const volScalarField &rho, const GeometricField< Type, fvPatchField, volMesh > &field) const
	Return source for a phase equation. More...

template<class Type >
tmp< fvMatrix< Type > >	source (const volScalarField &alpha, const volScalarField &rho, const GeometricField< Type, fvPatchField, volMesh > &field, const word &fieldName) const
	Return source for a phase equation with a specified name. More...

virtual void	preUpdateMesh ()
	Prepare for mesh update. More...

template<class Type , class AlphaRhoFieldType , class ... AlphaRhoFieldTypes>
Foam::dimensionSet	sourceDims (const GeometricField< Type, fvPatchField, volMesh > &field, const dimensionSet &ds, const AlphaRhoFieldType &alphaRho, const AlphaRhoFieldTypes &... alphaRhos)

template<class Type >
Foam::dimensionSet	sourceDims (const GeometricField< Type, fvPatchField, volMesh > &field, const dimensionSet &ds)

template<class Type , class ... AlphaRhoFieldTypes>
Foam::tmp< Foam::fvMatrix< Type > >	source (const GeometricField< Type, fvPatchField, volMesh > &field, const word &fieldName, const dimensionSet &ds, const AlphaRhoFieldTypes &... alphaRhos) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	source (const GeometricField< Type, fvPatchField, volMesh > &field) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	source (const GeometricField< Type, fvPatchField, volMesh > &field, const word &fieldName) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	source (const volScalarField &rho, const GeometricField< Type, fvPatchField, volMesh > &field) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	source (const volScalarField &rho, const GeometricField< Type, fvPatchField, volMesh > &field, const word &fieldName) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	source (const volScalarField &alpha, const volScalarField &rho, const GeometricField< Type, fvPatchField, volMesh > &field) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	source (const volScalarField &alpha, const volScalarField &rho, const GeometricField< Type, fvPatchField, volMesh > &field, const word &fieldName) const

Additional Inherited Members
Static Public Member Functions inherited from fvModel
template<class Type , class AlphaRhoFieldType , class ... AlphaRhoFieldTypes>
static dimensionSet	sourceDims (const GeometricField< Type, fvPatchField, volMesh > &field, const dimensionSet &ds, const AlphaRhoFieldType &alphaRho, const AlphaRhoFieldTypes &... alphaRhos)
	Return the dimensions of the matrix of a source term. More...

template<class Type >
static dimensionSet	sourceDims (const GeometricField< Type, fvPatchField, volMesh > &field, const dimensionSet &ds)
	Return the dimensions of the matrix of a source term (base. More...

static autoPtr< fvModel >	New (const word &name, const dictionary &dict, const fvMesh &mesh)
	Return a reference to the selected fvModel. More...

Protected Member Functions inherited from fvModel
template<class Type >
void	addSupType (fvMatrix< Type > &eqn, const word &fieldName) const
	Add a source term to an equation. More...

template<class Type >
void	addSupType (const volScalarField &rho, fvMatrix< Type > &eqn, const word &fieldName) const
	Add a source term to a compressible equation. More...

template<class Type >
void	addSupType (const volScalarField &alpha, const volScalarField &rho, fvMatrix< Type > &eqn, const word &fieldName) const
	Add a source term to a phase equation. More...

template<class Type , class ... AlphaRhoFieldTypes>
tmp< fvMatrix< Type > >	source (const GeometricField< Type, fvPatchField, volMesh > &field, const word &fieldName, const dimensionSet &ds, const AlphaRhoFieldTypes &... alphaRhos) const
	Return source for equation with specified name and dimensions. More...

Detailed Description

Model for heat exchange. Requires specification of an ambient temperature with which to exchange heat, and a model for the heat transfer coefficient (htc) and the area per unit volume (AoV). These are then used to apply the following source to the energy equation:

$-htc*AoV*(T_a - T)$

If the semiImplicit option is set, then this becomes:

$-htc*AoV*(T_a - T) + htc*AoV/Cp*h - Sp(htc*AoV/Cp, h);$

Usage

Example usage:

heatTransfer
{
    type            heatTransfer;

    heatTransferCoeffs
    {
        selectionMode   cellSet;
        cellSet         c0;

        semiImplicit    no;

        Ta              300;

        type            constant;

        AoV             200;
        htc             10;
    }
}

See also: fv::heatTransferModel

Source files

Definition at line 92 of file heatTransfer.H.

Constructor & Destructor Documentation

◆ heatTransfer()

heatTransfer	(	const word &	name,
		const word &	modelType,
		const dictionary &	dict,
		const fvMesh &	mesh
	)

Construct from dictionary.

Definition at line 68 of file heatTransfer.C.

◆ ~heatTransfer()

~heatTransfer ( )

virtual

Destructor.

Definition at line 88 of file heatTransfer.C.

Member Function Documentation

◆ TypeName()

TypeName ( "heatTransfer" )

Runtime type information.

◆ addSupFields()

Foam::wordList addSupFields ( ) const

virtual

Return the list of fields for which the fvModel adds source term.

to the transport equation

Reimplemented from fvModel.

Definition at line 94 of file heatTransfer.C.

References heatTransfer::addSup(), basicThermo::he(), mesh, IOobject::name(), and thermo.

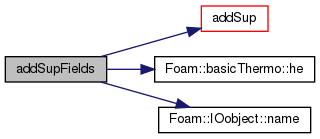

Here is the call graph for this function:

◆ addSup() [1/2]

void addSup	(	fvMatrix< scalar > &	eqn,
		const word &	fieldName
	)		const

virtual

Source term to energy equation.

Definition at line 104 of file heatTransfer.C.

References basicThermo::Cpv(), Foam::dimEnergy, DimensionedField< Type, GeoMesh >::dimensions(), Foam::dimless, Foam::dimMass, Foam::dimTemperature, he(), mesh, GeometricField< scalar, fvPatchField, volMesh >::New(), fvMatrix< Type >::psi(), Foam::fvm::Sp(), Foam::T(), and thermo.

Referenced by heatTransfer::addSupFields().

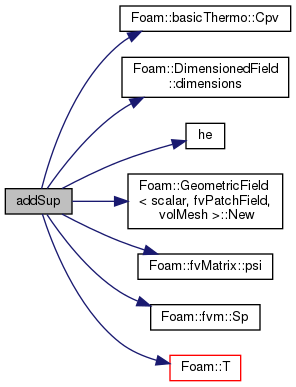

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addSup() [2/2]

void addSup	(	const volScalarField &	rho,
		fvMatrix< scalar > &	eqn,
		const word &	fieldName
	)		const

virtual

Source term to compressible energy equation.

Definition at line 146 of file heatTransfer.C.

◆ correct()

void correct ( )

virtual

Correct the model.

Reimplemented from fvModel.

Definition at line 156 of file heatTransfer.C.

◆ movePoints()

bool movePoints ( )

virtual

Update for mesh motion.

Implements fvModel.

Definition at line 162 of file heatTransfer.C.

◆ topoChange()

void topoChange ( const polyTopoChangeMap & map )

virtual

Update topology using the given map.

Implements fvModel.

Definition at line 169 of file heatTransfer.C.

◆ mapMesh()

void mapMesh ( const polyMeshMap & map )

virtual

Update from another mesh using the given map.

Implements fvModel.

Definition at line 175 of file heatTransfer.C.

◆ distribute()

void distribute ( const polyDistributionMap & map )

virtual

Redistribute or update using the given distribution map.

Implements fvModel.

Definition at line 181 of file heatTransfer.C.

◆ read()

bool read ( const dictionary & dict )

virtual

Read dictionary.

Reimplemented from fvModel.

Definition at line 187 of file heatTransfer.C.

References fvModel::read().

Here is the call graph for this function:
