This fvModel represents conduction through a solid region. It solves for the electric potential, calculates the current, and applies the corresponding Joule heating source to the energy equation. It requires the user to specify the electric potential field phi in the zero directory. More...

Inheritance diagram for solidElectricalConduction:

[legend]

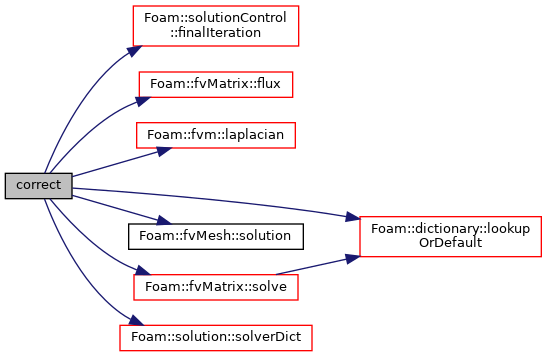

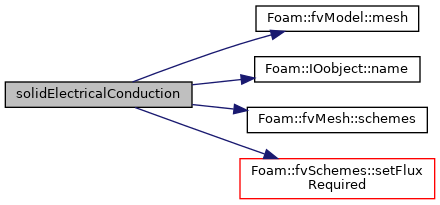

Collaboration diagram for solidElectricalConduction:

[legend]

Public Member Functions
	TypeName ("solidElectricalConduction")
	Runtime type information. More...

	solidElectricalConduction (const word &name, const word &modelType, const fvMesh &mesh, const dictionary &dict)
	Construct from explicit source name and mesh. More...

	solidElectricalConduction (const solidElectricalConduction &)=delete
	Disallow default bitwise copy construction. More...

virtual wordList	addSupFields () const
	Return the list of fields for which the fvModel adds source term. More...

virtual void	addSup (const volScalarField &rho, const volScalarField &he, fvMatrix< scalar > &eqn) const
	Add explicit contribution to compressible energy equation. More...

virtual void	correct ()
	Solve for the electric potential. More...

virtual bool	movePoints ()
	Update for mesh motion. More...

virtual void	topoChange (const polyTopoChangeMap &)
	Update topology using the given map. More...

virtual void	mapMesh (const polyMeshMap &)
	Update from another mesh using the given map. More...

virtual void	distribute (const polyDistributionMap &)
	Redistribute or update using the given distribution map. More...

virtual bool	read (const dictionary &dict)
	Read source dictionary. More...

virtual bool	write (const bool write=true) const
	Write fvModel data. More...

void	operator= (const solidElectricalConduction &)=delete
	Disallow default bitwise assignment. More...

Public Member Functions inherited from fvModel
	TypeName ("fvModel")
	Runtime type information. More...

	declareRunTimeSelectionTable (autoPtr, fvModel, dictionary,(const word &name, const word &modelType, const fvMesh &mesh, const dictionary &dict),(name, modelType, mesh, dict))

	fvModel (const word &name, const word &modelType, const fvMesh &mesh, const dictionary &dict)
	Construct from components. More...

autoPtr< fvModel >	clone () const
	Return clone. More...

virtual	~fvModel ()
	Destructor. More...

const word &	name () const
	Return const access to the source name. More...

const word &	keyword () const
	Return name as the keyword. More...

const fvMesh &	mesh () const
	Return const access to the mesh database. More...

const dictionary &	coeffs (const dictionary &) const
	Return the coefficients sub-dictionary. More...

virtual bool	addsSupToField (const word &fieldName) const
	Return true if the fvModel adds a source term to the given. More...

virtual scalar	maxDeltaT () const
	Return the maximum time-step for stable operation. More...

virtual void	addSup (fvMatrix< scalar > &eqn) const
	Add a source term to a field-less proxy equation. More...

template<class Type >
tmp< fvMatrix< Type > >	sourceProxy (const VolField< Type > &eqnField) const
	Add a source term to an equation. More...

template<class Type >
tmp< fvMatrix< Type > >	source (const VolField< Type > &field) const
	Return source for an equation. More...

template<class Type >
tmp< fvMatrix< Type > >	sourceProxy (const VolField< Type > &field, const VolField< Type > &eqnField) const
	Return source for an equation. More...

template<class Type >
tmp< fvMatrix< Type > >	source (const volScalarField &rho, const VolField< Type > &field) const
	Return source for a compressible equation. More...

template<class Type >
tmp< fvMatrix< Type > >	sourceProxy (const volScalarField &rho, const VolField< Type > &field, const VolField< Type > &eqnField) const
	Return source for a compressible equation. More...

template<class Type >
tmp< fvMatrix< Type > >	source (const volScalarField &alpha, const volScalarField &rho, const VolField< Type > &field) const
	Return source for a phase equation. More...

template<class Type >
tmp< fvMatrix< Type > >	sourceProxy (const volScalarField &alpha, const volScalarField &rho, const VolField< Type > &field, const VolField< Type > &eqnField) const
	Return source for a phase equation. More...

template<class Type >
tmp< fvMatrix< Type > >	source (const volScalarField &alpha, const geometricOneField &rho, const VolField< Type > &field) const
	Return source for a phase equation. More...

template<class Type >
tmp< fvMatrix< Type > >	source (const geometricOneField &alpha, const volScalarField &rho, const VolField< Type > &field) const
	Return source for a phase equation. More...

template<class Type >
tmp< fvMatrix< Type > >	source (const geometricOneField &alpha, const geometricOneField &rho, const VolField< Type > &field) const
	Return source for a phase equation. More...

template<class Type >
tmp< fvMatrix< Type > >	d2dt2 (const VolField< Type > &field) const
	Return source for an equation with a second time derivative. More...

virtual void	preUpdateMesh ()
	Prepare for mesh update. More...

template<class AlphaRhoFieldType , class ... AlphaRhoFieldTypes>
Foam::dimensionSet	sourceDims (const dimensionSet &ds, const AlphaRhoFieldType &alphaRhoField, const AlphaRhoFieldTypes &... alphaRhoFields)

template<class AlphaRhoFieldType , class ... AlphaRhoFieldTypes>
const Foam::word &	fieldName (const AlphaRhoFieldType &alphaRhoField, const AlphaRhoFieldTypes &... alphaRhoFields)

template<class AlphaRhoFieldType >
const Foam::word &	fieldName (const AlphaRhoFieldType &alphaRhoField)

template<class Type , class ... AlphaRhoFieldTypes>
Foam::tmp< Foam::fvMatrix< Type > >	sourceTerm (const VolField< Type > &eqnField, const dimensionSet &ds, const AlphaRhoFieldTypes &... alphaRhoFields) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	sourceProxy (const VolField< Type > &eqnField) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	source (const VolField< Type > &field) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	sourceProxy (const VolField< Type > &field, const VolField< Type > &eqnField) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	source (const volScalarField &rho, const VolField< Type > &field) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	sourceProxy (const volScalarField &rho, const VolField< Type > &field, const VolField< Type > &eqnField) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	source (const volScalarField &alpha, const volScalarField &rho, const VolField< Type > &field) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	sourceProxy (const volScalarField &alpha, const volScalarField &rho, const VolField< Type > &field, const VolField< Type > &eqnField) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	source (const geometricOneField &alpha, const geometricOneField &rho, const VolField< Type > &field) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	source (const volScalarField &alpha, const geometricOneField &rho, const VolField< Type > &field) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	source (const geometricOneField &alpha, const volScalarField &rho, const VolField< Type > &field) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	d2dt2 (const VolField< Type > &field) const

Additional Inherited Members
Static Public Member Functions inherited from fvModel
static const dictionary &	coeffs (const word &modelType, const dictionary &)
	Return the coefficients sub-dictionary for a given model type. More...

template<class AlphaRhoFieldType , class ... AlphaRhoFieldTypes>
static dimensionSet	sourceDims (const dimensionSet &ds, const AlphaRhoFieldType &alphaRhoField, const AlphaRhoFieldTypes &... alphaRhoFields)
	Return the dimensions of the matrix of a source term. More...

static const dimensionSet &	sourceDims (const dimensionSet &ds)
	Return the dimensions of the matrix of a source term (base. More...

template<class AlphaRhoFieldType , class ... AlphaRhoFieldTypes>
static const word &	fieldName (const AlphaRhoFieldType &alphaRhoField, const AlphaRhoFieldTypes &... alphaRhoFields)
	Return the name of the field associated with a source term. More...

template<class AlphaRhoFieldType >
static const word &	fieldName (const AlphaRhoFieldType &alphaRhoField)
	Return the name of the field associated with a source term (base. More...

static const word &	fieldName ()
	Return the name of the field associated with a source term. Special. More...

static autoPtr< fvModel >	New (const word &name, const fvMesh &mesh, const dictionary &dict)
	Return a reference to the selected fvModel. More...

Static Public Attributes inherited from fvModel
static const wordHashSet	keywords
	The keywords read by this class. More...

Protected Member Functions inherited from fvModel
template<class Type >
void	addSupType (const VolField< Type > &field, fvMatrix< Type > &eqn) const
	Add a source term to an equation. More...

template<class Type >
void	addSupType (const volScalarField &rho, const VolField< Type > &field, fvMatrix< Type > &eqn) const
	Add a source term to a compressible equation. More...

template<class Type >
void	addSupType (const volScalarField &alpha, const volScalarField &rho, const VolField< Type > &field, fvMatrix< Type > &eqn) const
	Add a source term to a phase equation. More...

template<class Type , class ... AlphaRhoFieldTypes>
tmp< fvMatrix< Type > >	sourceTerm (const VolField< Type > &eqnField, const dimensionSet &ds, const AlphaRhoFieldTypes &... alphaRhoFields) const
	Return a source for an equation. More...

Detailed Description

This fvModel represents conduction through a solid region. It solves for the electric potential, calculates the current, and applies the corresponding Joule heating source to the energy equation. It requires the user to specify the electric potential field phi in the zero directory.

Usage

Example usage with a constant scalar conductivity:

solidElectricalConduction
{
    type            solidElectricalConduction;

    sigma           35.5e6; // <-- 'sigma<scalar>' is also accepted
}

Example usage with a constant tensor conductivity:

solidElectricalConduction
{
    type            solidElectricalConduction;

    sigma<tensor>   (35.5e6 0 0 0 35.5e6 0 0 0 35.5e6);
}

Example usage with a functional scalar conductivity, and writing the conductivity out for post-processing:

solidElectricalConduction
{
    type            solidElectricalConduction;

    sigma
    {
        type        distanceFunction;

        function
        {
            type        polynomial;
            coeffs      (35.5e6 1e9);
        }

        direction   (0 1 0);
    }

    writeSigma      yes;
}

Source files

Definition at line 100 of file solidElectricalConduction.H.
