This boundary condition applies a heat flux condition to temperature on an external wall. Heat flux can be specified in the following ways: More...

Inheritance diagram for externalTemperatureFvPatchScalarField:

[legend]

Collaboration diagram for externalTemperatureFvPatchScalarField:

[legend]

Public Member Functions
	TypeName ("externalTemperature")
	Runtime type information. More...

	externalTemperatureFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, fvMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary. More...

	externalTemperatureFvPatchScalarField (const externalTemperatureFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, fvMesh > &, const fieldMapper &)
	Construct by mapping given. More...

	externalTemperatureFvPatchScalarField (const externalTemperatureFvPatchScalarField &)=delete
	Disallow copy without setting internal field reference. More...

	externalTemperatureFvPatchScalarField (const externalTemperatureFvPatchScalarField &, const DimensionedField< scalar, fvMesh > &)
	Copy constructor setting internal field reference. More...

virtual tmp< fvPatchScalarField >	clone (const DimensionedField< scalar, fvMesh > &iF) const
	Construct and return a clone setting internal field reference. More...

virtual	~externalTemperatureFvPatchScalarField ()
	Destructor. More...

virtual bool	fixesValue () const
	Disallow manipulation of the boundary values. More...

virtual void	map (const fvPatchScalarField &, const fieldMapper &)
	Map the given fvPatchField onto this fvPatchField. More...

virtual void	reset (const fvPatchScalarField &)
	Reset the fvPatchField to the given fvPatchField. More...

virtual void	updateCoeffs ()
	Update the coefficients associated with the patch field. More...

void	write (Ostream &) const
	Write. More...

Protected Member Functions
void	plusEqOp (tmp< scalarField > &tf, const scalar d) const
	Plus-equals op for a tmp field. Will initialise the tmp if empty. More...

void	plusEqOp (tmp< scalarField > &tf, const tmp< scalarField > &tdf) const
	Plus-equals op for a tmp field. Will initialise the tmp if empty. More...

virtual void	getKappa (scalarField &kappa, tmp< scalarField > &sumKappaTcByDelta, tmp< scalarField > &sumKappaByDelta, tmp< scalarField > &T, tmp< scalarField > &sumq) const
	Get the patch kappa, kappa*Tc/delta, kappa/delta,. More...

Detailed Description

This boundary condition applies a heat flux condition to temperature on an external wall. Heat flux can be specified in the following ways:

Fixed power: requires Q
Fixed heat flux: requires q
Fixed heat transfer coefficient: requires h and Ta

where:

	=	Power Function1 of time [W]
	=	Heat flux Function1 of time [W/m^2]
	=	Heat transfer coefficient DimensionedFieldFunction [W/m^2/K]
	=	Ambient temperature Function1 of time [K]

Only one of Q or q may be specified, if h and Ta are also specified the corresponding heat-flux is added.

The patch thermal conductivity kappa is obtained from the region thermophysicalTransportModel so that this boundary condition can be applied directly to either fluid or solid regions.

Usage

Property	Description	Required	Default value
`Q`	Power [W]	no
`q`	Heat flux [W/m^2]	no
`h`	Heat transfer coefficient [W/m^2/K]	no
`Ta`	Ambient temperature [K]	if h is given
`relaxation`	Relaxation for the wall temperature	no	1
`emissivity`	Surface emissivity for radiative flux to ambient	no	0
`qr`	Name of the radiative field	no	none
`qrRelaxation`	Relaxation factor for radiative field	no	1

Example of the boundary condition specification:

    <patchName>
    {
        type            externalTemperature;

        Ta              constant 300.0;
        h               uniform 10.0;

        value           $internalField;
    }

See also: Foam::mixedFvPatchScalarField Foam::Function1

Source files

Definition at line 161 of file externalTemperatureFvPatchScalarField.H.

Constructor & Destructor Documentation

◆ externalTemperatureFvPatchScalarField() [1/4]

externalTemperatureFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, fvMesh > &	iF,
		const dictionary &	dict
	)

Construct from patch, internal field and dictionary.

Definition at line 96 of file externalTemperatureFvPatchScalarField.C.

References dict, DimensionedField< Type, GeoMesh, PrimitiveField >::dimensions(), Foam::dimLength, Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, Foam::units::fraction, fvPatchField< Type >::operator, and p.

Here is the call graph for this function:

◆ externalTemperatureFvPatchScalarField() [2/4]

externalTemperatureFvPatchScalarField	(	const externalTemperatureFvPatchScalarField &	ptf,
		const fvPatch &	p,
		const DimensionedField< scalar, fvMesh > &	iF,
		const fieldMapper &	mapper
	)

Construct by mapping given.

externalTemperatureFvPatchScalarField onto a new patch

Definition at line 206 of file externalTemperatureFvPatchScalarField.C.

◆ externalTemperatureFvPatchScalarField() [3/4]

externalTemperatureFvPatchScalarField ( const externalTemperatureFvPatchScalarField & )

delete

Disallow copy without setting internal field reference.

◆ externalTemperatureFvPatchScalarField() [4/4]

externalTemperatureFvPatchScalarField	(	const externalTemperatureFvPatchScalarField &	ptf,
		const DimensionedField< scalar, fvMesh > &	iF
	)

Copy constructor setting internal field reference.

Definition at line 245 of file externalTemperatureFvPatchScalarField.C.

◆ ~externalTemperatureFvPatchScalarField()

~externalTemperatureFvPatchScalarField ( )

virtual

Destructor.

Definition at line 291 of file externalTemperatureFvPatchScalarField.C.

Member Function Documentation

◆ plusEqOp() [1/2]

void plusEqOp	(	tmp< scalarField > &	tf,
		const scalar	d
	)		const

protected

Plus-equals op for a tmp field. Will initialise the tmp if empty.

Definition at line 34 of file externalTemperatureFvPatchScalarField.C.

References tf.

◆ plusEqOp() [2/2]

void plusEqOp	(	tmp< scalarField > &	tf,
		const tmp< scalarField > &	tdf
	)		const

protected

Plus-equals op for a tmp field. Will initialise the tmp if empty.

Definition at line 51 of file externalTemperatureFvPatchScalarField.C.

References tmp< T >::ptr(), tf, and tmp< T >::valid().

Here is the call graph for this function:

◆ getKappa()

void getKappa	(	scalarField &	kappa,
		tmp< scalarField > &	sumKappaTcByDelta,
		tmp< scalarField > &	sumKappaByDelta,
		tmp< scalarField > &	T,
		tmp< scalarField > &	sumq
	)		const

protectedvirtual

Get the patch kappa, kappa*Tc/delta, kappa/delta,.

reference T, current wall T and also the heat-flux/delta obtained from the sum heat-flux provided

Reimplemented in multiphaseExternalTemperatureFvPatchScalarField.

Definition at line 73 of file externalTemperatureFvPatchScalarField.C.

References Foam::constant::electromagnetic::kappa, thermophysicalTransportModel::kappaEff(), thermophysicalTransportModel::qCorr(), and Foam::T().

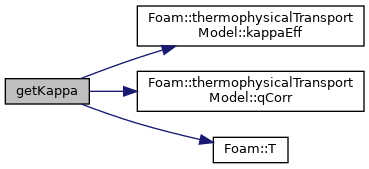

Here is the call graph for this function:

◆ TypeName()

TypeName ( "externalTemperature" )

Runtime type information.

◆ clone()

Foam::tmp< Foam::fvPatchScalarField > clone ( const DimensionedField< scalar, fvMesh > & iF ) const

virtual

Construct and return a clone setting internal field reference.

Reimplemented in multiphaseExternalTemperatureFvPatchScalarField.

Definition at line 277 of file externalTemperatureFvPatchScalarField.C.

◆ fixesValue()

virtual bool fixesValue ( ) const

inlinevirtual

Disallow manipulation of the boundary values.

The boundary temperature is evaluated only by this boundary condition

Definition at line 297 of file externalTemperatureFvPatchScalarField.H.

◆ map()

void map	(	const fvPatchScalarField &	ptf,
		const fieldMapper &	mapper
	)

virtual

Map the given fvPatchField onto this fvPatchField.

Definition at line 298 of file externalTemperatureFvPatchScalarField.C.

References fieldMapper::direct(), and word::null.

Here is the call graph for this function:

◆ reset()

void reset ( const fvPatchScalarField & ptf )

virtual

Reset the fvPatchField to the given fvPatchField.

Used for mesh to mesh mapping

Definition at line 321 of file externalTemperatureFvPatchScalarField.C.

References word::null.

◆ updateCoeffs()

void updateCoeffs ( )

virtual

Update the coefficients associated with the patch field.

Definition at line 344 of file externalTemperatureFvPatchScalarField.C.

References Foam::endl(), f(), Foam::gAverage(), Foam::gMax(), Foam::gMin(), Foam::gSum(), Foam::Info, Foam::constant::electromagnetic::kappa, Foam::max(), word::null, Foam::constant::physicoChemical::sigma, Foam::fvc::snGrad(), Foam::sqr(), Foam::T(), Foam::dimensions::time, tmp< T >::valid(), and Foam::Zero.

Here is the call graph for this function:

◆ write()

void write ( Ostream & os ) const

Write.

Definition at line 493 of file externalTemperatureFvPatchScalarField.C.

References Foam::dimArea, Foam::dimPower, Foam::dimTemperature, word::null, Foam::dimensions::time, fvPatchField< Type >::write(), Foam::writeEntry(), and Foam::writeEntryIfDifferent().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/ThermophysicalTransportModels/coupledThermophysicalTransportModels/externalTemperature/externalTemperatureFvPatchScalarField.H
src/ThermophysicalTransportModels/coupledThermophysicalTransportModels/externalTemperature/externalTemperatureFvPatchScalarField.C
