MeshedSurface< Face > Class Template Reference

A surface geometry mesh with zone information, not to be confused with the similarly named surfaceMesh, which actually refers to the cell faces of a volume mesh. More...

Inheritance diagram for MeshedSurface< Face >:
Collaboration diagram for MeshedSurface< Face >:

Public Types

typedef Face FaceType
 Face type used. More...

- Public Types inherited from PrimitivePatch<::Foam::List< Face >, pointField >
enum  surfaceTopo
 Enumeration defining the surface type. Used in check routines. More...

typedef ::Foam::List< Face > FaceListType

typedef std::remove_reference< ::Foam::List< Face > >::type::value_type FaceType

typedef pointField PointFieldType

typedef std::remove_reference< pointField >::type::value_type PointType

- Public Types inherited from List< Face >
typedef SubList< Face > subList
 Declare type of subList. More...

- Public Types inherited from UList< T >
typedef T value_type
 Type of values the UList contains. More...

typedef Treference
 Type that can be used for storing into. More...

typedef const Tconst_reference
 Type that can be used for storing into. More...

typedef label difference_type
 The type that can represent the difference between any two. More...

typedef label size_type
 The type that can represent the size of a UList. More...

typedef Titerator
 Random access iterator for traversing UList. More...

typedef const Tconst_iterator
 Random access iterator for traversing UList. More...

typedef Treverse_iterator
 Reverse iterator for reverse traversal of UList. More...

typedef const Tconst_reverse_iterator
 Reverse iterator for reverse traversal of constant UList. More...


Public Member Functions

 ClassName ("MeshedSurface")
 Runtime type information. More...

 MeshedSurface ()
 Construct null. More...

 MeshedSurface (pointField &&, List< Face > &&, surfZoneList &&)
 Construct by transferring components (points, faces, zones). More...

 MeshedSurface (pointField &&, List< Face > &&, const labelUList &zoneSizes=labelUList(), const UList< word > &zoneNames=UList< word >())
 Construct by transferring components (points, faces). More...

 MeshedSurface (const MeshedSurface &)
 Copy constructor. More...

 MeshedSurface (const UnsortedMeshedSurface< Face > &)
 Construct from a UnsortedMeshedSurface. More...

 MeshedSurface (const polyBoundaryMesh &, const bool globalPoints=false)
 Construct from a boundary mesh with local points/faces. More...

 MeshedSurface (const surfMesh &)
 Construct from a surfMesh. More...

 MeshedSurface (UnsortedMeshedSurface< Face > &&)
 Construct by transferring the contents from a UnsortedMeshedSurface. More...

 MeshedSurface (MeshedSurface< Face > &&)
 Construct by transferring the contents from a MeshedSurface. More...

 MeshedSurface (const fileName &)
 Construct from file name (uses extension to determine type) More...

 MeshedSurface (const fileName &, const word &ext)
 Construct from file name (uses extension to determine type) More...

 MeshedSurface (const Time &, const word &surfName="")
 Construct from database. More...

 declareRunTimeSelectionTable (autoPtr, MeshedSurface, fileExtension,(const fileName &name),(name))

virtual ~MeshedSurface ()
 Destructor. More...

 declareMemberFunctionSelectionTable (void, UnsortedMeshedSurface, write, fileExtension,(const fileName &name, const MeshedSurface< Face > &surf),(name, surf))

label size () const
 The surface size is the number of faces. More...

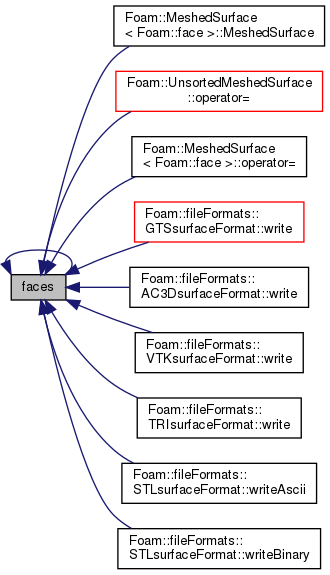

const List< Face > & faces () const
 Return const access to the faces. More...

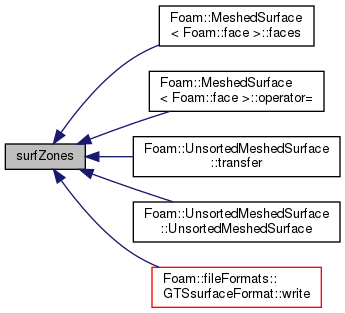

const List< surfZone > & surfZones () const
 Const access to the surface zones. More...

virtual void addZones (const UList< surfZone > &, const bool cullEmpty=false)
 Add surface zones. More...

virtual void addZones (const labelUList &sizes, const UList< word > &names, const bool cullEmpty=false)
 Add surface zones. More...

virtual void addZones (const labelUList &sizes, const bool cullEmpty=false)
 Add surface zones. More...

virtual void removeZones ()
 Remove surface zones. More...

virtual void clear ()
 Clear all storage. More...

virtual void movePoints (const pointField &)
 Move points. More...

virtual void scalePoints (const scalar)
 Scale points. A non-positive factor is ignored. More...

virtual void reset (pointField &&points, List< Face > &&faces, surfZoneList &&zones)
 Reset primitive data (points, faces and zones) More...

virtual void reset (List< point > &&points, List< Face > &&faces, surfZoneList &&zones)
 Reset primitive data (points, faces and zones) More...

virtual void cleanup (const bool verbose)
 Remove invalid faces. More...

virtual bool stitchFaces (const scalar tol=small, const bool verbose=false)

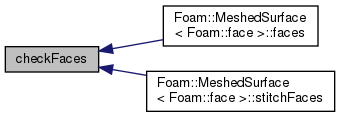

virtual bool checkFaces (const bool verbose=false)

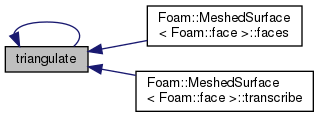

virtual label triangulate ()
 Triangulate in-place, returning the number of triangles added. More...

virtual label triangulate (List< label > &faceMap)
 Triangulate in-place, returning the number of triangles added. More...

MeshedSurface subsetMesh (const labelHashSet &include, labelList &pointMap, labelList &faceMap) const
 Return new surface. More...

MeshedSurface subsetMesh (const labelHashSet &include) const
 Return new surface. More...

void transfer (MeshedSurface< Face > &)
 Transfer the contents of the argument and annul the argument. More...

void transfer (UnsortedMeshedSurface< Face > &)
 Transfer the contents of the argument and annul the argument. More...

bool read (const fileName &, const word &ext)
 Read from file. Chooses reader based on explicit extension. More...

virtual bool read (const fileName &)
 Read from file. Chooses reader based on detected extension. More...

void writeStats (Ostream &os) const

virtual void write (const fileName &name) const
 Generic write routine. Chooses writer based on extension. More...

void write (const Time &, const word &surfName="") const
 Write to database. More...

void operator= (const MeshedSurface< Face > &)

 operator MeshedSurfaceProxy< Face > () const
 Conversion operator to MeshedSurfaceProxy. More...

template<class Face>
 MeshedSurface (const MeshedSurface< Face > &surf)

template<>
bool isTri ()
 Specialization for holding triangulated information. More...

template<>
label triangulate ()
 Specialization for holding triangulated information. More...

template<>
label triangulate (List< label > &faceMap)
 Specialization for holding triangulated information. More...

- Public Member Functions inherited from PrimitivePatch<::Foam::List< Face >, pointField >
 PrimitivePatch (const ::Foam::List< Face > &faces, const Field< PointType > &points)
 Construct from components. More...

 PrimitivePatch (::Foam::List< Face > &&faces, Field< PointType > &&points)
 Move constructor from components. More...

 PrimitivePatch (::Foam::List< Face > &&faces, List< PointType > &&points)
 Move constructor from components. More...

 PrimitivePatch (::Foam::List< Face > &faces, Field< PointType > &points, const bool reuse)
 Construct from components, reuse storage. More...

 PrimitivePatch (const PrimitivePatch< ::Foam::List< Face >, pointField > &)
 Copy constructor. More...

 PrimitivePatch (PrimitivePatch< ::Foam::List< Face >, pointField > &&)
 Move constructor. More...

 PrimitivePatch (Istream &, const Field< PointType > &points)
 Construct from Istream. More...

virtual autoPtr< PrimitivePatch< ::Foam::List< Face >, pointField > > clone () const
 Construct and return a clone. More...

virtual ~PrimitivePatch ()
 Destructor. More...

const Field< PointType > & points () const
 Return reference to global points. More...

label nPoints () const
 Return number of points supporting patch faces. More...

label nEdges () const
 Return number of edges in patch. More...

const edgeListedges () const
 Return list of edges, address into LOCAL point list. More...

label nInternalEdges () const
 Number of internal edges. More...

bool isInternalEdge (const label edgeI) const
 Is internal edge? More...

const labelListboundaryPoints () const
 Return list of boundary points,. More...

const labelListListfaceFaces () const
 Return face-face addressing. More...

const labelListListedgeFaces () const
 Return edge-face addressing. More...

const labelListListfaceEdges () const
 Return face-edge addressing. More...

const labelListListpointEdges () const
 Return point-edge addressing. More...

const labelListListpointFaces () const
 Return point-face addressing. More...

const List< FaceType > & localFaces () const
 Return patch faces addressing into local point list. More...

const labelListmeshPoints () const
 Return labelList of mesh points in patch. They are constructed. More...

const Map< label > & meshPointMap () const
 Mesh point map. Given the global point index find its. More...

const Field< PointType > & localPoints () const
 Return pointField of points in patch. More...

const labelListlocalPointOrder () const
 Return orders the local points for most efficient search. More...

label whichPoint (const label gp) const
 Given a global point index, return the local point index. More...

label whichEdge (const edge &) const
 Given an edge in local point labels, return its. More...

labelList meshEdges (const edgeList &allEdges, const labelListList &cellEdges, const labelList &faceCells) const
 Return labels of patch edges in the global edge list using. More...

labelList meshEdges (const edgeList &allEdges, const labelListList &pointEdges) const
 Return labels of patch edges in the global edge list using. More...

const Field< PointType > & faceCentres () const
 Return face centres for patch. More...

const Field< PointType > & faceNormals () const
 Return face normals for patch. More...

const Field< PointType > & pointNormals () const
 Return point normals for patch. More...

List< objectHitprojectPoints (const ToPatch &targetPatch, const Field< PointType > &projectionDirection, const intersection::algorithm=intersection::algorithm::fullRay, const intersection::direction=intersection::direction::vector) const
 Project vertices of patch onto another patch. More...

Foam::List< Foam::objectHitprojectPoints (const ToPatch &targetPatch, const Field< PointType > &projectionDirection, const intersection::algorithm alg, const intersection::direction dir) const

List< objectHitprojectFaceCentres (const ToPatch &targetPatch, const Field< PointType > &projectionDirection, const intersection::algorithm=intersection::algorithm::fullRay, const intersection::direction=intersection::direction::vector) const
 Project vertices of patch onto another patch. More...

Foam::List< Foam::objectHitprojectFaceCentres (const ToPatch &targetPatch, const Field< PointType > &projectionDirection, const intersection::algorithm alg, const intersection::direction dir) const

const labelListListedgeLoops () const
 Return list of closed loops of boundary vertices. More...

surfaceTopo surfaceType () const
 Calculate surface type formed by patch. More...

bool checkTopology (const bool report=false, labelHashSet *setPtr=nullptr) const
 Check surface formed by patch for manifoldness (see above). More...

bool checkPointManifold (const bool report=false, labelHashSet *setPtr=nullptr) const
 Checks primitivePatch for faces sharing point but not edge. More...

void clearOut ()

void clearGeom ()

void clearTopology ()

void clearPatchMeshAddr ()

virtual void movePoints (const Field< PointType > &)
 Correct patch after moving points. More...

void operator= (const PrimitivePatch< ::Foam::List< Face >, pointField > &)
 Assignment operator. More...

void operator= (PrimitivePatch< ::Foam::List< Face >, pointField > &&)
 Move assignment operator. More...

- Public Member Functions inherited from List< Face >
 List ()
 Null constructor. More...

 List (const label)
 Construct with given size. More...

 List (const label, const Face &)
 Construct with given size and value for all elements. More...

 List (const label, const zero)
 Construct with given size initializing all elements to zero. More...

 List (const List< Face > &)
 Copy constructor. More...

 List (const List< T2 > &)
 Copy constructor from list containing another type. More...

 List (List< Face > &&)
 Move constructor. More...

 List (List< Face > &, bool reuse)
 Construct as copy or re-use as specified. More...

 List (const UList< Face > &, const labelUList &mapAddressing)
 Construct as subset. More...

 List (InputIterator first, InputIterator last)
 Construct given start and end iterators. More...

 List (const FixedList< Face, Size > &)
 Construct as copy of FixedList<T, Size> More...

 List (const PtrList< Face > &)
 Construct as copy of PtrList<T> More...

 List (const SLList< Face > &)
 Construct as copy of SLList<T> More...

 List (const UIndirectList< Face > &)
 Construct as copy of UIndirectList<T> More...

 List (const BiIndirectList< Face > &)
 Construct as copy of BiIndirectList<T> More...

 List (std::initializer_list< Face >)
 Construct from an initializer list. More...

 List (Istream &)
 Construct from Istream. More...

label size () const
 Return the number of elements in the UList. More...

autoPtr< List< Face > > clone () const
 Clone. More...

 ~List ()
 Destructor. More...

void resize (const label)
 Alias for setSize(const label) More...

void resize (const label, const Face &)
 Alias for setSize(const label, const T&) More...

void setSize (const label)
 Reset size of List. More...

void setSize (const label, const Face &)
 Reset size of List and value for new elements. More...

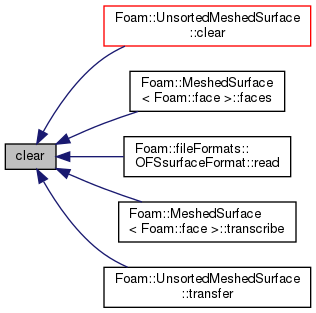

void clear ()
 Clear the list, i.e. set size to zero. More...

void append (const Face &)
 Append an element at the end of the list. More...

void append (const UList< Face > &)
 Append a List at the end of this list. More...

void append (const UIndirectList< Face > &)
 Append a UIndirectList at the end of this list. More...

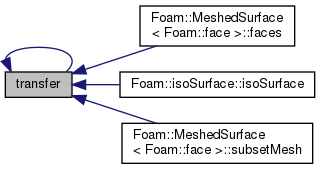

void transfer (List< Face > &)
 Transfer the contents of the argument List into this list. More...

void transfer (DynamicList< Face, SizeInc, SizeMult, SizeDiv > &)
 Transfer the contents of the argument List into this list. More...

void transfer (SortableList< Face > &)
 Transfer the contents of the argument List into this list. More...

Face & newElmt (const label)
 Return subscript-checked element of UList. More...

void shallowCopy (const UList< Face > &)=delete
 Disallow implicit shallowCopy. More...

void operator= (const UList< Face > &)
 Assignment to UList operator. Takes linear time. More...

void operator= (const List< Face > &)
 Assignment operator. Takes linear time. More...

void operator= (List< Face > &&)
 Move assignment operator. More...

void operator= (const SLList< Face > &)
 Assignment to SLList operator. Takes linear time. More...

void operator= (const UIndirectList< Face > &)
 Assignment to UIndirectList operator. Takes linear time. More...

void operator= (const BiIndirectList< Face > &)
 Assignment to BiIndirectList operator. Takes linear time. More...

void operator= (std::initializer_list< Face >)
 Assignment to an initializer list. More...

void operator= (const Face &)
 Assignment of all entries to the given value. More...

void operator= (const zero)
 Assignment of all entries to zero. More...

- Public Member Functions inherited from UList< T >
 UList ()
 Null constructor. More...

 UList (T *__restrict__ v, label size)
 Construct from components. More...

label fcIndex (const label i) const
 Return the forward circular index, i.e. the next index. More...

label rcIndex (const label i) const
 Return the reverse circular index, i.e. the previous index. More...

std::streamsize byteSize () const
 Return the binary size in number of characters of the UList. More...

const Tcdata () const
 Return a const pointer to the first data element,. More...

Tdata ()
 Return a pointer to the first data element,. More...

Tfirst ()
 Return the first element of the list. More...

const Tfirst () const
 Return first element of the list. More...

Tlast ()
 Return the last element of the list. More...

const Tlast () const
 Return the last element of the list. More...

void checkStart (const label start) const
 Check start is within valid range (0 ... size-1) More...

void checkSize (const label size) const
 Check size is within valid range (0 ... size) More...

void checkIndex (const label i) const
 Check index i is within valid range (0 ... size-1) More...

void shallowCopy (const UList< T > &)
 Copy the pointer held by the given UList. More...

void deepCopy (const UList< T > &)
 Copy elements of the given UList. More...

Toperator[] (const label)
 Return element of UList. More...

const Toperator[] (const label) const
 Return element of constant UList. More...

 operator const Foam::List< T > & () const
 Allow cast to a const List<T>&. More...

void operator= (const T &)
 Assignment of all entries to the given value. More...

void operator= (const zero)
 Assignment of all entries to zero. More...

iterator begin ()
 Return an iterator to begin traversing the UList. More...

iterator end ()
 Return an iterator to end traversing the UList. More...

const_iterator cbegin () const
 Return const_iterator to begin traversing the constant UList. More...

const_iterator cend () const
 Return const_iterator to end traversing the constant UList. More...

const_iterator begin () const
 Return const_iterator to begin traversing the constant UList. More...

const_iterator end () const
 Return const_iterator to end traversing the constant UList. More...

reverse_iterator rbegin ()
 Return reverse_iterator to begin reverse traversing the UList. More...

reverse_iterator rend ()
 Return reverse_iterator to end reverse traversing the UList. More...

const_reverse_iterator crbegin () const
 Return const_reverse_iterator to begin reverse traversing the UList. More...

const_reverse_iterator crend () const
 Return const_reverse_iterator to end reverse traversing the UList. More...

const_reverse_iterator rbegin () const
 Return const_reverse_iterator to begin reverse traversing the UList. More...

const_reverse_iterator rend () const
 Return const_reverse_iterator to end reverse traversing the UList. More...

label size () const
 Return the number of elements in the UList. More...

label max_size () const
 Return size of the largest possible UList. More...

bool empty () const
 Return true if the UList is empty (ie, size() is zero) More...

void swap (UList< T > &)
 Swap two ULists of the same type in constant time. More...

bool operator== (const UList< T > &) const
 Equality operation on ULists of the same type. More...

bool operator!= (const UList< T > &) const
 The opposite of the equality operation. Takes linear time. More...

bool operator< (const UList< T > &) const
 Compare two ULists lexicographically. Takes linear time. More...

bool operator> (const UList< T > &) const
 Compare two ULists lexicographically. Takes linear time. More...

bool operator<= (const UList< T > &) const
 Return true if !(a > b). Takes linear time. More...

bool operator>= (const UList< T > &) const
 Return true if !(a < b). Takes linear time. More...

template<>
const bool & operator[] (const label i) const

- Public Member Functions inherited from surfaceFormatsCore
 surfaceFormatsCore ()
 Construct null. More...

virtual ~surfaceFormatsCore ()
 Destructor. More...


Static Public Member Functions

static bool isTri ()
 Face storage only handles triangulated faces. More...

static bool canRead (const fileName &, const bool verbose=false)
 Can we read this file format? More...

static bool canReadType (const word &ext, const bool verbose=false)
 Can we read this file format? More...

static bool canWriteType (const word &ext, const bool verbose=false)
 Can we write this file format? More...

static wordHashSet readTypes ()

static wordHashSet writeTypes ()

static autoPtr< MeshedSurfaceNew (const fileName &, const word &ext)
 Select constructed from filename (explicit extension) More...

static autoPtr< MeshedSurfaceNew (const fileName &)
 Select constructed from filename (implicit extension) More...

static void write (const fileName &, const MeshedSurface< Face > &)
 Write to file. More...

- Static Public Member Functions inherited from List< Face >
static const List< Face > & null ()
 Return a null List. More...

- Static Public Member Functions inherited from UList< T >
static const UList< T > & null ()
 Return a null UList. More...

- Static Public Member Functions inherited from surfaceFormatsCore
static bool checkSupport (const wordHashSet &available, const word &ext, const bool verbose, const word &functionName)

static fileName localMeshFileName (const word &surfName="")
 Return the local file name (within time directory) More...

static fileName findMeshInstance (const Time &, const word &surfName="")
 Find instance with surfName. More...

static fileName findMeshFile (const Time &, const word &surfName="")
 Find mesh file with surfName. More...


Protected Member Functions

void transcribe (MeshedSurface< face > &)
 Transfer points/zones and transcribe face -> triFace. More...

void checkZones ()
 Basic sanity check on zones. More...

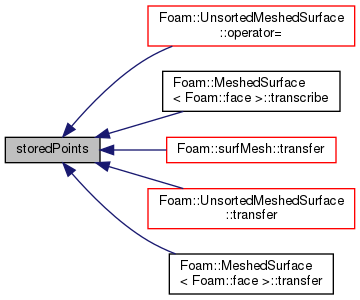

pointFieldstoredPoints ()
 Non-const access to global points. More...

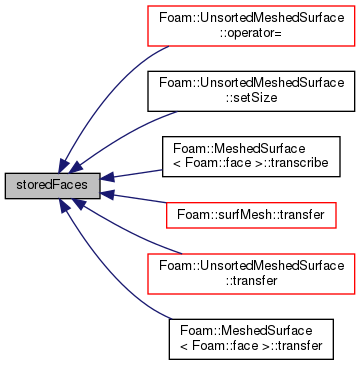

List< Face > & storedFaces ()
 Non-const access to the faces. More...

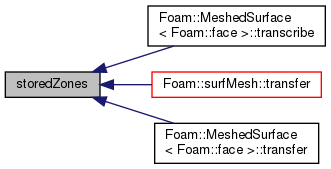

surfZoneListstoredZones ()
 Non-const access to the zones. More...

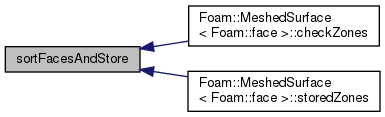

void sortFacesAndStore (List< Face > &&unsortedFaces, List< label > &&zoneIds, const bool sorted)
 Sort faces by zones and store sorted faces. More...

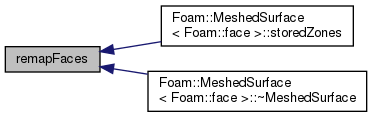

virtual void remapFaces (const labelUList &faceMap)
 Set new zones from faceMap. More...

template<>
void transcribe (MeshedSurface< face > &surf)

template<>
void transcribe (MeshedSurface< face > &surf)

- Protected Member Functions inherited from List< Face >
void size (const label)
 Override size to be inconsistent with allocated storage. More...


Friends

template<class Face2 >
class MeshedSurface

template<class Face2 >
class UnsortedMeshedSurface

class surfMesh


Additional Inherited Members

- Static Public Attributes inherited from surfaceFormatsCore
static word nativeExt
 The file extension corresponding to 'native' surface format. More...

- Static Protected Member Functions inherited from surfaceFormatsCore
template<class Container >
static List< surfZoneoneZone (const Container &container, const word &name="zone0")
 Return a list with a single entry,. More...

static string getLineNoComment (IFstream &)
 Read non-comment line. More...


Detailed Description

template<class Face>
class Foam::MeshedSurface< Face >

A surface geometry mesh with zone information, not to be confused with the similarly named surfaceMesh, which actually refers to the cell faces of a volume mesh.

A MeshedSurface can have zero or more surface zones (roughly equivalent to faceZones for a polyMesh). If surface zones are defined, they must be contiguous and cover all of the faces.

The MeshedSurface is intended for surfaces from a variety of sources.

  • A set of points and faces without any surface zone information.
  • A set of points and faces with randomly ordered zone information. This could arise, for example, from reading external file formats such as STL, etc.
Source files

Definition at line 72 of file MeshedSurface.H.

Member Typedef Documentation

◆ FaceType

typedef Face FaceType

Face type used.

Definition at line 151 of file MeshedSurface.H.

Constructor & Destructor Documentation

◆ MeshedSurface() [1/13]

Construct null.

Definition at line 158 of file MeshedSurface.C.

Referenced by MeshedSurface< Foam::face >::MeshedSurface().

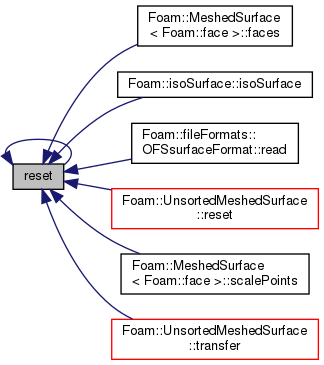

Here is the caller graph for this function:

◆ MeshedSurface() [2/13]

MeshedSurface ( pointField &&  pointLst,
List< Face > &&  faceLst,
surfZoneList &&  zoneLst
)

Construct by transferring components (points, faces, zones).

Definition at line 166 of file MeshedSurface.C.

◆ MeshedSurface() [3/13]

MeshedSurface ( pointField &&  pointLst,
List< Face > &&  faceLst,
const labelUList zoneSizes = labelUList(),
const UList< word > &  zoneNames = UList<word>()
)

Construct by transferring components (points, faces).

Use zone information if available

Definition at line 181 of file MeshedSurface.C.

◆ MeshedSurface() [4/13]

MeshedSurface ( const MeshedSurface< Face > &  )

Copy constructor.

◆ MeshedSurface() [5/13]

MeshedSurface ( const UnsortedMeshedSurface< Face > &  surf)

Construct from a UnsortedMeshedSurface.

Definition at line 219 of file MeshedSurface.C.

◆ MeshedSurface() [6/13]

MeshedSurface ( const polyBoundaryMesh bMesh,
const bool  globalPoints = false
)

Construct from a boundary mesh with local points/faces.

Definition at line 259 of file MeshedSurface.C.

◆ MeshedSurface() [7/13]

MeshedSurface ( const surfMesh mesh)

Construct from a surfMesh.

Definition at line 241 of file MeshedSurface.C.

◆ MeshedSurface() [8/13]

Construct by transferring the contents from a UnsortedMeshedSurface.

◆ MeshedSurface() [9/13]

MeshedSurface ( MeshedSurface< Face > &&  )

Construct by transferring the contents from a MeshedSurface.

◆ MeshedSurface() [10/13]

MeshedSurface ( const fileName name)

Construct from file name (uses extension to determine type)

Definition at line 346 of file MeshedSurface.C.

◆ MeshedSurface() [11/13]

MeshedSurface ( const fileName name,
const word ext
)

Construct from file name (uses extension to determine type)

Definition at line 334 of file MeshedSurface.C.

◆ MeshedSurface() [12/13]

MeshedSurface ( const Time t,
const word surfName = ""
)

Construct from database.

Definition at line 356 of file MeshedSurface.C.

◆ ~MeshedSurface()

~MeshedSurface ( )
virtual

Destructor.

Definition at line 392 of file MeshedSurface.C.

◆ MeshedSurface() [13/13]

MeshedSurface ( const MeshedSurface< Face > &  surf)

Definition at line 208 of file MeshedSurface.C.

Member Function Documentation

◆ transcribe() [1/3]

void transcribe ( MeshedSurface< face > &  )
protected

Transfer points/zones and transcribe face -> triFace.

Referenced by OFSsurfaceFormat< Face >::read().

Here is the caller graph for this function:

◆ checkZones()

void checkZones ( )
protected

Basic sanity check on zones.

Definition at line 31 of file MeshedSurfaceZones.C.

◆ storedPoints()

pointField& storedPoints ( )
inlineprotected

Non-const access to global points.

Definition at line 117 of file MeshedSurface.H.

Referenced by UnsortedMeshedSurface< Face >::operator=(), MeshedSurface< Foam::face >::transcribe(), surfMesh::transfer(), UnsortedMeshedSurface< Face >::transfer(), and MeshedSurface< Foam::face >::transfer().

Here is the caller graph for this function:

◆ storedFaces()

List<Face>& storedFaces ( )
inlineprotected

◆ storedZones()

surfZoneList& storedZones ( )
inlineprotected

Non-const access to the zones.

Definition at line 129 of file MeshedSurface.H.

Referenced by MeshedSurface< Foam::face >::transcribe(), surfMesh::transfer(), and MeshedSurface< Foam::face >::transfer().

Here is the caller graph for this function:

◆ sortFacesAndStore()

void sortFacesAndStore ( List< Face > &&  unsortedFaces,
List< label > &&  zoneIds,
const bool  sorted
)
protected

Sort faces by zones and store sorted faces.

Definition at line 66 of file MeshedSurfaceZones.C.

Referenced by MeshedSurface< Foam::face >::checkZones(), and MeshedSurface< Foam::face >::storedZones().

Here is the caller graph for this function:

◆ remapFaces()

void remapFaces ( const labelUList faceMap)
protectedvirtual

Set new zones from faceMap.

Reimplemented in cuttingPlane, and UnsortedMeshedSurface< Face >.

Definition at line 400 of file MeshedSurface.C.

Referenced by MeshedSurface< Foam::face >::storedZones(), and MeshedSurface< Foam::face >::~MeshedSurface().

Here is the caller graph for this function:

◆ ClassName()

ClassName ( "MeshedSurface< Face >"  )

Runtime type information.

◆ isTri() [1/2]

bool isTri ( )
inlinestatic

Face storage only handles triangulated faces.

Definition at line 41 of file MeshedSurface.C.

◆ canRead()

bool canRead ( const fileName name,
const bool  verbose = false
)
static

Can we read this file format?

Definition at line 99 of file MeshedSurface.C.

Referenced by MeshedSurface< Foam::face >::canWriteType().

Here is the caller graph for this function:

◆ canReadType()

bool canReadType ( const word ext,
const bool  verbose = false
)
static

Can we read this file format?

Definition at line 65 of file MeshedSurface.C.

Referenced by MeshedSurface< Foam::face >::writeTypes().

Here is the caller graph for this function:

◆ canWriteType()

bool canWriteType ( const word ext,
const bool  verbose = false
)
static

Can we write this file format?

Definition at line 82 of file MeshedSurface.C.

Referenced by MeshedSurface< Foam::face >::canReadType().

Here is the caller graph for this function:

◆ readTypes()

Foam::wordHashSet readTypes ( )
static

Definition at line 48 of file MeshedSurface.C.

◆ writeTypes()

Foam::wordHashSet writeTypes ( )
static

Definition at line 55 of file MeshedSurface.C.

◆ declareRunTimeSelectionTable()

declareRunTimeSelectionTable ( autoPtr  ,
MeshedSurface< Face >  ,
fileExtension  ,
(const fileName &name ,
(name
)

◆ New() [1/2]

Foam::autoPtr< Foam::MeshedSurface< Face > > New ( const fileName name,
const word ext
)
static

Select constructed from filename (explicit extension)

Definition at line 33 of file MeshedSurfaceNew.C.

◆ New() [2/2]

Foam::autoPtr< Foam::MeshedSurface< Face > > New ( const fileName name)
static

Select constructed from filename (implicit extension)

Definition at line 72 of file MeshedSurfaceNew.C.

◆ declareMemberFunctionSelectionTable()

declareMemberFunctionSelectionTable ( void  ,
UnsortedMeshedSurface< Face >  ,
write  ,
fileExtension  ,
(const fileName &name, const MeshedSurface< Face > &surf)  ,
(name, surf)
)

◆ write() [1/3]

void write ( const fileName name,
const MeshedSurface< Face > &  surf
)
static

Write to file.

Definition at line 115 of file MeshedSurface.C.

Referenced by MeshedSurface< Foam::face >::canRead(), MeshedSurface< Foam::face >::read(), and MeshedSurface< Foam::face >::write().

Here is the caller graph for this function:

◆ size()

label size ( ) const
inline

The surface size is the number of faces.

Definition at line 285 of file MeshedSurface.H.

Referenced by UnsortedMeshedSurface< Face >::size(), and GTSsurfaceFormat< Face >::write().

Here is the caller graph for this function:

◆ faces()

◆ surfZones()

const List<surfZone>& surfZones ( ) const
inline

Const access to the surface zones.

If zones are defined, they must be contiguous and cover the entire surface

Definition at line 299 of file MeshedSurface.H.

Referenced by MeshedSurface< Foam::face >::faces(), MeshedSurface< Foam::face >::operator=(), UnsortedMeshedSurface< Face >::transfer(), UnsortedMeshedSurface< Face >::UnsortedMeshedSurface(), and GTSsurfaceFormat< Face >::write().

Here is the caller graph for this function:

◆ addZones() [1/3]

void addZones ( const UList< surfZone > &  srfZones,
const bool  cullEmpty = false
)
virtual

Add surface zones.

Definition at line 105 of file MeshedSurfaceZones.C.

Referenced by MeshedSurface< Foam::face >::addZones(), MeshedSurface< Foam::face >::faces(), and MeshedSurface< Foam::face >::sortFacesAndStore().

Here is the caller graph for this function:

◆ addZones() [2/3]

void addZones ( const labelUList sizes,
const UList< word > &  names,
const bool  cullEmpty = false
)
virtual

Add surface zones.

Definition at line 128 of file MeshedSurfaceZones.C.

◆ addZones() [3/3]

void addZones ( const labelUList sizes,
const bool  cullEmpty = false
)
virtual

Add surface zones.

Definition at line 160 of file MeshedSurfaceZones.C.

◆ removeZones()

void removeZones ( )
virtual

Remove surface zones.

Definition at line 190 of file MeshedSurfaceZones.C.

Referenced by MeshedSurface< Foam::face >::faces().

Here is the caller graph for this function:

◆ clear()

void clear ( )
virtual

◆ movePoints()

void movePoints ( const pointField newPoints)
virtual

Move points.

Definition at line 460 of file MeshedSurface.C.

Referenced by MeshedSurface< Foam::face >::faces().

Here is the caller graph for this function:

◆ scalePoints()

void scalePoints ( const scalar  scaleFactor)
virtual

Scale points. A non-positive factor is ignored.

Definition at line 471 of file MeshedSurface.C.

Referenced by MeshedSurface< Foam::face >::faces().

Here is the caller graph for this function:

◆ reset() [1/2]

void reset ( pointField &&  points,
List< Face > &&  faces,
surfZoneList &&  zones
)
virtual

Reset primitive data (points, faces and zones)

Note, optimized to avoid overwriting data (with null)

Definition at line 488 of file MeshedSurface.C.

Referenced by MeshedSurface< Foam::face >::faces(), isoSurface::isoSurface(), OFSsurfaceFormat< Face >::read(), UnsortedMeshedSurface< Face >::reset(), MeshedSurface< Foam::face >::reset(), MeshedSurface< Foam::face >::scalePoints(), and UnsortedMeshedSurface< Face >::transfer().

Here is the caller graph for this function:

◆ reset() [2/2]

void reset ( List< point > &&  points,
List< Face > &&  faces,
surfZoneList &&  zones
)
virtual

Reset primitive data (points, faces and zones)

Note, optimized to avoid overwriting data (with null)

Definition at line 517 of file MeshedSurface.C.

◆ cleanup()

void cleanup ( const bool  verbose)
virtual

Remove invalid faces.

Definition at line 546 of file MeshedSurface.C.

Referenced by MeshedSurface< Foam::face >::faces().

Here is the caller graph for this function:

◆ stitchFaces()

bool stitchFaces ( const scalar  tol = small,
const bool  verbose = false
)
virtual

Definition at line 558 of file MeshedSurface.C.

Referenced by MeshedSurface< Foam::face >::cleanup(), and MeshedSurface< Foam::face >::faces().

Here is the caller graph for this function:

◆ checkFaces()

bool checkFaces ( const bool  verbose = false)
virtual

Definition at line 640 of file MeshedSurface.C.

Referenced by MeshedSurface< Foam::face >::faces(), and MeshedSurface< Foam::face >::stitchFaces().

Here is the caller graph for this function:

◆ triangulate() [1/4]

Foam::label triangulate ( )
virtual

Triangulate in-place, returning the number of triangles added.

Definition at line 792 of file MeshedSurface.C.

Referenced by MeshedSurface< Foam::face >::faces(), MeshedSurface< Foam::face >::transcribe(), and MeshedSurface< Foam::face >::triangulate().

Here is the caller graph for this function:

◆ triangulate() [2/4]

Foam::label triangulate ( List< label > &  faceMap)
virtual

Triangulate in-place, returning the number of triangles added.

and setting a map of original face Ids. The faceMap is zero-sized when no triangulation was done.

Definition at line 803 of file MeshedSurface.C.

◆ subsetMesh() [1/2]

Foam::MeshedSurface< Face > subsetMesh ( const labelHashSet include,
labelList pointMap,
labelList faceMap
) const

Return new surface.

Returns return pointMap, faceMap from subsetMeshMap

Definition at line 909 of file MeshedSurface.C.

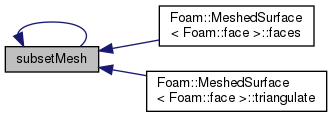

Referenced by MeshedSurface< Foam::face >::faces(), MeshedSurface< Foam::face >::subsetMesh(), and MeshedSurface< Foam::face >::triangulate().

Here is the caller graph for this function:

◆ subsetMesh() [2/2]

Foam::MeshedSurface< Face > subsetMesh ( const labelHashSet include) const

Return new surface.

Definition at line 996 of file MeshedSurface.C.

◆ transfer() [1/2]

void transfer ( MeshedSurface< Face > &  surf)

Transfer the contents of the argument and annul the argument.

Definition at line 1008 of file MeshedSurface.C.

Referenced by MeshedSurface< Foam::face >::faces(), isoSurface::isoSurface(), MeshedSurface< Foam::face >::subsetMesh(), and MeshedSurface< Foam::face >::transfer().

Here is the caller graph for this function:

◆ transfer() [2/2]

void transfer ( UnsortedMeshedSurface< Face > &  surf)

Transfer the contents of the argument and annul the argument.

Definition at line 1023 of file MeshedSurface.C.

◆ read() [1/2]

bool read ( const fileName name,
const word ext
)

Read from file. Chooses reader based on explicit extension.

Definition at line 1084 of file MeshedSurface.C.

Referenced by MeshedSurface< Foam::face >::faces(), and MeshedSurface< Foam::face >::read().

Here is the caller graph for this function:

◆ read() [2/2]

◆ writeStats()

void writeStats ( Ostream os) const

Definition at line 33 of file MeshedSurfaceIO.C.

Referenced by MeshedSurface< Foam::face >::faces().

Here is the caller graph for this function:

◆ write() [2/3]

◆ write() [3/3]

void write ( const Time t,
const word surfName = ""
) const

Write to database.

Definition at line 1099 of file MeshedSurface.C.

◆ operator=()

void operator= ( const MeshedSurface< Face > &  )

Definition at line 1111 of file MeshedSurface.C.

Referenced by MeshedSurface< Foam::face >::write().

Here is the caller graph for this function:

◆ operator MeshedSurfaceProxy< Face >()

operator MeshedSurfaceProxy< Face > ( ) const

Conversion operator to MeshedSurfaceProxy.

◆ isTri() [2/2]

bool isTri ( )
inline

Specialization for holding triangulated information.

Definition at line 440 of file MeshedSurface.H.

◆ triangulate() [3/4]

label triangulate ( )
inline

Specialization for holding triangulated information.

Definition at line 448 of file MeshedSurface.H.

◆ triangulate() [4/4]

label triangulate ( List< label > &  faceMap)
inline

Specialization for holding triangulated information.

Definition at line 456 of file MeshedSurface.H.

◆ transcribe() [2/3]

void transcribe ( MeshedSurface< face > &  surf)
protected

Definition at line 35 of file MeshedSurfaceCore.C.

◆ transcribe() [3/3]

void transcribe ( MeshedSurface< face > &  surf)
protected

Definition at line 60 of file MeshedSurfaceCore.C.

Friends And Related Function Documentation

◆ MeshedSurface

friend class MeshedSurface
friend

Definition at line 87 of file MeshedSurface.H.

◆ UnsortedMeshedSurface

friend class UnsortedMeshedSurface
friend

Definition at line 88 of file MeshedSurface.H.

◆ surfMesh

friend class surfMesh
friend

Definition at line 89 of file MeshedSurface.H.


The documentation for this class was generated from the following files:
