Print a summary of one or more zones to the terminal. More...
Public Member Functions | |
| TypeName ("print") | |
| Runtime type information. More... | |
| print (const word &name, const polyMesh &mesh, const dictionary &dict) | |
| Construct from dictionary. More... | |
| virtual | ~print () |
| Destructor. More... | |
| virtual zoneSet | generate () const |
| Generate and return the zoneSet. More... | |
 Public Member Functions inherited from zoneGenerator | |
| TypeName ("zoneGenerator") | |
| Runtime type information. More... | |
| declareRunTimeSelectionTable (autoPtr, zoneGenerator, dictionary,(const word &name, const polyMesh &mesh, const dictionary &dict),(name, mesh, dict)) | |
| zoneGenerator (const word &name, const polyMesh &mesh, const dictionary &dict) | |
| Construct from name, polyMesh and dictionary. More... | |
| zoneGenerator (const zoneGenerator &)=delete | |
| Disallow default bitwise copy construction. More... | |
| virtual | ~zoneGenerator () |
| Destructor. More... | |
| const word & | name () const |
| Return the zoneGenerator name. More... | |
| const word & | zoneName () const |
| Return the zone name. More... | |
| const polyMesh & | mesh () const |
| Return reference to the polyMesh. More... | |
| bool | moveUpdate () const |
| Return true if the zoneGenerator updates any of the zones. More... | |
| virtual zoneSet | movePoints () const |
| Regenerate the zoneSet following mesh point motion. More... | |
| void | operator= (const zoneGenerator &)=delete |
| Disallow default bitwise assignment. More... | |
Additional Inherited Members | |
| Static Public Member Functions inherited from zoneGenerator | |
| static autoPtr< zoneGenerator > | New (const word &name, const polyMesh &mesh, const dictionary &dict) |
| Select constructed from name, mesh and dictionary. More... | |
| static autoPtr< zoneGenerator > | New (const word &name, const zoneTypes &zoneType, const polyMesh &mesh, const dictionary &dict) |
| Select constructed from name, zoneType, mesh and dictionary. More... | |
| static autoPtr< zoneGenerator > | New (const polyMesh &mesh, const dictionary &dict) |
| Select constructed from mesh and first valid dictionary. More... | |
| static labelList | indices (const boolList &selected) |
| Return the list of selected indices. More... | |
| Protected Attributes inherited from zoneGenerator | |
| const word | name_ |
| Name of zone generator. More... | |
| const dictionary | dict_ |
| Dictionary cached for error context. More... | |
| const word | zoneName_ |
| Name of the zone (defaults to the name of the generator) More... | |
| const polyMesh & | mesh_ |
| Reference to the polyMesh. More... | |
| bool | moveUpdate_ |
| Switch to update the zones if the mesh points are moved. More... | |
Print a summary of one or more zones to the terminal.
All zone types The number of elements (points, faces or cells) in the zone The bounding box containing the elements The bounding sphere containing the elements
pointZones The average position of all the points
faceZones The total face area magnitude The centroid of the faces
cellZones The total volume The centroid of the cells
| Property | Description | Required | Default value |
|---|---|---|---|
type | Type: print | yes | |
zoneType | Type of zone | no | all |
zone | Name of the zone to print | no | |
zones | List of zone names to print | no | |
geometry | Print the geometry? | no | true |
Examples: Print a summary of a zone named 'fan'
printOneZone
{
type print;
zone fan;
}Print a summary of a zone named 'fan' and a zone named 'baffle'
printTwoZones
{
type print;
zones
(
fan
baffle
);
}Print a summary of all the zones, by omitting 'zone' and 'zones'
printAllZones
{
type print;
}In createZonesDict, shorthand notation can be used to print all zones
print;
| ( | const word & | name, | |
| const polyMesh & | mesh, | ||
| const dictionary & | dict | ||
| ) |
| TypeName | ( | "print" | ) |
Runtime type information.
|
virtual |

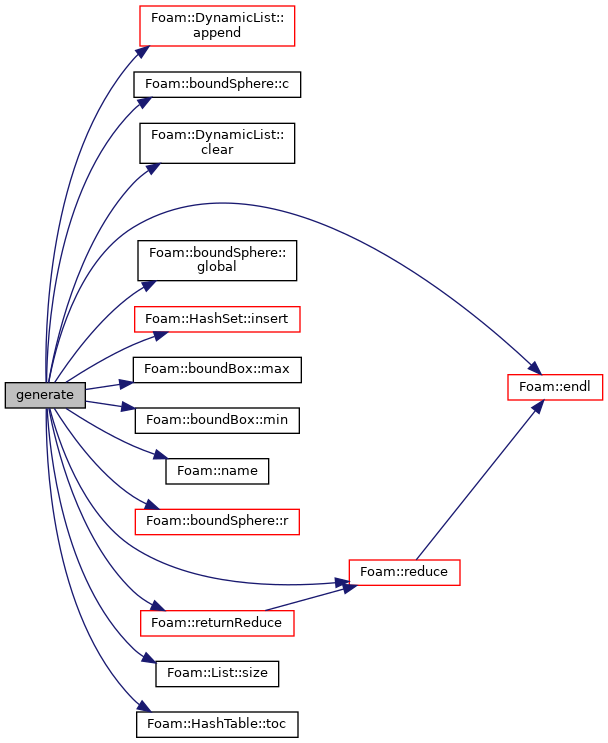

Generate and return the zoneSet.
Implements zoneGenerator.
Definition at line 82 of file print.C.
References Foam::all, DynamicList< T, SizeInc, SizeMult, SizeDiv >::append(), boundSphere::c(), Foam::cell, cells, DynamicList< T, SizeInc, SizeMult, SizeDiv >::clear(), Foam::endl(), Foam::face, forAll, boundSphere::global(), Foam::Info, HashSet< Key, Hash >::insert(), boundBox::max(), boundBox::min(), Foam::name(), Foam::nl, Foam::point, points, boundSphere::r(), Foam::reduce(), Foam::returnReduce(), List< T >::size(), HashTable< T, Key, Hash >::toc(), and VectorSpace< Form, Cmpt, Ncmpts >::zero.
