A zoneGenerator which converts the pointZones, faceZones and cellZones from a list of zoneGenerators into a single cellZone. More...

Inheritance diagram for cell:

[legend]

Collaboration diagram for cell:

[legend]

Public Member Functions
	TypeName ("cell")
	Runtime type information. More...

	cell (const word &name, const polyMesh &mesh, const dictionary &dict)
	Construct from dictionary. More...

virtual	~cell ()
	Destructor. More...

virtual zoneSet	generate () const
	Generate and return the zoneSet. More...

Public Member Functions inherited from zoneGenerator
	TypeName ("zoneGenerator")
	Runtime type information. More...

	declareRunTimeSelectionTable (autoPtr, zoneGenerator, dictionary,(const word &name, const polyMesh &mesh, const dictionary &dict),(name, mesh, dict))

	zoneGenerator (const word &name, const polyMesh &mesh, const dictionary &dict)
	Construct from name, polyMesh and dictionary. More...

	zoneGenerator (const zoneGenerator &)=delete
	Disallow default bitwise copy construction. More...

virtual	~zoneGenerator ()
	Destructor. More...

const word &	name () const
	Return the zoneGenerator name. More...

const word &	zoneName () const
	Return the zone name. More...

const polyMesh &	mesh () const
	Return reference to the polyMesh. More...

bool	moveUpdate () const
	Return true if the zoneGenerator updates any of the zones. More...

virtual zoneSet	movePoints () const
	Regenerate the zoneSet following mesh point motion. More...

void	operator= (const zoneGenerator &)=delete
	Disallow default bitwise assignment. More...

Additional Inherited Members
Static Public Member Functions inherited from zoneGenerator
static autoPtr< zoneGenerator >	New (const word &name, const polyMesh &mesh, const dictionary &dict)
	Select constructed from name, mesh and dictionary. More...

static autoPtr< zoneGenerator >	New (const word &name, const zoneTypes &zoneType, const polyMesh &mesh, const dictionary &dict)
	Select constructed from name, zoneType, mesh and dictionary. More...

static autoPtr< zoneGenerator >	New (const polyMesh &mesh, const dictionary &dict)
	Select constructed from mesh and first valid dictionary. More...

static labelList	indices (const boolList &selected)
	Return the list of selected indices. More...

Protected Attributes inherited from zoneGenerator
const word	name_
	Name of zone generator. More...

const dictionary	dict_
	Dictionary cached for error context. More...

const word	zoneName_
	Name of the zone (defaults to the name of the generator) More...

const polyMesh &	mesh_
	Reference to the polyMesh. More...

bool	moveUpdate_
	Switch to update the zones if the mesh points are moved. More...

Detailed Description

A zoneGenerator which converts the pointZones, faceZones and cellZones from a list of zoneGenerators into a single cellZone.

For pointZones the cells containing any of the points are included. For faceZones the cells on either side of the faces are included. For cellZones the cells in the cellZones are included.

Usage

Property	Description	Required	Default value
`type`	Type: cell	yes
`name`	Name of the zone	no	zoneGenerator name
`cellType`	Cell type selection option	no	master
`moveUpdate`	Switch to update after mesh motion	no	false

Examples: Given a faceZone named plane is generated by

        plane
        {
            type        plane;
            point       (0.5 0 0);
            normal      (1 0 0);
        }

a cellZone named planeCells containing the cells from both sides of the plane faceZone is generated by

        planeCells
        {
            type        cell;

            plane;      // lookup zone named 'plane'
        }

or if the faceZone is not needed after the generation of the cellZone

        planeCells
        {
            type        cell;

            plane
            {
                type        plane;
                point       (0.5 0 0);
                normal      (1 0 0);
            }
        }

To create a cellZone from two zones named plane1 and plane2

        planeCells
        {
            type        cell;

            plane1;     // lookup 'plane1'
            plane2;     // lookup 'plane2'
        }

Source files

cell_zoneGenerator.H cell_
zoneGenerator.C

Definition at line 134 of file cell_zoneGenerator.H.

Constructor & Destructor Documentation

◆ cell()

cell	(	const word &	name,
		const polyMesh &	mesh,
		const dictionary &	dict
	)

Construct from dictionary.

Definition at line 49 of file cell_zoneGenerator.C.

◆ ~cell()

~cell ( )

virtual

Destructor.

Definition at line 63 of file cell_zoneGenerator.C.

Member Function Documentation

◆ TypeName()

TypeName ( "cell" )

Runtime type information.

◆ generate()

Foam::zoneSet generate ( ) const

virtual

Generate and return the zoneSet.

Implements zoneGenerator.

Definition at line 69 of file cell_zoneGenerator.C.

References zoneSet::cValid(), zoneSet::cZone(), forAll, zoneSet::fValid(), zoneSet::fZone(), Zone< ZoneType, ZonesType >::name(), Foam::constant::mathematical::pi(), zoneSet::pValid(), and zoneSet::pZone().

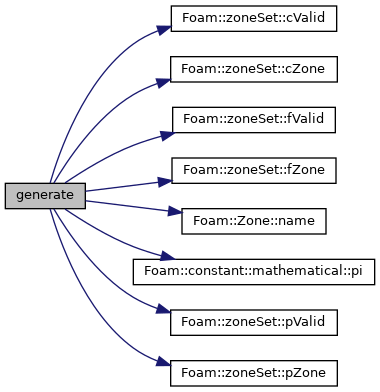

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/meshTools/zoneGenerators/cell/cell/cell_zoneGenerator.H
src/meshTools/zoneGenerators/cell/cell/cell_zoneGenerator.C
