timeVaryingMappedFvPatchField< Type > Class Template Reference

Patch field mapper which interpolates the values from a set of supplied points in space and time. More...

Inheritance diagram for timeVaryingMappedFvPatchField< Type >:
Inheritance graph
[legend]
Collaboration diagram for timeVaryingMappedFvPatchField< Type >:
Collaboration graph
[legend]

Public Member Functions

 timeVaryingMappedFvPatchField (const fvPatch &, const DimensionedField< Type, fvMesh > &, const dictionary &)
 Construct from patch, internal field and dictionary. More...

 timeVaryingMappedFvPatchField (const timeVaryingMappedFvPatchField &, const fvPatch &, const DimensionedField< Type, fvMesh > &, const fieldMapper &)
 Construct by mapping given timeVaryingMappedFvPatchField. More...

 timeVaryingMappedFvPatchField (const timeVaryingMappedFvPatchField< Type > &)
 Copy constructor. More...

const Time & time () const
 Return reference to time. More...

void map (const timeVaryingMappedFvPatchField< Type > &, const fieldMapper &)
 Map the given timeVaryingMappedFvPatchField. More...

void reset (const timeVaryingMappedFvPatchField &)
 Reset the fvPatchField to the given fvPatchField. More...

tmp< Field< Type > > map ()
 Return the current mapped patch field. More...

void write (Ostream &) const
 Write. More...


Detailed Description

template<class Type>
class Foam::timeVaryingMappedFvPatchField< Type >

Patch field mapper which interpolates the values from a set of supplied points in space and time.

By default the data files should be provide in constant/boundaryData/<patch name>/ directory:

  • points : pointField of locations
  • <time>/<field> : field of values at time <time>

Alternatively the names and locations of the points and field files may be specified explicitly via the optional dictionary entries:

  • dataDir <optional top-level directory of the points and field data>;
  • points <optional path including name of points file relative to dataDir>;
  • sample <optional name of the sub-directory in the time directories containing the fields>; This is particularly useful when mapping data from another case for which the sample functionObject is used to obtain the patch field data for mapping.

If the surface from which the data was obtained changes in time, e.g. when sampled from a case with a changing mesh, a separate points file may be provided in each time directory alongside the field data, i.e. dataDir/<time>/<sample>/<points name>. Points files found in the time directories take precedence over the static points file.

Note: unfortunately if the points files exist in any of the time directories they MUST exist in ALL of the time directories and read from each. It would be much better if this functionality were changed for consistency with polyMesh and on restart the time directories are scanned backwards for the most recent points file, that way the points files are only read for times at which they change.

The default mode of operation (mapMethod planarInterpolation) is to project the points onto a plane (constructed from the first three points) and construct a 2D triangulation and finds for the face centres the triangle it is in and the weights to the 3 vertices.

The optional mapMethod nearest will avoid all projection and triangulation and just use the value at the nearest vertex.

Values are interpolated linearly between times.

Usage
Property Description Required Default value
setAverage Switch to activate setting of average value no false
perturb Perturb points for regular geometries no 1e-5
fieldTable Alternative field name to sample no this field name
mapMethod Type of mapping no planarInterpolation
offset Offset to mapped values no Zero
dataDir Top-level directory of the points and field data no constant/boundaryData/<patch name>
points Path including name of points file relative to dataDir no points
sample Name of the sub-directory in the time directories containing the fields no ""
See also
Foam::timeVaryingMappedFixedValueFvPatchField Foam::Function1s
Source files

Definition at line 157 of file timeVaryingMappedFvPatchField.H.

Constructor & Destructor Documentation

◆ timeVaryingMappedFvPatchField() [1/3]

timeVaryingMappedFvPatchField ( const fvPatch &  p,
const DimensionedField< Type, fvMesh > &  iF,
const dictionary &  dict
)

Construct from patch, internal field and dictionary.

Definition at line 325 of file timeVaryingMappedFvPatchField.C.

References dict, DimensionedField< Type, GeoMesh, PrimitiveField >::dimensions(), Foam::exit(), string::expand(), Foam::FatalIOError, FatalIOErrorInFunction, Function1< Type >::New(), and timeVaryingMappedFvPatchField< Type >::time().

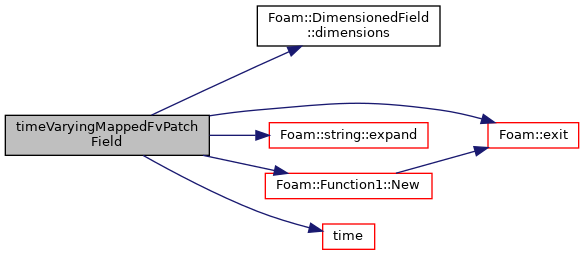

Here is the call graph for this function:

◆ timeVaryingMappedFvPatchField() [2/3]

timeVaryingMappedFvPatchField ( const timeVaryingMappedFvPatchField< Type > &  ,
const fvPatch &  ,
const DimensionedField< Type, fvMesh > &  ,
const fieldMapper &
)

Construct by mapping given timeVaryingMappedFvPatchField.

onto a new patch

◆ timeVaryingMappedFvPatchField() [3/3]

timeVaryingMappedFvPatchField ( const timeVaryingMappedFvPatchField< Type > &  ptf)

Copy constructor.

Definition at line 425 of file timeVaryingMappedFvPatchField.C.

Member Function Documentation

◆ time()

const Time& time ( ) const
inline

Return reference to time.

Definition at line 270 of file timeVaryingMappedFvPatchField.H.

References fvPatch::time().

Referenced by timeVaryingMappedFvPatchField< Type >::timeVaryingMappedFvPatchField().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ map() [1/2]

void map ( const timeVaryingMappedFvPatchField< Type > &  tiptf,
const fieldMapper &  mapper
)

Map the given timeVaryingMappedFvPatchField.

onto this timeVaryingMappedFvPatchField

Definition at line 455 of file timeVaryingMappedFvPatchField.C.

◆ reset()

void reset ( const timeVaryingMappedFvPatchField< Type > &  )

Reset the fvPatchField to the given fvPatchField.

Used for mesh to mesh mapping

Definition at line 466 of file timeVaryingMappedFvPatchField.C.

◆ map() [2/2]

Foam::tmp< Foam::Field< Type > > map

Return the current mapped patch field.

Definition at line 485 of file timeVaryingMappedFvPatchField.C.

References Foam::endl(), fld(), Foam::gAverage(), Foam::gMax(), Foam::gMin(), Foam::gSum(), Foam::mag(), OSstream::name(), fileName::name(), Foam::nl, Foam::offset(), Foam::Pout, tmp< T >::ref(), s(), and Foam::dimensions::time.

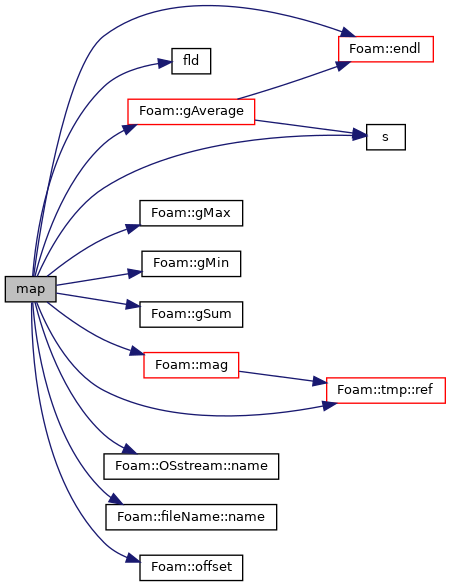

Here is the call graph for this function:

◆ write()

void write ( Ostream &  os) const

Write.

Definition at line 585 of file timeVaryingMappedFvPatchField.C.

References Foam::e, fileName::null, Foam::dimensions::time, Foam::writeEntry(), and Foam::writeEntryIfDifferent().

Here is the call graph for this function:
