Inheritance diagram for multicomponentLagrangianThermo::implementation:

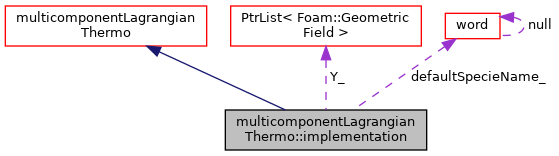

Collaboration diagram for multicomponentLagrangianThermo::implementation:

[legend]

Public Member Functions
	implementation (const dictionary &, const speciesTable &, const LagrangianMesh &, const word &)
	Construct from dictionary, mesh and phase name. More...

virtual	~implementation ()
	Destructor. More...

virtual label	defaultSpecie () const
	The index of the default specie. More...

virtual PtrList< LagrangianScalarDynamicField > &	Y ()
	Access the mass-fraction fields. More...

virtual const PtrList< LagrangianScalarDynamicField > &	Y () const
	Access the mass-fraction fields. More...

virtual void	normaliseY (const LagrangianSubMesh &)
	Normalise the mass fractions within the given sub-mesh by. More...

DimensionedFieldListSlicer< scalar >	Yslicer () const
	Get the slicer. More...

scalarFieldListSlice	elementComposition (const DimensionedFieldListSlicer< scalar > &Yslicer, const label i) const
	Get the composition of an element. More...

DimensionedFieldListAndSlicer< scalar, LagrangianSubMesh >	Yslicer (const LagrangianInjection &, const LagrangianSubMesh &) const
	Get the slicer for an injection. More...

scalarFieldListSlice	injectionElementComposition (const DimensionedFieldListAndSlicer< scalar, LagrangianSubMesh > &, const label subi) const
	Get the composition of an element in an injection. More...

Public Member Functions inherited from multicomponentLagrangianThermo
	TypeName ("multicomponentLagrangianThermo")
	Runtime type information. More...

	declareRunTimeSelectionTable (autoPtr, multicomponentLagrangianThermo, LagrangianMesh,(const LagrangianMesh &mesh, const word &phaseName),(mesh, phaseName))
	Declare run-time constructor selection table. More...

virtual	~multicomponentLagrangianThermo ()
	Destructor. More...

virtual const speciesTable &	species () const =0
	Return the table of species. More...

bool	containsSpecie (const word &specieName) const
	Does the mixture include this specie? More...

LagrangianScalarDynamicField &	Y (const label)
	Access the mass-fraction field for a specie given by index. More...

const LagrangianScalarDynamicField &	Y (const label) const
	Access the mass-fraction field for a specie given by index. More...

LagrangianScalarDynamicField &	Y (const word &)
	Access the mass-fraction field for a specie given by name. More...

const LagrangianScalarDynamicField &	Y (const word &) const
	Access the mass-fraction field for a specie given by name. More...

label	specieIndex (const LagrangianScalarDynamicField &) const
	Access the specie index of the given mass-fraction field. More...

virtual dimensionedScalar	Wi (const label speciei) const =0
	Molecular weight [kg/kmol]. More...

virtual tmp< LagrangianSubScalarField >	rhoi (const label speciei, const LagrangianSubScalarField &p, const LagrangianSubScalarField &T) const =0
	Density [kg/m^3]. More...

virtual tmp< LagrangianSubScalarField >	hsi (const label speciei, const LagrangianSubScalarField &p, const LagrangianSubScalarField &T) const =0
	Sensible enthalpy [J/kg]. More...

virtual dimensionedScalar	hfi (const label speciei) const =0
	Enthalpy of formation [J/kg]. More...

virtual tmp< LagrangianSubScalarField >	Cvi (const label speciei, const LagrangianSubScalarField &p, const LagrangianSubScalarField &T) const =0
	Heat capacity at constant volume [J/kg/K]. More...

virtual tmp< LagrangianSubScalarField >	Cpi (const label speciei, const LagrangianSubScalarField &p, const LagrangianSubScalarField &T) const =0
	Heat capacity at constant pressure [J/kg/K]. More...

Public Member Functions inherited from basicLagrangianThermo
	TypeName ("basicLagrangianThermo")
	Runtime type information. More...

	declareRunTimeSelectionTable (autoPtr, basicLagrangianThermo, LagrangianMesh,(const LagrangianMesh &mesh, const word &phaseName),(mesh, phaseName))
	Declare run-time constructor selection table. More...

virtual	~basicLagrangianThermo ()
	Destructor. More...

virtual const IOdictionary &	properties () const =0
	Access the properties dictionary. More...

virtual IOdictionary &	properties ()=0
	Modify the properties dictionary. More...

virtual const LagrangianMesh &	mesh () const =0
	Access the mesh. More...

virtual const word &	phaseName () const =0
	Access the phase name. More...

virtual void	initialise ()=0
	Initialise state. More...

virtual void	correctPressure (const LagrangianSubMesh &)=0
	Update the pressure. More...

virtual void	correct (const LagrangianSubMesh &)=0
	Update state. More...

virtual word	thermoName () const =0
	Return the full name of the thermodynamic model. More...

virtual tmp< LagrangianSubScalarField >	W (const LagrangianSubMesh &) const =0
	Molecular weight for a sub-mesh [kg/kmol]. More...

virtual const LagrangianScalarDynamicField &	T () const =0
	Temperature [K]. More...

virtual LagrangianScalarDynamicField &	T ()=0
	Modify the Temperature [K]. More...

virtual const LagrangianScalarDynamicField &	rho () const =0
	Density [kg/m^3]. More...

virtual LagrangianScalarDynamicField &	rho ()=0
	Modify the Density [kg/m^3]. More...

virtual tmp< LagrangianSubScalarField >	rho (const LagrangianSubScalarField &T, const LagrangianInjection &) const =0
	Density for an injection [kg/m^3]. More...

virtual const LagrangianScalarDynamicField &	e () const =0
	Internal energy [J/kg]. More...

virtual LagrangianScalarDynamicField &	e ()=0
	Modify the internal energy [J/kg]. More...

virtual tmp< LagrangianSubScalarField >	e (const LagrangianSubScalarField &T, const LagrangianInjection &) const =0
	Internal energy for an injection [J/kg]. More...

virtual const LagrangianScalarDynamicField &	Cv () const =0
	Heat capacity at constant volume [J/kg/K]. More...

virtual tmp< LagrangianSubScalarField >	Cv (const LagrangianSubScalarField &T, const LagrangianInjection &) const =0
	Heat capacity at constant volume for an injection [J/kg/K]. More...

virtual tmp< LagrangianSubScalarField >	Cp (const LagrangianSubMesh &subMesh) const =0
	Heat capacity at constant pressure for a sub-mesh [J/kg/K]. More...

virtual tmp< LagrangianSubScalarField >	alphav (const LagrangianSubMesh &subMesh) const =0
	Coefficient of thermal expansion for a sub-mesh [1/K]. More...

virtual const LagrangianScalarDynamicField &	kappa () const =0
	Thermal conductivity [W/m/K]. More...

virtual tmp< LagrangianSubScalarField >	kappa (const LagrangianSubScalarField &T, const LagrangianInjection &) const =0
	Thermal conductivity for an injection [W/m/K]. More...

template<class LagrangianFieldSourceType >
Foam::HashTable< Foam::word >	sourcesTypes (const LagrangianScalarDynamicField &T)

template<class Thermo >
Foam::autoPtr< Thermo >	New (const LagrangianMesh &mesh, const word &phaseName)

Protected Attributes
word	defaultSpecieName_
	The name of the default specie. The mass fraction of which is. More...

label	defaultSpeciei_
	The index of the default specie. More...

PtrList< LagrangianScalarDynamicField >	Y_
	Species mass fractions. More...

Additional Inherited Members
Static Public Member Functions inherited from multicomponentLagrangianThermo
static autoPtr< multicomponentLagrangianThermo >	New (const LagrangianMesh &mesh, const word &phaseName=word::null)
	Select a multicomponent thermo. More...

Static Public Member Functions inherited from basicLagrangianThermo
template<class Thermo >
static autoPtr< Thermo >	New (const LagrangianMesh &mesh, const word &phaseName=word::null)
	Select thermo of a given derived type. More...

static autoPtr< basicLagrangianThermo >	New (const LagrangianMesh &mesh, const word &phaseName=word::null)
	Select a basic thermo. More...

Protected Member Functions inherited from basicLagrangianThermo
wordList	eBoundaryTypes () const
	Internal energy field boundary types. More...

wordList	eBoundaryBaseTypes () const
	Internal energy field boundary base types. More...

Static Protected Member Functions inherited from basicLagrangianThermo
template<class LagrangianFieldSourceType >
static HashTable< word >	sourcesTypes (const LagrangianScalarDynamicField &T)
	Field sources types. More...

Detailed Description

Definition at line 185 of file multicomponentLagrangianThermo.H.

Constructor & Destructor Documentation

◆ implementation()

implementation	(	const dictionary &	dict,
		const speciesTable &	species,
		const LagrangianMesh &	mesh,
		const word &	phaseName
	)

Construct from dictionary, mesh and phase name.

Definition at line 40 of file multicomponentLagrangianThermo.C.

References IOobject::AUTO_WRITE, Foam::exit(), Foam::FatalError, FatalErrorInFunction, forAll, IOobject::groupName(), typeIOobject< Type >::headerOk(), Foam::max(), basicLagrangianThermo::mesh(), Foam::min(), IOobject::MUST_READ, dimensioned< Type >::name(), IOobject::NO_READ, IOobject::NO_WRITE, basicLagrangianThermo::phaseName(), GeometricField< Type, GeoMesh, PrimitiveField >::primitiveField(), tmp< T >::ref(), multicomponentLagrangianThermo::species(), LagrangianMesh::time(), tmp< T >::valid(), and multicomponentLagrangianThermo::implementation::Y_.

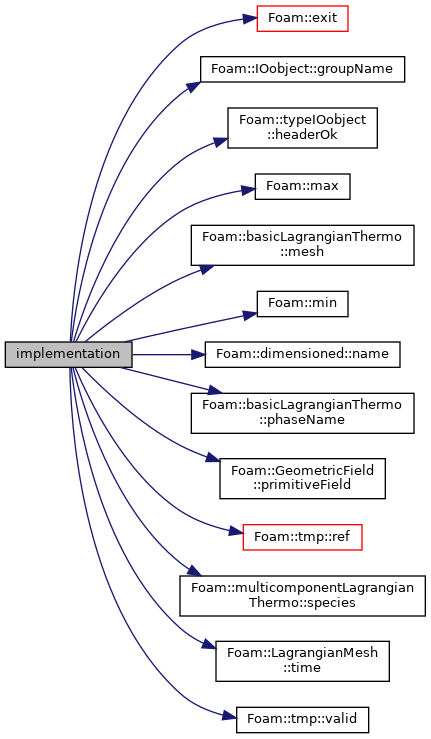

Here is the call graph for this function:

◆ ~implementation()

~implementation ( )

virtual

Destructor.

Definition at line 212 of file multicomponentLagrangianThermo.C.

Member Function Documentation

◆ defaultSpecie()

Foam::label defaultSpecie ( ) const

virtual

The index of the default specie.

Implements multicomponentLagrangianThermo.

Definition at line 219 of file multicomponentLagrangianThermo.C.

◆ Y() [1/2]

Foam::PtrList< Foam::LagrangianScalarDynamicField > & Y ( )

virtual

Access the mass-fraction fields.

Implements multicomponentLagrangianThermo.

Definition at line 226 of file multicomponentLagrangianThermo.C.

◆ Y() [2/2]

const Foam::PtrList< Foam::LagrangianScalarDynamicField > & Y ( ) const

virtual

Access the mass-fraction fields.

Implements multicomponentLagrangianThermo.

Definition at line 233 of file multicomponentLagrangianThermo.C.

◆ normaliseY()

void normaliseY ( const LagrangianSubMesh & subMesh )

virtual

Normalise the mass fractions within the given sub-mesh by.

clipping positive and deriving the default specie mass fraction from the other species

Implements multicomponentLagrangianThermo.

Definition at line 239 of file multicomponentLagrangianThermo.C.

References Foam::dimensions::dimless, forAll, IOobject::groupName(), Foam::max(), DimensionedField< Type, GeoMesh, PrimitiveField >::New(), basicLagrangianThermo::phaseName(), tmp< T >::ref(), multicomponentLagrangianThermo::species(), LagrangianSubMesh::sub(), and multicomponentLagrangianThermo::Y().

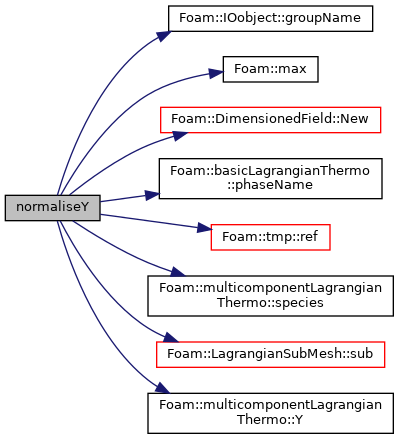

Here is the call graph for this function:

◆ Yslicer() [1/2]

Foam::DimensionedFieldListSlicer< Foam::scalar > Yslicer ( ) const

inline

Get the slicer.

Definition at line 77 of file multicomponentLagrangianThermoI.H.

◆ elementComposition()

Foam::scalarFieldListSlice elementComposition	(	const DimensionedFieldListSlicer< scalar > &	Yslicer,
		const label	i
	)		const

inline

Get the composition of an element.

Definition at line 84 of file multicomponentLagrangianThermoI.H.

References DimensionedFieldListSlicer< Type >::slice().

Here is the call graph for this function:

◆ Yslicer() [2/2]

Foam::DimensionedFieldListAndSlicer< Foam::scalar, Foam::LagrangianSubMesh > Yslicer	(	const LagrangianInjection &	injection,
		const LagrangianSubMesh &	subMesh
	)		const

inline

Get the slicer for an injection.

Definition at line 96 of file multicomponentLagrangianThermoI.H.

References forAll, LagrangianModel::name(), and PtrList< T >::set().

Here is the call graph for this function:

◆ injectionElementComposition()

Foam::scalarFieldListSlice injectionElementComposition	(	const DimensionedFieldListAndSlicer< scalar, LagrangianSubMesh > &	Yslicer,
		const label	subi
	)		const

inline

Get the composition of an element in an injection.

Definition at line 121 of file multicomponentLagrangianThermoI.H.

Member Data Documentation

◆ defaultSpecieName_

word defaultSpecieName_

protected

The name of the default specie. The mass fraction of which is.

derived from the other species rather than solved. Also used as the carrier specie in multicomponent diffusion.

Definition at line 196 of file multicomponentLagrangianThermo.H.

◆ defaultSpeciei_

label defaultSpeciei_

protected

The index of the default specie.

Definition at line 199 of file multicomponentLagrangianThermo.H.

◆ Y_

PtrList<LagrangianScalarDynamicField> Y_

protected

Species mass fractions.

Definition at line 202 of file multicomponentLagrangianThermo.H.

Referenced by multicomponentLagrangianThermo::implementation::implementation().

The documentation for this class was generated from the following files:

src/Lagrangian/LagrangianThermo/multicomponentLagrangianThermo/multicomponentLagrangianThermo.H
src/Lagrangian/LagrangianThermo/multicomponentLagrangianThermo/multicomponentLagrangianThermo.C
src/Lagrangian/LagrangianThermo/multicomponentLagrangianThermo/multicomponentLagrangianThermoI.H

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ implementation()

◆ ~implementation()

Member Function Documentation

◆ defaultSpecie()

◆ Y() [1/2]

◆ Y() [2/2]

◆ normaliseY()

◆ Yslicer() [1/2]

◆ elementComposition()

◆ Yslicer() [2/2]

◆ injectionElementComposition()

Member Data Documentation

◆ defaultSpecieName_

◆ defaultSpeciei_

◆ Y_
