limitTemperature Class Reference

Limits the temperature to be between minimum and maximum values. More...

Inheritance diagram for limitTemperature:
Inheritance graph
[legend]
Collaboration diagram for limitTemperature:
Collaboration graph
[legend]

Public Member Functions

 TypeName ("limitTemperature")
 Runtime type information. More...

 limitTemperature (const word &name, const word &modelType, const fvMesh &mesh, const dictionary &dict)
 Construct from components. More...

 limitTemperature (const limitTemperature &)=delete
 Disallow default bitwise copy construction. More...

virtual ~limitTemperature ()
 Destructor. More...

virtual wordList constrainedFields () const
 Return the list of fields constrained by the fvConstraint. More...

virtual bool constrain (volScalarField &he) const
 Constrain the energy field. More...

virtual bool movePoints ()
 Update for mesh motion. More...

virtual void topoChange (const polyTopoChangeMap &)
 Update topology using the given map. More...

virtual void mapMesh (const polyMeshMap &)
 Update from another mesh using the given map. More...

virtual void distribute (const polyDistributionMap &)
 Redistribute or update using the given distribution map. More...

virtual bool read (const dictionary &dict)
 Read dictionary. More...

void operator= (const limitTemperature &)=delete
 Disallow default bitwise assignment. More...

- Public Member Functions inherited from fvConstraint
 TypeName ("fvConstraint")
 Runtime type information. More...

 declareRunTimeSelectionTable (autoPtr, fvConstraint, dictionary,(const word &name, const word &constraintType, const fvMesh &mesh, const dictionary &dict),(name, constraintType, mesh, dict))

 fvConstraint (const word &name, const word &constraintType, const fvMesh &mesh, const dictionary &dict)
 Construct from components. More...

autoPtr< fvConstraint > clone () const
 Return clone. More...

virtual ~fvConstraint ()
 Destructor. More...

const word & name () const
 Return const access to the source name. More...

const fvMesh & mesh () const
 Return const access to the mesh database. More...

const dictionary & coeffs (const dictionary &) const
 Return the coefficients sub-dictionary. More...

virtual bool constrainsField (const word &fieldName) const
 Return true if the given field is constrained. More...

 FOR_ALL_FIELD_TYPES (DEFINE_FV_CONSTRAINT_CONSTRAIN)
 Apply a constraint to an equation. More...

 FOR_ALL_FIELD_TYPES (DEFINE_FV_CONSTRAINT_CONSTRAIN_FIELD)
 Apply constraint to a field. More...


Additional Inherited Members

- Static Public Member Functions inherited from fvConstraint
static autoPtr< fvConstraint > New (const word &name, const fvMesh &mesh, const dictionary &dict)
 Return a reference to the selected fvConstraint. More...


Detailed Description

Limits the temperature to be between minimum and maximum values.

Usage
Example usage:
limitT
{
    type            limitTemperature;

    cellZone        all;

    // field           T;   // Optional energy/temperature field name
                            // Set to T for compressibleVoF

    phase           gas; // Optional phase name

    min             200;
    max             500;
}
Source files

Definition at line 70 of file limitTemperature.H.

Constructor & Destructor Documentation

◆ limitTemperature() [1/2]

limitTemperature ( const word &  name,
const word &  modelType,
const fvMesh &  mesh,
const dictionary &  dict
)

Construct from components.

Definition at line 60 of file limitTemperature.C.

References fvConstraint::coeffs(), and dict.

Here is the call graph for this function:

◆ limitTemperature() [2/2]

limitTemperature ( const limitTemperature &  )
delete

Disallow default bitwise copy construction.

◆ ~limitTemperature()

virtual ~limitTemperature ( )
inlinevirtual

Destructor.

Definition at line 120 of file limitTemperature.H.

Member Function Documentation

◆ TypeName()

TypeName ( "limitTemperature"  )

Runtime type information.

◆ constrainedFields()

Foam::wordList constrainedFields ( ) const
virtual

Return the list of fields constrained by the fvConstraint.

Reimplemented from fvConstraint.

Definition at line 81 of file limitTemperature.C.

References IOobject::groupName(), objectRegistry::lookupObject(), mesh, word::null, thermo, and Foam::typeName().

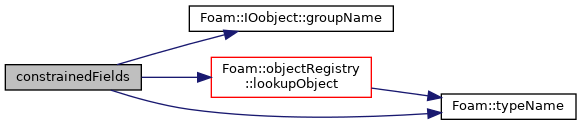

Here is the call graph for this function:

◆ constrain()

bool constrain ( volScalarField &  he) const
virtual

Constrain the energy field.

Definition at line 100 of file limitTemperature.C.

References GeometricField< Type, GeoMesh, PrimitiveField >::boundaryFieldRef(), cells, DimensionedField< Type, GeoMesh, PrimitiveField >::dimensions(), Foam::dimTemperature, fvPatchField< Type >::fixesValue(), forAll, IOobject::groupName(), objectRegistry::lookupObject(), Foam::max(), mesh, Foam::min(), patchi, GeometricField< Type, GeoMesh, PrimitiveField >::primitiveFieldRef(), List< T >::size(), thermo, and Foam::typeName().

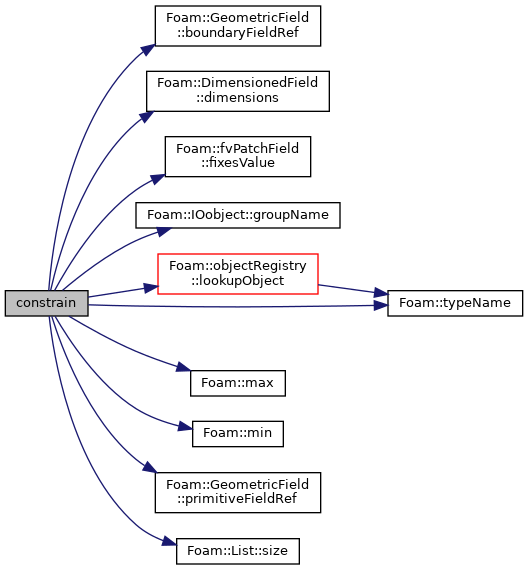

Here is the call graph for this function:

◆ movePoints()

bool movePoints ( )
virtual

Update for mesh motion.

Implements fvConstraint.

Definition at line 187 of file limitTemperature.C.

◆ topoChange()

void topoChange ( const polyTopoChangeMap &  map)
virtual

Update topology using the given map.

Implements fvConstraint.

Definition at line 194 of file limitTemperature.C.

◆ mapMesh()

void mapMesh ( const polyMeshMap &  map)
virtual

Update from another mesh using the given map.

Implements fvConstraint.

Definition at line 200 of file limitTemperature.C.

◆ distribute()

void distribute ( const polyDistributionMap &  map)
virtual

Redistribute or update using the given distribution map.

Implements fvConstraint.

Definition at line 206 of file limitTemperature.C.

◆ read()

bool read ( const dictionary &  dict)
virtual

Read dictionary.

Reimplemented from fvConstraint.

Definition at line 212 of file limitTemperature.C.

References dict, and fvConstraint::read().

Here is the call graph for this function:

◆ operator=()

void operator= ( const limitTemperature &  )
delete

Disallow default bitwise assignment.

The documentation for this class was generated from the following files:
