Base class for fvMesh motion solvers. More...

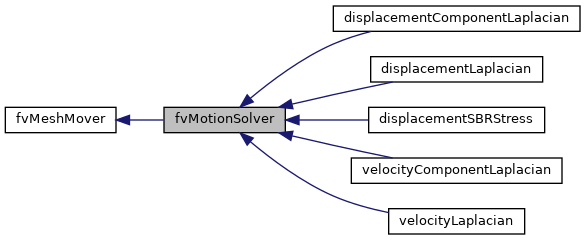

Inheritance diagram for fvMotionSolver:

[legend]

Collaboration diagram for fvMotionSolver:

Public Member Functions
	ClassName ("fvMotionSolver")
	Runtime type information. More...

	fvMotionSolver (fvMesh &)
	Construct from fvMesh. More...

	fvMotionSolver (const polyMesh &)
	Construct from polyMesh. More...

virtual bool	solidBodyMotion () const
	Is this motion solid body? Delegate to the motion solver. More...

virtual tmp< pointField >	newPoints ()=0
	Return point location obtained from the current motion field. More...

virtual bool	update ()
	Update the mesh for both mesh motion and topology change. More...

virtual void	distribute (const polyDistributionMap &)
	Update corresponding to the given distribution map. More...

template<class Type >
Foam::wordList	cellMotionBoundaryTypes (const typename PointField< Type >::Boundary &pmUbf) const

Public Member Functions inherited from fvMeshMover
	TypeName ("fvMeshMover")
	Runtime type information. More...

	declareRunTimeSelectionTable (autoPtr, fvMeshMover, fvMesh,(fvMesh &mesh, const dictionary &dict),(mesh, dict))

	fvMeshMover (fvMesh &)
	Construct from fvMesh. More...

	fvMeshMover (const fvMeshMover &)=delete
	Disallow default bitwise copy construction. More...

virtual	~fvMeshMover ()
	Destructor. More...

fvMesh &	mesh ()
	Return the fvMesh. More...

const fvMesh &	mesh () const
	Return the fvMesh. More...

virtual bool	dynamic () const
	Is mesh dynamic, i.e. might it change? More...

virtual void	topoChange (const polyTopoChangeMap &)=0
	Update local data for topology changes. More...

virtual void	mapMesh (const polyMeshMap &)=0
	Update from another mesh using the given map. More...

virtual bool	write (const bool write=true) const
	Write the mover state. More...

void	operator= (const fvMeshMover &)=delete
	Disallow default bitwise assignment. More...

Protected Member Functions
template<class Type >
wordList	cellMotionBoundaryTypes (const typename PointField< Type >::Boundary &pmUbf) const
	Create the corresponding patch types for cellMotion from those. More...

Additional Inherited Members
Static Public Member Functions inherited from fvMeshMover
static autoPtr< fvMeshMover >	New (fvMesh &)
	Select, construct and return the fvMeshMover. More...

Detailed Description

Base class for fvMesh motion solvers.

Source files

Definition at line 48 of file fvMotionSolver.H.

Constructor & Destructor Documentation

◆ fvMotionSolver() [1/2]

fvMotionSolver ( fvMesh & mesh )

Construct from fvMesh.

Definition at line 38 of file fvMotionSolver.C.

◆ fvMotionSolver() [2/2]

fvMotionSolver ( const polyMesh & mesh )

Construct from polyMesh.

Definition at line 44 of file fvMotionSolver.C.

Member Function Documentation

◆ cellMotionBoundaryTypes() [1/2]

wordList cellMotionBoundaryTypes ( const typename PointField< Type >::Boundary & pmUbf ) const

protected

Create the corresponding patch types for cellMotion from those.

of the given pointMotion

◆ ClassName()

ClassName ( "fvMotionSolver" )

Runtime type information.

◆ solidBodyMotion()

virtual bool solidBodyMotion ( ) const

inlinevirtual

Is this motion solid body? Delegate to the motion solver.

Reimplemented from fvMeshMover.

Definition at line 84 of file fvMotionSolver.H.

◆ newPoints()

virtual tmp<pointField> newPoints ( )

pure virtual

Return point location obtained from the current motion field.

Implemented in velocityComponentLaplacian, velocityLaplacian, displacementComponentLaplacian, displacementSBRStress, and displacementLaplacian.

◆ update()

bool update ( )

virtual

Update the mesh for both mesh motion and topology change.

Implements fvMeshMover.

Definition at line 52 of file fvMotionSolver.C.

References mesh, fvMesh::movePoints(), and fvMesh::preChange().

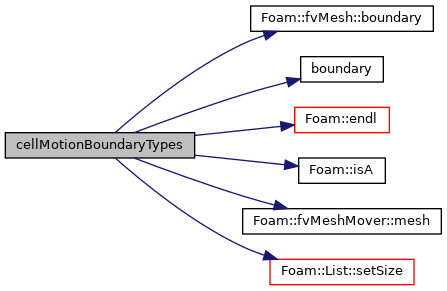

Here is the call graph for this function:

◆ distribute()

virtual void distribute ( const polyDistributionMap & )

inlinevirtual

Update corresponding to the given distribution map.

Implements fvMeshMover.

Definition at line 102 of file fvMotionSolver.H.

◆ cellMotionBoundaryTypes() [2/2]

Foam::wordList cellMotionBoundaryTypes ( const typename PointField< Type >::Boundary & pmUbf ) const

Definition at line 33 of file fvMotionSolverTemplates.C.

References fvMesh::boundary(), boundary(), Foam::endl(), forAll, Foam::isA(), fvMeshMover::mesh(), patchi, Foam::Pout, and List< T >::setSize().
