Base-class for fluid Lagrangian thermodynamic models. More...

Inheritance diagram for fluidLagrangianThermo:

[legend]

Collaboration diagram for fluidLagrangianThermo:

Classes
class	composite

class	implementation

Public Types
template<class MixtureType >
using	DerivedThermoType = FluidLagrangianThermo< BasicLagrangianThermo< MixtureType, composite > >
	The derived type. More...

Public Member Functions
	TypeName ("fluidLagrangianThermo")
	Runtime type information. More...

	declareRunTimeSelectionTable (autoPtr, fluidLagrangianThermo, LagrangianMesh,(const LagrangianMesh &mesh, const word &phaseName),(mesh, phaseName))
	Declare run-time constructor selection table. More...

virtual	~fluidLagrangianThermo ()
	Destructor. More...

virtual const LagrangianScalarDynamicField &	p () const =0
	Pressure [Pa]. More...

virtual LagrangianScalarDynamicField &	p ()=0
	Modify the Pressure [Pa]. More...

virtual tmp< LagrangianSubScalarSubField >	p (const LagrangianSubMesh &) const =0
	Pressure for a sub-mesh [Pa]. More...

virtual tmp< LagrangianSubScalarField >	p (const LagrangianInjection &, const LagrangianSubMesh &) const =0
	Pressure for an injection [Pa]. More...

virtual const LagrangianScalarDynamicField &	psi () const =0
	Compressibility [s^2/m^2]. More...

virtual tmp< LagrangianSubScalarField >	psi (const LagrangianSubScalarField &T, const LagrangianInjection &) const =0
	Compressibility for an injection [m^2/s^2]. More...

virtual const LagrangianScalarDynamicField &	mu () const =0
	Dynamic viscosity [kg/m/s]. More...

virtual tmp< LagrangianSubScalarField >	mu (const LagrangianSubScalarField &T, const LagrangianInjection &) const =0
	Dynamic viscosity for an injection [W/m/K]. More...

Public Member Functions inherited from basicLagrangianThermo
	TypeName ("basicLagrangianThermo")
	Runtime type information. More...

	declareRunTimeSelectionTable (autoPtr, basicLagrangianThermo, LagrangianMesh,(const LagrangianMesh &mesh, const word &phaseName),(mesh, phaseName))
	Declare run-time constructor selection table. More...

virtual	~basicLagrangianThermo ()
	Destructor. More...

virtual const IOdictionary &	properties () const =0
	Access the properties dictionary. More...

virtual IOdictionary &	properties ()=0
	Modify the properties dictionary. More...

virtual const LagrangianMesh &	mesh () const =0
	Access the mesh. More...

virtual const word &	phaseName () const =0
	Access the phase name. More...

virtual void	initialise ()=0
	Initialise state. More...

virtual void	correctPressure (const LagrangianSubMesh &)=0
	Update the pressure. More...

virtual void	correct (const LagrangianSubMesh &)=0
	Update state. More...

virtual word	thermoName () const =0
	Return the full name of the thermodynamic model. More...

virtual tmp< LagrangianSubScalarField >	W (const LagrangianSubMesh &) const =0
	Molecular weight for a sub-mesh [kg/kmol]. More...

virtual const LagrangianScalarDynamicField &	T () const =0
	Temperature [K]. More...

virtual LagrangianScalarDynamicField &	T ()=0
	Modify the Temperature [K]. More...

virtual const LagrangianScalarDynamicField &	rho () const =0
	Density [kg/m^3]. More...

virtual LagrangianScalarDynamicField &	rho ()=0
	Modify the Density [kg/m^3]. More...

virtual tmp< LagrangianSubScalarField >	rho (const LagrangianSubScalarField &T, const LagrangianInjection &) const =0
	Density for an injection [kg/m^3]. More...

virtual const LagrangianScalarDynamicField &	e () const =0
	Internal energy [J/kg]. More...

virtual LagrangianScalarDynamicField &	e ()=0
	Modify the internal energy [J/kg]. More...

virtual tmp< LagrangianSubScalarField >	e (const LagrangianSubScalarField &T, const LagrangianInjection &) const =0
	Internal energy for an injection [J/kg]. More...

virtual const LagrangianScalarDynamicField &	Cv () const =0
	Heat capacity at constant volume [J/kg/K]. More...

virtual tmp< LagrangianSubScalarField >	Cv (const LagrangianSubScalarField &T, const LagrangianInjection &) const =0
	Heat capacity at constant volume for an injection [J/kg/K]. More...

virtual tmp< LagrangianSubScalarField >	Cp (const LagrangianSubMesh &subMesh) const =0
	Heat capacity at constant pressure for a sub-mesh [J/kg/K]. More...

virtual tmp< LagrangianSubScalarField >	alphav (const LagrangianSubMesh &subMesh) const =0
	Coefficient of thermal expansion for a sub-mesh [1/K]. More...

virtual const LagrangianScalarDynamicField &	kappa () const =0
	Thermal conductivity [W/m/K]. More...

virtual tmp< LagrangianSubScalarField >	kappa (const LagrangianSubScalarField &T, const LagrangianInjection &) const =0
	Thermal conductivity for an injection [W/m/K]. More...

template<class LagrangianFieldSourceType >
Foam::HashTable< Foam::word >	sourcesTypes (const LagrangianScalarDynamicField &T)

template<class Thermo >
Foam::autoPtr< Thermo >	New (const LagrangianMesh &mesh, const word &phaseName)

Static Public Member Functions
static word	derivedThermoName ()
	The derived name. More...

static autoPtr< fluidLagrangianThermo >	New (const LagrangianMesh &mesh, const word &phaseName=word::null)
	Select a fluid thermo. More...

Static Public Member Functions inherited from basicLagrangianThermo
template<class Thermo >
static autoPtr< Thermo >	New (const LagrangianMesh &mesh, const word &phaseName=word::null)
	Select thermo of a given derived type. More...

static autoPtr< basicLagrangianThermo >	New (const LagrangianMesh &mesh, const word &phaseName=word::null)
	Select a basic thermo. More...

Additional Inherited Members
Protected Member Functions inherited from basicLagrangianThermo
wordList	eBoundaryTypes () const
	Internal energy field boundary types. More...

wordList	eBoundaryBaseTypes () const
	Internal energy field boundary base types. More...

Static Protected Member Functions inherited from basicLagrangianThermo
template<class LagrangianFieldSourceType >
static HashTable< word >	sourcesTypes (const LagrangianScalarDynamicField &T)
	Field sources types. More...

Detailed Description

Base-class for fluid Lagrangian thermodynamic models.

Source files

Definition at line 52 of file fluidLagrangianThermo.H.

Member Typedef Documentation

◆ DerivedThermoType

using DerivedThermoType = FluidLagrangianThermo < BasicLagrangianThermo < MixtureType, composite > >

The derived type.

Definition at line 71 of file fluidLagrangianThermo.H.

Constructor & Destructor Documentation

◆ ~fluidLagrangianThermo()

~fluidLagrangianThermo ( )

virtual

Destructor.

Definition at line 139 of file fluidLagrangianThermo.C.

Member Function Documentation

◆ derivedThermoName()

static word derivedThermoName ( )

inlinestatic

The derived name.

Definition at line 82 of file fluidLagrangianThermo.H.

◆ TypeName()

TypeName ( "fluidLagrangianThermo" )

Runtime type information.

◆ declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		fluidLagrangianThermo	,
		LagrangianMesh	,
		(const LagrangianMesh &mesh, const word &phaseName)	,
		(mesh, phaseName)
	)

Declare run-time constructor selection table.

◆ New()

Foam::autoPtr< Foam::fluidLagrangianThermo > New	(	const LagrangianMesh &	mesh,
		const word &	phaseName = `word::null`
	)

static

Select a fluid thermo.

Definition at line 127 of file fluidLagrangianThermo.C.

References basicLagrangianThermo::mesh(), and basicLagrangianThermo::phaseName().

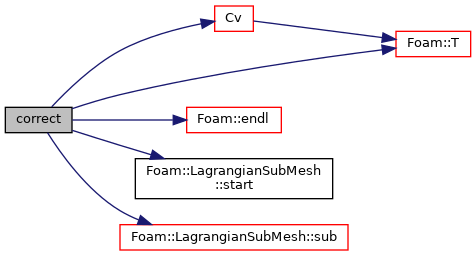

Here is the call graph for this function:

◆ p() [1/4]

virtual const LagrangianScalarDynamicField& p ( ) const

pure virtual

Pressure [Pa].

Implemented in fluidLagrangianThermo::implementation.

Referenced by fluidLagrangianThermo::implementation::correctPressure().

Here is the caller graph for this function:

◆ p() [2/4]

virtual LagrangianScalarDynamicField& p ( )

pure virtual

Modify the Pressure [Pa].

Implemented in fluidLagrangianThermo::implementation.

◆ p() [3/4]

virtual tmp<LagrangianSubScalarSubField> p ( const LagrangianSubMesh & ) const

pure virtual

Pressure for a sub-mesh [Pa].

Implemented in fluidLagrangianThermo::implementation.

◆ p() [4/4]

virtual tmp<LagrangianSubScalarField> p	(	const LagrangianInjection &	,
		const LagrangianSubMesh &
	)		const

pure virtual

Pressure for an injection [Pa].

Implemented in fluidLagrangianThermo::implementation.

◆ psi() [1/2]

virtual const LagrangianScalarDynamicField& psi ( ) const

pure virtual

Compressibility [s^2/m^2].

Implemented in fluidLagrangianThermo::implementation.

◆ psi() [2/2]

virtual tmp<LagrangianSubScalarField> psi	(	const LagrangianSubScalarField &	T,
		const LagrangianInjection &
	)		const

pure virtual

Compressibility for an injection [m^2/s^2].

◆ mu() [1/2]

virtual const LagrangianScalarDynamicField& mu ( ) const

pure virtual

Dynamic viscosity [kg/m/s].

Implemented in fluidLagrangianThermo::implementation.

◆ mu() [2/2]

virtual tmp<LagrangianSubScalarField> mu	(	const LagrangianSubScalarField &	T,
		const LagrangianInjection &
	)		const

pure virtual

Dynamic viscosity for an injection [W/m/K].

The documentation for this class was generated from the following files:

src/Lagrangian/LagrangianThermo/fluidLagrangianThermo/fluidLagrangianThermo.H
src/Lagrangian/LagrangianThermo/fluidLagrangianThermo/fluidLagrangianThermo.C
