Reader for vtk unstructured_grid legacy files. Supports single CELLS, POINTS etc. entry only. More...

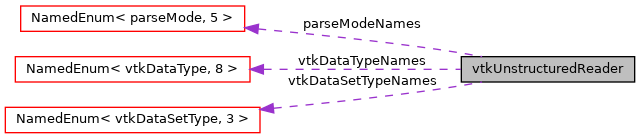

Collaboration diagram for vtkUnstructuredReader:

[legend]

Public Types
enum	vtkDataType { VTK_INT , VTK_UINT , VTK_LONG , VTK_ULONG , VTK_FLOAT , VTK_DOUBLE , VTK_STRING , VTK_ID }
	Enumeration defining the vtk data types. More...

enum	vtkDataSetType { VTK_FIELD , VTK_SCALARS , VTK_VECTORS }
	Enumeration defining the vtk dataset types. More...

enum	parseMode { NOMODE , UNSTRUCTURED_GRID , POLYDATA , CELL_DATA , POINT_DATA }
	Enumeration defining the parse mode - what type of data is being. More...

enum	vtkTypes { VTK_EMPTY_CELL = 0 , VTK_VERTEX = 1 , VTK_POLY_VERTEX = 2 , VTK_LINE = 3 , VTK_POLY_LINE = 4 , VTK_TRIANGLE = 5 , VTK_TRIANGLE_STRIP = 6 , VTK_POLYGON = 7 , VTK_PIXEL = 8 , VTK_QUAD = 9 , VTK_TETRA = 10 , VTK_VOXEL = 11 , VTK_HEXAHEDRON = 12 , VTK_WEDGE = 13 , VTK_PYRAMID = 14 , VTK_PENTAGONAL_PRISM = 15 , VTK_HEXAGONAL_PRISM = 16 }
	Enumeration defining the cell types. More...

Public Member Functions
	ClassName ("vtkUnstructuredReader")
	Runtime type information. More...

	vtkUnstructuredReader (const objectRegistry &obr, ISstream &)
	Construct from Istream, read all. More...

const string	header () const
	Header. More...

const string &	title () const
	Title. More...

const string &	dataType () const
	DataType. More...

const pointField &	points () const
	Points. More...

pointField &	points ()

const cellShapeList &	cells () const
	3D cells. More...

cellShapeList &	cells ()

const labelList &	cellMap () const

const faceList &	faces () const
	2D cells (=faces) More...

faceList &	faces ()

const labelList &	faceMap () const

const labelListList &	lines () const
	1D cells (=open lines) More...

labelListList &	lines ()

const labelList &	lineMap () const

const objectRegistry &	cellData () const
	Cell based fields. More...

objectRegistry &	cellData ()

const objectRegistry &	pointData () const
	Point based fields. More...

objectRegistry &	pointData ()

const objectRegistry &	otherData () const
	Other fields. More...

objectRegistry &	otherData ()

template<class Type >
void	printFieldStats (const objectRegistry &) const
	Debug: print contents of objectRegistry. More...

void	operator= (const vtkUnstructuredReader &)=delete
	Disallow default bitwise assignment. More...

Static Public Attributes
static const NamedEnum< vtkDataType, 8 >	vtkDataTypeNames

static const NamedEnum< vtkDataSetType, 3 >	vtkDataSetTypeNames

static const NamedEnum< parseMode, 5 >	parseModeNames

Detailed Description

Reader for vtk unstructured_grid legacy files. Supports single CELLS, POINTS etc. entry only.

all integer types (int, unsigned_int, long etc.) become Foam::label
all real types (float, double) become Foam::scalar
POINTS becomes OpenFOAM points
CELLS gets split into OpenFOAM
- cells
- faces
- lines
CELL_DATA or POINT_DATA gets stored on the corresponding objectRegistry in original vtk numbering order so use e.g. faceMap() to go from entry in faces() back to vtk numbering.

Source files

Definition at line 63 of file vtkUnstructuredReader.H.

Member Enumeration Documentation

◆ vtkDataType

enum vtkDataType

Enumeration defining the vtk data types.

Enumerator
VTK_INT
VTK_UINT
VTK_LONG
VTK_ULONG
VTK_FLOAT
VTK_DOUBLE
VTK_STRING
VTK_ID

Definition at line 70 of file vtkUnstructuredReader.H.

◆ vtkDataSetType

enum vtkDataSetType

Enumeration defining the vtk dataset types.

Enumerator
VTK_FIELD
VTK_SCALARS
VTK_VECTORS

Definition at line 86 of file vtkUnstructuredReader.H.

◆ parseMode

enum parseMode

Enumeration defining the parse mode - what type of data is being.

read

Enumerator
NOMODE
UNSTRUCTURED_GRID
POLYDATA
CELL_DATA
POINT_DATA

Definition at line 98 of file vtkUnstructuredReader.H.

◆ vtkTypes

enum vtkTypes

Enumeration defining the cell types.

Enumerator
VTK_EMPTY_CELL
VTK_VERTEX
VTK_POLY_VERTEX
VTK_LINE
VTK_POLY_LINE
VTK_TRIANGLE
VTK_TRIANGLE_STRIP
VTK_POLYGON
VTK_PIXEL
VTK_QUAD
VTK_TETRA
VTK_VOXEL
VTK_HEXAHEDRON
VTK_WEDGE
VTK_PYRAMID
VTK_PENTAGONAL_PRISM
VTK_HEXAGONAL_PRISM

Definition at line 111 of file vtkUnstructuredReader.H.

Constructor & Destructor Documentation

◆ vtkUnstructuredReader()

vtkUnstructuredReader	(	const objectRegistry &	obr,
		ISstream &	inFile
	)

Construct from Istream, read all.

Definition at line 524 of file vtkUnstructuredReader.C.

Member Function Documentation

◆ ClassName()

ClassName ( "vtkUnstructuredReader" )

Runtime type information.

◆ header()

const string header ( ) const

inline

Header.

Definition at line 246 of file vtkUnstructuredReader.H.

◆ title()

const string& title ( ) const

inline

Title.

Definition at line 252 of file vtkUnstructuredReader.H.

◆ dataType()

const string& dataType ( ) const

inline

DataType.

Definition at line 258 of file vtkUnstructuredReader.H.

◆ points() [1/2]

const pointField& points ( ) const

inline

Points.

Definition at line 264 of file vtkUnstructuredReader.H.

Referenced by VTKedgeFormat::read(), and VTKsurfaceFormat< Face >::read().

Here is the caller graph for this function:

◆ points() [2/2]

pointField& points ( )

inline

Definition at line 269 of file vtkUnstructuredReader.H.

◆ cells() [1/2]

const cellShapeList& cells ( ) const

inline

3D cells.

Definition at line 275 of file vtkUnstructuredReader.H.

◆ cells() [2/2]

cellShapeList& cells ( )

inline

Definition at line 280 of file vtkUnstructuredReader.H.

◆ cellMap()

const labelList& cellMap ( ) const

inline

Definition at line 285 of file vtkUnstructuredReader.H.

◆ faces() [1/2]

const faceList& faces ( ) const

inline

2D cells (=faces)

Definition at line 291 of file vtkUnstructuredReader.H.

Referenced by VTKsurfaceFormat< Face >::read().

Here is the caller graph for this function:

◆ faces() [2/2]

faceList& faces ( )

inline

Definition at line 296 of file vtkUnstructuredReader.H.

◆ faceMap()

const labelList& faceMap ( ) const

inline

Definition at line 301 of file vtkUnstructuredReader.H.

◆ lines() [1/2]

const labelListList& lines ( ) const

inline

1D cells (=open lines)

Definition at line 307 of file vtkUnstructuredReader.H.

Referenced by VTKedgeFormat::read().

Here is the caller graph for this function:

◆ lines() [2/2]

labelListList& lines ( )

inline

Definition at line 312 of file vtkUnstructuredReader.H.

◆ lineMap()

const labelList& lineMap ( ) const

inline

Definition at line 317 of file vtkUnstructuredReader.H.

◆ cellData() [1/2]

const objectRegistry& cellData ( ) const

inline

Cell based fields.

Definition at line 323 of file vtkUnstructuredReader.H.

Referenced by VTKsurfaceFormat< Face >::read().

Here is the caller graph for this function:

◆ cellData() [2/2]

objectRegistry& cellData ( )

inline

Definition at line 328 of file vtkUnstructuredReader.H.

◆ pointData() [1/2]

const objectRegistry& pointData ( ) const

inline

Point based fields.

Definition at line 334 of file vtkUnstructuredReader.H.

◆ pointData() [2/2]

objectRegistry& pointData ( )

inline

Definition at line 339 of file vtkUnstructuredReader.H.

◆ otherData() [1/2]

const objectRegistry& otherData ( ) const

inline

Other fields.

Definition at line 345 of file vtkUnstructuredReader.H.

◆ otherData() [2/2]

objectRegistry& otherData ( )

inline

Definition at line 350 of file vtkUnstructuredReader.H.

◆ printFieldStats()

void printFieldStats ( const objectRegistry & obj ) const

Debug: print contents of objectRegistry.

Definition at line 52 of file vtkUnstructuredReaderTemplates.C.

References Foam::endl(), fieldNames, forAll, Foam::Info, objectRegistry::lookupObject(), Foam::nl, List< T >::size(), and objectRegistry::toc().

Here is the call graph for this function:

◆ operator=()

void operator= ( const vtkUnstructuredReader & )

delete

Disallow default bitwise assignment.

Member Data Documentation

◆ vtkDataTypeNames

const Foam::NamedEnum< Foam::vtkUnstructuredReader::vtkDataType, 8 > vtkDataTypeNames

static

Initial value:

{
    "int",
    "unsigned_int",
    "long",
    "unsigned_long",
    "float",
    "double",
    "string",
    "vtkIdType"
    }

Definition at line 82 of file vtkUnstructuredReader.H.

◆ vtkDataSetTypeNames

const Foam::NamedEnum< Foam::vtkUnstructuredReader::vtkDataSetType, 3 > vtkDataSetTypeNames

static

Initial value:

{
    "FIELD",
    "SCALARS",
    "VECTORS"
    }

Definition at line 93 of file vtkUnstructuredReader.H.

◆ parseModeNames

const Foam::NamedEnum< Foam::vtkUnstructuredReader::parseMode, 5 > parseModeNames

static

Initial value:

{
    "NOMODE",
    "UNSTRUCTURED_GRID",
    "POLYDATA",
    "CELL_DATA",
    "POINT_DATA"
}

Definition at line 107 of file vtkUnstructuredReader.H.

The documentation for this class was generated from the following files:

src/fileFormats/vtk/vtkUnstructuredReader.H
src/fileFormats/vtk/vtkUnstructuredReader.C
src/fileFormats/vtk/vtkUnstructuredReaderTemplates.C
