Cell based momentum source which approximates the mean effects of rotor forces on a cylindrical region within the domain. More...

Inheritance diagram for rotorDisk:

[legend]

Collaboration diagram for rotorDisk:

[legend]

Public Types
enum	geometryModeType { automatic , specified }

enum	inletFlowType { fixed , surfaceNormal , local }

Public Member Functions
	TypeName ("rotorDisk")
	Runtime type information. More...

	rotorDisk (const word &name, const word &modelType, const fvMesh &mesh, const dictionary &dict)
	Construct from components. More...

virtual	~rotorDisk ()
	Destructor. More...

scalar	rhoRef () const
	Return the reference density for incompressible case. More...

scalar	omega () const
	Return the rotational speed [rad/s]. More...

const fvCellZone &	zone () const

const List< point > &	x () const
	Return the cell centre positions in local rotor frame. More...

const coordinateSystems::cylindrical &	coordSys () const
	Return the rotor co-ordinate system (r, theta, z) More...

virtual wordList	addSupFields () const
	Return the list of fields for which the fvModel adds source term. More...

template<class RhoFieldType >
void	calculate (const RhoFieldType &rho, const vectorField &U, const scalarField &thetag, vectorField &force, const bool divideVolume=true, const bool output=true) const
	Calculate forces. More...

virtual void	addSup (const volVectorField &U, fvMatrix< vector > &eqn) const
	Source term to momentum equation. More...

virtual void	addSup (const volScalarField &rho, const volVectorField &U, fvMatrix< vector > &eqn) const
	Source term to compressible momentum equation. More...

virtual bool	movePoints ()
	Update for mesh motion. More...

virtual void	topoChange (const polyTopoChangeMap &)
	Update topology using the given map. More...

virtual void	mapMesh (const polyMeshMap &)
	Update from another mesh using the given map. More...

virtual void	distribute (const polyDistributionMap &)
	Redistribute or update using the given distribution map. More...

virtual bool	read (const dictionary &dict)
	Read source dictionary. More...

Public Member Functions inherited from fvModel
	TypeName ("fvModel")
	Runtime type information. More...

	declareRunTimeSelectionTable (autoPtr, fvModel, dictionary,(const word &name, const word &modelType, const fvMesh &mesh, const dictionary &dict),(name, modelType, mesh, dict))

	fvModel (const word &name, const word &modelType, const fvMesh &mesh, const dictionary &dict)
	Construct from components. More...

autoPtr< fvModel >	clone () const
	Return clone. More...

virtual	~fvModel ()
	Destructor. More...

const word &	name () const
	Return const access to the source name. More...

const word &	keyword () const
	Return name as the keyword. More...

const fvMesh &	mesh () const
	Return const access to the mesh database. More...

const dictionary &	coeffs (const dictionary &) const
	Return the coefficients sub-dictionary. More...

virtual bool	addsSupToField (const word &fieldName) const
	Return true if the fvModel adds a source term to the given. More...

virtual scalar	maxDeltaT () const
	Return the maximum time-step for stable operation. More...

virtual void	addSup (fvMatrix< scalar > &eqn) const
	Add a source term to a field-less proxy equation. More...

template<class Type >
tmp< fvMatrix< Type > >	sourceProxy (const VolField< Type > &eqnField) const
	Add a source term to an equation. More...

template<class Type >
tmp< fvMatrix< Type > >	source (const VolField< Type > &field) const
	Return source for an equation. More...

template<class Type >
tmp< fvMatrix< Type > >	sourceProxy (const VolField< Type > &field, const VolField< Type > &eqnField) const
	Return source for an equation. More...

template<class Type >
tmp< fvMatrix< Type > >	source (const volScalarField &rho, const VolField< Type > &field) const
	Return source for a compressible equation. More...

template<class Type >
tmp< fvMatrix< Type > >	sourceProxy (const volScalarField &rho, const VolField< Type > &field, const VolField< Type > &eqnField) const
	Return source for a compressible equation. More...

template<class Type >
tmp< fvMatrix< Type > >	source (const volScalarField &alpha, const volScalarField &rho, const VolField< Type > &field) const
	Return source for a phase equation. More...

template<class Type >
tmp< fvMatrix< Type > >	sourceProxy (const volScalarField &alpha, const volScalarField &rho, const VolField< Type > &field, const VolField< Type > &eqnField) const
	Return source for a phase equation. More...

template<class Type >
tmp< fvMatrix< Type > >	source (const volScalarField &alpha, const geometricOneField &rho, const VolField< Type > &field) const
	Return source for a phase equation. More...

template<class Type >
tmp< fvMatrix< Type > >	source (const geometricOneField &alpha, const volScalarField &rho, const VolField< Type > &field) const
	Return source for a phase equation. More...

template<class Type >
tmp< fvMatrix< Type > >	source (const geometricOneField &alpha, const geometricOneField &rho, const VolField< Type > &field) const
	Return source for a phase equation. More...

template<class Type >
tmp< fvMatrix< Type > >	d2dt2 (const VolField< Type > &field) const
	Return source for an equation with a second time derivative. More...

virtual void	preUpdateMesh ()
	Prepare for mesh update. More...

virtual void	correct ()
	Correct the fvModel. More...

virtual bool	write (const bool write=true) const
	Write fvModel data. More...

template<class AlphaRhoFieldType , class ... AlphaRhoFieldTypes>
Foam::dimensionSet	sourceDims (const dimensionSet &ds, const AlphaRhoFieldType &alphaRhoField, const AlphaRhoFieldTypes &... alphaRhoFields)

template<class AlphaRhoFieldType , class ... AlphaRhoFieldTypes>
const Foam::word &	fieldName (const AlphaRhoFieldType &alphaRhoField, const AlphaRhoFieldTypes &... alphaRhoFields)

template<class AlphaRhoFieldType >
const Foam::word &	fieldName (const AlphaRhoFieldType &alphaRhoField)

template<class Type , class ... AlphaRhoFieldTypes>
Foam::tmp< Foam::fvMatrix< Type > >	sourceTerm (const VolField< Type > &eqnField, const dimensionSet &ds, const AlphaRhoFieldTypes &... alphaRhoFields) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	sourceProxy (const VolField< Type > &eqnField) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	source (const VolField< Type > &field) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	sourceProxy (const VolField< Type > &field, const VolField< Type > &eqnField) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	source (const volScalarField &rho, const VolField< Type > &field) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	sourceProxy (const volScalarField &rho, const VolField< Type > &field, const VolField< Type > &eqnField) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	source (const volScalarField &alpha, const volScalarField &rho, const VolField< Type > &field) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	sourceProxy (const volScalarField &alpha, const volScalarField &rho, const VolField< Type > &field, const VolField< Type > &eqnField) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	source (const geometricOneField &alpha, const geometricOneField &rho, const VolField< Type > &field) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	source (const volScalarField &alpha, const geometricOneField &rho, const VolField< Type > &field) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	source (const geometricOneField &alpha, const volScalarField &rho, const VolField< Type > &field) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	d2dt2 (const VolField< Type > &field) const

Static Public Attributes
static const NamedEnum< geometryModeType, 2 >	geometryModeTypeNames_

static const NamedEnum< inletFlowType, 3 >	inletFlowTypeNames_

Static Public Attributes inherited from fvModel
static const wordHashSet	keywords
	The keywords read by this class. More...

Additional Inherited Members
Static Public Member Functions inherited from fvModel
static const dictionary &	coeffs (const word &modelType, const dictionary &)
	Return the coefficients sub-dictionary for a given model type. More...

template<class AlphaRhoFieldType , class ... AlphaRhoFieldTypes>
static dimensionSet	sourceDims (const dimensionSet &ds, const AlphaRhoFieldType &alphaRhoField, const AlphaRhoFieldTypes &... alphaRhoFields)
	Return the dimensions of the matrix of a source term. More...

static const dimensionSet &	sourceDims (const dimensionSet &ds)
	Return the dimensions of the matrix of a source term (base. More...

template<class AlphaRhoFieldType , class ... AlphaRhoFieldTypes>
static const word &	fieldName (const AlphaRhoFieldType &alphaRhoField, const AlphaRhoFieldTypes &... alphaRhoFields)
	Return the name of the field associated with a source term. More...

template<class AlphaRhoFieldType >
static const word &	fieldName (const AlphaRhoFieldType &alphaRhoField)
	Return the name of the field associated with a source term (base. More...

static const word &	fieldName ()
	Return the name of the field associated with a source term. Special. More...

static autoPtr< fvModel >	New (const word &name, const fvMesh &mesh, const dictionary &dict)
	Return a reference to the selected fvModel. More...

Protected Member Functions inherited from fvModel
template<class Type >
void	addSupType (const VolField< Type > &field, fvMatrix< Type > &eqn) const
	Add a source term to an equation. More...

template<class Type >
void	addSupType (const volScalarField &rho, const VolField< Type > &field, fvMatrix< Type > &eqn) const
	Add a source term to a compressible equation. More...

template<class Type >
void	addSupType (const volScalarField &alpha, const volScalarField &rho, const VolField< Type > &field, fvMatrix< Type > &eqn) const
	Add a source term to a phase equation. More...

template<class Type , class ... AlphaRhoFieldTypes>
tmp< fvMatrix< Type > >	sourceTerm (const VolField< Type > &eqnField, const dimensionSet &ds, const AlphaRhoFieldTypes &... alphaRhoFields) const
	Return a source for an equation. More...

Detailed Description

Cell based momentum source which approximates the mean effects of rotor forces on a cylindrical region within the domain.

Usage

Example usage:

rotorDisk1
{
    type            rotorDisk;

    U               U;          // Name of the velocity field

    nBlades         3;          // Number of blades
    tipEffect       0.96;       // Normalised radius above which lift = 0
    inletFlowType   local;      // Inlet flow type specification
    geometryMode    auto;       // Geometry specification
    refDirection    (-1 0 0);   // Reference direction for psi angle

    trimModel       fixed;      // Trim model; fixed or targetCoeff
    // see fixedTrim.H or targetCoeffTrim.H for documentation

    flapCoeffs
    {
        beta0           0;  // Coning angle [deg]
        beta1c          0;  // Lateral flapping coeff (cos coeff)
        beta2s          0;  // Longitudinal flapping coeff (sin coeff)
    }

    blade
    {
        // see bladeModel.H for documentation
    }

    profiles
    {
        profile1
        {
            type    lookup;     // Profile model; lookup or series

            ...

            // see lookupProfile.H or seriesProfile.H for documentation
        }
        profile2
        {
            ...
        }
    }
}

Where: Valid fvModels for the geometryMode entry include:

auto : determine rotor coordinate system from cells
specified : specified coordinate system

Valid fvModels for the inletFlowType entry include:

fixed : specified velocity
local : use local flow conditions
surfaceNormal : specified normal velocity (positive towards rotor)

See also: Foam::bladeModel Foam::lookupProfile Foam::seriesProfile

Source files

Definition at line 122 of file rotorDisk.H.

Member Enumeration Documentation

◆ geometryModeType

enum geometryModeType

Enumerator
automatic
specified

Definition at line 128 of file rotorDisk.H.

◆ inletFlowType

enum inletFlowType

Enumerator
fixed
surfaceNormal
local

Definition at line 135 of file rotorDisk.H.

Constructor & Destructor Documentation

◆ rotorDisk()

rotorDisk	(	const word &	name,
		const word &	modelType,
		const fvMesh &	mesh,
		const dictionary &	dict
	)

Construct from components.

Definition at line 486 of file rotorDisk.C.

References fvModel::coeffs(), and dict.

Here is the call graph for this function:

◆ ~rotorDisk()

~rotorDisk ( )

virtual

Destructor.

Definition at line 521 of file rotorDisk.C.

Member Function Documentation

◆ TypeName()

TypeName ( "rotorDisk" )

Runtime type information.

◆ rhoRef()

Foam::scalar rhoRef ( ) const

inline

Return the reference density for incompressible case.

Definition at line 30 of file rotorDiskI.H.

◆ omega()

Foam::scalar omega ( ) const

inline

Return the rotational speed [rad/s].

Positive anti-clockwise when looking along -ve lift direction

Definition at line 36 of file rotorDiskI.H.

◆ zone()

const Foam::fvCellZone & zone ( ) const

inline

Definition at line 42 of file rotorDiskI.H.

◆ x()

const Foam::List< Foam::point > & x ( ) const

inline

Return the cell centre positions in local rotor frame.

(Cylindrical r, theta, z)

Definition at line 48 of file rotorDiskI.H.

◆ coordSys()

const Foam::coordinateSystems::cylindrical & coordSys ( ) const

inline

Return the rotor co-ordinate system (r, theta, z)

Definition at line 55 of file rotorDiskI.H.

◆ addSupFields()

Foam::wordList addSupFields ( ) const

virtual

Return the list of fields for which the fvModel adds source term.

to the transport equation

Reimplemented from fvModel.

Definition at line 527 of file rotorDisk.C.

◆ calculate()

void calculate	(	const RhoFieldType &	rho,
		const vectorField &	U,
		const scalarField &	thetag,
		vectorField &	force,
		const bool	divideVolume = `true`,
		const bool	output = `true`
	)		const

Calculate forces.

Definition at line 34 of file rotorDiskTemplates.C.

References Foam::atan2(), cells, Foam::endl(), f(), forAll, Foam::Info, Foam::magSqr(), Foam::max(), mesh, Foam::min(), Foam::neg(), Foam::nl, Foam::radToDeg(), Foam::reduce(), rho, Foam::sign(), Foam::constant::mathematical::twoPi(), Foam::type(), U, fvMesh::V(), Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

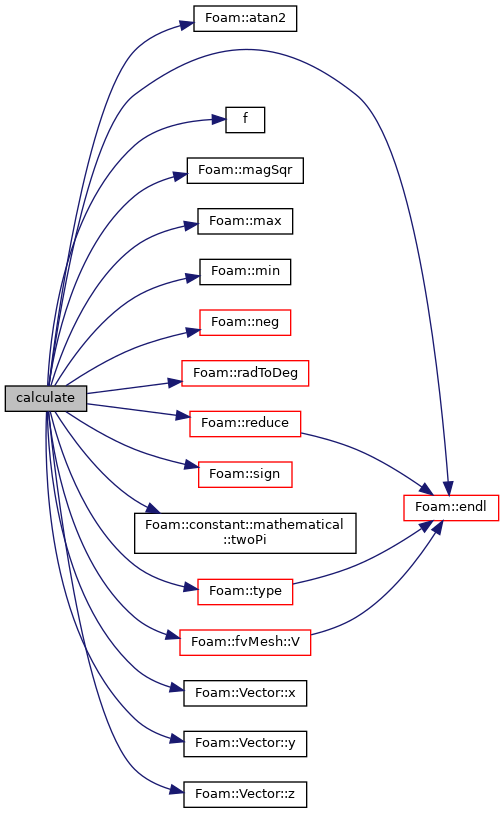

Here is the call graph for this function:

◆ addSup() [1/2]

void addSup	(	const volVectorField &	U,
		fvMatrix< vector > &	eqn
	)		const

virtual

Source term to momentum equation.

Definition at line 533 of file rotorDisk.C.

References Foam::fvPatchDistWave::calculate(), fvMatrix< Type >::dimensions(), Foam::dimVolume, Foam::exit(), Foam::FatalError, mesh, Foam::name(), U, regIOobject::write(), and Foam::Zero.

Here is the call graph for this function:

◆ addSup() [2/2]

void addSup	(	const volScalarField &	rho,
		const volVectorField &	U,
		fvMatrix< vector > &	eqn
	)		const

virtual

Source term to compressible momentum equation.

Definition at line 577 of file rotorDisk.C.

References Foam::fvPatchDistWave::calculate(), fvMatrix< Type >::dimensions(), Foam::dimVolume, mesh, Foam::name(), rho, U, regIOobject::write(), and Foam::Zero.

Here is the call graph for this function:

◆ movePoints()

bool movePoints ( )

virtual

Update for mesh motion.

Implements fvModel.

Definition at line 615 of file rotorDisk.C.

◆ topoChange()

void topoChange ( const polyTopoChangeMap & map )

virtual

Update topology using the given map.

Implements fvModel.

Definition at line 622 of file rotorDisk.C.

◆ mapMesh()

void mapMesh ( const polyMeshMap & map )

virtual

Update from another mesh using the given map.

Implements fvModel.

Definition at line 628 of file rotorDisk.C.

◆ distribute()

void distribute ( const polyDistributionMap & map )

virtual

Redistribute or update using the given distribution map.

Implements fvModel.

Definition at line 634 of file rotorDisk.C.

◆ read()

bool read ( const dictionary & dict )

virtual

Read source dictionary.

Reimplemented from fvModel.

Definition at line 640 of file rotorDisk.C.

References dict, and fvModel::read().

Here is the call graph for this function:

Member Data Documentation

◆ geometryModeTypeNames_

const Foam::NamedEnum< Foam::fv::rotorDisk::geometryModeType, 2 > geometryModeTypeNames_

static

Initial value:

{
    "auto",
    "specified"
}

Definition at line 133 of file rotorDisk.H.

◆ inletFlowTypeNames_

const Foam::NamedEnum< Foam::fv::rotorDisk::inletFlowType, 3 > inletFlowTypeNames_

static

Initial value:

{
    "fixed",
    "surfaceNormal",
    "local"
}

Definition at line 141 of file rotorDisk.H.

The documentation for this class was generated from the following files:

src/fvModels/rotorDisk/rotorDisk.H
src/fvModels/rotorDisk/rotorDisk.C
src/fvModels/rotorDisk/rotorDiskI.H
src/fvModels/rotorDisk/rotorDiskTemplates.C

Public Types

Public Member Functions

Static Public Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ geometryModeType

◆ inletFlowType

Constructor & Destructor Documentation

◆ rotorDisk()

◆ ~rotorDisk()

Member Function Documentation

◆ TypeName()

◆ rhoRef()

◆ omega()

◆ zone()

◆ x()

◆ coordSys()

◆ addSupFields()

◆ calculate()

◆ addSup() [1/2]

◆ addSup() [2/2]

◆ movePoints()

◆ topoChange()

◆ mapMesh()

◆ distribute()

◆ read()

Member Data Documentation

◆ geometryModeTypeNames_

◆ inletFlowTypeNames_
