Actuation disk source. More...

Inheritance diagram for actuationDisk:

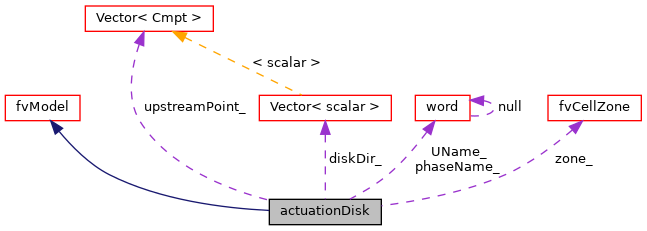

Collaboration diagram for actuationDisk:

[legend]

Public Member Functions
	TypeName ("actuationDisk")
	Runtime type information. More...

	actuationDisk (const word &name, const word &modelType, const fvMesh &mesh, const dictionary &dict)
	Construct from components. More...

	actuationDisk (const actuationDisk &)=delete
	Disallow default bitwise copy construction. More...

virtual	~actuationDisk ()
	Destructor. More...

virtual wordList	addSupFields () const
	Return the list of fields for which the fvModel adds source term. More...

virtual void	addSup (const volVectorField &U, fvMatrix< vector > &eqn) const
	Source term to momentum equation. More...

virtual void	addSup (const volScalarField &rho, const volVectorField &U, fvMatrix< vector > &eqn) const
	Source term to compressible momentum equation. More...

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, const volVectorField &U, fvMatrix< vector > &eqn) const
	Explicit and implicit sources for phase equations. More...

virtual bool	movePoints ()
	Update for mesh motion. More...

virtual void	topoChange (const polyTopoChangeMap &)
	Update topology using the given map. More...

virtual void	mapMesh (const polyMeshMap &)
	Update from another mesh using the given map. More...

virtual void	distribute (const polyDistributionMap &)
	Redistribute or update using the given distribution map. More...

virtual bool	read (const dictionary &dict)
	Read dictionary. More...

void	operator= (const actuationDisk &)=delete
	Disallow default bitwise assignment. More...

Public Member Functions inherited from fvModel
	TypeName ("fvModel")
	Runtime type information. More...

	declareRunTimeSelectionTable (autoPtr, fvModel, dictionary,(const word &name, const word &modelType, const fvMesh &mesh, const dictionary &dict),(name, modelType, mesh, dict))

	fvModel (const word &name, const word &modelType, const fvMesh &mesh, const dictionary &dict)
	Construct from components. More...

autoPtr< fvModel >	clone () const
	Return clone. More...

virtual	~fvModel ()
	Destructor. More...

const word &	name () const
	Return const access to the source name. More...

const word &	keyword () const
	Return name as the keyword. More...

const fvMesh &	mesh () const
	Return const access to the mesh database. More...

const dictionary &	coeffs (const dictionary &) const
	Return the coefficients sub-dictionary. More...

virtual bool	addsSupToField (const word &fieldName) const
	Return true if the fvModel adds a source term to the given. More...

virtual scalar	maxDeltaT () const
	Return the maximum time-step for stable operation. More...

virtual void	addSup (fvMatrix< scalar > &eqn) const
	Add a source term to a field-less proxy equation. More...

template<class Type >
tmp< fvMatrix< Type > >	sourceProxy (const VolField< Type > &eqnField) const
	Add a source term to an equation. More...

template<class Type >
tmp< fvMatrix< Type > >	source (const VolField< Type > &field) const
	Return source for an equation. More...

template<class Type >
tmp< fvMatrix< Type > >	sourceProxy (const VolField< Type > &field, const VolField< Type > &eqnField) const
	Return source for an equation. More...

template<class Type >
tmp< fvMatrix< Type > >	source (const volScalarField &rho, const VolField< Type > &field) const
	Return source for a compressible equation. More...

template<class Type >
tmp< fvMatrix< Type > >	sourceProxy (const volScalarField &rho, const VolField< Type > &field, const VolField< Type > &eqnField) const
	Return source for a compressible equation. More...

template<class Type >
tmp< fvMatrix< Type > >	source (const volScalarField &alpha, const volScalarField &rho, const VolField< Type > &field) const
	Return source for a phase equation. More...

template<class Type >
tmp< fvMatrix< Type > >	sourceProxy (const volScalarField &alpha, const volScalarField &rho, const VolField< Type > &field, const VolField< Type > &eqnField) const
	Return source for a phase equation. More...

template<class Type >
tmp< fvMatrix< Type > >	source (const volScalarField &alpha, const geometricOneField &rho, const VolField< Type > &field) const
	Return source for a phase equation. More...

template<class Type >
tmp< fvMatrix< Type > >	source (const geometricOneField &alpha, const volScalarField &rho, const VolField< Type > &field) const
	Return source for a phase equation. More...

template<class Type >
tmp< fvMatrix< Type > >	source (const geometricOneField &alpha, const geometricOneField &rho, const VolField< Type > &field) const
	Return source for a phase equation. More...

template<class Type >
tmp< fvMatrix< Type > >	d2dt2 (const VolField< Type > &field) const
	Return source for an equation with a second time derivative. More...

virtual void	preUpdateMesh ()
	Prepare for mesh update. More...

virtual void	correct ()
	Correct the fvModel. More...

virtual bool	write (const bool write=true) const
	Write fvModel data. More...

template<class AlphaRhoFieldType , class ... AlphaRhoFieldTypes>
Foam::dimensionSet	sourceDims (const dimensionSet &ds, const AlphaRhoFieldType &alphaRhoField, const AlphaRhoFieldTypes &... alphaRhoFields)

template<class AlphaRhoFieldType , class ... AlphaRhoFieldTypes>
const Foam::word &	fieldName (const AlphaRhoFieldType &alphaRhoField, const AlphaRhoFieldTypes &... alphaRhoFields)

template<class AlphaRhoFieldType >
const Foam::word &	fieldName (const AlphaRhoFieldType &alphaRhoField)

template<class Type , class ... AlphaRhoFieldTypes>
Foam::tmp< Foam::fvMatrix< Type > >	sourceTerm (const VolField< Type > &eqnField, const dimensionSet &ds, const AlphaRhoFieldTypes &... alphaRhoFields) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	sourceProxy (const VolField< Type > &eqnField) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	source (const VolField< Type > &field) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	sourceProxy (const VolField< Type > &field, const VolField< Type > &eqnField) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	source (const volScalarField &rho, const VolField< Type > &field) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	sourceProxy (const volScalarField &rho, const VolField< Type > &field, const VolField< Type > &eqnField) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	source (const volScalarField &alpha, const volScalarField &rho, const VolField< Type > &field) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	sourceProxy (const volScalarField &alpha, const volScalarField &rho, const VolField< Type > &field, const VolField< Type > &eqnField) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	source (const geometricOneField &alpha, const geometricOneField &rho, const VolField< Type > &field) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	source (const volScalarField &alpha, const geometricOneField &rho, const VolField< Type > &field) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	source (const geometricOneField &alpha, const volScalarField &rho, const VolField< Type > &field) const

template<class Type >
Foam::tmp< Foam::fvMatrix< Type > >	d2dt2 (const VolField< Type > &field) const

Protected Attributes
fvCellZone	zone_
	The cellZone the fvConstraint applies to. More...

word	phaseName_
	The name of the phase to which this fvModel applies. More...

word	UName_
	Name of the velocity field. More...

vector	diskDir_
	Disk area normal. More...

scalar	Cp_
	Power coefficient. More...

scalar	Ct_
	Thrust coefficient. More...

scalar	diskArea_
	Disk area. More...

point	upstreamPoint_
	Upstream point sample. More...

label	upstreamCellId_
	Upstream cell ID. More...

Additional Inherited Members
Static Public Member Functions inherited from fvModel
static const dictionary &	coeffs (const word &modelType, const dictionary &)
	Return the coefficients sub-dictionary for a given model type. More...

template<class AlphaRhoFieldType , class ... AlphaRhoFieldTypes>
static dimensionSet	sourceDims (const dimensionSet &ds, const AlphaRhoFieldType &alphaRhoField, const AlphaRhoFieldTypes &... alphaRhoFields)
	Return the dimensions of the matrix of a source term. More...

static const dimensionSet &	sourceDims (const dimensionSet &ds)
	Return the dimensions of the matrix of a source term (base. More...

template<class AlphaRhoFieldType , class ... AlphaRhoFieldTypes>
static const word &	fieldName (const AlphaRhoFieldType &alphaRhoField, const AlphaRhoFieldTypes &... alphaRhoFields)
	Return the name of the field associated with a source term. More...

template<class AlphaRhoFieldType >
static const word &	fieldName (const AlphaRhoFieldType &alphaRhoField)
	Return the name of the field associated with a source term (base. More...

static const word &	fieldName ()
	Return the name of the field associated with a source term. Special. More...

static autoPtr< fvModel >	New (const word &name, const fvMesh &mesh, const dictionary &dict)
	Return a reference to the selected fvModel. More...

Static Public Attributes inherited from fvModel
static const wordHashSet	keywords
	The keywords read by this class. More...

Protected Member Functions inherited from fvModel
template<class Type >
void	addSupType (const VolField< Type > &field, fvMatrix< Type > &eqn) const
	Add a source term to an equation. More...

template<class Type >
void	addSupType (const volScalarField &rho, const VolField< Type > &field, fvMatrix< Type > &eqn) const
	Add a source term to a compressible equation. More...

template<class Type >
void	addSupType (const volScalarField &alpha, const volScalarField &rho, const VolField< Type > &field, fvMatrix< Type > &eqn) const
	Add a source term to a phase equation. More...

template<class Type , class ... AlphaRhoFieldTypes>
tmp< fvMatrix< Type > >	sourceTerm (const VolField< Type > &eqnField, const dimensionSet &ds, const AlphaRhoFieldTypes &... alphaRhoFields) const
	Return a source for an equation. More...

Detailed Description

Actuation disk source.

Constant values for momentum source for actuation disk

$T = 2 \rho A (\hat{d}\dot U_{o})^2 a (1-a) \hat{d}$

where:

	=	Disk area
	=	Unit disk direction
	=	Upstream velocity
	=	1 - Cp/Ct
	=	Power coefficient
	=	Thrust coefficient

Usage

Example usage:

actuationDisk1
{
    type            actuationDisk;

    cellZone        actuationDisk1;

    diskDir         (-1 0 0);   // Disk direction
    Cp              0.1;        // Power coefficient
    Ct              0.5;        // Thrust coefficient
    diskArea        5.0;        // Disk area
    upstreamPoint   (0 0 0);    // Upstream point
}

Source files

Definition at line 108 of file actuationDisk.H.

Constructor & Destructor Documentation

◆ actuationDisk() [1/2]

actuationDisk	(	const word &	name,
		const word &	modelType,
		const fvMesh &	mesh,
		const dictionary &	dict
	)

Construct from components.

Definition at line 134 of file actuationDisk.C.

References fvModel::coeffs(), and dict.

Here is the call graph for this function:

◆ actuationDisk() [2/2]

actuationDisk ( const actuationDisk & )

delete

Disallow default bitwise copy construction.

◆ ~actuationDisk()

virtual ~actuationDisk ( )

inlinevirtual

Destructor.

Definition at line 186 of file actuationDisk.H.

Member Function Documentation

◆ TypeName()

TypeName ( "actuationDisk" )

Runtime type information.

◆ addSupFields()

Foam::wordList addSupFields ( ) const

virtual

Return the list of fields for which the fvModel adds source term.

to the transport equation

Reimplemented from fvModel.

Definition at line 159 of file actuationDisk.C.

◆ addSup() [1/3]

void addSup	(	const volVectorField &	U,
		fvMatrix< vector > &	eqn
	)		const

virtual

Source term to momentum equation.

Reimplemented in radialActuationDisk.

Definition at line 165 of file actuationDisk.C.

References mesh, fvMatrix< Type >::source(), and U.

Here is the call graph for this function:

◆ addSup() [2/3]

void addSup	(	const volScalarField &	rho,
		const volVectorField &	U,
		fvMatrix< vector > &	eqn
	)		const

virtual

Source term to compressible momentum equation.

Reimplemented in radialActuationDisk.

Definition at line 183 of file actuationDisk.C.

References mesh, rho, fvMatrix< Type >::source(), and U.

Here is the call graph for this function:

◆ addSup() [3/3]

void addSup	(	const volScalarField &	alpha,
		const volScalarField &	rho,
		const volVectorField &	U,
		fvMatrix< vector > &	eqn
	)		const

virtual

Explicit and implicit sources for phase equations.

Definition at line 202 of file actuationDisk.C.

References alpha(), mesh, rho, fvMatrix< Type >::source(), and U.

Here is the call graph for this function:

◆ movePoints()

bool movePoints ( )

virtual

Update for mesh motion.

Implements fvModel.

Definition at line 222 of file actuationDisk.C.

◆ topoChange()

void topoChange ( const polyTopoChangeMap & map )

virtual

Update topology using the given map.

Implements fvModel.

Definition at line 229 of file actuationDisk.C.

◆ mapMesh()

void mapMesh ( const polyMeshMap & map )

virtual

Update from another mesh using the given map.

Implements fvModel.

Definition at line 235 of file actuationDisk.C.

◆ distribute()

void distribute ( const polyDistributionMap & map )

virtual

Redistribute or update using the given distribution map.

Implements fvModel.

Definition at line 241 of file actuationDisk.C.

◆ read()

bool read ( const dictionary & dict )

virtual

Read dictionary.

Reimplemented from fvModel.

Reimplemented in radialActuationDisk.

Definition at line 247 of file actuationDisk.C.

References dict, and fvModel::read().

Referenced by radialActuationDisk::read().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator=()

void operator= ( const actuationDisk & )

delete

Disallow default bitwise assignment.

Member Data Documentation

◆ zone_

fvCellZone zone_

protected

The cellZone the fvConstraint applies to.

Definition at line 117 of file actuationDisk.H.

◆ phaseName_

word phaseName_

protected

The name of the phase to which this fvModel applies.

Definition at line 120 of file actuationDisk.H.

◆ UName_

word UName_

protected

Name of the velocity field.

Definition at line 123 of file actuationDisk.H.

◆ diskDir_

vector diskDir_

protected

Disk area normal.

Definition at line 126 of file actuationDisk.H.

◆ Cp_

scalar Cp_

protected

Power coefficient.

Definition at line 129 of file actuationDisk.H.

◆ Ct_

scalar Ct_

protected

Thrust coefficient.

Definition at line 132 of file actuationDisk.H.

◆ diskArea_

scalar diskArea_

protected

Disk area.

Definition at line 135 of file actuationDisk.H.

◆ upstreamPoint_

point upstreamPoint_

protected

Upstream point sample.

Definition at line 138 of file actuationDisk.H.

◆ upstreamCellId_

label upstreamCellId_

protected

Upstream cell ID.

Definition at line 141 of file actuationDisk.H.

The documentation for this class was generated from the following files:

src/fvModels/general/actuationDisk/actuationDisk.H
src/fvModels/general/actuationDisk/actuationDisk.C

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ actuationDisk() [1/2]

◆ actuationDisk() [2/2]

◆ ~actuationDisk()

Member Function Documentation

◆ TypeName()

◆ addSupFields()

◆ addSup() [1/3]

◆ addSup() [2/3]

◆ addSup() [3/3]

◆ movePoints()

◆ topoChange()

◆ mapMesh()

◆ distribute()

◆ read()

◆ operator=()

Member Data Documentation

◆ zone_

◆ phaseName_

◆ UName_

◆ diskDir_

◆ Cp_

◆ Ct_

◆ diskArea_

◆ upstreamPoint_

◆ upstreamCellId_
