Detailed Description

This velocity inlet/outlet boundary condition combines a fixed normal component obtained from the "normalVelocity" patchField supplied with a fixed or zero-gradiented tangential component depending on the direction of the flow and the setting of "fixTangentialInflow":

- Outflow: apply zero-gradient condition to tangential components

Inflow:
- fixTangentialInflow is true apply value provided by the normalVelocity patchField to the tangential components
- fixTangentialInflow is false apply zero-gradient condition to tangential components.

Usage

Property	Description	Required	Default value
`phi`	flux field name	no	phi
`fixTangentialInflow`	If true fix the tangential component for inflow	yes
`normalVelocity`	patchField providing the normal velocity field	yes

Example of the boundary condition specification:

    <patchName>
    {
        type            fixedNormalInletOutletVelocity;

        fixTangentialInflow false;
        normalVelocity
        {
            type            uniformFixedValue;
            uniformValue    sine;
            uniformValueCoeffs
            {
                frequency 1;
                amplitude table
                (
                    (0  0)
                    (2  0.088)
                    (8  0.088)
                );
                scale     (0 1 0);
                level     (0 0 0);
            }
        }

        value           uniform (0 0 0);
    }

Source files

Definition at line 118 of file fixedNormalInletOutletVelocityFvPatchVectorField.H.

Constructor & Destructor Documentation

◆ fixedNormalInletOutletVelocityFvPatchVectorField() [1/4]

fixedNormalInletOutletVelocityFvPatchVectorField	(	const fvPatch &	p,
		const DimensionedField< vector, volMesh > &	iF,
		const dictionary &	dict
	)

Construct from patch, internal field and dictionary.

Definition at line 34 of file fixedNormalInletOutletVelocityFvPatchVectorField.C.

References dict, DimensionedField< Type, GeoMesh, PrimitiveField >::dimensions(), fixedNormalInletOutletVelocityFvPatchVectorField::normalVelocity(), fvPatchField< Type >::operator, p, and Foam::Zero.

Referenced by fixedNormalInletOutletVelocityFvPatchVectorField::clone().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fixedNormalInletOutletVelocityFvPatchVectorField() [2/4]

fixedNormalInletOutletVelocityFvPatchVectorField	(	const fixedNormalInletOutletVelocityFvPatchVectorField &	ptf,
		const fvPatch &	p,
		const DimensionedField< vector, volMesh > &	iF,
		const fieldMapper &	mapper
	)

Construct by mapping given.

fixedNormalInletOutletVelocityFvPatchVectorField onto a new patch

Definition at line 60 of file fixedNormalInletOutletVelocityFvPatchVectorField.C.

◆ fixedNormalInletOutletVelocityFvPatchVectorField() [3/4]

fixedNormalInletOutletVelocityFvPatchVectorField ( const fixedNormalInletOutletVelocityFvPatchVectorField & )

delete

Disallow copy without setting internal field reference.

◆ fixedNormalInletOutletVelocityFvPatchVectorField() [4/4]

fixedNormalInletOutletVelocityFvPatchVectorField	(	const fixedNormalInletOutletVelocityFvPatchVectorField &	pivpvf,
		const DimensionedField< vector, volMesh > &	iF
	)

Copy constructor setting internal field reference.

Definition at line 79 of file fixedNormalInletOutletVelocityFvPatchVectorField.C.

Member Function Documentation

◆ TypeName()

TypeName ( "fixedNormalInletOutletVelocity" )

Runtime type information.

◆ clone()

virtual tmp<fvPatchVectorField> clone ( const DimensionedField< vector, volMesh > & iF ) const

inlinevirtual

Construct and return a clone setting internal field reference.

Definition at line 174 of file fixedNormalInletOutletVelocityFvPatchVectorField.H.

References fixedNormalInletOutletVelocityFvPatchVectorField::fixedNormalInletOutletVelocityFvPatchVectorField().

Here is the call graph for this function:

◆ assignable()

virtual bool assignable ( ) const

inlinevirtual

Return true: this patch field is altered by assignment.

Definition at line 191 of file fixedNormalInletOutletVelocityFvPatchVectorField.H.

◆ phiName() [1/2]

const word& phiName ( ) const

inline

Return the name of phi.

Definition at line 200 of file fixedNormalInletOutletVelocityFvPatchVectorField.H.

◆ phiName() [2/2]

word& phiName ( )

inline

Return reference to the name of phi to allow adjustment.

Definition at line 206 of file fixedNormalInletOutletVelocityFvPatchVectorField.H.

◆ fixTangentialInflow()

Switch fixTangentialInflow ( ) const

inline

Definition at line 211 of file fixedNormalInletOutletVelocityFvPatchVectorField.H.

◆ normalVelocity()

const fvPatchVectorField& normalVelocity ( ) const

inline

Return the BC which provides the normal component of velocity.

Definition at line 217 of file fixedNormalInletOutletVelocityFvPatchVectorField.H.

Referenced by fixedNormalInletOutletVelocityFvPatchVectorField::fixedNormalInletOutletVelocityFvPatchVectorField(), fixedNormalInletOutletVelocityFvPatchVectorField::map(), and fixedNormalInletOutletVelocityFvPatchVectorField::reset().

Here is the caller graph for this function:

◆ map()

void map	(	const fvPatchVectorField &	ptf,
		const fieldMapper &	mapper
	)

virtual

Map the given fvPatchField onto this fvPatchField.

Definition at line 95 of file fixedNormalInletOutletVelocityFvPatchVectorField.C.

References fixedNormalInletOutletVelocityFvPatchVectorField::normalVelocity().

Here is the call graph for this function:

◆ reset()

void reset ( const fvPatchVectorField & ptf )

virtual

Reset the fvPatchField to the given fvPatchField.

Used for mesh to mesh mapping

Definition at line 110 of file fixedNormalInletOutletVelocityFvPatchVectorField.C.

References fixedNormalInletOutletVelocityFvPatchVectorField::normalVelocity().

Here is the call graph for this function:

◆ updateCoeffs()

void updateCoeffs ( )

virtual

Update the coefficients associated with the patch field.

Definition at line 124 of file fixedNormalInletOutletVelocityFvPatchVectorField.C.

References Foam::evaluate(), Foam::I, Foam::neg(), and Foam::sqr().

Here is the call graph for this function:

◆ write()

void write ( Ostream & os ) const

virtual

Write.

Definition at line 149 of file fixedNormalInletOutletVelocityFvPatchVectorField.C.

References token::BEGIN_BLOCK, Foam::decrIndent(), token::END_BLOCK, Foam::endl(), Foam::incrIndent(), Foam::indent(), Foam::nl, Ostream::write(), fvPatchField< Type >::write(), Foam::writeEntry(), and Foam::writeKeyword().

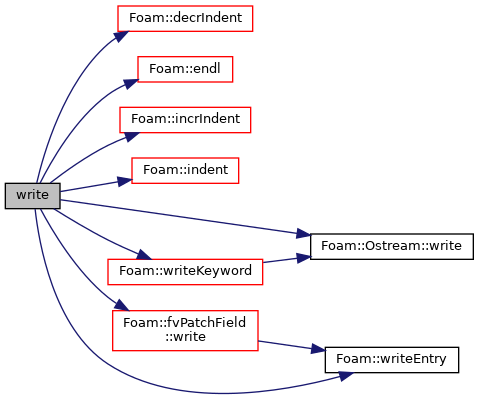

Here is the call graph for this function:

◆ operator=()

void operator= ( const fvPatchField< vector > & pvf )

virtual

Definition at line 168 of file fixedNormalInletOutletVelocityFvPatchVectorField.C.

References Foam::I, fvPatchField< Type >::operator=(), and Foam::transform().

Here is the call graph for this function:
