Base class for ensightPartCells and ensightPartFaces. More...

Inheritance diagram for ensightPart:

Collaboration diagram for ensightPart:

[legend]

Classes
class	localPoints
	Track the points used by the part and map global to local indices. More...

Public Member Functions
	TypeName ("ensightPart")
	Runtime type information. More...

	ensightPart ()
	Construct null. More...

	ensightPart (label partNumber, const string &partDescription)
	Construct empty part with number and description. More...

	ensightPart (label partNumber, const string &partDescription, const pointField &points)
	Construct part with number, description and points reference. More...

	ensightPart (const ensightPart &)
	Copy constructor. More...

	declareRunTimeSelectionTable (autoPtr, ensightPart, istream,(Istream &is),(is))

autoPtr< ensightPart >	clone () const
	Construct and return clone. More...

virtual	~ensightPart ()
	Destructor. More...

virtual const List< word > &	elementTypes () const

label	size () const
	Number of elements in this part. More...

bool	isCellData () const
	Represents cell data. More...

bool	isFaceData () const
	Represents face data. More...

label	number () const
	Part number. More...

const string &	name () const
	Part name or description. More...

label	materialId () const
	Material id. More...

void	name (const string &value)
	non-const access to part name or description More...

void	materialId (const label value)
	non-const access to material id More...

const labelListList &	elemLists () const
	Simple labelList with a name. More...

label	offset () const
	Offset for element ids. More...

void	renumber (const labelUList &)
	Renumber elements. More...

bool	writeSummary (Ostream &) const
	Write summary information about the object. More...

bool	writeData (Ostream &) const
	Write reconstruction information for the object. More...

virtual void	writeGeometry (ensightGeoFile &) const
	Write geometry. More...

void	writeGeometry (ensightGeoFile &, const pointField &) const
	Helper: write geometry given the pointField. More...

void	writeScalarField (ensightFile &, const List< scalar > &field, const bool perNode=false) const
	Write scalar field. More...

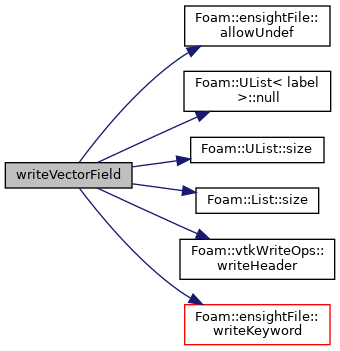

void	writeVectorField (ensightFile &, const List< scalar > &field0, const List< scalar > &field1, const List< scalar > &field2, const bool perNode=false) const
	Write vector field components. More...

template<class Type >
void	writeField (ensightFile &, const Field< Type > &, const bool perNode=false) const
	Write generalised field components. More...

void	operator= (const ensightPart &)=delete
	Disallow default bitwise assignment. More...

Static Public Member Functions
static autoPtr< ensightPart >	New (Istream &)
	Reconstruct part characteristics on freestore from Istream. More...

Protected Member Functions
void	reconstruct (Istream &)
	Reconstruct part characteristics (eg, element types) from Istream. More...

bool	isFieldDefined (const List< scalar > &) const
	Check for fully defined fields. More...

void	writeHeader (ensightFile &, bool withDescription=false) const
	Write the part header. More...

void	writeFieldList (ensightFile &os, const List< scalar > &field, const labelUList &idList) const
	Write a scalar field for idList. More...

virtual localPoints	calcLocalPoints () const
	Track points used. More...

virtual void	writeConnectivity (ensightGeoFile &, const word &key, const labelUList &idList, const labelUList &pointMap) const
	Write connectivities. More...

Protected Attributes
label	number_
	Part number. More...

string	name_
	Part name (or description) More...

labelListList	elemLists_
	Simple labelList with a name. More...

label	offset_
	Start offset for elemLists_. More...

label	size_
	Number of elements in this part. More...

bool	isCellData_
	Cell or face data. More...

label	matId_
	Material id (numeric) More...

const pointField &	points_
	pointField referenced More...

Friends
Ostream &	operator<< (Ostream &, const ensightPart &)
	Write data (reconstruction information) More...

ensightGeoFile &	operator<< (ensightGeoFile &, const ensightPart &)
	Write geometry. More...

Detailed Description

Base class for ensightPartCells and ensightPartFaces.

Source files

Definition at line 65 of file ensightPart.H.

Constructor & Destructor Documentation

◆ ensightPart() [1/4]

ensightPart ( )

Construct null.

Definition at line 66 of file ensightPart.C.

Referenced by ensightPart::clone().

Here is the caller graph for this function:

◆ ensightPart() [2/4]

ensightPart	(	label	partNumber,
		const string &	partDescription
	)

Construct empty part with number and description.

Definition at line 80 of file ensightPart.C.

◆ ensightPart() [3/4]

ensightPart	(	label	partNumber,
		const string &	partDescription,
		const pointField &	points
	)

Construct part with number, description and points reference.

Definition at line 97 of file ensightPart.C.

◆ ensightPart() [4/4]

ensightPart ( const ensightPart & part )

Copy constructor.

Definition at line 115 of file ensightPart.C.

◆ ~ensightPart()

~ensightPart ( )

virtual

Destructor.

Definition at line 155 of file ensightPart.C.

Member Function Documentation

◆ reconstruct()

void reconstruct ( Istream & is )

protected

Reconstruct part characteristics (eg, element types) from Istream.

A part reconstructed in this manner can be used when writing fields, but cannot be used to write a new geometry

Definition at line 101 of file ensightPartIO.C.

References IOstream::check(), dict, forAll, dictionary::lookup(), and dictionary::readIfPresent().

Referenced by ensightPartCells::ensightPartCells(), and ensightPartFaces::ensightPartFaces().

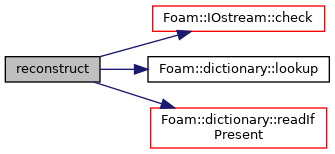

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isFieldDefined()

bool isFieldDefined ( const List< scalar > & field ) const

protected

Check for fully defined fields.

Definition at line 44 of file ensightPart.C.

References ensightPart::elemLists_, forAll, and List< T >::size().

Here is the call graph for this function:

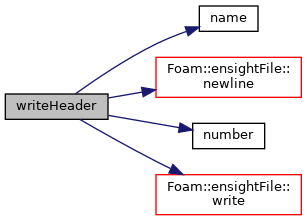

◆ writeHeader()

void writeHeader	(	ensightFile &	os,
		bool	withDescription = `false`
	)		const

protected

Write the part header.

Definition at line 35 of file ensightPartIO.C.

References ensightPart::name(), ensightFile::newline(), ensightPart::number(), and ensightFile::write().

Referenced by ensightPart::writeField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeFieldList()

void writeFieldList	(	ensightFile &	os,
		const List< scalar > &	field,
		const labelUList &	idList
	)		const

protected

Write a scalar field for idList.

A null reference for idList writes the perNode values

Definition at line 55 of file ensightPartIO.C.

References forAll, ensightFile::newline(), Foam::notNull(), List< T >::size(), ensightFile::write(), and ensightFile::writeUndef().

Referenced by ensightPart::writeField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ calcLocalPoints()

virtual localPoints calcLocalPoints ( ) const

inlineprotectedvirtual

Track points used.

Definition at line 153 of file ensightPart.H.

◆ writeConnectivity()

virtual void writeConnectivity	(	ensightGeoFile &	,
		const word &	key,
		const labelUList &	idList,
		const labelUList &	pointMap
	)		const

inlineprotectedvirtual

Write connectivities.

Definition at line 159 of file ensightPart.H.

◆ TypeName()

TypeName ( "ensightPart" )

Runtime type information.

◆ declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		ensightPart	,
		istream	,
		(Istream &is)	,
		(is)
	)

◆ clone()

autoPtr<ensightPart> clone ( ) const

inline

Construct and return clone.

Definition at line 210 of file ensightPart.H.

References ensightPart::ensightPart().

Here is the call graph for this function:

◆ New()

Foam::autoPtr< Foam::ensightPart > New ( Istream & is )

static

Reconstruct part characteristics on freestore from Istream.

See also: reconstruct

Definition at line 130 of file ensightPart.C.

References Foam::endl(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, and Foam::nl.

Here is the call graph for this function:

◆ elementTypes()

virtual const List<word>& elementTypes ( ) const

inlinevirtual

Reimplemented in ensightPartFaces, and ensightPartCells.

Definition at line 226 of file ensightPart.H.

Referenced by ensightPart::writeField().

Here is the caller graph for this function:

◆ size()

label size ( ) const

inline

Number of elements in this part.

Definition at line 235 of file ensightPart.H.

References ensightPart::size_.

Referenced by ensightPartFaces::classify(), and ensightPart::writeField().

Here is the caller graph for this function:

◆ isCellData()

bool isCellData ( ) const

inline

Represents cell data.

Definition at line 241 of file ensightPart.H.

References ensightPart::isCellData_.

◆ isFaceData()

bool isFaceData ( ) const

inline

Represents face data.

Definition at line 247 of file ensightPart.H.

References ensightPart::isCellData_.

◆ number()

label number ( ) const

inline

Part number.

Definition at line 253 of file ensightPart.H.

References ensightPart::number_.

Referenced by ensightPart::writeHeader().

Here is the caller graph for this function:

◆ name() [1/2]

const string& name ( ) const

inline

Part name or description.

Definition at line 259 of file ensightPart.H.

References ensightPart::name_.

Referenced by ensightPart::writeHeader().

Here is the caller graph for this function:

◆ materialId() [1/2]

label materialId ( ) const

inline

Material id.

Definition at line 265 of file ensightPart.H.

References ensightPart::matId_.

◆ name() [2/2]

void name ( const string & value )

inline

non-const access to part name or description

Definition at line 271 of file ensightPart.H.

References ensightPart::name_.

◆ materialId() [2/2]

void materialId ( const label value )

inline

non-const access to material id

Definition at line 277 of file ensightPart.H.

References ensightPart::matId_.

◆ elemLists()

const labelListList& elemLists ( ) const

inline

Simple labelList with a name.

Definition at line 283 of file ensightPart.H.

References ensightPart::elemLists_.

◆ offset()

label offset ( ) const

inline

Offset for element ids.

Definition at line 289 of file ensightPart.H.

References ensightPart::offset_.

◆ renumber()

void renumber ( const labelUList & origId )

Renumber elements.

Definition at line 161 of file ensightPart.C.

References forAll, Foam::inplaceRenumber(), and UList< T >::size().

Here is the call graph for this function:

◆ writeSummary()

bool writeSummary ( Ostream & os ) const

Write summary information about the object.

Definition at line 127 of file ensightPartIO.C.

References token::BEGIN_BLOCK, Foam::decrIndent(), token::END_BLOCK, Foam::endl(), Foam::incrIndent(), Foam::indent(), Foam::name(), Foam::nl, Foam::offset(), Foam::type(), and Foam::writeEntry().

Here is the call graph for this function:

◆ writeData()

bool writeData ( Ostream & os ) const

Write reconstruction information for the object.

Definition at line 144 of file ensightPartIO.C.

References token::BEGIN_BLOCK, Foam::decrIndent(), token::END_BLOCK, Foam::endl(), forAll, Foam::incrIndent(), Foam::indent(), Foam::name(), Foam::nl, Foam::offset(), Foam::type(), and Foam::writeEntry().

Here is the call graph for this function:

◆ writeGeometry() [1/2]

virtual void writeGeometry ( ensightGeoFile & ) const

inlinevirtual

Write geometry.

Reimplemented in ensightPartFaces, and ensightPartCells.

Definition at line 307 of file ensightPart.H.

Referenced by ensightPartCells::writeGeometry(), and ensightPartFaces::writeGeometry().

Here is the caller graph for this function:

◆ writeGeometry() [2/2]

void writeGeometry	(	ensightGeoFile &	os,
		const pointField &	points
	)		const

Helper: write geometry given the pointField.

Definition at line 168 of file ensightPartIO.C.

References Foam::component(), forAll, ensightPart::localPoints::list, VectorSpace< Form, Cmpt, Ncmpts >::nComponents, ensightFile::newline(), ensightPart::localPoints::nPoints, points, ensightFile::write(), Foam::vtkWriteOps::writeHeader(), and ensightGeoFile::writeKeyword().

Here is the call graph for this function:

◆ writeScalarField()

void writeScalarField	(	ensightFile &	os,
		const List< scalar > &	field,
		const bool	perNode = `false`
	)		const

Write scalar field.

optionally write data per node

Definition at line 216 of file ensightPartIO.C.

References ensightFile::allowUndef(), forAll, UList< label >::null(), UList< T >::size(), List< T >::size(), Foam::vtkWriteOps::writeHeader(), and ensightFile::writeKeyword().

Here is the call graph for this function:

◆ writeVectorField()

void writeVectorField	(	ensightFile &	os,
		const List< scalar > &	field0,
		const List< scalar > &	field1,
		const List< scalar > &	field2,
		const bool	perNode = `false`
	)		const

Write vector field components.

optionally write data per node

Definition at line 249 of file ensightPartIO.C.

References ensightFile::allowUndef(), forAll, UList< label >::null(), UList< T >::size(), List< T >::size(), Foam::vtkWriteOps::writeHeader(), and ensightFile::writeKeyword().

Here is the call graph for this function:

◆ writeField()

void writeField	(	ensightFile &	os,
		const Field< Type > &	field,
		const bool	perNode = `false`
	)		const

Write generalised field components.

optionally write data per node

Definition at line 34 of file ensightPartTemplates.C.

References Field< Type >::component(), ensightPart::elementTypes(), ensightPart::elemLists_, forAll, UList< label >::null(), UList< T >::size(), ensightPart::size(), List< T >::size(), ensightPart::writeFieldList(), ensightPart::writeHeader(), and ensightFile::writeKeyword().

Here is the call graph for this function:

◆ operator=()

void operator= ( const ensightPart & )

delete

Disallow default bitwise assignment.

Friends And Related Function Documentation

◆ operator<< [1/2]

Ostream& operator<<	(	Ostream &	,
		const ensightPart &
	)

friend

Write data (reconstruction information)

◆ operator<< [2/2]

ensightGeoFile& operator<<	(	ensightGeoFile &	,
		const ensightPart &
	)

friend

Write geometry.

Member Data Documentation

◆ number_

label number_

protected

Part number.

Definition at line 78 of file ensightPart.H.

Referenced by ensightPart::number().

◆ name_

string name_

protected

Part name (or description)

Definition at line 81 of file ensightPart.H.

Referenced by ensightPart::name().

◆ elemLists_

labelListList elemLists_

protected

Simple labelList with a name.

Definition at line 84 of file ensightPart.H.

Referenced by ensightPartFaces::classify(), ensightPart::elemLists(), ensightPart::isFieldDefined(), and ensightPart::writeField().

◆ offset_

label offset_

protected

Start offset for elemLists_.

Definition at line 87 of file ensightPart.H.

Referenced by ensightPartFaces::ensightPartFaces(), and ensightPart::offset().

◆ size_

label size_

protected

Number of elements in this part.

Definition at line 90 of file ensightPart.H.

Referenced by ensightPartFaces::classify(), ensightPartFaces::ensightPartFaces(), and ensightPart::size().

◆ isCellData_

bool isCellData_

protected

Cell or face data.

Definition at line 93 of file ensightPart.H.

Referenced by ensightPartFaces::ensightPartFaces(), ensightPart::isCellData(), and ensightPart::isFaceData().

◆ matId_

label matId_

protected

Material id (numeric)

Definition at line 96 of file ensightPart.H.

Referenced by ensightPart::materialId().

◆ points_

const pointField& points_

protected

pointField referenced

Definition at line 99 of file ensightPart.H.

The documentation for this class was generated from the following files:

src/sampling/sampledSet/writers/ensight/part/ensightPart.H
src/sampling/sampledSet/writers/ensight/part/ensightPart.C
src/sampling/sampledSet/writers/ensight/part/ensightPartIO.C
src/sampling/sampledSet/writers/ensight/part/ensightPartTemplates.C

Classes

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ ensightPart() [1/4]

◆ ensightPart() [2/4]

◆ ensightPart() [3/4]

◆ ensightPart() [4/4]

◆ ~ensightPart()

Member Function Documentation

◆ reconstruct()

◆ isFieldDefined()

◆ writeHeader()

◆ writeFieldList()

◆ calcLocalPoints()

◆ writeConnectivity()

◆ TypeName()

◆ declareRunTimeSelectionTable()

◆ clone()

◆ New()

◆ elementTypes()

◆ size()

◆ isCellData()

◆ isFaceData()

◆ number()

◆ name() [1/2]

◆ materialId() [1/2]

◆ name() [2/2]

◆ materialId() [2/2]

◆ elemLists()

◆ offset()

◆ renumber()

◆ writeSummary()

◆ writeData()

◆ writeGeometry() [1/2]

◆ writeGeometry() [2/2]

◆ writeScalarField()

◆ writeVectorField()

◆ writeField()

◆ operator=()

Friends And Related Function Documentation

◆ operator<< [1/2]

◆ operator<< [2/2]

Member Data Documentation

◆ number_

◆ name_

◆ elemLists_

◆ offset_

◆ size_

◆ isCellData_

◆ matId_

◆ points_
