A local coordinate rotation. More...

Inheritance diagram for cylindrical:

Collaboration diagram for cylindrical:

Public Member Functions
	TypeName ("cylindrical")
	Runtime type information. More...

	cylindrical (const vector &axis, const point &origin, const UList< vector > &points)
	Construct from components for list of points. More...

	cylindrical (const dictionary &)
	Construct from dictionary. More...

	cylindrical (const dictionary &, const UList< vector > &points)
	Construct from dictionary. More...

virtual autoPtr< coordinateRotation >	clone () const
	Return clone. More...

virtual	~cylindrical ()
	Destructor. More...

virtual void	updatePoints (const UList< vector > &points)
	Update the rotation for a list of points. More...

virtual const tensor &	R () const
	Return local-to-global transformation tensor. More...

virtual const vector	e1 () const
	Return local Cartesian x-axis in global coordinates. More...

virtual const vector	e2 () const
	Return local Cartesian y-axis in global coordinates. More...

virtual const vector	e3 () const
	Return local Cartesian z-axis in global coordinates. More...

virtual const vector	axis () const
	Return local Cartesian z-axis in global coordinates. More...

virtual bool	uniform () const
	Return if the rotation is uniform. More...

virtual vector	transform (const vector &v) const
	Transform vector using transformation tensor. More...

virtual tmp< vectorField >	transform (const vectorField &tf) const
	Transform vectorField using transformation tensor field. More...

virtual vector	transform (const vector &v, const label cmptI) const
	Transform vector using transformation tensor for component. More...

virtual vector	invTransform (const vector &v) const
	Inverse transform vector using transformation tensor. More...

virtual tmp< vectorField >	invTransform (const vectorField &vf) const
	Inverse transform vectorField using transformation tensor field. More...

virtual vector	invTransform (const vector &v, const label cmptI) const
	Inverse transform vector using transformation tensor for component. More...

virtual tensor	transform (const vector &p, const tensor &t) const
	Transform tensor using transformation tensorField. More...

virtual tmp< tensorField >	transform (const tensorField &tf) const
	Transform tensor field using transformation tensorField. More...

virtual symmTensor	transformDiagTensor (const vector &p, const vector &v) const
	Transform diagTensor masquerading as a vector using transformation. More...

virtual tmp< symmTensorField >	transformDiagTensor (const vectorField &vf) const
	Transform diagTensorField masquerading as a vectorField. More...

virtual void	write (Ostream &) const
	Write. More...

Public Member Functions inherited from coordinateRotation
	TypeName ("coordinateRotation")
	Runtime type information. More...

	declareRunTimeSelectionTable (autoPtr, coordinateRotation, dictionary,(const dictionary &dict),(dict))

	declareRunTimeSelectionTable (autoPtr, coordinateRotation, points,(const dictionary &dict, const UList< vector > &points),(dict, points))

virtual	~coordinateRotation ()
	Destructor. More...

Additional Inherited Members
Static Public Member Functions inherited from coordinateRotation
static autoPtr< coordinateRotation >	New (const dictionary &dict, const UList< vector > &points)
	Select constructed from dictionary and list of points. More...

static autoPtr< coordinateRotation >	New (const dictionary &dict)
	Select constructed from dictionary. More...

Protected Member Functions inherited from coordinateRotation
symmTensor	transformVectorDiagTensor (const tensor &, const vector &) const
	Transform the vector as if it is a diagonal tensor. More...

Detailed Description

A local coordinate rotation.

The rotational field can be created in two ways:

Each rotational tensor is defined with two vectors (dir and axis) where dir = point - origin and axis is the rotation axis. Per each point an axesRotation type of rotation is created (cylindrical coordinates). For example:
```
      cylindrical
      {
          type        localAxes;
          axis          (0 0 1);
      }
```
The rotational tensor field is provided at construction.

Source files

Definition at line 65 of file cylindrical.H.

Constructor & Destructor Documentation

◆ cylindrical() [1/3]

cylindrical	(	const vector &	axis,
		const point &	origin,
		const UList< vector > &	points
	)

Construct from components for list of points.

Definition at line 75 of file cylindrical.C.

References points.

Referenced by cylindrical::clone().

Here is the caller graph for this function:

◆ cylindrical() [2/3]

cylindrical ( const dictionary & dict )

Construct from dictionary.

Definition at line 90 of file cylindrical.C.

◆ cylindrical() [3/3]

cylindrical	(	const dictionary &	dict,
		const UList< vector > &	points
	)

Construct from dictionary.

Definition at line 103 of file cylindrical.C.

References points.

◆ ~cylindrical()

virtual ~cylindrical ( )

inlinevirtual

Destructor.

Definition at line 120 of file cylindrical.H.

Member Function Documentation

◆ TypeName()

TypeName ( "cylindrical" )

Runtime type information.

◆ clone()

virtual autoPtr<coordinateRotation> clone ( ) const

inlinevirtual

Return clone.

Implements coordinateRotation.

Definition at line 113 of file cylindrical.H.

References cylindrical::cylindrical().

Here is the call graph for this function:

◆ updatePoints()

void updatePoints ( const UList< vector > & points )

virtual

Update the rotation for a list of points.

Implements coordinateRotation.

Definition at line 117 of file cylindrical.C.

References forAll, points, Foam::R(), and List< T >::size().

Here is the call graph for this function:

◆ R()

virtual const tensor& R ( ) const

inlinevirtual

Return local-to-global transformation tensor.

Implements coordinateRotation.

Definition at line 130 of file cylindrical.H.

References NotImplemented, and VectorSpace< Form, Cmpt, Mrows *Ncols >::zero.

◆ e1()

virtual const vector e1 ( ) const

inlinevirtual

Return local Cartesian x-axis in global coordinates.

Implements coordinateRotation.

Definition at line 137 of file cylindrical.H.

References NotImplemented, and VectorSpace< Form, Cmpt, Ncmpts >::zero.

◆ e2()

virtual const vector e2 ( ) const

inlinevirtual

Return local Cartesian y-axis in global coordinates.

Implements coordinateRotation.

Definition at line 144 of file cylindrical.H.

References NotImplemented, and VectorSpace< Form, Cmpt, Ncmpts >::zero.

◆ e3()

virtual const vector e3 ( ) const

inlinevirtual

Return local Cartesian z-axis in global coordinates.

Implements coordinateRotation.

Definition at line 151 of file cylindrical.H.

◆ axis()

virtual const vector axis ( ) const

inlinevirtual

Return local Cartesian z-axis in global coordinates.

Definition at line 157 of file cylindrical.H.

◆ uniform()

virtual bool uniform ( ) const

inlinevirtual

Return if the rotation is uniform.

Reimplemented from coordinateRotation.

Definition at line 163 of file cylindrical.H.

◆ transform() [1/5]

Foam::vector transform ( const vector & v ) const

virtual

Transform vector using transformation tensor.

Implements coordinateRotation.

Definition at line 153 of file cylindrical.C.

References NotImplemented, and Foam::Zero.

◆ transform() [2/5]

Foam::tmp< Foam::vectorField > transform ( const vectorField & tf ) const

virtual

Transform vectorField using transformation tensor field.

Implements coordinateRotation.

Definition at line 137 of file cylindrical.C.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, and List< T >::size().

Here is the call graph for this function:

◆ transform() [3/5]

Foam::vector transform	(	const vector &	v,
		const label	cmptI
	)		const

virtual

Transform vector using transformation tensor for component.

Definition at line 160 of file cylindrical.C.

◆ invTransform() [1/3]

Foam::vector invTransform ( const vector & v ) const

virtual

Inverse transform vector using transformation tensor.

Implements coordinateRotation.

Definition at line 186 of file cylindrical.C.

References NotImplemented, and Foam::Zero.

◆ invTransform() [2/3]

Foam::tmp< Foam::vectorField > invTransform ( const vectorField & vf ) const

virtual

Inverse transform vectorField using transformation tensor field.

Implements coordinateRotation.

Definition at line 170 of file cylindrical.C.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, List< T >::size(), and Foam::T().

Here is the call graph for this function:

◆ invTransform() [3/3]

Foam::vector invTransform	(	const vector &	v,
		const label	cmptI
	)		const

virtual

Inverse transform vector using transformation tensor for component.

Definition at line 193 of file cylindrical.C.

References Foam::T().

Here is the call graph for this function:

◆ transform() [4/5]

Foam::tensor transform	(	const vector &	p,
		const tensor &	t
	)		const

virtual

Transform tensor using transformation tensorField.

Implements coordinateRotation.

Definition at line 218 of file cylindrical.C.

References Foam::R().

Here is the call graph for this function:

◆ transform() [5/5]

Foam::tmp< Foam::tensorField > transform ( const tensorField & tf ) const

virtual

Transform tensor field using transformation tensorField.

Implements coordinateRotation.

Definition at line 203 of file cylindrical.C.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, List< T >::size(), Foam::T(), and tf.

Here is the call graph for this function:

◆ transformDiagTensor() [1/2]

Foam::symmTensor transformDiagTensor	(	const vector &	p,
		const vector &	v
	)		const

virtual

Transform diagTensor masquerading as a vector using transformation.

tensor and return symmTensor

Implements coordinateRotation.

Definition at line 253 of file cylindrical.C.

References p, and Foam::R().

Here is the call graph for this function:

◆ transformDiagTensor() [2/2]

Foam::tmp< Foam::symmTensorField > transformDiagTensor ( const vectorField & vf ) const

virtual

Transform diagTensorField masquerading as a vectorField.

using transformation tensorField and return symmTensorField

Implements coordinateRotation.

Definition at line 229 of file cylindrical.C.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, fld(), forAll, Foam::R(), tmp< T >::ref(), and List< T >::size().

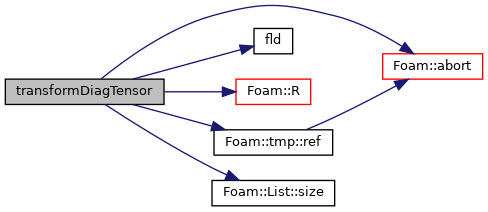

Here is the call graph for this function:

◆ write()

void write ( Ostream & os ) const

virtual

Write.

Implements coordinateRotation.

Definition at line 263 of file cylindrical.C.

References Foam::writeEntry().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/meshTools/coordinateSystems/coordinateRotation/cylindrical.H
src/meshTools/coordinateSystems/coordinateRotation/cylindrical.C
