From a set of input surface geometry files and a set of configuration parameters, writes out a blockMeshDict configuration file. The mesh consists of a single block, aligned with Cartesian axes. More...

Inheritance diagram for blockMeshCartesianConfiguration:

[legend]

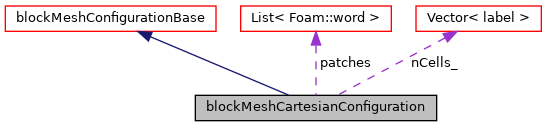

Collaboration diagram for blockMeshCartesianConfiguration:

[legend]

Public Member Functions
	blockMeshCartesianConfiguration (const fileName &name, const fileName &dir, const Time &time, const meshingSurfaceList &surfaces, const bool &boundsOpt, const Vector< label > &nCells, const label minDimCells, const label refineFactor, const HashTable< Pair< word >> &patchOpts, const bool clearBoundary)
	Construct from components. More...

	blockMeshCartesianConfiguration (const blockMeshCartesianConfiguration &)=delete
	Disallow default bitwise copy construction. More...

	~blockMeshCartesianConfiguration ()
	Destructor. More...

void	write ()
	Write the blockMeshDict. More...

void	operator= (const blockMeshCartesianConfiguration &)=delete
	Disallow default bitwise assignment. More...

Public Member Functions inherited from blockMeshConfigurationBase
	blockMeshConfigurationBase (const fileName &name, const fileName &dir, const Time &time, const meshingSurfaceList &surfaces, const HashTable< Pair< word >> &patchOpts)
	Construct from components. More...

	blockMeshConfigurationBase (const blockMeshConfigurationBase &)=delete
	Disallow default bitwise copy construction. More...

	~blockMeshConfigurationBase ()
	Destructor. More...

void	operator= (const blockMeshConfigurationBase &)=delete
	Disallow default bitwise assignment. More...

Public Member Functions inherited from caseFileConfiguration
	caseFileConfiguration (const fileName &name, const fileName &dir, const Time &time)
	Construct from components. More...

	caseFileConfiguration (const caseFileConfiguration &)=delete
	Disallow default bitwise copy construction. More...

	~caseFileConfiguration ()
	Destructor. More...

void	operator= (const caseFileConfiguration &)=delete
	Disallow default bitwise assignment. More...

Static Public Attributes
static const List< word >	patches
	Default patch names for the background mesh. More...

Protected Member Functions
void	calcBlockMeshDict (const bool &boundsOpt)
	Calculate the parameters for the blockMeshDict file. More...

void	writeBackgroundMesh ()
	Write backgroundMesh sub-dictionary. More...

void	writeDefaultPatch ()
	Write the defaultPatch entry. More...

void	writePatch (const word &name, const word &type, const string &face)
	Write a patch in the boundary sub-dictionary. More...

void	writeBoundary ()
	Write the boundary sub-dictionary. More...

void	writeVertices ()
	Write vertices list. More...

void	writeBlocks ()
	Write blocks sub-dictionary. More...

void	writeEdges ()
	Write edges list. More...

void	writeMergePatchPairs ()
	Write mergePatchPairs. More...

Protected Member Functions inherited from blockMeshConfigurationBase
void	roundBoundingBox (boundBox &bb, const scalar s)
	Round a bounding box by the rounding scale. More...

Pair< word >	readPatchOption (const word &option) const
	Parse the patch commandline options. More...

void	writeVertex (const word &x, const word &y, const word &z)
	Write a vertex entry in the vertices list. More...

Protected Member Functions inherited from caseFileConfiguration
void	beginDict (OFstream &os)
	Output stream to begin a new dictionary without name. More...

void	beginDict (OFstream &os, const word &name)
	Output stream to begin a new dictionary with name. More...

void	endDict (OFstream &os, bool newline=true)
	Output stream to end a dictionary. More...

void	beginList (OFstream &os)
	Output stream to begin a new list without name. More...

void	beginList (OFstream &os, const word &name)
	Output stream to begin a new list with name. More...

void	endList (OFstream &os, bool newline=true)
	Output stream to end a list. More...

Protected Attributes
Vector< label >	nCells_
	Number of cells in background mesh block. More...

const label	minDimCells_
	Number of cells in background mesh shortest direction. More...

const label	refineFactor_
	Refinement factor used to scale nCells. More...

const bool	clearBoundary_
	Clear the default patch entries for the background mesh. More...

Protected Attributes inherited from blockMeshConfigurationBase
boundBox	bb_
	Bounding box for the background mesh block. More...

HashTable< Pair< word > >	patchOpts_
	Optional settings for patch names and types in the background mesh. More...

Protected Attributes inherited from caseFileConfiguration
IOobject	dict_
	IOobject to write file headers. More...

OFstream	os_
	Output file stream to write file content. More...

Detailed Description

From a set of input surface geometry files and a set of configuration parameters, writes out a blockMeshDict configuration file. The mesh consists of a single block, aligned with Cartesian axes.

Source files

Definition at line 50 of file blockMeshCartesianConfiguration.H.

Constructor & Destructor Documentation

◆ blockMeshCartesianConfiguration() [1/2]

blockMeshCartesianConfiguration	(	const fileName &	name,
		const fileName &	dir,
		const Time &	time,
		const meshingSurfaceList &	surfaces,
		const bool &	boundsOpt,
		const Vector< label > &	nCells,
		const label	minDimCells,
		const label	refineFactor,
		const HashTable< Pair< word >> &	patchOpts,
		const bool	clearBoundary
	)

Construct from components.

◆ blockMeshCartesianConfiguration() [2/2]

blockMeshCartesianConfiguration ( const blockMeshCartesianConfiguration & )

delete

Disallow default bitwise copy construction.

◆ ~blockMeshCartesianConfiguration()

~blockMeshCartesianConfiguration ( )

Destructor.

Member Function Documentation

◆ calcBlockMeshDict()

void calcBlockMeshDict ( const bool & boundsOpt )

protected

Calculate the parameters for the blockMeshDict file.

◆ writeBackgroundMesh()

void writeBackgroundMesh ( )

protected

Write backgroundMesh sub-dictionary.

◆ writeDefaultPatch()

void writeDefaultPatch ( )

protected

Write the defaultPatch entry.

◆ writePatch()

void writePatch	(	const word &	name,
		const word &	type,
		const string &	face
	)

protected

Write a patch in the boundary sub-dictionary.

◆ writeBoundary()

void writeBoundary ( )

protected

Write the boundary sub-dictionary.

◆ writeVertices()

void writeVertices ( )

protected

Write vertices list.

◆ writeBlocks()

void writeBlocks ( )

protected

Write blocks sub-dictionary.

◆ writeEdges()

void writeEdges ( )

protected

Write edges list.

◆ writeMergePatchPairs()

void writeMergePatchPairs ( )

protected

Write mergePatchPairs.

◆ write()

void write ( )

Write the blockMeshDict.

◆ operator=()

void operator= ( const blockMeshCartesianConfiguration & )

delete

Disallow default bitwise assignment.

Member Data Documentation

◆ nCells_

Vector<label> nCells_

protected

Number of cells in background mesh block.

Definition at line 59 of file blockMeshCartesianConfiguration.H.

◆ minDimCells_

const label minDimCells_

protected

Number of cells in background mesh shortest direction.

Definition at line 62 of file blockMeshCartesianConfiguration.H.

◆ refineFactor_

const label refineFactor_

protected

Refinement factor used to scale nCells.

Definition at line 65 of file blockMeshCartesianConfiguration.H.

◆ clearBoundary_

const bool clearBoundary_

protected

Clear the default patch entries for the background mesh.

Definition at line 68 of file blockMeshCartesianConfiguration.H.

◆ patches

const List<word> patches

static

Default patch names for the background mesh.

Definition at line 111 of file blockMeshCartesianConfiguration.H.

The documentation for this class was generated from the following file:

applications/utilities/preProcessing/snappyHexMeshConfig/blockMeshCartesianConfiguration.H
