This function calculates the fluid forces and moments at a number of section-planes through a given set of patches. It writes the result into a log file. More...

Inheritance diagram for sectionalForceProbes:

[legend]

Collaboration diagram for sectionalForceProbes:

[legend]

Public Member Functions
	TypeName ("sectionalForceProbes")
	Runtime type information. More...

	sectionalForceProbes (const word &name, const Time &runTime, const dictionary &dict)
	Construct from Time and dictionary. More...

	sectionalForceProbes (const sectionalForceProbes &)=delete
	Disallow default bitwise copy construction. More...

virtual	~sectionalForceProbes ()
	Destructor. More...

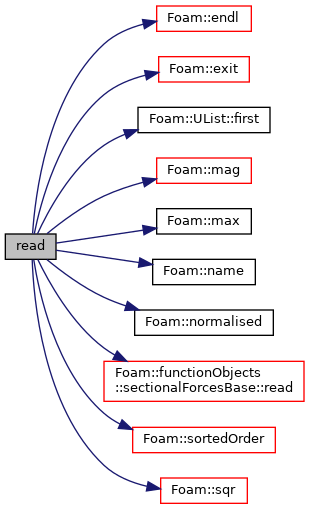

virtual bool	read (const dictionary &)
	Read the sectionalForceProbes data. More...

virtual bool	write ()
	Write the sectionalForceProbes. More...

void	operator= (const sectionalForceProbes &)=delete
	Disallow default bitwise assignment. More...

Public Member Functions inherited from sectionalForcesBase
	TypeName ("sectionalForcesBase")
	Runtime type information. More...

	sectionalForcesBase (const word &name, const Time &runTime, const dictionary &dict)
	Construct from Time and dictionary. More...

	sectionalForcesBase (const sectionalForcesBase &)=delete
	Disallow default bitwise copy construction. More...

virtual	~sectionalForcesBase ()
	Destructor. More...

virtual wordList	fields () const
	Return the list of fields required. More...

virtual bool	execute ()
	Execute, currently does nothing. More...

virtual bool	end ()
	Execute at the final time-loop, currently does nothing. More...

virtual void	movePoints (const polyMesh &)
	Update for mesh point-motion. More...

virtual void	topoChange (const polyTopoChangeMap &)
	Update topology using the given map. More...

virtual void	mapMesh (const polyMeshMap &)
	Update from another mesh using the given map. More...

virtual void	distribute (const polyDistributionMap &)
	Redistribute or update using the given distribution map. More...

void	operator= (const sectionalForcesBase &)=delete
	Disallow default bitwise assignment. More...

template<class Type >
Foam::tmp< Foam::SurfaceField< Type > >	timesAlpha (const tmp< SurfaceField< Type >> psi) const

template<class Type >
Foam::tmp< Foam::Field< Type > >	timesAlpha (const tmp< Field< Type >> psi, const label patchi) const

template<class Type >
Foam::tmp< Foam::SurfaceField< Type > >	timesRho (const tmp< SurfaceField< Type >> psi) const

template<class Type >
Foam::tmp< Foam::SurfaceField< Type > >	timesAlphaRho (const tmp< SurfaceField< Type >> psi) const

Public Member Functions inherited from fvMeshFunctionObject
	TypeName ("fvMeshFunctionObject")
	Runtime type information. More...

	fvMeshFunctionObject (const word &name, const Time &runTime, const dictionary &dict)
	Construct from Time and dictionary. More...

	fvMeshFunctionObject (const word &name, const objectRegistry &obr)
	Construct from the region objectRegistry. More...

	fvMeshFunctionObject (const fvMeshFunctionObject &)=delete
	Disallow default bitwise copy construction. More...

virtual	~fvMeshFunctionObject ()
	Destructor. More...

const fvMesh &	mesh () const
	Return a reference to the mesh. More...

void	operator= (const fvMeshFunctionObject &)=delete
	Disallow default bitwise assignment. More...

Public Member Functions inherited from regionFunctionObject
	TypeName ("regionFunctionObject")
	Runtime type information. More...

	regionFunctionObject (const word &name, const Time &runTime, const dictionary &dict)
	Construct from Time and dictionary. More...

	regionFunctionObject (const word &name, const objectRegistry &obr)
	Construct from the region objectRegistry. More...

	regionFunctionObject (const regionFunctionObject &)=delete
	Disallow default bitwise copy construction. More...

virtual	~regionFunctionObject ()
	Destructor. More...

void	operator= (const regionFunctionObject &)=delete
	Disallow default bitwise assignment. More...

Public Member Functions inherited from objectRegistryFunctionObject
	TypeName ("objectRegistryFunctionObject")
	Runtime type information. More...

	objectRegistryFunctionObject (const word &name, const objectRegistry &obr, const dictionary &dict)
	Construct from an objectRegistry and dictionary. More...

	objectRegistryFunctionObject (const word &name, const objectRegistry &obr)
	Construct from an objectRegistry. More...

	objectRegistryFunctionObject (const objectRegistryFunctionObject &)=delete
	Disallow default bitwise copy construction. More...

virtual	~objectRegistryFunctionObject ()
	Destructor. More...

void	operator= (const objectRegistryFunctionObject &)=delete
	Disallow default bitwise assignment. More...

Public Member Functions inherited from functionObject
	ClassName ("functionObject")

virtual const word &	type () const =0
	Runtime type information. More...

	declareRunTimeSelectionTable (autoPtr, functionObject, dictionary,(const word &name, const Time &runTime, const dictionary &dict),(name, runTime, dict))

	functionObject (const word &name, const Time &runTime)
	Construct from components. More...

	functionObject (const word &name, const Time &runTime, const dictionary &dict)
	Construct from dictionary. More...

autoPtr< functionObject >	clone () const
	Return clone. More...

	functionObject (const functionObject &)=delete
	Disallow default bitwise copy construction. More...

virtual	~functionObject ()
	Destructor. More...

const word &	name () const
	Return the name of this functionObject. More...

virtual bool	executeAtStart () const
	Return true if the functionObject should be executed at the start. More...

virtual scalar	timeToNextAction ()
	Called by Time::adjustTimeStep(). Allows the functionObject to. More...

virtual scalar	maxDeltaT () const
	Return the maximum time-step for stable operation. More...

void	operator= (const functionObject &)=delete
	Disallow default bitwise assignment. More...

Public Member Functions inherited from logFiles
	logFiles (const objectRegistry &obr, const word &prefix)
	Construct from objectRegistry and prefix. More...

	logFiles (const logFiles &)=delete
	Disallow default bitwise copy construction. More...

virtual	~logFiles ()
	Destructor. More...

const wordList &	toc () const
	Return the list of log file names. More...

const wordList &	names () const
	Return the list of log file names. More...

PtrList< OFstream > &	files ()
	Return access to the files. More...

OFstream &	file ()
	Return access to the file (if only 1) More...

OFstream &	file (const label i)
	Return file 'i'. More...

void	operator= (const logFiles &)=delete
	Disallow default bitwise assignment. More...

Public Member Functions inherited from writeFile
	writeFile (const objectRegistry &obr, const word &prefix)
	Construct from objectRegistry and prefix. More...

	writeFile (const writeFile &)=delete
	Disallow default bitwise copy construction. More...

	~writeFile ()
	Destructor. More...

void	initStream (Ostream &os) const
	Initialise the output stream for writing. More...

fileName	baseFileDir () const
	Return the base directory for output. More...

fileName	baseTimeDir () const
	Return the base directory for the current time value. More...

Omanip< int >	valueWidth (const label offset=0) const
	Return the value width when writing to stream with optional offset. More...

void	writeCommented (Ostream &os, const string &str) const
	Write a commented string to stream. More...

void	writeTabbed (Ostream &os, const string &str) const
	Write a tabbed string to stream. More...

void	writeHeader (Ostream &os, const string &str) const
	Write a commented header to stream. More...

void	writeTime (Ostream &os) const
	Write the current time to stream. More...

template<class Type >
void	writeHeaderValue (Ostream &os, const string &property, const Type &value) const
	Write a (commented) header property and value pair. More...

label	charWidth () const
	Return width of character stream output. More...

void	operator= (const writeFile &)=delete
	Disallow default bitwise assignment. More...

Protected Member Functions
virtual vector	normal () const
	Return the normal to the section planes. More...

virtual point	origin () const
	Return the origin of the plot. More...

virtual tmp< scalarField >	distances () const
	Return the distances from the origin to the section planes. More...

virtual void	writeFileHeader (const label i=0)
	Output file header information. More...

Protected Member Functions inherited from sectionalForcesBase
virtual void	clear ()
	Clear the cached weights. More...

const indirectPrimitivePatch &	patch () const
	Access the primitive patch. More...

void	clearPatch ()
	Clear the patch. More...

void	clearPatchGeom ()
	Clear the patch geometry. More...

tmp< scalarField >	patchPointDistances () const
	Return the distance from the origin to the patch points. More...

const List< patchCutPlot::weight > &	weights () const
	Access the weights. More...

fileName	outputPath () const
	Return the output path. More...

void	addFluid (vectorField &force, vectorField &moment) const
	Calculate the forces and moments at the cuts. More...

Protected Member Functions inherited from objectRegistryFunctionObject
template<class ObjectType >
bool	foundObject (const word &fieldName) const
	Find field in the objectRegistry. More...

template<class ObjectType >
void	cannotFindObject (const word &fieldName)
	Prints a warning message that fieldName cannot be found. More...

void	cannotFindObject (const word &fieldName)
	Prints a warning message that fieldName cannot be found. More...

void	cannotFindObjects (const wordList &fieldNames)
	Prints a warning message that fieldNames cannot be found. More...

template<class ObjectType >
const ObjectType &	lookupObject (const word &fieldName) const
	Lookup object from the objectRegistry. More...

template<class ObjectType >
ObjectType &	lookupObjectRef (const word &fieldName)
	Lookup non-const object reference from the objectRegistry. More...

template<class ObjectType >
ObjectType &	store (const tmp< ObjectType > &tfield)
	Store the given field in the objectRegistry. More...

template<class ObjectType >
ObjectType &	store (const word &fieldName, const tmp< ObjectType > &tfield, bool cacheable=false)
	Store the given field in the objectRegistry under the given name. More...

bool	writeObject (const word &fieldName)
	Write field if present in objectRegistry. More...

bool	clearObject (const word &fieldName)
	Clear field from the objectRegistry if present. More...

Protected Member Functions inherited from logFiles
virtual void	createFiles ()
	Create the output file. More...

virtual void	resetNames (const wordList &names)
	Reset the list of names from a wordList. More...

virtual void	resetName (const word &name)
	Reset the list of names to a single name entry. More...

Additional Inherited Members
Static Public Member Functions inherited from functionObject
static autoPtr< functionObject >	New (const word &name, const Time &, const dictionary &)
	Select from dictionary, based on its "type" entry. More...

Public Attributes inherited from functionObject
Switch	log
	Switch write log to Info. More...

Switch	executeAtStart_
	Switch execute at start time. More...

Static Public Attributes inherited from functionObject
static bool	postProcess
	Global post-processing mode switch. More...

Static Public Attributes inherited from writeFile
static const word	outputPrefix
	Directory prefix. More...

static label	addChars = 8
	Additional characters for writing. More...

Protected Attributes inherited from fvMeshFunctionObject
const fvMesh &	mesh_
	Reference to the fvMesh. More...

Protected Attributes inherited from objectRegistryFunctionObject
const objectRegistry &	obr_
	Reference to the objectRegistry. More...

Protected Attributes inherited from functionObject
const Time &	time_
	Reference to time. More...

Protected Attributes inherited from logFiles
wordList	names_
	File names. More...

PtrList< OFstream >	filePtrs_
	File pointer. More...

Protected Attributes inherited from writeFile
const objectRegistry &	fileObr_
	Reference to the region objectRegistry. More...

const word	prefix_
	Prefix. More...

Detailed Description

This function calculates the fluid forces and moments at a number of section-planes through a given set of patches. It writes the result into a log file.

The cut-planes are defined by a single normal and a number of points. Forces and moments are calculated on the side of the planes to which the normal points. If the "other" side also needs to be generated then the function can be executed with the normal reversed.

Note that this function only generates the contribution from the fluid to the sectional forces and moments in the object. To compute the complete sectional force would require supporting and/or dynamic forces to be included also.

Example of function object specification:

sectionalForceProbes1
{
    type            sectionalForceProbes;
    libs            ("libforces.so");
    patches         (hull);
    points
    (
        (-0.8 0 0)
        ( 0   0 0)
        ( 0.8 0 0)
    );
    normal          (1 0 0);
}

Usage

Property	Description	Required	Default value
`type`	Type name: sectionalForceProbes	yes
`patches`	Patches included in the forces calculation	yes
`points`	Points in the cut-planes	yes
`normal`	Normal to the cut-planes	yes
`p`	Pressure field name	no	p
`U`	Velocity field name	no	U
`rho`	Density field name	no	rho
`phase`	Phase name for phase-fraction	no
`rhoRef`	Reference density	if incompressible
`pRef`	Reference pressure	no	0
