This function calculates the fluid forces and moments at a series of section-planes through a given set of patches. It writes the result into a graph which can be used to construct part of a shear force and bending moment diagram. Points in the graph are graded to approximately match the resolution of the mesh. More...

Inheritance diagram for sectionalForceGraph:

[legend]

Collaboration diagram for sectionalForceGraph:

[legend]

Public Member Functions
	TypeName ("sectionalForceGraph")
	Runtime type information. More...

	sectionalForceGraph (const word &name, const Time &runTime, const dictionary &dict)
	Construct from Time and dictionary. More...

	sectionalForceGraph (const sectionalForceGraph &)=delete
	Disallow default bitwise copy construction. More...

virtual	~sectionalForceGraph ()
	Destructor. More...

virtual bool	read (const dictionary &)
	Read the sectionalForceGraph data. More...

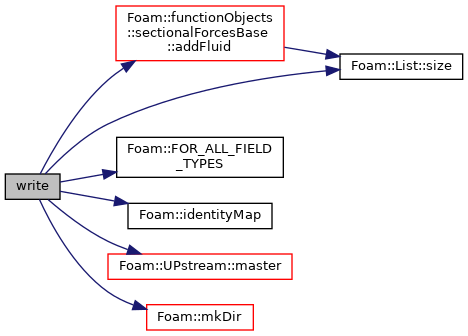

virtual bool	write ()
	Write the sectionalForceGraph. More...

void	operator= (const sectionalForceGraph &)=delete
	Disallow default bitwise assignment. More...

Public Member Functions inherited from sectionalForcesBase
	TypeName ("sectionalForcesBase")
	Runtime type information. More...

	sectionalForcesBase (const word &name, const Time &runTime, const dictionary &dict)
	Construct from Time and dictionary. More...

	sectionalForcesBase (const sectionalForcesBase &)=delete
	Disallow default bitwise copy construction. More...

virtual	~sectionalForcesBase ()
	Destructor. More...

virtual wordList	fields () const
	Return the list of fields required. More...

virtual bool	execute ()
	Execute, currently does nothing. More...

virtual bool	end ()
	Execute at the final time-loop, currently does nothing. More...

virtual void	movePoints (const polyMesh &)
	Update for mesh point-motion. More...

virtual void	topoChange (const polyTopoChangeMap &)
	Update topology using the given map. More...

virtual void	mapMesh (const polyMeshMap &)
	Update from another mesh using the given map. More...

virtual void	distribute (const polyDistributionMap &)
	Redistribute or update using the given distribution map. More...

void	operator= (const sectionalForcesBase &)=delete
	Disallow default bitwise assignment. More...

template<class Type >
Foam::tmp< Foam::SurfaceField< Type > >	timesAlpha (const tmp< SurfaceField< Type >> psi) const

template<class Type >
Foam::tmp< Foam::Field< Type > >	timesAlpha (const tmp< Field< Type >> psi, const label patchi) const

template<class Type >
Foam::tmp< Foam::SurfaceField< Type > >	timesRho (const tmp< SurfaceField< Type >> psi) const

template<class Type >
Foam::tmp< Foam::SurfaceField< Type > >	timesAlphaRho (const tmp< SurfaceField< Type >> psi) const

Public Member Functions inherited from fvMeshFunctionObject
	TypeName ("fvMeshFunctionObject")
	Runtime type information. More...

	fvMeshFunctionObject (const word &name, const Time &runTime, const dictionary &dict)
	Construct from Time and dictionary. More...

	fvMeshFunctionObject (const word &name, const objectRegistry &obr)
	Construct from the region objectRegistry. More...

	fvMeshFunctionObject (const fvMeshFunctionObject &)=delete
	Disallow default bitwise copy construction. More...

virtual	~fvMeshFunctionObject ()
	Destructor. More...

const fvMesh &	mesh () const
	Return a reference to the mesh. More...

void	operator= (const fvMeshFunctionObject &)=delete
	Disallow default bitwise assignment. More...

Public Member Functions inherited from regionFunctionObject
	TypeName ("regionFunctionObject")
	Runtime type information. More...

	regionFunctionObject (const word &name, const Time &runTime, const dictionary &dict)
	Construct from Time and dictionary. More...

	regionFunctionObject (const word &name, const objectRegistry &obr)
	Construct from the region objectRegistry. More...

	regionFunctionObject (const regionFunctionObject &)=delete
	Disallow default bitwise copy construction. More...

virtual	~regionFunctionObject ()
	Destructor. More...

void	operator= (const regionFunctionObject &)=delete
	Disallow default bitwise assignment. More...

Public Member Functions inherited from objectRegistryFunctionObject
	TypeName ("objectRegistryFunctionObject")
	Runtime type information. More...

	objectRegistryFunctionObject (const word &name, const objectRegistry &obr, const dictionary &dict)
	Construct from an objectRegistry and dictionary. More...

	objectRegistryFunctionObject (const word &name, const objectRegistry &obr)
	Construct from an objectRegistry. More...

	objectRegistryFunctionObject (const objectRegistryFunctionObject &)=delete
	Disallow default bitwise copy construction. More...

virtual	~objectRegistryFunctionObject ()
	Destructor. More...

void	operator= (const objectRegistryFunctionObject &)=delete
	Disallow default bitwise assignment. More...

Public Member Functions inherited from functionObject
	ClassName ("functionObject")

virtual const word &	type () const =0
	Runtime type information. More...

	declareRunTimeSelectionTable (autoPtr, functionObject, dictionary,(const word &name, const Time &runTime, const dictionary &dict),(name, runTime, dict))

	functionObject (const word &name, const Time &runTime)
	Construct from components. More...

	functionObject (const word &name, const Time &runTime, const dictionary &dict)
	Construct from dictionary. More...

autoPtr< functionObject >	clone () const
	Return clone. More...

	functionObject (const functionObject &)=delete
	Disallow default bitwise copy construction. More...

virtual	~functionObject ()
	Destructor. More...

const word &	name () const
	Return the name of this functionObject. More...

virtual bool	executeAtStart () const
	Return true if the functionObject should be executed at the start. More...

virtual scalar	timeToNextAction ()
	Called by Time::adjustTimeStep(). Allows the functionObject to. More...

virtual scalar	maxDeltaT () const
	Return the maximum time-step for stable operation. More...

void	operator= (const functionObject &)=delete
	Disallow default bitwise assignment. More...

Protected Member Functions
virtual vector	normal () const
	Return the normal to the section planes. More...

virtual point	origin () const
	Return the origin of the plot. More...

virtual tmp< scalarField >	distances () const
	Return the distances from the origin to the section planes. More...

Protected Member Functions inherited from sectionalForcesBase
const indirectPrimitivePatch &	patch () const
	Access the primitive patch. More...

void	clearPatch ()
	Clear the patch. More...

void	clearPatchGeom ()
	Clear the patch geometry. More...

tmp< scalarField >	patchPointDistances () const
	Return the distance from the origin to the patch points. More...

const List< patchCutPlot::weight > &	weights () const
	Access the weights. More...

fileName	outputPath () const
	Return the output path. More...

void	addFluid (vectorField &force, vectorField &moment) const
	Calculate the forces and moments at the cuts. More...

Protected Member Functions inherited from objectRegistryFunctionObject
template<class ObjectType >
bool	foundObject (const word &fieldName) const
	Find field in the objectRegistry. More...

template<class ObjectType >
void	cannotFindObject (const word &fieldName)
	Prints a warning message that fieldName cannot be found. More...

void	cannotFindObject (const word &fieldName)
	Prints a warning message that fieldName cannot be found. More...

void	cannotFindObjects (const wordList &fieldNames)
	Prints a warning message that fieldNames cannot be found. More...

template<class ObjectType >
const ObjectType &	lookupObject (const word &fieldName) const
	Lookup object from the objectRegistry. More...

template<class ObjectType >
ObjectType &	lookupObjectRef (const word &fieldName)
	Lookup non-const object reference from the objectRegistry. More...

template<class ObjectType >
ObjectType &	store (const tmp< ObjectType > &tfield)
	Store the given field in the objectRegistry. More...

template<class ObjectType >
ObjectType &	store (const word &fieldName, const tmp< ObjectType > &tfield, bool cacheable=false)
	Store the given field in the objectRegistry under the given name. More...

bool	writeObject (const word &fieldName)
	Write field if present in objectRegistry. More...

bool	clearObject (const word &fieldName)
	Clear field from the objectRegistry if present. More...

Additional Inherited Members
Static Public Member Functions inherited from functionObject
static autoPtr< functionObject >	New (const word &name, const Time &, const dictionary &)
	Select from dictionary, based on its "type" entry. More...

Public Attributes inherited from functionObject
Switch	log
	Switch write log to Info. More...

Switch	executeAtStart_
	Switch execute at start time. More...

Static Public Attributes inherited from functionObject
static bool	postProcess
	Global post-processing mode switch. More...

Protected Attributes inherited from fvMeshFunctionObject
const fvMesh &	mesh_
	Reference to the fvMesh. More...

Protected Attributes inherited from objectRegistryFunctionObject
const objectRegistry &	obr_
	Reference to the objectRegistry. More...

Protected Attributes inherited from functionObject
const Time &	time_
	Reference to time. More...

Detailed Description

This function calculates the fluid forces and moments at a series of section-planes through a given set of patches. It writes the result into a graph which can be used to construct part of a shear force and bending moment diagram. Points in the graph are graded to approximately match the resolution of the mesh.

The cut-planes are defined by a normal, and the line of the graph is defined by an origin and extends in the direction of the normal. Forces and moments are calculated on the side of the planes to which the normal points. If the "other" side also needs to be generated then the function can be executed with the normal reversed.

Note that to construct full shear force and bending moment diagrams would require supporting and/or dynamic forces to be included also. This function only generates the contribution from the surrounding fluid.

Example of function object specification:

sectionalForceGraph1
{
    type            sectionalForceGraph;
    libs            ("libforces.so");
    patches         (hull);
    origin          (0 0 0);
    normal          (1 0 0);
    nPoints         20;
    axis            x;
    setFormat       raw;
}

Usage

Property	Description	Required	Default value
`type`	Type name: sectionalForceGraph	yes
`patches`	Patches included in the forces calculation	yes
`origin`	Origin of the plot	yes
`normal`	Normal to the section planes	yes
`nPoints`	Number of points in the plot	yes
`axis`	Component of the position to plot against	yes
`setFormat`	Graph output format	yes
`p`	Pressure field name	no	p
`U`	Velocity field name	no	U
`rho`	Density field name	no	rho
`phase`	Phase name for phase-fraction	no
`rhoRef`	Reference density	if incompressible
`pRef`	Reference pressure	no	0
